Svc::FileDispatcher

Component to dispatch delivered files to various services. The user passes in a table that maps file extensions to numbered output ports represented by a user's own version of the enumeration in the configuration FileDispatcherCfg.fpp file. The user then connects the components that process the files to the output ports.

Requirements

Add requirements in the chart below

Name	Description	Rationale	Validation
FPRIME-FDISP-001	File dispatcher will provide a way to dispatch files to other components	Need to have a way to supply a file name for a newly transferred file	Unit Test/System Test
FPRIME-FDISP-002	File dispatcher will provide user configuration to map file types to output ports	Projects will want to customize the dispatching types	Unit Test/System Test
FPRIME-FDISP-003	File dispatcher will dispatch to specified output ports based on the supplied table	Projects will want to connect the dispatch types to components for processing new files	Unit Test/System Test

Usage Examples

Typical Usage

Svc::FileUplink is typically connected to FileDispatcher to process files that have been uplinked to the system. The user should create a configuration table that maps file extensions to output ports and supply it to the FileDispatcher component during initialization.

Configuration Table Structure

The user should instantiate an instance of FileDispatcherTable and supply it to the configure() function during initialization. The fields should be filled in as follows:

Field	Value	Notes
numEntries	Should be > 0 and <= Svc::FileDispatcherCfg::FILE_DISPATCHER_MAX_TABLE_SIZE	Values outside this range will cause an assert
entries	An array of file extension to port mappings	Number populated should match numEntries

The user should configure each entry in the entries array in the range covered by numEntries.

The fields should be filled as follows:

Field	Value	Notes
fileExt	The file extension or suffix to detect in the file name and route. The same extension/suffix can be used multiple times and be routed to different ports	Must be non-zero in length, or it will cause an assert
port	The outgoing port number must be a member of the FileDispatchPort or it will cause an assert
enabled	A boolean that indicates if the routing is initially enabled or not	Can be changed by ENABLE_DISPATCH command

Diagrams

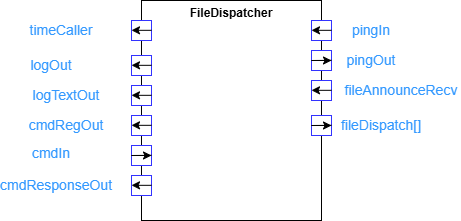

Class Diagram

Port Descriptions

Name	Description
fileAnnounceRecv	Input port that receives file name of new file
fileDispatch	Array of output ports that dispatch a new files based on a user supplied table
pingIn	Input port for Health pinging
pingOut	Output port for returning Health pings

Component States

No state machines

Parameters

No parameters

Commands

Name	Description
ENABLE_DISPATCH	Enables or disables a particular dispatch type

Events

Name	Description
FileDispatchState	Sent when a dispatch type is enabled or disabled
FileDispatched	Sent when a dispatch type is matched and dispatched

Telemetry

No telemetry

Unit Tests

Name	Description	Output	Coverage
dispatchTest	Tests dispatches of files	---	---
dispatchAllDisabledTest	Tests dispatches of files with all file types initially disabled	---	---
dispatchAllCmdDisabledTest	Tests dispatches of files with all file types initially enabled, but then disabled by command	---	---
dispatchAllCmdEnabledTest	Tests dispatches of files with all file types initially disabled, but then enabled by command	---	---
dispatchNotFullConfigTest	Tests dispatches of files with a table with less entries than output ports	---	---
dispatchPingTest	Tests ping returns	---	---

Change Log

Date	Description
12/10/2025	Initial Draft
