Svc::FileWorker

Svc::FileWorker is an active F' component used for writing and reading files on the filesystem. Other components needing to read or write files may use this component to perform large/slow file operations without missing their deadlines.

Requirements

Name	Description	Validation
FileWorker-001	FileWorker shall provide an async interface to read contents from a file and return the data in a client-provided buffer	Unit Test
FileWorker-002	FileWorker shall provide an interface to write contents to a file passed in from a client-provided buffer	Unit Test
FileWorker-003	FileWorker shall handle receiving read-done signals while in improper state	Unit Test
FileWorker-004	FileWorker shall handle cancel for reads	Unit Test

Diagrams

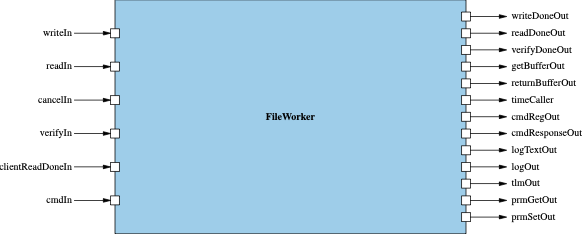

FileWorker component diagram

States

State	Description
IDLE	FileWorker is ready to accept requests for transfer
READING	In the read process
WRITING	In the write process

Ports

Kind	Port Name	Port Type	Usage
async input	`writeIn`	`Svc.FileWrite`	Initiates a file write
output	`writeDoneOut`	`Svc.SignalDone`	File write has completed
async input	`readIn`	`Svc.FileRead`	Initiates a file read
output	`readDoneOut`	`Svc.SignalDone`	File read has completed
guarded input	`cancelIn`	`Svc.CancelStatus`	Cancels a current operation
async input	`verifyIn`	`Svc.VerifyStatus`	Initiates a verification of a file against an expected CRC checksum
output	`verifyDoneOut`	`Svc.SignalDone`	File verification results

Events

Event Name	Severity	Description	Throttle	Arguments
Event Name	Severity	Description	Throttle	Name	Type	Description
`NotInIdle`	warning high	"Not in IDLE state, currently in state: {}"	2	`currState`	`U32`
`CrcFailed`	warning high	"Failed CRC check with {} status"	2	`crcStat`	`U32`
`CrcVerificationError`	warning low	"Failed to verify file. Expected CRC {}. Actual CRC {}"		`crcExp`	`U32`
`CrcVerificationError`	warning low	"Failed to verify file. Expected CRC {}. Actual CRC {}"		`crcCalculated`	`U32`
`ReadFailedFileSize`	warning high	"Failed to get filesize with stat {} in read handler"	2	`fsStat`	`U32`
`OpenFileError`	warning high	"Failed to open file {} with stat {}"	2	`fileName`	`string`
`OpenFileError`	warning high	"Failed to open file {} with stat {}"	2	`size FileNameStringSize fsStat`	`U32`
`ReadBegin`	activity low	"Reading {} bytes from {}"		`fileSize`	`FwSizeType`
`ReadBegin`	activity low	"Reading {} bytes from {}"		`fileName`	`string`
`ReadCompleted`	activity low	"Finished reading {} bytes from {}"		`fileSize`	`FwSizeType`
`ReadCompleted`	activity low	"Finished reading {} bytes from {}"		`fileName`	`string`
`ReadError`	warning high	"Failed after {} of {} bytes read to {}"		`bytesRead`	`FwSizeType`
				`readSize`	`FwSizeType`
				`fileName`	`string`
`ReadAborted`	warning low	"Aborted after {} of {} bytes read to {}"		`bytesRead`	`FwSizeType`
				`readSize`	`FwSizeType`
				`fileName`	`string`
`ReadTimeout`	warning high	"Failed after {} of {} bytes read to {} after exceeding timeout of {} microseconds"		`bytesRead`	`FwSizeType`
				`readSize`	`FwSizeType`
				`fileName`	`string`
				`size FileNameStringSize timeout`	`U64`
`WriteBegin`	activity low	"Beginning write of size {} to {}"		`writeSize`	`FwSizeType`
`WriteBegin`	activity low	"Beginning write of size {} to {}"		`fileName`	`string`
`WriteCompleted`	activity low	"Completed write of size {} to {}"		`writeSize`	`FwSizeType`
`WriteCompleted`	activity low	"Completed write of size {} to {}"		`fileName`	`string`
`WriteFileError`	warning high	"Failed after {} of {} bytes written to {} with write status {}"	2	`bytesWritten`	`FwSizeType`
				`writeSize`	`FwSizeType`
				`fileName`	`string`
				`size FileNameStringSize status`	`I32`
`WriteValidationOpenError`	warning high	"Failed to open validation file {} with status {}"	2	`hashFileName`	`string`
`WriteValidationOpenError`	warning high	"Failed to open validation file {} with status {}"	2	`size FileNameStringSize status`	`I32`
`WriteValidationReadError`	warning high	"Failed to read validation file {} with status {}"	2	`hashFileName`	`string`
`WriteValidationReadError`	warning high	"Failed to read validation file {} with status {}"	2	`size FileNameStringSize status`	`I32`
`WriteValidationError`	warning low	"Failed to create hash file {}. Wrote {} bytes when expected to write {} bytes to hash file"		`hashFileName`	`string`
				`size FileNameStringSize bytesWritten`	`FwSizeType`
				`hashSize`	`FwSizeType`
`WriteTimeout`	warning high	"Failed after {} of {} bytes written to {} after exceeding timeout of {} microseconds"		`bytesWritten`	`FwSizeType`
				`writeSize`	`FwSizeType`
				`fileName`	`string`
				`size FileNameStringSize timeout`	`U64`
`WriteAborted`	warning low	"Aborted after {} of {} bytes written to {}"		`bytesWritten`	`FwSizeType`
				`writeSize`	`FwSizeType`
				`fileName`	`string`

3.4 Functional Description

3.4.1 writeIn_handler

Calling component passes in a buffer for writing to file, the file location is path, and the offset to start writing at.

If not in IDLE state, return NOT_IDLE
Set state to WRITING
Open a file at the provided path and write contents of client-provided buffer to it
After file is finished being written to, also write a validation CRC file
Return to client with write size and set state to IDLE

3.4.2 readIn_handler

Calling component passes in a file path path to read and a buffer for client to read from

If not in IDLE state, return NOT_IDLE
Set state to READING
Verify checksum. If checksum fails, return FAILED_CRC and set state to IDLE
Otherwise, get file size
Read from file into buffer provided by the client
Send back the buffer and set state to IDLE

3.4.3 verifyIn_handler

Verify checksum. If checksum fails, return FAILED_CRC
Get file size. If file size fails, return FAILED_FILE_SIZE
Return file size to client

3.4.4 cancelIn_handler

Set abort flag to true
Return DONE status
