F´ Flight Software - C/C++ Documentation
A framework for building embedded system applications to NASA flight quality standards.
Public Types | Public Member Functions | Static Public Member Functions | Protected Member Functions | List of all members
Fw::StringBase Class Referenceabstract

#include <Fw/Types/StringBase.hpp>

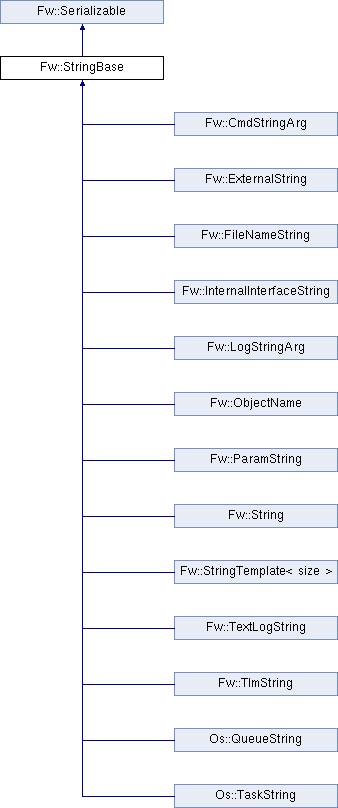

Inheritance diagram for Fw::StringBase:
Fw::Serializable Fw::CmdStringArg Fw::ExternalString Fw::FileNameString Fw::InternalInterfaceString Fw::LogStringArg Fw::ObjectName Fw::ParamString Fw::String Fw::StringTemplate< size > Fw::TextLogString Fw::TlmString Os::QueueString Os::TaskString

Public Types

using SizeType = FwSizeType

- Public Types inherited from Fw::Serializable
using SizeType = FwSizeType


Public Member Functions

virtual const CHAR * toChar () const =0

virtual SizeType getCapacity () const =0
 return size of buffer More...

SizeType length () const
 Get length of string. More...

SizeType maxLength () const
 Get the maximum length of a string that the buffer can hold (which is capacity - 1) More...

SizeType serializedSize () const

SizeType serializedTruncatedSize (FwSizeType maxLength) const

const CHAR * operator+= (const CHAR *src)
 Concatenate a CHAR*. More...

const StringBase & operator+= (const StringBase &src)
 Concatenate a StringBase. More...

bool operator== (const StringBase &other) const
 Check for equality with StringBase. More...

bool operator== (const CHAR *other) const
 Check for equality with CHAR*. More...

bool operator!= (const StringBase &other) const
 Inequality with StringBase. More...

bool operator!= (const CHAR *other) const
 Inequality with CHAR*. More...

StringBase & operator= (const CHAR *src)
 Assign CHAR*. More...

StringBase & operator= (const StringBase &src)
 Assign another StringBase. More...

FormatStatus format (const CHAR *formatString,...)
 write formatted string to buffer More...

FormatStatus vformat (const CHAR *formatString, va_list args)
 write formatted string to buffer using va_list More...

SerializeStatus serializeTo (SerializeBufferBase &buffer) const override
 serialize contents to buffer More...

virtual SerializeStatus serializeTo (SerializeBufferBase &buffer, SizeType maxLen) const

SerializeStatus deserializeFrom (SerializeBufferBase &buffer) override
 deserialize contents from buffer More...

SerializeStatus serialize (SerializeBufferBase &buffer) const

virtual SerializeStatus serialize (SerializeBufferBase &buffer, SizeType maxLen) const

- Public Member Functions inherited from Fw::Serializable
SerializeStatus serialize (SerializeBufferBase &buffer) const

SerializeStatus deserialize (SerializeBufferBase &buffer)


Static Public Member Functions

static constexpr SizeType STATIC_SERIALIZED_SIZE (SizeType maxLength)

static constexpr SizeType BUFFER_SIZE (SizeType maxLength)
 Get the size of a null-terminated string buffer. More...


Protected Member Functions

 StringBase ()

virtual ~StringBase ()

void appendBuff (const CHAR *buff, SizeType size)

- Protected Member Functions inherited from Fw::Serializable
 Serializable ()
 Default constructor. More...

virtual ~Serializable ()
 destructor More...


Detailed Description

Definition at line 25 of file StringBase.hpp.

Member Typedef Documentation

◆ SizeType

using Fw::StringBase::SizeType = FwSizeType

Definition at line 27 of file StringBase.hpp.

Constructor & Destructor Documentation

◆ StringBase()

Fw::StringBase::StringBase ( )
protected

Definition at line 21 of file StringBase.cpp.

◆ ~StringBase()

Fw::StringBase::~StringBase ( )
protectedvirtual

Definition at line 23 of file StringBase.cpp.

Member Function Documentation

◆ appendBuff()

void Fw::StringBase::appendBuff ( const CHAR *  buff,
SizeType  size
)
protected

Definition at line 108 of file StringBase.cpp.

◆ BUFFER_SIZE()

static constexpr SizeType Fw::StringBase::BUFFER_SIZE ( SizeType  maxLength)
inlinestatic

Get the size of a null-terminated string buffer.

Parameters
maxLengthThe maximum string length

Definition at line 42 of file StringBase.hpp.

◆ deserializeFrom()

SerializeStatus Fw::StringBase::deserializeFrom ( SerializeBufferBase &  buffer)
overridevirtual

deserialize contents from buffer

Implements Fw::Serializable.

Definition at line 162 of file StringBase.cpp.

◆ format()

FormatStatus Fw::StringBase::format ( const CHAR *  formatString,
  ...
)

write formatted string to buffer

Definition at line 55 of file StringBase.cpp.

◆ getCapacity()

virtual SizeType Fw::StringBase::getCapacity ( ) const
pure virtual

return size of buffer

Implemented in Fw::ExternalString, Fw::FileNameString, Fw::InternalInterfaceString, Fw::CmdStringArg, Fw::LogStringArg, Fw::TextLogString, Fw::ParamString, Fw::TlmString, Fw::ObjectName, Fw::String, Fw::StringTemplate< size >, Os::QueueString, and Os::TaskString.

◆ length()

StringBase::SizeType Fw::StringBase::length ( ) const

Get length of string.

Definition at line 121 of file StringBase.cpp.

◆ maxLength()

StringBase::SizeType Fw::StringBase::maxLength ( ) const

Get the maximum length of a string that the buffer can hold (which is capacity - 1)

Definition at line 128 of file StringBase.cpp.

◆ operator!=() [1/2]

bool Fw::StringBase::operator!= ( const StringBase &  other) const

Inequality with StringBase.

Definition at line 73 of file StringBase.cpp.

◆ operator!=() [2/2]

bool Fw::StringBase::operator!= ( const CHAR *  other) const

Inequality with CHAR*.

Definition at line 77 of file StringBase.cpp.

◆ operator+=() [1/2]

const CHAR * Fw::StringBase::operator+= ( const CHAR *  src)

Concatenate a CHAR*.

Definition at line 25 of file StringBase.cpp.

◆ operator+=() [2/2]

const StringBase & Fw::StringBase::operator+= ( const StringBase &  src)

Concatenate a StringBase.

Definition at line 30 of file StringBase.cpp.

◆ operator=() [1/2]

StringBase & Fw::StringBase::operator= ( const CHAR *  src)

Assign CHAR*.

Definition at line 103 of file StringBase.cpp.

◆ operator=() [2/2]

StringBase & Fw::StringBase::operator= ( const StringBase &  src)

Assign another StringBase.

Definition at line 94 of file StringBase.cpp.

◆ operator==() [1/2]

bool Fw::StringBase::operator== ( const StringBase &  other) const

Check for equality with StringBase.

Definition at line 35 of file StringBase.cpp.

◆ operator==() [2/2]

bool Fw::StringBase::operator== ( const CHAR *  other) const

Check for equality with CHAR*.

Definition at line 44 of file StringBase.cpp.

◆ serialize() [1/2]

SerializeStatus Fw::StringBase::serialize ( SerializeBufferBase &  buffer) const

Definition at line 153 of file StringBase.cpp.

◆ serialize() [2/2]

SerializeStatus Fw::StringBase::serialize ( SerializeBufferBase &  buffer,
SizeType  maxLen
) const
virtual

Definition at line 158 of file StringBase.cpp.

◆ serializedSize()

StringBase::SizeType Fw::StringBase::serializedSize ( ) const

Get the dynamic serialized size of a string This is the length of the string plus the size of the stored size

Definition at line 134 of file StringBase.cpp.

◆ serializedTruncatedSize()

StringBase::SizeType Fw::StringBase::serializedTruncatedSize ( FwSizeType  maxLength) const

Get the serialized truncated size of a string This is the minimum of the dynamic serialized size and the max length

Parameters
maxLengthThe max string length

Definition at line 138 of file StringBase.cpp.

◆ serializeTo() [1/2]

SerializeStatus Fw::StringBase::serializeTo ( SerializeBufferBase &  buffer) const
overridevirtual

serialize contents to buffer

Implements Fw::Serializable.

Definition at line 142 of file StringBase.cpp.

◆ serializeTo() [2/2]

SerializeStatus Fw::StringBase::serializeTo ( SerializeBufferBase &  buffer,
SizeType  maxLen
) const
virtual

Definition at line 146 of file StringBase.cpp.

◆ STATIC_SERIALIZED_SIZE()

static constexpr SizeType Fw::StringBase::STATIC_SERIALIZED_SIZE ( SizeType  maxLength)
inlinestatic

Get the static serialized size of a string This is the max length of the string plus the size of the stored size

Parameters
maxLengthThe maximum string length

Definition at line 36 of file StringBase.hpp.

◆ toChar()

virtual const CHAR* Fw::StringBase::toChar ( ) const
pure virtual

Implemented in Fw::ExternalString, Fw::FileNameString, Fw::InternalInterfaceString, Fw::CmdStringArg, Fw::LogStringArg, Fw::TextLogString, Fw::ParamString, Fw::TlmString, Fw::ObjectName, Fw::String, Fw::StringTemplate< size >, Os::QueueString, and Os::TaskString.

◆ vformat()

FormatStatus Fw::StringBase::vformat ( const CHAR *  formatString,
va_list  args
)

write formatted string to buffer using va_list

Definition at line 63 of file StringBase.cpp.

The documentation for this class was generated from the following files:
