#include <Svc/DpManager/DpManager.hpp>

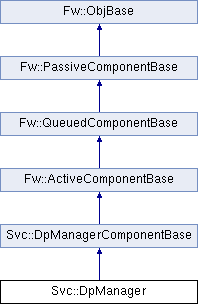

Inheritance diagram for Svc::DpManager:

Public Member Functions
	DpManager (const char *const compName)
	Construct a DpManager. More...

	~DpManager ()
	Destroy the DpManager. More...

Public Member Functions inherited from Svc::DpManagerComponentBase
void	init (FwSizeType queueDepth, FwEnumStoreType instance=0)
	Initialize DpManagerComponentBase object. More...

Fw::InputCmdPort *	get_cmdIn_InputPort (FwIndexType portNum)

Fw::InputDpGetPort *	get_productGetIn_InputPort (FwIndexType portNum)

Fw::InputDpRequestPort *	get_productRequestIn_InputPort (FwIndexType portNum)

Fw::InputDpSendPort *	get_productSendIn_InputPort (FwIndexType portNum)

Svc::InputSchedPort *	get_schedIn_InputPort (FwIndexType portNum)

void	set_cmdRegIn_OutputPort (FwIndexType portNum, Fw::InputCmdRegPort *port)
	Connect port to cmdRegIn[portNum]. More...

void	set_cmdResponseOut_OutputPort (FwIndexType portNum, Fw::InputCmdResponsePort *port)
	Connect port to cmdResponseOut[portNum]. More...

void	set_eventOut_OutputPort (FwIndexType portNum, Fw::InputLogPort *port)
	Connect port to eventOut[portNum]. More...

void	set_timeGetOut_OutputPort (FwIndexType portNum, Fw::InputTimePort *port)
	Connect port to timeGetOut[portNum]. More...

void	set_tlmOut_OutputPort (FwIndexType portNum, Fw::InputTlmPort *port)
	Connect port to tlmOut[portNum]. More...

void	set_bufferGetOut_OutputPort (FwIndexType portNum, Fw::InputBufferGetPort *port)
	Connect port to bufferGetOut[portNum]. More...

void	set_productResponseOut_OutputPort (FwIndexType portNum, Fw::InputDpResponsePort *port)
	Connect port to productResponseOut[portNum]. More...

void	set_productSendOut_OutputPort (FwIndexType portNum, Fw::InputBufferSendPort *port)
	Connect port to productSendOut[portNum]. More...

void	regCommands ()
	Register commands with the Command Dispatcher. More...

Public Member Functions inherited from Fw::ActiveComponentBase
void	start (FwTaskPriorityType priority=Os::Task::TASK_PRIORITY_DEFAULT, FwSizeType stackSize=Os::Task::TASK_DEFAULT, FwSizeType cpuAffinity=Os::Task::TASK_DEFAULT, FwTaskIdType identifier=static_cast< FwTaskIdType >(Os::Task::TASK_DEFAULT))
	called by instantiator when task is to be started More...

void	exit ()
	exit task in active component More...

Os::Task::Status	join ()
	Join the thread. More...

	DEPRECATED (Os::Task::Status join(void **value_ptr), "Switch to .join()")
	Join to thread with discarded value_ptr. More...

Public Member Functions inherited from Fw::PassiveComponentBase
void	setIdBase (const FwIdType)
	Set the ID base. More...

FwIdType	getIdBase () const

Additional Inherited Members
Public Types inherited from Fw::ActiveComponentBase
enum	{ ACTIVE_COMPONENT_EXIT }

Public Types inherited from Fw::QueuedComponentBase
enum	MsgDispatchStatus { MSG_DISPATCH_OK, MSG_DISPATCH_EMPTY, MSG_DISPATCH_ERROR, MSG_DISPATCH_EXIT }

Protected Types inherited from Svc::DpManagerComponentBase
enum	{ NUM_CMDIN_INPUT_PORTS = 1 }
	Enumerations for numbers of special input ports. More...

enum	{ NUM_PRODUCTGETIN_INPUT_PORTS = 5, NUM_PRODUCTREQUESTIN_INPUT_PORTS = 5, NUM_PRODUCTSENDIN_INPUT_PORTS = 5, NUM_SCHEDIN_INPUT_PORTS = 1 }
	Enumerations for numbers of typed input ports. More...

enum	{ NUM_CMDREGIN_OUTPUT_PORTS = 1, NUM_CMDRESPONSEOUT_OUTPUT_PORTS = 1, NUM_EVENTOUT_OUTPUT_PORTS = 1, NUM_TEXTEVENTOUT_OUTPUT_PORTS = 1, NUM_TIMEGETOUT_OUTPUT_PORTS = 1, NUM_TLMOUT_OUTPUT_PORTS = 1 }
	Enumerations for numbers of special output ports. More...

enum	{ NUM_BUFFERGETOUT_OUTPUT_PORTS = 5, NUM_PRODUCTRESPONSEOUT_OUTPUT_PORTS = 5, NUM_PRODUCTSENDOUT_OUTPUT_PORTS = 5 }
	Enumerations for numbers of typed output ports. More...

enum	{ OPCODE_CLEAR_EVENT_THROTTLE = 0x0 }
	Command opcodes. More...

enum	{ EVENTID_BUFFERALLOCATIONFAILED = 0x0 }
	Event IDs. More...

enum	{ EVENTID_BUFFERALLOCATIONFAILED_THROTTLE = 10 }
	Event throttle values: sets initial value of countdown variables. More...

enum	{ CHANNELID_NUMSUCCESSFULALLOCATIONS = 0x0, CHANNELID_NUMFAILEDALLOCATIONS = 0x1, CHANNELID_NUMDATAPRODUCTS = 0x2, CHANNELID_NUMBYTES = 0x3 }
	Channel IDs. More...

Protected Types inherited from Fw::ActiveComponentBase
enum	Lifecycle { CREATED, DISPATCHING, FINALIZING, DONE }
	Tracks the lifecycle of the component. More...

Protected Member Functions inherited from Svc::DpManagerComponentBase
	DpManagerComponentBase (const char *compName="")
	Construct DpManagerComponentBase object. More...

virtual	~DpManagerComponentBase ()
	Destroy DpManagerComponentBase object. More...

FwIndexType	getNum_cmdIn_InputPorts () const

FwIndexType	getNum_productGetIn_InputPorts () const

FwIndexType	getNum_productRequestIn_InputPorts () const

FwIndexType	getNum_productSendIn_InputPorts () const

FwIndexType	getNum_schedIn_InputPorts () const

FwIndexType	getNum_cmdRegIn_OutputPorts () const

FwIndexType	getNum_cmdResponseOut_OutputPorts () const

FwIndexType	getNum_eventOut_OutputPorts () const

FwIndexType	getNum_timeGetOut_OutputPorts () const

FwIndexType	getNum_tlmOut_OutputPorts () const

FwIndexType	getNum_bufferGetOut_OutputPorts () const

FwIndexType	getNum_productResponseOut_OutputPorts () const

FwIndexType	getNum_productSendOut_OutputPorts () const

bool	isConnected_cmdRegIn_OutputPort (FwIndexType portNum)

bool	isConnected_cmdResponseOut_OutputPort (FwIndexType portNum)

bool	isConnected_eventOut_OutputPort (FwIndexType portNum)

bool	isConnected_timeGetOut_OutputPort (FwIndexType portNum)

bool	isConnected_tlmOut_OutputPort (FwIndexType portNum)

bool	isConnected_bufferGetOut_OutputPort (FwIndexType portNum)

bool	isConnected_productResponseOut_OutputPort (FwIndexType portNum)

bool	isConnected_productSendOut_OutputPort (FwIndexType portNum)

Fw::Success	productGetIn_handlerBase (FwIndexType portNum, FwDpIdType id, FwSizeType dataSize, Fw::Buffer &buffer)
	Handler base-class function for input port productGetIn. More...

void	productRequestIn_handlerBase (FwIndexType portNum, FwDpIdType id, FwSizeType dataSize)
	Handler base-class function for input port productRequestIn. More...

void	productSendIn_handlerBase (FwIndexType portNum, FwDpIdType id, const Fw::Buffer &buffer)
	Handler base-class function for input port productSendIn. More...

void	schedIn_handlerBase (FwIndexType portNum, U32 context)
	Handler base-class function for input port schedIn. More...

virtual void	productRequestIn_preMsgHook (FwIndexType portNum, FwDpIdType id, FwSizeType dataSize)
	Pre-message hook for async input port productRequestIn. More...

virtual void	productSendIn_preMsgHook (FwIndexType portNum, FwDpIdType id, const Fw::Buffer &buffer)
	Pre-message hook for async input port productSendIn. More...

virtual void	schedIn_preMsgHook (FwIndexType portNum, U32 context)
	Pre-message hook for async input port schedIn. More...

Fw::Buffer	bufferGetOut_out (FwIndexType portNum, FwSizeType size)
	Invoke output port bufferGetOut. More...

void	productResponseOut_out (FwIndexType portNum, FwDpIdType id, const Fw::Buffer &buffer, const Fw::Success &status)
	Invoke output port productResponseOut. More...

void	productSendOut_out (FwIndexType portNum, Fw::Buffer &fwBuffer)
	Invoke output port productSendOut. More...

void	cmdResponse_out (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdResponse response)
	Emit command response. More...

void	CLEAR_EVENT_THROTTLE_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

virtual void	CLEAR_EVENT_THROTTLE_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CLEAR_EVENT_THROTTLE. More...

void	log_WARNING_HI_BufferAllocationFailed (FwDpIdType id)

void	log_WARNING_HI_BufferAllocationFailed_ThrottleClear ()
	Reset throttle value for BufferAllocationFailed. More...

void	tlmWrite_NumSuccessfulAllocations (U32 arg, Fw::Time _tlmTime=Fw::Time())

void	tlmWrite_NumFailedAllocations (U32 arg, Fw::Time _tlmTime=Fw::Time())

void	tlmWrite_NumDataProducts (U32 arg, Fw::Time _tlmTime=Fw::Time())

void	tlmWrite_NumBytes (U64 arg, Fw::Time _tlmTime=Fw::Time())

Fw::Time	getTime () const

Protected Member Functions inherited from Fw::ActiveComponentBase
	ActiveComponentBase (const char *name)
	Constructor. More...

virtual	~ActiveComponentBase ()
	Destructor. More...

void	init (FwEnumStoreType instance)
	initialization code More...

virtual void	preamble ()
	A function that will be called before the event loop is entered. More...

MsgDispatchStatus	dispatch ()
	The function that will dispatching messages. More...

virtual void	finalizer ()
	A function that will be called after exiting the loop. More...

Protected Member Functions inherited from Fw::QueuedComponentBase
	QueuedComponentBase (const char *name)
	Constructor. More...

virtual	~QueuedComponentBase ()
	Destructor. More...

void	init (FwEnumStoreType instance)
	initialization function More...

Os::Queue::Status	createQueue (FwSizeType depth, FwSizeType msgSize)

FwSizeType	getNumMsgsDropped ()
	return number of messages dropped More...

void	incNumMsgDropped ()
	increment the number of messages dropped More...

Protected Member Functions inherited from Fw::PassiveComponentBase
	PassiveComponentBase (const char *name)
	Named constructor. More...

virtual	~PassiveComponentBase ()
	Destructor. More...

void	init (FwEnumStoreType instance)
	Initialization function. More...

FwEnumStoreType	getInstance () const

Protected Member Functions inherited from Fw::ObjBase
	ObjBase (const char *name)
	ObjBase constructor. More...

virtual	~ObjBase ()
	Destructor. More...

void	init ()
	Object initializer. More...

Protected Attributes inherited from Fw::ActiveComponentBase
Os::Task	m_task
	task object for active component More...

Protected Attributes inherited from Fw::QueuedComponentBase
Os::Queue	m_queue
	queue object for active component More...

Detailed Description

Definition at line 17 of file DpManager.hpp.

Constructor & Destructor Documentation

◆ DpManager()

Svc::DpManager::DpManager ( const char *const compName )

explicit

Construct a DpManager.

Parameters

compName The component name

Definition at line 16 of file DpManager.cpp.

◆ ~DpManager()

Svc::DpManager::~DpManager ( )

Destroy the DpManager.

Definition at line 23 of file DpManager.cpp.

The documentation for this class was generated from the following files:

Svc/DpManager/DpManager.hpp
Svc/DpManager/DpManager.cpp
