Svc::BufferAccumulator Class Reference

#include <Svc/BufferAccumulator/BufferAccumulator.hpp>

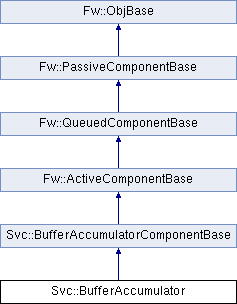

Inheritance diagram for Svc::BufferAccumulator:

Public Member Functions
	BufferAccumulator (const char *const compName)
	~BufferAccumulator ()
void	allocateQueue (FwEnumStoreType identifier, Fw::MemAllocator &allocator, FwSizeType maxNumBuffers)
void	deallocateQueue (Fw::MemAllocator &allocator)
	Return allocated queue. Should be done during shutdown. More...
Public Member Functions inherited from Svc::BufferAccumulatorComponentBase
void	init (FwSizeType queueDepth, FwEnumStoreType instance=0)
	Initialize BufferAccumulatorComponentBase object. More...
Fw::InputCmdPort *	get_cmdIn_InputPort (FwIndexType portNum)
Fw::InputBufferSendPort *	get_bufferSendInFill_InputPort (FwIndexType portNum)
Fw::InputBufferSendPort *	get_bufferSendInReturn_InputPort (FwIndexType portNum)
Svc::InputPingPort *	get_pingIn_InputPort (FwIndexType portNum)
void	set_cmdRegOut_OutputPort (FwIndexType portNum, Fw::InputCmdRegPort *port)
	Connect port to cmdRegOut[portNum]. More...
void	set_cmdResponseOut_OutputPort (FwIndexType portNum, Fw::InputCmdResponsePort *port)
	Connect port to cmdResponseOut[portNum]. More...
void	set_eventOut_OutputPort (FwIndexType portNum, Fw::InputLogPort *port)
	Connect port to eventOut[portNum]. More...
void	set_timeCaller_OutputPort (FwIndexType portNum, Fw::InputTimePort *port)
	Connect port to timeCaller[portNum]. More...
void	set_tlmOut_OutputPort (FwIndexType portNum, Fw::InputTlmPort *port)
	Connect port to tlmOut[portNum]. More...
void	set_bufferSendOutDrain_OutputPort (FwIndexType portNum, Fw::InputBufferSendPort *port)
	Connect port to bufferSendOutDrain[portNum]. More...
void	set_bufferSendOutReturn_OutputPort (FwIndexType portNum, Fw::InputBufferSendPort *port)
	Connect port to bufferSendOutReturn[portNum]. More...
void	set_pingOut_OutputPort (FwIndexType portNum, Svc::InputPingPort *port)
	Connect port to pingOut[portNum]. More...
void	regCommands ()
	Register commands with the Command Dispatcher. More...
Public Member Functions inherited from Fw::ActiveComponentBase
void	start (FwTaskPriorityType priority=Os::Task::TASK_PRIORITY_DEFAULT, FwSizeType stackSize=Os::Task::TASK_DEFAULT, FwSizeType cpuAffinity=Os::Task::TASK_DEFAULT, FwTaskIdType identifier=static_cast< FwTaskIdType >(Os::Task::TASK_DEFAULT))
	called by instantiator when task is to be started More...
void	exit ()
	exit task in active component More...
Os::Task::Status	join ()
	Join the thread. More...
	DEPRECATED (Os::Task::Status join(void **value_ptr), "Switch to .join()")
	Join to thread with discarded value_ptr. More...
Public Member Functions inherited from Fw::QueuedComponentBase
void	deinit () override
	Allows de-initialization on teardown. More...
Public Member Functions inherited from Fw::PassiveComponentBase
void	setIdBase (const FwIdType)
	Set the ID base. More...
FwIdType	getIdBase () const

Friends
class	BufferAccumulatorTester
class	Svc::Accumulate::BufferAccumulatorTester
class	Svc::Drain::BufferAccumulatorTester
class	Svc::Errors::BufferAccumulatorTester

Additional Inherited Members
Public Types inherited from Fw::ActiveComponentBase
enum	{ ACTIVE_COMPONENT_EXIT }
Public Types inherited from Fw::QueuedComponentBase
enum	MsgDispatchStatus { MSG_DISPATCH_OK, MSG_DISPATCH_EMPTY, MSG_DISPATCH_ERROR, MSG_DISPATCH_EXIT }
Protected Types inherited from Svc::BufferAccumulatorComponentBase
enum	{ NUM_CMDIN_INPUT_PORTS = 1 }
	Enumerations for numbers of special input ports. More...
enum	{ NUM_BUFFERSENDINFILL_INPUT_PORTS = 1, NUM_BUFFERSENDINRETURN_INPUT_PORTS = 1, NUM_PINGIN_INPUT_PORTS = 1 }
	Enumerations for numbers of typed input ports. More...
enum	{   NUM_CMDREGOUT_OUTPUT_PORTS = 1, NUM_CMDRESPONSEOUT_OUTPUT_PORTS = 1, NUM_EVENTOUT_OUTPUT_PORTS = 1, NUM_EVENTOUTTEXT_OUTPUT_PORTS = 1,   NUM_TIMECALLER_OUTPUT_PORTS = 1, NUM_TLMOUT_OUTPUT_PORTS = 1 }
	Enumerations for numbers of special output ports. More...
enum	{ NUM_BUFFERSENDOUTDRAIN_OUTPUT_PORTS = 1, NUM_BUFFERSENDOUTRETURN_OUTPUT_PORTS = 1, NUM_PINGOUT_OUTPUT_PORTS = 1 }
	Enumerations for numbers of typed output ports. More...
enum	{ OPCODE_BA_SETMODE = 0x0, OPCODE_BA_DRAINBUFFERS = 0x1 }
	Command opcodes. More...
enum	{   EVENTID_BA_BUFFERACCEPTED = 0x0, EVENTID_BA_QUEUEFULL = 0x1, EVENTID_BA_STILLDRAINING = 0x2, EVENTID_BA_ALREADYDRAINING = 0x3,   EVENTID_BA_DRAINSTALLED = 0x4, EVENTID_BA_PARTIALDRAINDONE = 0x5, EVENTID_BA_NONBLOCKDRAIN = 0x6 }
	Event IDs. More...
enum	{ CHANNELID_BA_NUMQUEUEDBUFFERS = 0x0 }
	Channel IDs. More...
Protected Types inherited from Fw::ActiveComponentBase
enum	Lifecycle { CREATED, DISPATCHING, FINALIZING, DONE }
	Tracks the lifecycle of the component. More...
Protected Member Functions inherited from Svc::BufferAccumulatorComponentBase
	BufferAccumulatorComponentBase (const char *compName="")
	Construct BufferAccumulatorComponentBase object. More...
virtual	~BufferAccumulatorComponentBase ()
	Destroy BufferAccumulatorComponentBase object. More...
bool	isConnected_cmdRegOut_OutputPort (FwIndexType portNum)
bool	isConnected_cmdResponseOut_OutputPort (FwIndexType portNum)
bool	isConnected_eventOut_OutputPort (FwIndexType portNum)
bool	isConnected_timeCaller_OutputPort (FwIndexType portNum)
bool	isConnected_tlmOut_OutputPort (FwIndexType portNum)
bool	isConnected_bufferSendOutDrain_OutputPort (FwIndexType portNum)
bool	isConnected_bufferSendOutReturn_OutputPort (FwIndexType portNum)
bool	isConnected_pingOut_OutputPort (FwIndexType portNum)
void	bufferSendInFill_handlerBase (FwIndexType portNum, Fw::Buffer &fwBuffer)
	Handler base-class function for input port bufferSendInFill. More...
void	bufferSendInReturn_handlerBase (FwIndexType portNum, Fw::Buffer &fwBuffer)
	Handler base-class function for input port bufferSendInReturn. More...
void	pingIn_handlerBase (FwIndexType portNum, U32 key)
	Handler base-class function for input port pingIn. More...
virtual void	bufferSendInFill_preMsgHook (FwIndexType portNum, Fw::Buffer &fwBuffer)
	Pre-message hook for async input port bufferSendInFill. More...
virtual void	bufferSendInReturn_preMsgHook (FwIndexType portNum, Fw::Buffer &fwBuffer)
	Pre-message hook for async input port bufferSendInReturn. More...
virtual void	pingIn_preMsgHook (FwIndexType portNum, U32 key)
	Pre-message hook for async input port pingIn. More...
void	bufferSendOutDrain_out (FwIndexType portNum, Fw::Buffer &fwBuffer)
	Invoke output port bufferSendOutDrain. More...
void	bufferSendOutReturn_out (FwIndexType portNum, Fw::Buffer &fwBuffer)
	Invoke output port bufferSendOutReturn. More...
void	pingOut_out (FwIndexType portNum, U32 key)
	Invoke output port pingOut. More...
void	cmdResponse_out (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdResponse response)
	Emit command response. More...
void	BA_SetMode_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	BA_DrainBuffers_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
virtual void	BA_SetMode_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command BA_SetMode. More...
virtual void	BA_DrainBuffers_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command BA_DrainBuffers. More...
void	log_ACTIVITY_HI_BA_BufferAccepted () const
void	log_WARNING_HI_BA_QueueFull () const
void	log_WARNING_HI_BA_StillDraining (U32 numDrained, U32 numToDrain) const
void	log_WARNING_HI_BA_AlreadyDraining () const
void	log_WARNING_HI_BA_DrainStalled (U32 numDrained, U32 numToDrain) const
void	log_ACTIVITY_HI_BA_PartialDrainDone (U32 numDrained) const
void	log_WARNING_LO_BA_NonBlockDrain (U32 numWillDrain, U32 numReqDrain) const
void	tlmWrite_BA_NumQueuedBuffers (U32 arg, Fw::Time _tlmTime=Fw::Time()) const
Fw::Time	getTime () const
Protected Member Functions inherited from Fw::ActiveComponentBase
	ActiveComponentBase (const char *name)
	Constructor. More...
virtual	~ActiveComponentBase ()
	Destructor. More...
void	init (FwEnumStoreType instance)
	initialization code More...
virtual void	preamble ()
	A function that will be called before the event loop is entered. More...
MsgDispatchStatus	dispatch ()
	The function that will dispatching messages. More...
virtual void	finalizer ()
	A function that will be called after exiting the loop. More...
Protected Member Functions inherited from Fw::QueuedComponentBase
	QueuedComponentBase (const char *name)
	Constructor. More...
virtual	~QueuedComponentBase ()
	Destructor. More...
void	init (FwEnumStoreType instance)
	initialization function More...
Os::Queue::Status	createQueue (FwSizeType depth, FwSizeType msgSize)
MsgDispatchStatus	dispatchAvailableMessages ()
	dispatches all messages currently in the queue, returning status of the dispatch More...
FwSizeType	getNumMsgsDropped ()
	return number of messages dropped More...
void	incNumMsgDropped ()
	increment the number of messages dropped More...
Protected Member Functions inherited from Fw::PassiveComponentBase
	PassiveComponentBase (const char *name)
	Named constructor. More...
virtual	~PassiveComponentBase ()
	Destructor. More...
void	init (FwEnumStoreType instance)
	Initialization function. More...
FwEnumStoreType	getInstance () const
Protected Member Functions inherited from Fw::ObjBase
	ObjBase (const char *name)
	ObjBase constructor. More...
virtual	~ObjBase ()
	Destructor. More...
void	init ()
	Object initializer. More...
Static Protected Member Functions inherited from Svc::BufferAccumulatorComponentBase
static constexpr FwIndexType	getNum_cmdIn_InputPorts ()
static constexpr FwIndexType	getNum_bufferSendInFill_InputPorts ()
static constexpr FwIndexType	getNum_bufferSendInReturn_InputPorts ()
static constexpr FwIndexType	getNum_pingIn_InputPorts ()
static constexpr FwIndexType	getNum_cmdRegOut_OutputPorts ()
static constexpr FwIndexType	getNum_cmdResponseOut_OutputPorts ()
static constexpr FwIndexType	getNum_eventOut_OutputPorts ()
static constexpr FwIndexType	getNum_timeCaller_OutputPorts ()
static constexpr FwIndexType	getNum_tlmOut_OutputPorts ()
static constexpr FwIndexType	getNum_bufferSendOutDrain_OutputPorts ()
static constexpr FwIndexType	getNum_bufferSendOutReturn_OutputPorts ()
static constexpr FwIndexType	getNum_pingOut_OutputPorts ()
Protected Attributes inherited from Fw::ActiveComponentBase
Os::Task	m_task
	task object for active component More...
Protected Attributes inherited from Fw::QueuedComponentBase
Os::Queue	m_queue
	queue object for active component More...

Detailed Description

Definition at line 34 of file BufferAccumulator.hpp.

Constructor & Destructor Documentation

BufferAccumulator()

Svc::BufferAccumulator::BufferAccumulator

(

const char *const

compName

)

Construct BufferAccumulator instance

Parameters

compName

The component name

Definition at line 26 of file BufferAccumulator.cpp.

~BufferAccumulator()

Svc::BufferAccumulator::~BufferAccumulator

(

)

Destroy BufferAccumulator instance

Definition at line 40 of file BufferAccumulator.cpp.

Member Function Documentation

allocateQueue()

void Svc::BufferAccumulator::allocateQueue	(	FwEnumStoreType	identifier,
		Fw::MemAllocator &	allocator,
		FwSizeType	maxNumBuffers
	)

Give the class a memory buffer. Should be called after constructor and init, but before task is spawned.

Parameters

maxNumBuffers

The maximum number of buffers

Definition at line 46 of file BufferAccumulator.cpp.

deallocateQueue()

void Svc::BufferAccumulator::deallocateQueue

(

Fw::MemAllocator &

allocator

)

Return allocated queue. Should be done during shutdown.

Definition at line 60 of file BufferAccumulator.cpp.

Friends And Related Function Documentation

BufferAccumulatorTester

friend class BufferAccumulatorTester

friend

Definition at line 35 of file BufferAccumulator.hpp.

Svc::Accumulate::BufferAccumulatorTester

friend class Svc::Accumulate::BufferAccumulatorTester

friend

Definition at line 36 of file BufferAccumulator.hpp.

Svc::Drain::BufferAccumulatorTester

friend class Svc::Drain::BufferAccumulatorTester

friend

Definition at line 37 of file BufferAccumulator.hpp.

Svc::Errors::BufferAccumulatorTester

friend class Svc::Errors::BufferAccumulatorTester

friend

Definition at line 38 of file BufferAccumulator.hpp.

---

The documentation for this class was generated from the following files:

• Svc/BufferAccumulator/BufferAccumulator.hpp
• Svc/BufferAccumulator/BufferAccumulator.cpp
