#include <Svc/ComQueue/ComQueue.hpp>

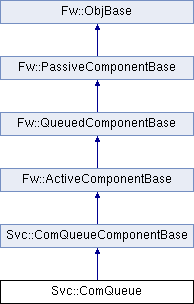

Inheritance diagram for Svc::ComQueue:

Classes
struct	QueueConfigurationEntry
	configuration data for each queue More...

struct	QueueConfigurationTable
	configuration table for each queue More...

Public Member Functions
	ComQueue (const char *const compName)

	~ComQueue ()

void	configure (QueueConfigurationTable queueConfig, FwEnumStoreType allocationId, Fw::MemAllocator &allocator)

void	cleanup ()

Public Member Functions inherited from Svc::ComQueueComponentBase
void	init (FwSizeType queueDepth, FwEnumStoreType instance=0)
	Initialize ComQueueComponentBase object. More...

Fw::InputCmdPort *	get_CmdDisp_InputPort (FwIndexType portNum)

Fw::InputBufferSendPort *	get_bufferQueueIn_InputPort (FwIndexType portNum)

Fw::InputComPort *	get_comPacketQueueIn_InputPort (FwIndexType portNum)

Fw::InputSuccessConditionPort *	get_comStatusIn_InputPort (FwIndexType portNum)

Svc::InputComDataWithContextPort *	get_dataReturnIn_InputPort (FwIndexType portNum)

Svc::InputSchedPort *	get_run_InputPort (FwIndexType portNum)

void	set_CmdReg_OutputPort (FwIndexType portNum, Fw::InputCmdRegPort *port)
	Connect port to CmdReg[portNum]. More...

void	set_CmdStatus_OutputPort (FwIndexType portNum, Fw::InputCmdResponsePort *port)
	Connect port to CmdStatus[portNum]. More...

void	set_Log_OutputPort (FwIndexType portNum, Fw::InputLogPort *port)
	Connect port to Log[portNum]. More...

void	set_Time_OutputPort (FwIndexType portNum, Fw::InputTimePort *port)
	Connect port to Time[portNum]. More...

void	set_Tlm_OutputPort (FwIndexType portNum, Fw::InputTlmPort *port)
	Connect port to Tlm[portNum]. More...

void	set_bufferReturnOut_OutputPort (FwIndexType portNum, Fw::InputBufferSendPort *port)
	Connect port to bufferReturnOut[portNum]. More...

void	set_dataOut_OutputPort (FwIndexType portNum, Svc::InputComDataWithContextPort *port)
	Connect port to dataOut[portNum]. More...

void	regCommands ()
	Register commands with the Command Dispatcher. More...

Public Member Functions inherited from Fw::ActiveComponentBase
void	start (FwTaskPriorityType priority=Os::Task::TASK_PRIORITY_DEFAULT, FwSizeType stackSize=Os::Task::TASK_DEFAULT, FwSizeType cpuAffinity=Os::Task::TASK_DEFAULT, FwTaskIdType identifier=static_cast< FwTaskIdType >(Os::Task::TASK_DEFAULT))
	called by instantiator when task is to be started More...

void	exit ()
	exit task in active component More...

Os::Task::Status	join ()
	Join the thread. More...

	DEPRECATED (Os::Task::Status join(void **value_ptr), "Switch to .join()")
	Join to thread with discarded value_ptr. More...

Public Member Functions inherited from Fw::QueuedComponentBase
void	deinit () override
	Allows de-initialization on teardown. More...

Public Member Functions inherited from Fw::PassiveComponentBase
void	setIdBase (const FwIdType)
	Set the ID base. More...

FwIdType	getIdBase () const

Static Public Attributes
static const FwIndexType	COM_PORT_COUNT = ComQueueComponentBase::NUM_COMPACKETQUEUEIN_INPUT_PORTS
	< Count of Fw::Com input ports and thus Fw::Com queues More...

static const FwIndexType	BUFFER_PORT_COUNT = ComQueueComponentBase::NUM_BUFFERQUEUEIN_INPUT_PORTS

static const FwIndexType	TOTAL_PORT_COUNT = COM_PORT_COUNT + BUFFER_PORT_COUNT
	Total count of input buffer ports and thus total queues. More...

Friends
class	ComQueueTester

Additional Inherited Members
Public Types inherited from Fw::ActiveComponentBase
enum	{ ACTIVE_COMPONENT_EXIT }

Public Types inherited from Fw::QueuedComponentBase
enum	MsgDispatchStatus { MSG_DISPATCH_OK, MSG_DISPATCH_EMPTY, MSG_DISPATCH_ERROR, MSG_DISPATCH_EXIT }

Protected Types inherited from Svc::ComQueueComponentBase
enum	{ NUM_CMDDISP_INPUT_PORTS = 1 }
	Enumerations for numbers of special input ports. More...

enum	{ NUM_BUFFERQUEUEIN_INPUT_PORTS = 1, NUM_COMPACKETQUEUEIN_INPUT_PORTS = 2, NUM_COMSTATUSIN_INPUT_PORTS = 1, NUM_DATARETURNIN_INPUT_PORTS = 1, NUM_RUN_INPUT_PORTS = 1 }
	Enumerations for numbers of typed input ports. More...

enum	{ NUM_CMDREG_OUTPUT_PORTS = 1, NUM_CMDSTATUS_OUTPUT_PORTS = 1, NUM_LOG_OUTPUT_PORTS = 1, NUM_LOGTEXT_OUTPUT_PORTS = 1, NUM_TIME_OUTPUT_PORTS = 1, NUM_TLM_OUTPUT_PORTS = 1 }
	Enumerations for numbers of special output ports. More...

enum	{ NUM_BUFFERRETURNOUT_OUTPUT_PORTS = 1, NUM_DATAOUT_OUTPUT_PORTS = 1 }
	Enumerations for numbers of typed output ports. More...

enum	{ OPCODE_FLUSH_QUEUE = 0x0, OPCODE_FLUSH_ALL_QUEUES = 0x1, OPCODE_SET_QUEUE_PRIORITY = 0x2 }
	Command opcodes. More...

enum	{ EVENTID_QUEUEOVERFLOW = 0x0, EVENTID_QUEUEPRIORITYCHANGED = 0x1 }
	Event IDs. More...

enum	{ CHANNELID_COMQUEUEDEPTH = 0x0, CHANNELID_BUFFQUEUEDEPTH = 0x1 }
	Channel IDs. More...

Protected Types inherited from Fw::ActiveComponentBase
enum	Lifecycle { CREATED, DISPATCHING, FINALIZING, DONE }
	Tracks the lifecycle of the component. More...

Protected Member Functions inherited from Svc::ComQueueComponentBase
	ComQueueComponentBase (const char *compName="")
	Construct ComQueueComponentBase object. More...

virtual	~ComQueueComponentBase ()
	Destroy ComQueueComponentBase object. More...

bool	isConnected_CmdReg_OutputPort (FwIndexType portNum)

bool	isConnected_CmdStatus_OutputPort (FwIndexType portNum)

bool	isConnected_Log_OutputPort (FwIndexType portNum)

bool	isConnected_Time_OutputPort (FwIndexType portNum)

bool	isConnected_Tlm_OutputPort (FwIndexType portNum)

bool	isConnected_bufferReturnOut_OutputPort (FwIndexType portNum)

bool	isConnected_dataOut_OutputPort (FwIndexType portNum)

void	bufferQueueIn_handlerBase (FwIndexType portNum, Fw::Buffer &fwBuffer)
	Handler base-class function for input port bufferQueueIn. More...

void	comPacketQueueIn_handlerBase (FwIndexType portNum, Fw::ComBuffer &data, U32 context)
	Handler base-class function for input port comPacketQueueIn. More...

void	comStatusIn_handlerBase (FwIndexType portNum, Fw::Success &condition)
	Handler base-class function for input port comStatusIn. More...

void	dataReturnIn_handlerBase (FwIndexType portNum, Fw::Buffer &data, const ComCfg::FrameContext &context)
	Handler base-class function for input port dataReturnIn. More...

void	run_handlerBase (FwIndexType portNum, U32 context)
	Handler base-class function for input port run. More...

virtual void	bufferQueueIn_preMsgHook (FwIndexType portNum, Fw::Buffer &fwBuffer)
	Pre-message hook for async input port bufferQueueIn. More...

virtual void	comPacketQueueIn_preMsgHook (FwIndexType portNum, Fw::ComBuffer &data, U32 context)
	Pre-message hook for async input port comPacketQueueIn. More...

virtual void	comStatusIn_preMsgHook (FwIndexType portNum, Fw::Success &condition)
	Pre-message hook for async input port comStatusIn. More...

virtual void	run_preMsgHook (FwIndexType portNum, U32 context)
	Pre-message hook for async input port run. More...

void	bufferReturnOut_out (FwIndexType portNum, Fw::Buffer &fwBuffer)
	Invoke output port bufferReturnOut. More...

void	dataOut_out (FwIndexType portNum, Fw::Buffer &data, const ComCfg::FrameContext &context)
	Invoke output port dataOut. More...

void	cmdResponse_out (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdResponse response)
	Emit command response. More...

void	FLUSH_QUEUE_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

void	FLUSH_ALL_QUEUES_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

void	SET_QUEUE_PRIORITY_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

virtual void	FLUSH_QUEUE_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command FLUSH_QUEUE. More...

virtual void	FLUSH_ALL_QUEUES_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command FLUSH_ALL_QUEUES. More...

virtual void	SET_QUEUE_PRIORITY_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command SET_QUEUE_PRIORITY. More...

void	log_WARNING_HI_QueueOverflow (Svc::QueueType queueType, FwIndexType index) const

void	log_ACTIVITY_HI_QueuePriorityChanged (Svc::QueueType queueType, FwIndexType indexType, FwIndexType newPriority) const

void	tlmWrite_comQueueDepth (const Svc::ComQueueDepth &arg, Fw::Time _tlmTime=Fw::Time()) const

void	tlmWrite_buffQueueDepth (const Svc::BuffQueueDepth &arg, Fw::Time _tlmTime=Fw::Time()) const

Fw::Time	getTime () const

Protected Member Functions inherited from Fw::ActiveComponentBase
	ActiveComponentBase (const char *name)
	Constructor. More...

virtual	~ActiveComponentBase ()
	Destructor. More...

void	init (FwEnumStoreType instance)
	initialization code More...

virtual void	preamble ()
	A function that will be called before the event loop is entered. More...

MsgDispatchStatus	dispatch ()
	The function that will dispatching messages. More...

virtual void	finalizer ()
	A function that will be called after exiting the loop. More...

Protected Member Functions inherited from Fw::QueuedComponentBase
	QueuedComponentBase (const char *name)
	Constructor. More...

virtual	~QueuedComponentBase ()
	Destructor. More...

void	init (FwEnumStoreType instance)
	initialization function More...

Os::Queue::Status	createQueue (FwSizeType depth, FwSizeType msgSize)

MsgDispatchStatus	dispatchAvailableMessages ()
	dispatches all messages currently in the queue, returning status of the dispatch More...

FwSizeType	getNumMsgsDropped ()
	return number of messages dropped More...

void	incNumMsgDropped ()
	increment the number of messages dropped More...

Protected Member Functions inherited from Fw::PassiveComponentBase
	PassiveComponentBase (const char *name)
	Named constructor. More...

virtual	~PassiveComponentBase ()
	Destructor. More...

void	init (FwEnumStoreType instance)
	Initialization function. More...

FwEnumStoreType	getInstance () const

Protected Member Functions inherited from Fw::ObjBase
	ObjBase (const char *name)
	ObjBase constructor. More...

virtual	~ObjBase ()
	Destructor. More...

void	init ()
	Object initializer. More...

Static Protected Member Functions inherited from Svc::ComQueueComponentBase
static constexpr FwIndexType	getNum_CmdDisp_InputPorts ()

static constexpr FwIndexType	getNum_bufferQueueIn_InputPorts ()

static constexpr FwIndexType	getNum_comPacketQueueIn_InputPorts ()

static constexpr FwIndexType	getNum_comStatusIn_InputPorts ()

static constexpr FwIndexType	getNum_dataReturnIn_InputPorts ()

static constexpr FwIndexType	getNum_run_InputPorts ()

static constexpr FwIndexType	getNum_CmdReg_OutputPorts ()

static constexpr FwIndexType	getNum_CmdStatus_OutputPorts ()

static constexpr FwIndexType	getNum_Log_OutputPorts ()

static constexpr FwIndexType	getNum_Time_OutputPorts ()

static constexpr FwIndexType	getNum_Tlm_OutputPorts ()

static constexpr FwIndexType	getNum_bufferReturnOut_OutputPorts ()

static constexpr FwIndexType	getNum_dataOut_OutputPorts ()

Protected Attributes inherited from Fw::ActiveComponentBase
Os::Task	m_task
	task object for active component More...

Protected Attributes inherited from Fw::QueuedComponentBase
Os::Queue	m_queue
	queue object for active component More...

Detailed Description

Definition at line 24 of file ComQueue.hpp.

Constructor & Destructor Documentation

◆ ComQueue()

Svc::ComQueue::ComQueue ( const char *const compName )

Construct object ComQueue

Parameters

compName The component name

Definition at line 33 of file ComQueue.cpp.

◆ ~ComQueue()

Svc::ComQueue::~ComQueue ( )

Destroy object ComQueue

Definition at line 48 of file ComQueue.cpp.

Member Function Documentation

◆ cleanup()

void Svc::ComQueue::cleanup ( )

Deallocate resources and cleanup ComQueue

Definition at line 50 of file ComQueue.cpp.

◆ configure()

void Svc::ComQueue::configure	(	QueueConfigurationTable	queueConfig,
		FwEnumStoreType	allocationId,
		Fw::MemAllocator &	allocator
	)

Configure the queue depths, priorities, and memory allocation for the component

Takes in the queue depth and priority per-port in order from Fw::Com through Fw::Buffer ports. Calculates the queue metadata stored m_prioritizedList and then sorts that list by priority.

Parameters

queueConfig	Table of the configuration properties for the component
allocationId	Identifier used when dealing with the Fw::MemAllocator
allocator	Fw::MemAllocator used to acquire memory

Definition at line 57 of file ComQueue.cpp.

Friends And Related Function Documentation

◆ ComQueueTester

friend class ComQueueTester

friend

Definition at line 26 of file ComQueue.hpp.

Member Data Documentation

◆ BUFFER_PORT_COUNT

const FwIndexType Svc::ComQueue::BUFFER_PORT_COUNT = ComQueueComponentBase::NUM_BUFFERQUEUEIN_INPUT_PORTS

static

Definition at line 36 of file ComQueue.hpp.

◆ COM_PORT_COUNT

const FwIndexType Svc::ComQueue::COM_PORT_COUNT = ComQueueComponentBase::NUM_COMPACKETQUEUEIN_INPUT_PORTS

static

< Count of Fw::Com input ports and thus Fw::Com queues

Count of Fw::Buffer input ports and thus Fw::Buffer queues

Definition at line 33 of file ComQueue.hpp.

◆ TOTAL_PORT_COUNT

const FwIndexType Svc::ComQueue::TOTAL_PORT_COUNT = COM_PORT_COUNT + BUFFER_PORT_COUNT

static

Total count of input buffer ports and thus total queues.

Definition at line 41 of file ComQueue.hpp.

The documentation for this class was generated from the following files:

Svc/ComQueue/ComQueue.hpp
Svc/ComQueue/ComQueue.cpp

Classes

Public Member Functions

Static Public Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ComQueue()

◆ ~ComQueue()

Member Function Documentation

◆ cleanup()

◆ configure()

Friends And Related Function Documentation

◆ ComQueueTester

Member Data Documentation

◆ BUFFER_PORT_COUNT

◆ COM_PORT_COUNT

◆ TOTAL_PORT_COUNT
