#include <Svc/SeqDispatcher/SeqDispatcher.hpp>

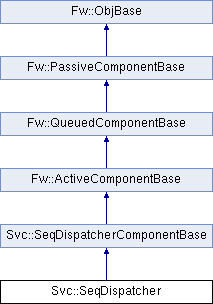

Inheritance diagram for Svc::SeqDispatcher:

Public Member Functions
	SeqDispatcher (const char *const compName)

	~SeqDispatcher ()

Public Member Functions inherited from Svc::SeqDispatcherComponentBase
void	init (FwSizeType queueDepth, FwEnumStoreType instance=0)
	Initialize SeqDispatcherComponentBase object. More...

Fw::InputCmdPort *	get_cmdIn_InputPort (FwIndexType portNum)

Fw::InputCmdResponsePort *	get_seqDoneIn_InputPort (FwIndexType portNum)

Svc::InputCmdSeqInPort *	get_seqRunIn_InputPort (FwIndexType portNum)

Svc::InputCmdSeqInPort *	get_seqStartIn_InputPort (FwIndexType portNum)

void	set_cmdRegOut_OutputPort (FwIndexType portNum, Fw::InputCmdRegPort *port)
	Connect port to cmdRegOut[portNum]. More...

void	set_cmdResponseOut_OutputPort (FwIndexType portNum, Fw::InputCmdResponsePort *port)
	Connect port to cmdResponseOut[portNum]. More...

void	set_logOut_OutputPort (FwIndexType portNum, Fw::InputLogPort *port)
	Connect port to logOut[portNum]. More...

void	set_timeCaller_OutputPort (FwIndexType portNum, Fw::InputTimePort *port)
	Connect port to timeCaller[portNum]. More...

void	set_tlmOut_OutputPort (FwIndexType portNum, Fw::InputTlmPort *port)
	Connect port to tlmOut[portNum]. More...

void	set_seqRunOut_OutputPort (FwIndexType portNum, Svc::InputCmdSeqInPort *port)
	Connect port to seqRunOut[portNum]. More...

void	regCommands ()
	Register commands with the Command Dispatcher. More...

Public Member Functions inherited from Fw::ActiveComponentBase
void	start (FwTaskPriorityType priority=Os::Task::TASK_PRIORITY_DEFAULT, FwSizeType stackSize=Os::Task::TASK_DEFAULT, FwSizeType cpuAffinity=Os::Task::TASK_DEFAULT, FwTaskIdType identifier=static_cast< FwTaskIdType >(Os::Task::TASK_DEFAULT))
	called by instantiator when task is to be started More...

void	exit ()
	exit task in active component More...

Os::Task::Status	join ()
	Join the thread. More...

	DEPRECATED (Os::Task::Status join(void **value_ptr), "Switch to .join()")
	Join to thread with discarded value_ptr. More...

Public Member Functions inherited from Fw::QueuedComponentBase
void	deinit () override
	Allows de-initialization on teardown. More...

Public Member Functions inherited from Fw::PassiveComponentBase
void	setIdBase (const FwIdType)
	Set the ID base. More...

FwIdType	getIdBase () const

Protected Member Functions
void	seqDoneIn_handler (FwIndexType portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response)
	Handler for input port seqDoneIn. More...

void	seqStartIn_handler (FwIndexType portNum, const Fw::StringBase &fileName)
	Handler for input port seqStartIn. More...

void	seqRunIn_handler (FwIndexType portNum, const Fw::StringBase &fileName)
	Handler for input port seqRunIn. More...

Protected Member Functions inherited from Svc::SeqDispatcherComponentBase
	SeqDispatcherComponentBase (const char *compName="")
	Construct SeqDispatcherComponentBase object. More...

virtual	~SeqDispatcherComponentBase ()
	Destroy SeqDispatcherComponentBase object. More...

bool	isConnected_cmdRegOut_OutputPort (FwIndexType portNum)

bool	isConnected_cmdResponseOut_OutputPort (FwIndexType portNum)

bool	isConnected_logOut_OutputPort (FwIndexType portNum)

bool	isConnected_timeCaller_OutputPort (FwIndexType portNum)

bool	isConnected_tlmOut_OutputPort (FwIndexType portNum)

bool	isConnected_seqRunOut_OutputPort (FwIndexType portNum)

void	seqDoneIn_handlerBase (FwIndexType portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response)
	Handler base-class function for input port seqDoneIn. More...

void	seqRunIn_handlerBase (FwIndexType portNum, const Fw::StringBase &filename)
	Handler base-class function for input port seqRunIn. More...

void	seqStartIn_handlerBase (FwIndexType portNum, const Fw::StringBase &filename)
	Handler base-class function for input port seqStartIn. More...

virtual void	seqDoneIn_preMsgHook (FwIndexType portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response)
	Pre-message hook for async input port seqDoneIn. More...

virtual void	seqRunIn_preMsgHook (FwIndexType portNum, const Fw::StringBase &filename)
	Pre-message hook for async input port seqRunIn. More...

virtual void	seqStartIn_preMsgHook (FwIndexType portNum, const Fw::StringBase &filename)
	Pre-message hook for async input port seqStartIn. More...

void	seqRunOut_out (FwIndexType portNum, const Fw::StringBase &filename)
	Invoke output port seqRunOut. More...

void	cmdResponse_out (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdResponse response)
	Emit command response. More...

void	RUN_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

void	LOG_STATUS_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

virtual void	RUN_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command RUN. More...

virtual void	LOG_STATUS_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command LOG_STATUS. More...

void	log_WARNING_HI_InvalidSequencer (U16 idx) const
	Log event InvalidSequencer. More...

void	log_WARNING_HI_NoAvailableSequencers () const
	Log event NoAvailableSequencers. More...

void	log_WARNING_LO_UnknownSequenceFinished (U16 idx) const
	Log event UnknownSequenceFinished. More...

void	log_WARNING_HI_ConflictingSequenceStarted (U16 idx, const Fw::StringBase &newSequence, const Fw::StringBase &sequenceInInternalState) const
	Log event ConflictingSequenceStarted. More...

void	log_WARNING_LO_UnexpectedSequenceStarted (U16 idx, const Fw::StringBase &newSequence) const
	Log event UnexpectedSequenceStarted. More...

void	log_ACTIVITY_LO_LogSequencerStatus (U16 idx, Svc::SeqDispatcher_CmdSequencerState state, const Fw::StringBase &filename) const
	Log event LogSequencerStatus. More...

void	tlmWrite_dispatchedCount (U32 arg, Fw::Time _tlmTime=Fw::Time()) const

void	tlmWrite_errorCount (U32 arg, Fw::Time _tlmTime=Fw::Time()) const

void	tlmWrite_sequencersAvailable (U32 arg, Fw::Time _tlmTime=Fw::Time()) const

Fw::Time	getTime () const

Protected Member Functions inherited from Fw::ActiveComponentBase
	ActiveComponentBase (const char *name)
	Constructor. More...

virtual	~ActiveComponentBase ()
	Destructor. More...

void	init (FwEnumStoreType instance)
	initialization code More...

virtual void	preamble ()
	A function that will be called before the event loop is entered. More...

MsgDispatchStatus	dispatch ()
	The function that will dispatching messages. More...

virtual void	finalizer ()
	A function that will be called after exiting the loop. More...

Protected Member Functions inherited from Fw::QueuedComponentBase
	QueuedComponentBase (const char *name)
	Constructor. More...

virtual	~QueuedComponentBase ()
	Destructor. More...

void	init (FwEnumStoreType instance)
	initialization function More...

Os::Queue::Status	createQueue (FwSizeType depth, FwSizeType msgSize)

MsgDispatchStatus	dispatchAvailableMessages ()
	dispatches all messages currently in the queue, returning status of the dispatch More...

FwSizeType	getNumMsgsDropped ()
	return number of messages dropped More...

void	incNumMsgDropped ()
	increment the number of messages dropped More...

Protected Member Functions inherited from Fw::PassiveComponentBase
	PassiveComponentBase (const char *name)
	Named constructor. More...

virtual	~PassiveComponentBase ()
	Destructor. More...

void	init (FwEnumStoreType instance)
	Initialization function. More...

FwEnumStoreType	getInstance () const

Protected Member Functions inherited from Fw::ObjBase
	ObjBase (const char *name)
	ObjBase constructor. More...

virtual	~ObjBase ()
	Destructor. More...

void	init ()
	Object initializer. More...

Additional Inherited Members
Public Types inherited from Fw::ActiveComponentBase
enum	{ ACTIVE_COMPONENT_EXIT }

Public Types inherited from Fw::QueuedComponentBase
enum	MsgDispatchStatus { MSG_DISPATCH_OK, MSG_DISPATCH_EMPTY, MSG_DISPATCH_ERROR, MSG_DISPATCH_EXIT }

Protected Types inherited from Svc::SeqDispatcherComponentBase
enum	{ NUM_CMDIN_INPUT_PORTS = 1 }
	Enumerations for numbers of special input ports. More...

enum	{ NUM_SEQDONEIN_INPUT_PORTS = 2, NUM_SEQRUNIN_INPUT_PORTS = 1, NUM_SEQSTARTIN_INPUT_PORTS = 2 }
	Enumerations for numbers of typed input ports. More...

enum	{ NUM_CMDREGOUT_OUTPUT_PORTS = 1, NUM_CMDRESPONSEOUT_OUTPUT_PORTS = 1, NUM_LOGOUT_OUTPUT_PORTS = 1, NUM_LOGTEXTOUT_OUTPUT_PORTS = 1, NUM_TIMECALLER_OUTPUT_PORTS = 1, NUM_TLMOUT_OUTPUT_PORTS = 1 }
	Enumerations for numbers of special output ports. More...

enum	{ NUM_SEQRUNOUT_OUTPUT_PORTS = 2 }
	Enumerations for numbers of typed output ports. More...

enum	{ OPCODE_RUN = 0x0, OPCODE_LOG_STATUS = 0x1 }
	Command opcodes. More...

enum	{ EVENTID_INVALIDSEQUENCER = 0x0, EVENTID_NOAVAILABLESEQUENCERS = 0x1, EVENTID_UNKNOWNSEQUENCEFINISHED = 0x2, EVENTID_CONFLICTINGSEQUENCESTARTED = 0x3, EVENTID_UNEXPECTEDSEQUENCESTARTED = 0x4, EVENTID_LOGSEQUENCERSTATUS = 0x5 }
	Event IDs. More...

enum	{ CHANNELID_DISPATCHEDCOUNT = 0x0, CHANNELID_ERRORCOUNT = 0x1, CHANNELID_SEQUENCERSAVAILABLE = 0x2 }
	Channel IDs. More...

Protected Types inherited from Fw::ActiveComponentBase
enum	Lifecycle { CREATED, DISPATCHING, FINALIZING, DONE }
	Tracks the lifecycle of the component. More...

Static Protected Member Functions inherited from Svc::SeqDispatcherComponentBase
static constexpr FwIndexType	getNum_cmdIn_InputPorts ()

static constexpr FwIndexType	getNum_seqDoneIn_InputPorts ()

static constexpr FwIndexType	getNum_seqRunIn_InputPorts ()

static constexpr FwIndexType	getNum_seqStartIn_InputPorts ()

static constexpr FwIndexType	getNum_cmdRegOut_OutputPorts ()

static constexpr FwIndexType	getNum_cmdResponseOut_OutputPorts ()

static constexpr FwIndexType	getNum_logOut_OutputPorts ()

static constexpr FwIndexType	getNum_timeCaller_OutputPorts ()

static constexpr FwIndexType	getNum_tlmOut_OutputPorts ()

static constexpr FwIndexType	getNum_seqRunOut_OutputPorts ()

Protected Attributes inherited from Fw::ActiveComponentBase
Os::Task	m_task
	task object for active component More...

Protected Attributes inherited from Fw::QueuedComponentBase
Os::Queue	m_queue
	queue object for active component More...

Detailed Description

Definition at line 18 of file SeqDispatcher.hpp.

Constructor & Destructor Documentation

◆ SeqDispatcher()

Svc::SeqDispatcher::SeqDispatcher ( const char *const compName )

Construct object SeqDispatcher

Parameters

compName The component name

Definition at line 15 of file SeqDispatcher.cpp.

◆ ~SeqDispatcher()

Svc::SeqDispatcher::~SeqDispatcher ( )

Destroy object SeqDispatcher

Definition at line 17 of file SeqDispatcher.cpp.

Member Function Documentation

◆ seqDoneIn_handler()

void Svc::SeqDispatcher::seqDoneIn_handler	(	FwIndexType	portNum,
		FwOpcodeType	opCode,
		U32	cmdSeq,
		const Fw::CmdResponse &	response
	)

protectedvirtual

Handler for input port seqDoneIn.

Parameters

portNum	The port number
opCode	Command Op Code
cmdSeq	Command Sequence
response	The command response argument

Implements Svc::SeqDispatcherComponentBase.

Definition at line 83 of file SeqDispatcher.cpp.

◆ seqRunIn_handler()

void Svc::SeqDispatcher::seqRunIn_handler	(	FwIndexType	portNum,
		const Fw::StringBase &	fileName
	)

protectedvirtual

Handler for input port seqRunIn.

Parameters

portNum	The port number
fileName	The sequence file

Implements Svc::SeqDispatcherComponentBase.

Definition at line 124 of file SeqDispatcher.cpp.

◆ seqStartIn_handler()

void Svc::SeqDispatcher::seqStartIn_handler	(	FwIndexType	portNum,
		const Fw::StringBase &	fileName
	)

protectedvirtual

Handler for input port seqStartIn.

Parameters

portNum	The port number
fileName	The sequence file

Implements Svc::SeqDispatcherComponentBase.

Definition at line 53 of file SeqDispatcher.cpp.

The documentation for this class was generated from the following files:

Svc/SeqDispatcher/SeqDispatcher.hpp
Svc/SeqDispatcher/SeqDispatcher.cpp
