Svc::TlmPacketizer Class Reference

#include <Svc/TlmPacketizer/TlmPacketizer.hpp>

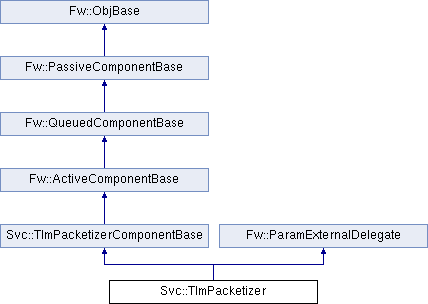

Inheritance diagram for Svc::TlmPacketizer:

Public Member Functions
	TlmPacketizer (const char *const compName)
void	setPacketList (const TlmPacketizerPacketList &packetList, const Svc::TlmPacketizerPacket &ignoreList, const FwChanIdType startLevel)
	~TlmPacketizer ()
Public Member Functions inherited from Svc::TlmPacketizerComponentBase
void	init (FwSizeType queueDepth, FwEnumStoreType instance=0)
	Initialize TlmPacketizerComponentBase object. More...
Fw::InputCmdPort *	get_cmdIn_InputPort (FwIndexType portNum)
Svc::InputSchedPort *	get_Run_InputPort (FwIndexType portNum)
Fw::InputTlmGetPort *	get_TlmGet_InputPort (FwIndexType portNum)
Fw::InputTlmPort *	get_TlmRecv_InputPort (FwIndexType portNum)
Svc::InputConfigureGroupRatePort *	get_configureSectionGroupRate_InputPort (FwIndexType portNum)
Svc::InputEnableSectionPort *	get_controlIn_InputPort (FwIndexType portNum)
Svc::InputPingPort *	get_pingIn_InputPort (FwIndexType portNum)
void	set_cmdRegOut_OutputPort (FwIndexType portNum, Fw::InputCmdRegPort *port)
	Connect port to cmdRegOut[portNum]. More...
void	set_cmdResponseOut_OutputPort (FwIndexType portNum, Fw::InputCmdResponsePort *port)
	Connect port to cmdResponseOut[portNum]. More...
void	set_eventOut_OutputPort (FwIndexType portNum, Fw::InputLogPort *port)
	Connect port to eventOut[portNum]. More...
void	set_paramGetOut_OutputPort (FwIndexType portNum, Fw::InputPrmGetPort *port)
	Connect port to paramGetOut[portNum]. More...
void	set_paramSetOut_OutputPort (FwIndexType portNum, Fw::InputPrmSetPort *port)
	Connect port to paramSetOut[portNum]. More...
void	set_timeGetOut_OutputPort (FwIndexType portNum, Fw::InputTimePort *port)
	Connect port to timeGetOut[portNum]. More...
void	set_tlmOut_OutputPort (FwIndexType portNum, Fw::InputTlmPort *port)
	Connect port to tlmOut[portNum]. More...
void	set_PktSend_OutputPort (FwIndexType portNum, Fw::InputComPort *port)
	Connect port to PktSend[portNum]. More...
void	set_pingOut_OutputPort (FwIndexType portNum, Svc::InputPingPort *port)
	Connect port to pingOut[portNum]. More...
void	regCommands ()
	Register commands with the Command Dispatcher. More...
void	loadParameters ()
	Load the parameters from a parameter source. More...
Public Member Functions inherited from Fw::ActiveComponentBase
void	start (FwTaskPriorityType priority=Os::Task::TASK_PRIORITY_DEFAULT, FwSizeType stackSize=Os::Task::TASK_DEFAULT, FwSizeType cpuAffinity=Os::Task::TASK_DEFAULT, FwTaskIdType identifier=static_cast< FwTaskIdType >(Os::Task::TASK_DEFAULT))
	called by instantiator when task is to be started More...
void	exit ()
	exit task in active component More...
Os::Task::Status	join ()
	Join the thread. More...
	DEPRECATED (Os::Task::Status join(void **value_ptr), "Switch to .join()")
	Join to thread with discarded value_ptr. More...
Public Member Functions inherited from Fw::QueuedComponentBase
void	deinit () override
	Allows de-initialization on teardown. More...
Public Member Functions inherited from Fw::PassiveComponentBase
void	setIdBase (const FwIdType)
	Set the ID base. More...
FwIdType	getIdBase () const

Friends
class	TlmPacketizerTester

Additional Inherited Members
Public Types inherited from Fw::ActiveComponentBase
enum	{ ACTIVE_COMPONENT_EXIT }
Public Types inherited from Fw::QueuedComponentBase
enum	MsgDispatchStatus { MSG_DISPATCH_OK, MSG_DISPATCH_EMPTY, MSG_DISPATCH_ERROR, MSG_DISPATCH_EXIT }
Protected Types inherited from Svc::TlmPacketizerComponentBase
enum	{ NUM_CMDIN_INPUT_PORTS = 1 }
	Enumerations for numbers of special input ports. More...
enum	{   NUM_RUN_INPUT_PORTS = 1, NUM_TLMGET_INPUT_PORTS = 1, NUM_TLMRECV_INPUT_PORTS = 1, NUM_CONFIGURESECTIONGROUPRATE_INPUT_PORTS = 1,   NUM_CONTROLIN_INPUT_PORTS = 1, NUM_PINGIN_INPUT_PORTS = 1 }
	Enumerations for numbers of typed input ports. More...
enum	{   NUM_CMDREGOUT_OUTPUT_PORTS = 1, NUM_CMDRESPONSEOUT_OUTPUT_PORTS = 1, NUM_EVENTOUT_OUTPUT_PORTS = 1, NUM_PARAMGETOUT_OUTPUT_PORTS = 1,   NUM_PARAMSETOUT_OUTPUT_PORTS = 1, NUM_TEXTEVENTOUT_OUTPUT_PORTS = 1, NUM_TIMEGETOUT_OUTPUT_PORTS = 1, NUM_TLMOUT_OUTPUT_PORTS = 1 }
	Enumerations for numbers of special output ports. More...
enum	{ NUM_PKTSEND_OUTPUT_PORTS = 2, NUM_PINGOUT_OUTPUT_PORTS = 1 }
	Enumerations for numbers of typed output ports. More...
enum	{   OPCODE_SET_LEVEL = 0x0, OPCODE_SEND_PKT = 0x1, OPCODE_ENABLE_SECTION = 0x2, OPCODE_ENABLE_GROUP = 0x3,   OPCODE_FORCE_GROUP = 0x4, OPCODE_CONFIGURE_GROUP_RATES = 0x5, OPCODE_SECTION_ENABLED_SET = 0x6, OPCODE_SECTION_ENABLED_SAVE = 0x7,   OPCODE_SECTION_CONFIGS_SET = 0x8, OPCODE_SECTION_CONFIGS_SAVE = 0x9 }
	Command opcodes. More...
enum	{   EVENTID_NOCHAN = 0x0, EVENTID_LEVELSET = 0x1, EVENTID_MAXLEVELEXCEED = 0x2, EVENTID_PACKETSENT = 0x3,   EVENTID_PACKETNOTFOUND = 0x4, EVENTID_SECTIONUNCONFIGURABLE = 0x5 }
	Event IDs. More...
enum	{ CHANNELID_GROUPCONFIGS = 0x0, CHANNELID_SECTIONENABLED = 0x1 }
	Channel IDs. More...
enum	{ PARAMID_SECTION_ENABLED = 0x0, PARAMID_SECTION_CONFIGS = 0x1 }
	Parameter IDs. More...
Protected Types inherited from Fw::ActiveComponentBase
enum	Lifecycle { CREATED, DISPATCHING, FINALIZING, DONE }
	Tracks the lifecycle of the component. More...
Protected Member Functions inherited from Svc::TlmPacketizerComponentBase
	TlmPacketizerComponentBase (const char *compName="")
	Construct TlmPacketizerComponentBase object. More...
virtual	~TlmPacketizerComponentBase ()
	Destroy TlmPacketizerComponentBase object. More...
bool	isConnected_cmdRegOut_OutputPort (FwIndexType portNum)
bool	isConnected_cmdResponseOut_OutputPort (FwIndexType portNum)
bool	isConnected_eventOut_OutputPort (FwIndexType portNum)
bool	isConnected_paramGetOut_OutputPort (FwIndexType portNum)
bool	isConnected_paramSetOut_OutputPort (FwIndexType portNum)
bool	isConnected_timeGetOut_OutputPort (FwIndexType portNum)
bool	isConnected_tlmOut_OutputPort (FwIndexType portNum)
bool	isConnected_PktSend_OutputPort (FwIndexType portNum)
bool	isConnected_pingOut_OutputPort (FwIndexType portNum)
void	Run_handlerBase (FwIndexType portNum, U32 context)
	Handler base-class function for input port Run. More...
Fw::TlmValid	TlmGet_handlerBase (FwIndexType portNum, FwChanIdType id, Fw::Time &timeTag, Fw::TlmBuffer &val)
	Handler base-class function for input port TlmGet. More...
void	TlmRecv_handlerBase (FwIndexType portNum, FwChanIdType id, Fw::Time &timeTag, Fw::TlmBuffer &val)
	Handler base-class function for input port TlmRecv. More...
void	configureSectionGroupRate_handlerBase (FwIndexType portNum, const Svc::TelemetrySection &section, FwChanIdType tlmGroup, const Svc::RateLogic &rateLogic, U32 minDelta, U32 maxDelta)
	Handler base-class function for input port configureSectionGroupRate. More...
void	controlIn_handlerBase (FwIndexType portNum, const Svc::TelemetrySection &section, const Fw::Enabled &enabled)
	Handler base-class function for input port controlIn. More...
void	pingIn_handlerBase (FwIndexType portNum, U32 key)
	Handler base-class function for input port pingIn. More...
virtual void	Run_preMsgHook (FwIndexType portNum, U32 context)
	Pre-message hook for async input port Run. More...
virtual void	configureSectionGroupRate_preMsgHook (FwIndexType portNum, const Svc::TelemetrySection &section, FwChanIdType tlmGroup, const Svc::RateLogic &rateLogic, U32 minDelta, U32 maxDelta)
	Pre-message hook for async input port configureSectionGroupRate. More...
virtual void	controlIn_preMsgHook (FwIndexType portNum, const Svc::TelemetrySection &section, const Fw::Enabled &enabled)
	Pre-message hook for async input port controlIn. More...
virtual void	pingIn_preMsgHook (FwIndexType portNum, U32 key)
	Pre-message hook for async input port pingIn. More...
void	PktSend_out (FwIndexType portNum, Fw::ComBuffer &data, U32 context)
	Invoke output port PktSend. More...
void	pingOut_out (FwIndexType portNum, U32 key)
	Invoke output port pingOut. More...
void	cmdResponse_out (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdResponse response)
	Emit command response. More...
void	SET_LEVEL_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	SEND_PKT_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	ENABLE_SECTION_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	ENABLE_GROUP_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	FORCE_GROUP_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	CONFIGURE_GROUP_RATES_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
virtual void	SET_LEVEL_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command SET_LEVEL. More...
virtual void	SEND_PKT_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command SEND_PKT. More...
virtual void	ENABLE_SECTION_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command ENABLE_SECTION. More...
virtual void	ENABLE_GROUP_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command ENABLE_GROUP. More...
virtual void	FORCE_GROUP_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command FORCE_GROUP. More...
virtual void	CONFIGURE_GROUP_RATES_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CONFIGURE_GROUP_RATES. More...
void	log_WARNING_LO_NoChan (FwChanIdType Id) const
void	log_ACTIVITY_HI_LevelSet (FwChanIdType id) const
void	log_WARNING_LO_MaxLevelExceed (FwChanIdType level, FwChanIdType max) const
void	log_ACTIVITY_LO_PacketSent (U32 id) const
void	log_WARNING_LO_PacketNotFound (U32 id) const
void	log_WARNING_LO_SectionUnconfigurable (Svc::TelemetrySection section, Fw::Enabled enable) const
	Log event SectionUnconfigurable. More...
void	tlmWrite_GroupConfigs (const Svc::TlmPacketizer_SectionConfigs &arg, Fw::Time _tlmTime=Fw::Time()) const
void	tlmWrite_SectionEnabled (const Svc::TlmPacketizer_SectionEnabled &arg, Fw::Time _tlmTime=Fw::Time()) const
	Write telemetry channel SectionEnabled. More...
virtual void	parameterUpdated (FwPrmIdType id)
	Called whenever a parameter is updated. More...
virtual void	parametersLoaded ()
	Called whenever parameters are loaded. More...
Svc::TlmPacketizer_SectionEnabled	paramGet_SECTION_ENABLED (Fw::ParamValid &valid)
Svc::TlmPacketizer_SectionConfigs	paramGet_SECTION_CONFIGS (Fw::ParamValid &valid)
void	registerExternalParameters (Fw::ParamExternalDelegate *paramExternalDelegatePtr)
	Initialize the external parameter delegate. More...
Fw::Time	getTime () const
Protected Member Functions inherited from Fw::ActiveComponentBase
	ActiveComponentBase (const char *name)
	Constructor. More...
virtual	~ActiveComponentBase ()
	Destructor. More...
void	init (FwEnumStoreType instance)
	initialization code More...
virtual void	preamble ()
	A function that will be called before the event loop is entered. More...
MsgDispatchStatus	dispatch ()
	The function that will dispatching messages. More...
virtual void	finalizer ()
	A function that will be called after exiting the loop. More...
Protected Member Functions inherited from Fw::QueuedComponentBase
	QueuedComponentBase (const char *name)
	Constructor. More...
virtual	~QueuedComponentBase ()
	Destructor. More...
void	init (FwEnumStoreType instance)
	initialization function More...
Os::Queue::Status	createQueue (FwSizeType depth, FwSizeType msgSize)
MsgDispatchStatus	dispatchAvailableMessages ()
	dispatches all messages currently in the queue, returning status of the dispatch More...
FwSizeType	getNumMsgsDropped ()
	return number of messages dropped More...
void	incNumMsgDropped ()
	increment the number of messages dropped More...
Protected Member Functions inherited from Fw::PassiveComponentBase
	PassiveComponentBase (const char *name)
	Named constructor. More...
virtual	~PassiveComponentBase ()
	Destructor. More...
void	init (FwEnumStoreType instance)
	Initialization function. More...
FwEnumStoreType	getInstance () const
Protected Member Functions inherited from Fw::ObjBase
	ObjBase (const char *name)
	ObjBase constructor. More...
virtual	~ObjBase ()
	Destructor. More...
void	init ()
	Object initializer. More...
Static Protected Member Functions inherited from Svc::TlmPacketizerComponentBase
static constexpr FwIndexType	getNum_cmdIn_InputPorts ()
static constexpr FwIndexType	getNum_Run_InputPorts ()
static constexpr FwIndexType	getNum_TlmGet_InputPorts ()
static constexpr FwIndexType	getNum_TlmRecv_InputPorts ()
static constexpr FwIndexType	getNum_configureSectionGroupRate_InputPorts ()
static constexpr FwIndexType	getNum_controlIn_InputPorts ()
static constexpr FwIndexType	getNum_pingIn_InputPorts ()
static constexpr FwIndexType	getNum_cmdRegOut_OutputPorts ()
static constexpr FwIndexType	getNum_cmdResponseOut_OutputPorts ()
static constexpr FwIndexType	getNum_eventOut_OutputPorts ()
static constexpr FwIndexType	getNum_paramGetOut_OutputPorts ()
static constexpr FwIndexType	getNum_paramSetOut_OutputPorts ()
static constexpr FwIndexType	getNum_timeGetOut_OutputPorts ()
static constexpr FwIndexType	getNum_tlmOut_OutputPorts ()
static constexpr FwIndexType	getNum_PktSend_OutputPorts ()
static constexpr FwIndexType	getNum_pingOut_OutputPorts ()
Protected Attributes inherited from Fw::ActiveComponentBase
Os::Task	m_task
	task object for active component More...
Protected Attributes inherited from Fw::QueuedComponentBase
Os::Queue	m_queue
	queue object for active component More...

Detailed Description

Definition at line 30 of file TlmPacketizer.hpp.

Constructor & Destructor Documentation

TlmPacketizer()

Svc::TlmPacketizer::TlmPacketizer

(

const char *const

compName

)

Construct object TlmPacketizer

Parameters

compName

The component name

Definition at line 27 of file TlmPacketizer.cpp.

~TlmPacketizer()

Svc::TlmPacketizer::~TlmPacketizer

(

)

Destroy object TlmPacketizer

Definition at line 46 of file TlmPacketizer.cpp.

Member Function Documentation

setPacketList()

void Svc::TlmPacketizer::setPacketList	(	const TlmPacketizerPacketList &	packetList,
		const Svc::TlmPacketizerPacket &	ignoreList,
		const FwChanIdType	startLevel
	)

Definition at line 48 of file TlmPacketizer.cpp.

Friends And Related Function Documentation

TlmPacketizerTester

friend class TlmPacketizerTester

friend

Definition at line 31 of file TlmPacketizer.hpp.

---

The documentation for this class was generated from the following files:

• Svc/TlmPacketizer/TlmPacketizer.hpp
• Svc/TlmPacketizer/TlmPacketizer.cpp
