Fw::LinearBufferBase Class Reference

#include <Fw/Types/Serializable.hpp>

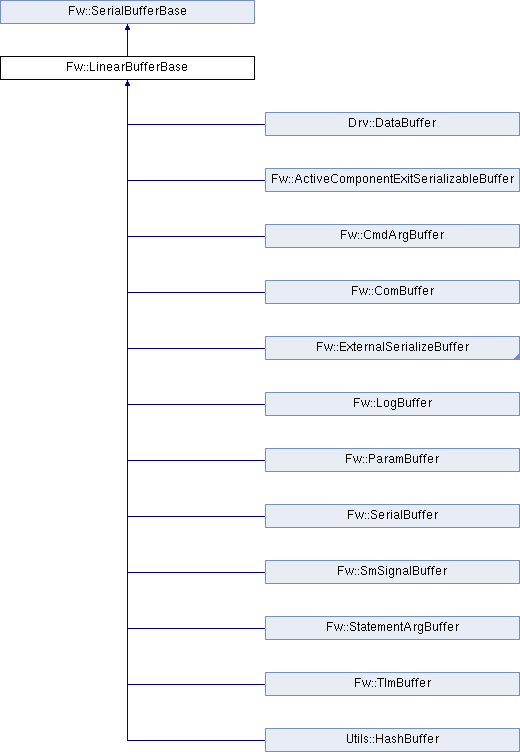

Inheritance diagram for Fw::LinearBufferBase:

Public Member Functions
virtual	~LinearBufferBase ()
	Destructor. More...
SerializeStatus	serializeFrom (U8 val, Endianness mode=Endianness::BIG) override
	Serialize an 8-bit unsigned integer value. More...
SerializeStatus	serializeFrom (I8 val, Endianness mode=Endianness::BIG) override
	Serialize an 8-bit signed integer value. More...
SerializeStatus	serializeFrom (F32 val, Endianness mode=Endianness::BIG) override
	Serialize a 32-bit floating point value. More...
SerializeStatus	serializeFrom (F64 val, Endianness mode=Endianness::BIG) override
	Serialize a 64-bit floating point value. More...
SerializeStatus	serializeFrom (bool val, Endianness mode=Endianness::BIG) override
	Serialize a boolean value. More...
SerializeStatus	serializeFrom (const void *val, Endianness mode=Endianness::BIG) override
	Serialize a pointer value. More...
SerializeStatus	serializeFrom (const U8 *buff, FwSizeType length, Endianness endianMode=Endianness::BIG) override
	Serialize a data buffer. More...
SerializeStatus	serializeFrom (const U8 *buff, FwSizeType length, Serialization::t lengthMode, Endianness endianMode=Endianness::BIG) override
	Serialize a byte buffer with optional length prefix. More...
SerializeStatus	serializeFrom (const LinearBufferBase &val, Endianness mode=Endianness::BIG) override
	Serialize another LinearBufferBase object. More...
SerializeStatus	serializeFrom (const Serializable &val, Endianness mode=Endianness::BIG) override
	Serialize a Serializable object. More...
SerializeStatus	serializeSize (const FwSizeType size, Endianness mode=Endianness::BIG) override
	Serialize a size value. More...
SerializeStatus	deserializeTo (U8 &val, Endianness mode=Endianness::BIG) override
	Deserialize an 8-bit unsigned integer value. More...
SerializeStatus	deserializeTo (I8 &val, Endianness mode=Endianness::BIG) override
	Deserialize an 8-bit signed integer value. More...
SerializeStatus	deserializeTo (F32 &val, Endianness mode=Endianness::BIG) override
	Deserialize a 32-bit floating point value. More...
SerializeStatus	deserializeTo (F64 &val, Endianness mode=Endianness::BIG) override
	Deserialize a 64-bit floating point value. More...
SerializeStatus	deserializeTo (bool &val, Endianness mode=Endianness::BIG) override
	Deserialize a boolean value. More...
SerializeStatus	deserializeTo (void *&val, Endianness mode=Endianness::BIG) override
	Deserialize a pointer value. More...
SerializeStatus	deserializeTo (U8 *buff, FwSizeType &length, Endianness endianMode=Endianness::BIG) override
	Deserialize a data buffer. More...
SerializeStatus	deserializeTo (U8 *buff, FwSizeType &length, Serialization::t lengthMode, Endianness endianMode=Endianness::BIG) override
	Deserialize a byte buffer with optional length prefix. More...
SerializeStatus	deserializeTo (Serializable &val, Endianness mode=Endianness::BIG) override
	Deserialize a Serializable object. More...
SerializeStatus	deserializeTo (LinearBufferBase &val, Endianness mode=Endianness::BIG) override
	Deserialize a LinearBufferBase object. More...
SerializeStatus	deserializeSize (FwSizeType &size, Endianness mode=Endianness::BIG) override
	Deserialize a size value. More...
	DEPRECATED (SerializeStatus serialize(const LinearBufferBase &val), "Use serializeFrom(const SerialBufferBase& val) instead")
	DEPRECATED (SerializeStatus deserialize(LinearBufferBase &val), "Use deserializeTo(SerialBufferBase& val) instead")
void	resetSer () override
	Reset serialization pointer to beginning of buffer. More...
void	resetDeser () override
	Reset deserialization pointer to beginning of buffer. More...
SerializeStatus	moveSerToOffset (FwSizeType offset) override
	Move serialization pointer to specified offset. More...
SerializeStatus	moveDeserToOffset (FwSizeType offset) override
	Move deserialization pointer to specified offset. More...
SerializeStatus	serializeSkip (FwSizeType numBytesToSkip) override
	Skip specified number of bytes during serialization. More...
SerializeStatus	deserializeSkip (FwSizeType numBytesToSkip) override
	Skip specified number of bytes during deserialization. More...
	DEPRECATED (Serializable::SizeType getBuffCapacity() const, "Use getCapacity() instead")
	DEPRECATED (Serializable::SizeType getBuffLength() const, "Use getSize() instead")
	DEPRECATED (Serializable::SizeType getBuffLeft(), "Use getDeserializeSizeLeft() instead")
Serializable::SizeType	getCapacity () const override
	Get buffer capacity. More...
Serializable::SizeType	getSize () const override
	Get current buffer size. More...
Serializable::SizeType	getDeserializeSizeLeft () const override
	Get remaining deserialization buffer size. More...
Serializable::SizeType	getSerializeSizeLeft () const override
	Get remaining serialization buffer size. More...
U8 *	getBuffAddr ()
	Get buffer address for data filling (non-const version) More...
const U8 *	getBuffAddr () const
	Get buffer address for data reading (const version) More...
const U8 *	getBuffAddrLeft () const
	Get address of remaining non-deserialized data. More...
U8 *	getBuffAddrSer ()
	Get address of end of serialization (DANGEROUS!) More...
SerializeStatus	setBuff (const U8 *src, Serializable::SizeType length) override
	Set buffer contents from external source. More...
SerializeStatus	setBuffLen (Serializable::SizeType length) override
	Set buffer length manually. More...
SerializeStatus	copyRaw (SerialBufferBase &dest, Serializable::SizeType size) override
	Copy raw bytes from this buffer to destination and advance source offset. More...
SerializeStatus	copyRawOffset (SerialBufferBase &dest, Serializable::SizeType size) override
	Append raw bytes to destination from this buffer and advance source offset. More...
	DEPRECATED (SerializeStatus serialize(U8 val), "Use serializeFrom(U8 val) instead")
	DEPRECATED (SerializeStatus serialize(I8 val), "Use serializeFrom(I8 val) instead")
	DEPRECATED (SerializeStatus serialize(F32 val), "Use serializeFrom(F32 val) instead")
	DEPRECATED (SerializeStatus serialize(F64 val), "Use serializeFrom(F64 val) instead")
	DEPRECATED (SerializeStatus serialize(bool val), "Use serializeFrom(bool val) instead")
	DEPRECATED (SerializeStatus serialize(const void *val), "Use serializeFrom(const void* val) instead")
	DEPRECATED (SerializeStatus serialize(const U8 *buff, FwSizeType length, bool noLength), "Use serialize(const U8* buff, FwSizeType length, Serialization::t mode) instead")
	DEPRECATED (SerializeStatus serialize(const U8 *buff, FwSizeType length), "Use serializeFrom(const U8* buff, FwSizeType length) instead")
	DEPRECATED (SerializeStatus serialize(const U8 *buff, FwSizeType length, Serialization::t mode), "Use serializeFrom(const U8* buff, FwSizeType length, Serialization::t mode) instead")
	DEPRECATED (SerializeStatus serialize(const Serializable &val), "Use serializeFrom(const Serializable& val) instead")
	DEPRECATED (SerializeStatus deserialize(U8 &val), "Use deserializeTo(U8& val) instead")
	DEPRECATED (SerializeStatus deserialize(I8 &val), "Use deserializeTo(I8& val) instead")
	DEPRECATED (SerializeStatus deserialize(F32 &val), "Use deserializeTo(F32& val) instead")
	DEPRECATED (SerializeStatus deserialize(F64 &val), "Use deserializeTo(F64& val) instead")
	DEPRECATED (SerializeStatus deserialize(bool &val), "Use deserializeTo(bool& val) instead")
	DEPRECATED (SerializeStatus deserialize(void *&val), "Use deserializeTo(void*& val) instead")
	DEPRECATED (SerializeStatus deserialize(U8 *buff, FwSizeType &length, bool noLength), "Use deserialize(U8* buff, FwSizeType& length, Serialization::t mode) instead")
	DEPRECATED (SerializeStatus deserialize(U8 *buff, FwSizeType &length), "Use deserializeTo(U8* buff, FwSizeType& length) instead")
	DEPRECATED (SerializeStatus deserialize(U8 *buff, FwSizeType &length, Serialization::t mode), "Use deserializeTo(U8* buff, FwSizeType& length, Serialization::t mode) instead")
	DEPRECATED (SerializeStatus deserialize(Serializable &val), "Use deserializeTo(Serializable& val) instead")
Public Member Functions inherited from Fw::SerialBufferBase
virtual	~SerialBufferBase ()
	Virtual destructor. More...

Static Public Member Functions
static constexpr Serializable::SizeType	STATIC_SERIALIZED_SIZE (Serializable::SizeType maxSize)
	Get the static serialized size of a buffer This is the max size of the buffer data plus the size of the stored size. More...

Protected Member Functions
LinearBufferBase &	operator= (const LinearBufferBase &src)
	Copy assignment operator. More...
	LinearBufferBase ()=delete
	LinearBufferBase (U8 *buffAddr, Serializable::SizeType capacity)
	Storage constructor. More...
	LinearBufferBase (const LinearBufferBase &src)
	Copy constructor (protected) More...
void	copyFrom (const LinearBufferBase &src)
	Copy data from source buffer. More...
Serializable::SizeType	getSerLoc () const
Serializable::SizeType	getDeserLoc () const
void	setSerLoc (Serializable::SizeType loc)
void	setDeserLoc (Serializable::SizeType loc)
void	setBuffAddrInternal (U8 *addr)
void	setCapacityInternal (Serializable::SizeType capacity)

Friends
class	LinearBufferBaseTester

Detailed Description

Definition at line 667 of file Serializable.hpp.

Constructor & Destructor Documentation

~LinearBufferBase()

Fw::LinearBufferBase::~LinearBufferBase ( )

virtual

Destructor.

Destroys a LinearBufferBase instance. This is a virtual destructor that allows proper cleanup of derived classes.

Definition at line 46 of file Serializable.cpp.

LinearBufferBase() [1/3]

Fw::LinearBufferBase::LinearBufferBase ( )

protecteddelete

There is no default constructor: every derived class must supply its storage during construction

LinearBufferBase() [2/3]

Fw::LinearBufferBase::LinearBufferBase ( U8 *  buffAddr, Serializable::SizeType  capacity  )

protected

Storage constructor.

Initializes a LinearBufferBase instance with the buffer storage that the derived class provides. Using the constructor makes it a compile-time error for a derived class to forget to setup its storage.

Parameters

buffAddr	Pointer to the buffer address (may be nullptr)
capacity	Capacity of the buffer storage in bytes

Definition at line 40 of file Serializable.cpp.

LinearBufferBase() [3/3]

Fw::LinearBufferBase::LinearBufferBase ( const LinearBufferBase &  src )

protected

Copy constructor (protected)

Creates a copy of another LinearBufferBase instance. This constructor is protected and intended for use only by derived classes or internal implementation details.

Parameters

src	Reference to the source LinearBufferBase to copy from

Member Function Documentation

copyFrom()

void Fw::LinearBufferBase::copyFrom ( const LinearBufferBase &  src )

protected

Copy data from source buffer.

Copies the contents from another LinearBufferBase instance to this one. This includes copying the buffer data, serialization location, and deserialization location.

Parameters

src	Reference to the source LinearBufferBase to copy data from

Definition at line 48 of file Serializable.cpp.

copyRaw()

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::copyRaw ( SerialBufferBase &  dest, Serializable::SizeType  size  )

overridevirtual

Copy raw bytes from this buffer to destination and advance source offset.

This method copies exactly size bytes from the current position in this buffer to the destination buffer. It advances the source buffer's position by the number of bytes copied.

Parameters

dest	Destination buffer to receive the copied data
size	Number of bytes to copy

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 734 of file Serializable.cpp.

copyRawOffset()

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::copyRawOffset ( SerialBufferBase &  dest, Serializable::SizeType  size  )

overridevirtual

Append raw bytes to destination from this buffer and advance source offset.

This method appends exactly size bytes from the current position in this buffer to the destination buffer. It uses Serialization::OMIT_LENGTH mode, meaning no length token is written. The source buffer's position is advanced by the number of bytes copied.

Parameters

dest	Destination buffer to append data to
size	Number of bytes to append

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 756 of file Serializable.cpp.

DEPRECATED() [1/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	serializeconst LinearBufferBase &val,
		"Use serializeFrom(const SerialBufferBase& val) instead"
	)

DEPRECATED() [2/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	deserializeLinearBufferBase &val,
		"Use deserializeTo(SerialBufferBase& val) instead"
	)

DEPRECATED() [3/25]

Fw::LinearBufferBase::DEPRECATED	(	Serializable::SizeType getBuffCapacity()	const,
		"Use getCapacity() instead"
	)

DEPRECATED() [4/25]

Fw::LinearBufferBase::DEPRECATED	(	Serializable::SizeType getBuffLength()	const,
		"Use getSize() instead"
	)

DEPRECATED() [5/25]

Fw::LinearBufferBase::DEPRECATED	(	Serializable::SizeType	getBuffLeft(),
		"Use getDeserializeSizeLeft() instead"
	)

DEPRECATED() [6/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	serializeU8 val,
		"Use serializeFrom(U8 val) instead"
	)

DEPRECATED() [7/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	serializeI8 val,
		"Use serializeFrom(I8 val) instead"
	)

DEPRECATED() [8/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	serializeF32 val,
		"Use serializeFrom(F32 val) instead"
	)

DEPRECATED() [9/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	serializeF64 val,
		"Use serializeFrom(F64 val) instead"
	)

DEPRECATED() [10/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	serializebool val,
		"Use serializeFrom(bool val) instead"
	)

DEPRECATED() [11/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	serializeconst void *val,
		"Use serializeFrom(const void* val) instead"
	)

DEPRECATED() [12/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	serializeconst U8 *buff, FwSizeType length, bool noLength,
		"Use serialize(const U8* buff, FwSizeType length, Serialization::t mode) instead"
	)

DEPRECATED() [13/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	serializeconst U8 *buff, FwSizeType length,
		"Use serializeFrom(const U8* buff, FwSizeType length) instead"
	)

DEPRECATED() [14/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	serializeconst U8 *buff, FwSizeType length, Serialization::t mode,
		"Use serializeFrom(const U8* buff, FwSizeType length, Serialization::t mode) instead"
	)

DEPRECATED() [15/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	serializeconst Serializable &val,
		"Use serializeFrom(const Serializable& val) instead"
	)

DEPRECATED() [16/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	deserializeU8 &val,
		"Use deserializeTo(U8& val) instead"
	)

DEPRECATED() [17/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	deserializeI8 &val,
		"Use deserializeTo(I8& val) instead"
	)

DEPRECATED() [18/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	deserializeF32 &val,
		"Use deserializeTo(F32& val) instead"
	)

DEPRECATED() [19/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	deserializeF64 &val,
		"Use deserializeTo(F64& val) instead"
	)

DEPRECATED() [20/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	deserializebool &val,
		"Use deserializeTo(bool& val) instead"
	)

DEPRECATED() [21/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	deserializevoid *&val,
		"Use deserializeTo(void*& val) instead"
	)

DEPRECATED() [22/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	deserializeU8 *buff, FwSizeType &length, bool noLength,
		"Use deserialize(U8* buff, FwSizeType& length, Serialization::t mode) instead"
	)

DEPRECATED() [23/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	deserializeU8 *buff, FwSizeType &length,
		"Use deserializeTo(U8* buff, FwSizeType& length) instead"
	)

DEPRECATED() [24/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	deserializeU8 *buff, FwSizeType &length, Serialization::t mode,
		"Use deserializeTo(U8* buff, FwSizeType& length, Serialization::t mode) instead"
	)

DEPRECATED() [25/25]

Fw::LinearBufferBase::DEPRECATED	(	SerializeStatus	deserializeSerializable &val,
		"Use deserializeTo(Serializable& val) instead"
	)

deserializeSize()

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::deserializeSize ( FwSizeType &  size, Endianness  mode = Endianness::BIG  )

overridevirtual

Deserialize a size value.

This method reads a size value (typically used for buffer sizes) from the deserialization buffer. The endianness of the deserialization can be controlled via the mode parameter.

Parameters

size	Reference to store the deserialized size value
mode	Endianness mode for deserialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 636 of file Serializable.cpp.

deserializeSkip()

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::deserializeSkip ( FwSizeType  numBytesToSkip )

overridevirtual

Skip specified number of bytes during deserialization.

This method advances the deserialization pointer by the specified number of bytes without reading any data. This can be used to skip over data in the buffer that is not needed or to advance to the next relevant data segment.

Parameters

numBytesToSkip

Number of bytes to skip during deserialization

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 668 of file Serializable.cpp.

deserializeTo() [1/10]

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::deserializeTo ( U8 &  val, Endianness  mode = Endianness::BIG  )

overridevirtual

Deserialize an 8-bit unsigned integer value.

This method reads an 8-bit unsigned integer value from the deserialization buffer and stores it in the provided reference. The endianness of the deserialization can be controlled via the mode parameter.

Parameters

val	Reference to store the deserialized 8-bit unsigned integer value
mode	Endianness mode for deserialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 318 of file Serializable.cpp.

deserializeTo() [2/10]

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::deserializeTo ( I8 &  val, Endianness  mode = Endianness::BIG  )

overridevirtual

Deserialize an 8-bit signed integer value.

This method reads an 8-bit signed integer value from the deserialization buffer and stores it in the provided reference. The endianness of the deserialization can be controlled via the mode parameter.

Parameters

val	Reference to store the deserialized 8-bit signed integer value
mode	Endianness mode for deserialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 334 of file Serializable.cpp.

deserializeTo() [3/10]

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::deserializeTo ( F32 &  val, Endianness  mode = Endianness::BIG  )

overridevirtual

Deserialize a 32-bit floating point value.

This method reads a 32-bit floating point value from the deserialization buffer and stores it in the provided reference. The endianness of the deserialization can be controlled via the mode parameter.

Parameters

val	Reference to store the deserialized 32-bit floating point value
mode	Endianness mode for deserialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 533 of file Serializable.cpp.

deserializeTo() [4/10]

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::deserializeTo ( F64 &  val, Endianness  mode = Endianness::BIG  )

overridevirtual

Deserialize a 64-bit floating point value.

This method reads a 64-bit floating point value from the deserialization buffer and stores it in the provided reference. The endianness of the deserialization can be controlled via the mode parameter.

Parameters

val	Reference to store the deserialized 64-bit floating point value
mode	Endianness mode for deserialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 486 of file Serializable.cpp.

deserializeTo() [5/10]

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::deserializeTo ( bool &  val, Endianness  mode = Endianness::BIG  )

overridevirtual

Deserialize a boolean value.

This method reads a boolean value from the deserialization buffer and stores it in the provided reference. The endianness of the deserialization can be controlled via the mode parameter.

Parameters

val	Reference to store the deserialized boolean value
mode	Endianness mode for deserialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 499 of file Serializable.cpp.

deserializeTo() [6/10]

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::deserializeTo ( void *&  val, Endianness  mode = Endianness::BIG  )

overridevirtual

Deserialize a pointer value.

This method reads a pointer value from the deserialization buffer and stores it in the provided reference. Note that only the pointer value itself is deserialized, not the contents it points to. The endianness of the deserialization can be controlled via the mode parameter.

Parameters

val	Reference to store the deserialized pointer value
mode	Endianness mode for deserialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 523 of file Serializable.cpp.

deserializeTo() [7/10]

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::deserializeTo ( U8 *  buff, FwSizeType &  length, Endianness  endianMode = Endianness::BIG  )

overridevirtual

Deserialize a data buffer.

This method reads a buffer of bytes from the deserialization buffer and stores them in the provided buffer. The endianness of the deserialization can be controlled via the endianMode parameter.

Parameters

buff	Pointer to the buffer where deserialized data will be stored
length	Reference to store the actual number of bytes deserialized
endianMode	Endianness mode for deserialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 545 of file Serializable.cpp.

deserializeTo() [8/10]

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::deserializeTo ( U8 *  buff, FwSizeType &  length, Serialization::t  lengthMode, Endianness  endianMode = Endianness::BIG  )

overridevirtual

Deserialize a byte buffer with optional length prefix.

This method reads a buffer of bytes from the deserialization buffer and stores them in the provided buffer. If lengthMode indicates that a length prefix was included, it will be read from the buffer first. The endianness of the deserialization can be controlled via the endianMode parameter.

Parameters

buff	Pointer to the buffer where deserialized data will be stored
length	Reference to store the actual number of bytes deserialized
lengthMode	Specifies whether length was included in serialization (INCLUDE_LENGTH or OMIT_LENGTH)
endianMode	Endianness mode for deserialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 554 of file Serializable.cpp.

deserializeTo() [9/10]

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::deserializeTo ( Serializable &  val, Endianness  mode = Endianness::BIG  )

overridevirtual

Deserialize a Serializable object.

This method reads data from the deserialization buffer and reconstructs a Serializable object from it. The endianness of the deserialization can be controlled via the mode parameter.

Parameters

val	Reference to the Serializable object that will be populated with deserialized data
mode	Endianness mode for deserialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 598 of file Serializable.cpp.

deserializeTo() [10/10]

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::deserializeTo ( LinearBufferBase &  val, Endianness  mode = Endianness::BIG  )

overridevirtual

Deserialize a LinearBufferBase object.

This method reads data from the deserialization buffer and reconstructs a LinearBufferBase object from it. The endianness of the deserialization can be controlled via the mode parameter.

Parameters

val	Reference to the LinearBufferBase object that will be populated with deserialized data
mode	Endianness mode for deserialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 602 of file Serializable.cpp.

getBuffAddr() [1/2]

U8* Fw::LinearBufferBase::getBuffAddr ( )

inline

Get buffer address for data filling (non-const version)

This method returns a pointer to the buffer's data area where data can be written. This is the non-const version of the method, allowing the buffer contents to be modified.

Returns

Pointer to the buffer's data area

Definition at line 1201 of file Serializable.hpp.

getBuffAddr() [2/2]

const U8* Fw::LinearBufferBase::getBuffAddr ( ) const

inline

Get buffer address for data reading (const version)

This method returns a const pointer to the buffer's data area where data can be read. This is the const version of the method, preventing modification of the buffer contents.

Returns

Const pointer to the buffer's data area

Definition at line 1210 of file Serializable.hpp.

getBuffAddrLeft()

const U8 * Fw::LinearBufferBase::getBuffAddrLeft

(

)

const

Get address of remaining non-deserialized data.

gets address of end of serialization. Used to manually place data at the end

This method returns a const pointer to the portion of the buffer that has not yet been deserialized. This can be used to examine remaining data or to determine how much data is left to process.

Returns

Const pointer to the remaining non-deserialized data

Definition at line 780 of file Serializable.cpp.

getBuffAddrSer()

U8 * Fw::LinearBufferBase::getBuffAddrSer

(

)

Get address of end of serialization (DANGEROUS!)

This method returns a pointer to the current end of serialized data in the buffer. This is a dangerous operation as it requires knowledge of the maximum buffer size and proper adjustment when done.

Returns

Pointer to the end of serialized data

Definition at line 787 of file Serializable.cpp.

getCapacity()

Serializable::SizeType Fw::LinearBufferBase::getCapacity ( ) const

inlineoverridevirtual

Get buffer capacity.

This method returns the total capacity of the buffer, which is the maximum amount of data that can be stored in the buffer. This is not the same as the current size, which indicates how much data is currently in the buffer.

Returns

The capacity of the buffer in bytes

Implements Fw::SerialBufferBase.

Definition at line 1164 of file Serializable.hpp.

getDeserializeSizeLeft()

Serializable::SizeType Fw::LinearBufferBase::getDeserializeSizeLeft ( ) const

overridevirtual

Get remaining deserialization buffer size.

This method returns the amount of data that remains to be deserialized from the buffer. It indicates how much data is left starting from the current deserialization pointer to the end of the buffer.

Returns

The remaining size of the deserialization buffer in bytes

Implements Fw::SerialBufferBase.

Definition at line 722 of file Serializable.cpp.

getDeserLoc()

Serializable::SizeType Fw::LinearBufferBase::getDeserLoc ( ) const

inlineprotected

Definition at line 1390 of file Serializable.hpp.

getSerializeSizeLeft()

Serializable::SizeType Fw::LinearBufferBase::getSerializeSizeLeft ( ) const

overridevirtual

Get remaining serialization buffer size.

This method returns the amount of space available for serialization in the buffer. It indicates how much data can still be written to the buffer starting from the current serialization pointer to the end of the buffer's capacity.

Returns

The remaining size of the serialization buffer in bytes

Implements Fw::SerialBufferBase.

Definition at line 728 of file Serializable.cpp.

getSerLoc()

Serializable::SizeType Fw::LinearBufferBase::getSerLoc ( ) const

inlineprotected

Definition at line 1389 of file Serializable.hpp.

getSize()

Serializable::SizeType Fw::LinearBufferBase::getSize ( ) const

overridevirtual

Get current buffer size.

This method returns the current size of the buffer, which indicates how much data is currently stored in the buffer. This may be less than or equal to the buffer's capacity.

Returns

The current size of the buffer in bytes

Implements Fw::SerialBufferBase.

Definition at line 694 of file Serializable.cpp.

moveDeserToOffset()

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::moveDeserToOffset ( FwSizeType  offset )

overridevirtual

Move deserialization pointer to specified offset.

This method moves the deserialization pointer to the specified offset within the buffer. This allows for skipping over data or positioning the deserializer at a specific location in the buffer.

Parameters

offset

The offset to move the deserialization pointer to

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 687 of file Serializable.cpp.

moveSerToOffset()

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::moveSerToOffset ( FwSizeType  offset )

overridevirtual

Move serialization pointer to specified offset.

This method moves the serialization pointer to the specified offset within the buffer. This allows for skipping over data or positioning the serializer at a specific location in the buffer.

Parameters

offset

The offset to move the serialization pointer to

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 681 of file Serializable.cpp.

operator=()

LinearBufferBase & Fw::LinearBufferBase::operator= ( const LinearBufferBase &  src )

protected

Copy assignment operator.

Assigns the contents of another LinearBufferBase instance to this one. This includes copying the buffer data, serialization location, and deserialization location from the source to this instance.

Parameters

src	Reference to the source LinearBufferBase to copy from

Returns

Reference to this instance after assignment

Definition at line 63 of file Serializable.cpp.

resetDeser()

void Fw::LinearBufferBase::resetDeser ( )

overridevirtual

Reset deserialization pointer to beginning of buffer.

This method resets the deserialization pointer to the beginning of the buffer, allowing the buffer to be reused for new deserialization operations. The buffer contents are not modified, but the pointer is reset to allow reading from the start of the data.

Returns

None

Implements Fw::SerialBufferBase.

Definition at line 650 of file Serializable.cpp.

resetSer()

void Fw::LinearBufferBase::resetSer ( )

overridevirtual

Reset serialization pointer to beginning of buffer.

This method resets the serialization pointer to the beginning of the buffer, allowing the buffer to be reused for new serialization operations. Any data that was previously serialized in the buffer will be overwritten.

Returns

None

Implements Fw::SerialBufferBase.

Definition at line 645 of file Serializable.cpp.

serializeFrom() [1/10]

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::serializeFrom ( U8  val, Endianness  mode = Endianness::BIG  )

overridevirtual

Serialize an 8-bit unsigned integer value.

This method serializes a single 8-bit unsigned integer value into the buffer. The endianness of the serialization can be controlled via the mode parameter.

NOTE: The 'mode' argument here for endianness has no effect as there is no concept of endianness for an U8. It has been left in for compatibility.

Parameters

val	The 8-bit unsigned integer value to serialize
mode	Endianness mode for serialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 70 of file Serializable.cpp.

serializeFrom() [2/10]

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::serializeFrom ( I8  val, Endianness  mode = Endianness::BIG  )

overridevirtual

Serialize an 8-bit signed integer value.

This method serializes a single 8-bit signed integer value into the buffer. The endianness of the serialization can be controlled via the mode parameter.

NOTE: The 'mode' argument here for endianness has no effect as there is no concept of endianness for an I8. It has been left in for compatibility.

Parameters

val	The 8-bit signed integer value to serialize
mode	Endianness mode for serialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 83 of file Serializable.cpp.

serializeFrom() [3/10]

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::serializeFrom ( F32  val, Endianness  mode = Endianness::BIG  )

overridevirtual

Serialize a 32-bit floating point value.

This method serializes a single 32-bit floating point value into the buffer. The endianness of the serialization can be controlled via the mode parameter.

Parameters

val	The 32-bit floating point value to serialize
mode	Endianness mode for serialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 205 of file Serializable.cpp.

serializeFrom() [4/10]

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::serializeFrom ( F64  val, Endianness  mode = Endianness::BIG  )

overridevirtual

Serialize a 64-bit floating point value.

This method serializes a single 64-bit floating point value into the buffer. The endianness of the serialization can be controlled via the mode parameter.

Parameters

val	The 64-bit floating point value to serialize
mode	Endianness mode for serialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 198 of file Serializable.cpp.

serializeFrom() [5/10]

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::serializeFrom ( bool  val, Endianness  mode = Endianness::BIG  )

overridevirtual

Serialize a boolean value.

This method serializes a single boolean value into the buffer. The endianness of the serialization can be controlled via the mode parameter.

Parameters

val	The boolean value to serialize
mode	Endianness mode for serialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 212 of file Serializable.cpp.

serializeFrom() [6/10]

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::serializeFrom ( const void *  val, Endianness  mode = Endianness::BIG  )

overridevirtual

Serialize a pointer value.

This method serializes a pointer value into the buffer. Note that only the pointer value itself is serialized, not the contents it points to. The endianness of the serialization can be controlled via the mode parameter.

Parameters

val	The pointer value to serialize
mode	Endianness mode for serialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 230 of file Serializable.cpp.

serializeFrom() [7/10]

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::serializeFrom ( const U8 *  buff, FwSizeType  length, Endianness  endianMode = Endianness::BIG  )

overridevirtual

Serialize a data buffer.

This method serializes a buffer of bytes into the serialization buffer. The endianness of the serialization can be controlled via the endianMode parameter.

Parameters

buff	Pointer to the buffer containing data to serialize
length	Number of bytes to serialize from the buffer
endianMode	Endianness mode for serialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 238 of file Serializable.cpp.

serializeFrom() [8/10]

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::serializeFrom ( const U8 *  buff, FwSizeType  length, Serialization::t  lengthMode, Endianness  endianMode = Endianness::BIG  )

overridevirtual

Serialize a byte buffer with optional length prefix.

This method serializes a buffer of bytes into the serialization buffer. If lengthMode is set to INCLUDE_LENGTH, the length is included as the first token. The endianness of the serialization can be controlled via the endianMode parameter.

Parameters

buff	Pointer to the buffer containing data to serialize
length	Number of bytes to serialize from the buffer
lengthMode	Specifies whether to include length in serialization (INCLUDE_LENGTH or OMIT_LENGTH)
endianMode	Endianness mode for serialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 245 of file Serializable.cpp.

serializeFrom() [9/10]

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::serializeFrom ( const LinearBufferBase &  val, Endianness  mode = Endianness::BIG  )

overridevirtual

Serialize another LinearBufferBase object.

This method serializes the contents of another LinearBufferBase object into this buffer. The endianness of the serialization can be controlled via the mode parameter.

Parameters

val	Reference to the LinearBufferBase object to serialize
mode	Endianness mode for serialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 280 of file Serializable.cpp.

serializeFrom() [10/10]

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::serializeFrom ( const Serializable &  val, Endianness  mode = Endianness::BIG  )

overridevirtual

Serialize a Serializable object.

This method serializes an object derived from the Serializable base class into this buffer. The endianness of the serialization can be controlled via the mode parameter.

Parameters

val	Reference to the Serializable object to serialize
mode	Endianness mode for serialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 275 of file Serializable.cpp.

serializeSize()

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::serializeSize ( const FwSizeType  size, Endianness  mode = Endianness::BIG  )

overridevirtual

Serialize a size value.

This method serializes a size value (typically used for buffer sizes) into this buffer. The endianness of the serialization can be controlled via the mode parameter.

Parameters

size	The size value to serialize
mode	Endianness mode for serialization (default is Endianness::BIG)

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 305 of file Serializable.cpp.

serializeSkip()

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::serializeSkip ( FwSizeType  numBytesToSkip )

overridevirtual

Skip specified number of bytes during serialization.

This method advances the serialization pointer by the specified number of bytes without writing any data. This can be used to reserve space in the buffer or skip over data that will be written later.

Parameters

numBytesToSkip

Number of bytes to skip during serialization

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 654 of file Serializable.cpp.

setBuff()

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::setBuff ( const U8 *  src, Serializable::SizeType  length  )

overridevirtual

Set buffer contents from external source.

This method sets the contents of the buffer from an external source. It copies the specified number of bytes from the source pointer into the buffer and updates the buffer size accordingly.

Parameters

src	Pointer to the external data source
length	Number of bytes to copy from the source

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 698 of file Serializable.cpp.

setBuffAddrInternal()

void Fw::LinearBufferBase::setBuffAddrInternal ( U8 *  addr )

inlineprotected

Definition at line 1396 of file Serializable.hpp.

setBuffLen()

FW_SERIALIZE_FORCE_INLINE_LBB SerializeStatus Fw::LinearBufferBase::setBuffLen ( Serializable::SizeType  length )

overridevirtual

Set buffer length manually.

This method manually sets the length of the buffer without modifying its contents. This can be used after filling the buffer with data through other means to indicate how much valid data is in the buffer.

Parameters

length

The new length to set for the buffer

Returns

SerializeStatus indicating the result of the operation

Implements Fw::SerialBufferBase.

Definition at line 712 of file Serializable.cpp.

setCapacityInternal()

void Fw::LinearBufferBase::setCapacityInternal ( Serializable::SizeType  capacity )

inlineprotected

Definition at line 1397 of file Serializable.hpp.

setDeserLoc()

void Fw::LinearBufferBase::setDeserLoc ( Serializable::SizeType  loc )

inlineprotected

Definition at line 1392 of file Serializable.hpp.

setSerLoc()

void Fw::LinearBufferBase::setSerLoc ( Serializable::SizeType  loc )

inlineprotected

Definition at line 1391 of file Serializable.hpp.

STATIC_SERIALIZED_SIZE()

static constexpr Serializable::SizeType Fw::LinearBufferBase::STATIC_SERIALIZED_SIZE ( Serializable::SizeType  maxSize )

inlinestatic

Get the static serialized size of a buffer This is the max size of the buffer data plus the size of the stored size.

Parameters

maxSize

The maximum buffer data size

Definition at line 684 of file Serializable.hpp.

Friends And Related Function Documentation

LinearBufferBaseTester

friend class LinearBufferBaseTester

friend

Definition at line 668 of file Serializable.hpp.

---

The documentation for this class was generated from the following files:

• Fw/Types/Serializable.hpp
• Fw/Types/Serializable.cpp
