#include <Fw/Types/Serializable.hpp>

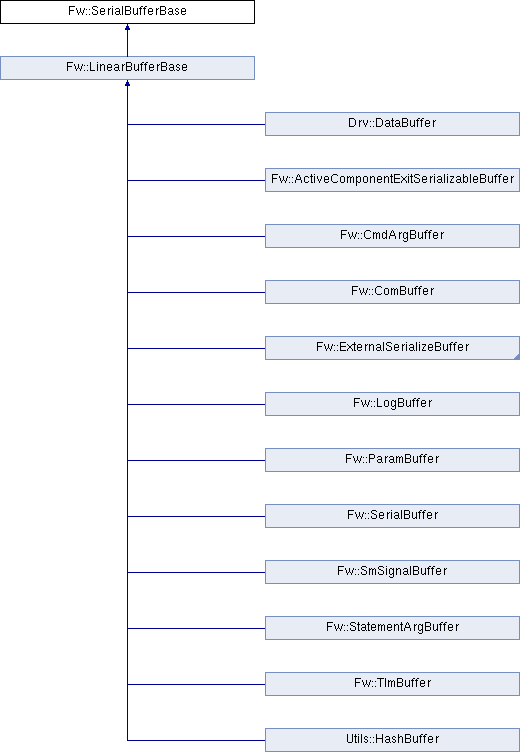

Inheritance diagram for Fw::SerialBufferBase:

Public Member Functions
virtual	~SerialBufferBase ()
	Virtual destructor. More...

virtual SerializeStatus	serializeFrom (U8 val, Endianness mode=Endianness::BIG)=0
	Serialize an 8-bit unsigned integer value. More...

virtual SerializeStatus	serializeFrom (I8 val, Endianness mode=Endianness::BIG)=0
	Serialize an 8-bit signed integer value. More...

virtual SerializeStatus	serializeFrom (F32 val, Endianness mode=Endianness::BIG)=0
	Serialize a 32-bit floating point value. More...

virtual SerializeStatus	serializeFrom (F64 val, Endianness mode=Endianness::BIG)=0
	Serialize a 64-bit floating point value. More...

virtual SerializeStatus	serializeFrom (bool val, Endianness mode=Endianness::BIG)=0
	Serialize a boolean value. More...

virtual SerializeStatus	serializeFrom (const void *val, Endianness mode=Endianness::BIG)=0
	Serialize a pointer value. More...

virtual SerializeStatus	serializeFrom (const U8 *buff, FwSizeType length, Endianness endianMode=Endianness::BIG)=0
	Serialize a data buffer. More...

virtual SerializeStatus	serializeFrom (const U8 *buff, FwSizeType length, Serialization::t lengthMode, Endianness endianMode=Endianness::BIG)=0
	Serialize a byte buffer with optional length prefix. More...

virtual SerializeStatus	serializeFrom (const LinearBufferBase &val, Endianness mode=Endianness::BIG)=0
	Serialize another LinearBufferBase object. More...

virtual SerializeStatus	serializeFrom (const Serializable &val, Endianness mode=Endianness::BIG)=0
	Serialize a Serializable object. More...

virtual SerializeStatus	serializeSize (const FwSizeType size, Endianness mode=Endianness::BIG)=0
	Serialize a size value. More...

virtual SerializeStatus	deserializeTo (U8 &val, Endianness mode=Endianness::BIG)=0
	Deserialize an 8-bit unsigned integer value. More...

virtual SerializeStatus	deserializeTo (I8 &val, Endianness mode=Endianness::BIG)=0
	Deserialize an 8-bit signed integer value. More...

virtual SerializeStatus	deserializeTo (F32 &val, Endianness mode=Endianness::BIG)=0
	Deserialize a 32-bit floating point value. More...

virtual SerializeStatus	deserializeTo (F64 &val, Endianness mode=Endianness::BIG)=0
	Deserialize a 64-bit floating point value. More...

virtual SerializeStatus	deserializeTo (bool &val, Endianness mode=Endianness::BIG)=0
	Deserialize a boolean value. More...

virtual SerializeStatus	deserializeTo (void *&val, Endianness mode=Endianness::BIG)=0
	Deserialize a pointer value. More...

virtual SerializeStatus	deserializeTo (U8 *buff, FwSizeType &length, Endianness endianMode=Endianness::BIG)=0
	Deserialize a data buffer. More...

virtual SerializeStatus	deserializeTo (U8 *buff, FwSizeType &length, Serialization::t lengthMode, Endianness endianMode=Endianness::BIG)=0
	Deserialize a byte buffer with optional length prefix. More...

virtual SerializeStatus	deserializeTo (Serializable &val, Endianness mode=Endianness::BIG)=0
	Deserialize a Serializable object. More...

virtual SerializeStatus	deserializeTo (LinearBufferBase &val, Endianness mode=Endianness::BIG)=0
	Deserialize a LinearBufferBase object. More...

virtual SerializeStatus	deserializeSize (FwSizeType &size, Endianness mode=Endianness::BIG)=0
	Deserialize a size value. More...

virtual SerializeStatus	copyRaw (SerialBufferBase &dest, Serializable::SizeType size)=0
	Copy raw bytes from the source (this) into a destination buffer and advance source offset. More...

virtual SerializeStatus	copyRawOffset (SerialBufferBase &dest, Serializable::SizeType size)=0
	Append raw bytes to destination (no length) and advance source offset. More...

virtual void	resetSer ()=0
	Reset serialization pointer to beginning of buffer. More...

virtual void	resetDeser ()=0
	Reset deserialization pointer to beginning of buffer. More...

virtual SerializeStatus	moveSerToOffset (FwSizeType offset)=0
	Move serialization pointer to specified offset. More...

virtual SerializeStatus	moveDeserToOffset (FwSizeType offset)=0
	Move deserialization pointer to specified offset. More...

virtual SerializeStatus	serializeSkip (FwSizeType numBytesToSkip)=0
	Skip specified number of bytes during serialization. More...

virtual SerializeStatus	deserializeSkip (FwSizeType numBytesToSkip)=0
	Skip specified number of bytes during deserialization. More...

virtual Serializable::SizeType	getCapacity () const =0
	Get buffer capacity. More...

virtual Serializable::SizeType	getSize () const =0
	Get current buffer size. More...

virtual Serializable::SizeType	getDeserializeSizeLeft () const =0
	Get remaining deserialization buffer size. More...

virtual Serializable::SizeType	getSerializeSizeLeft () const =0
	Get remaining serialization buffer size. More...

virtual SerializeStatus	setBuff (const U8 *src, Serializable::SizeType length)=0
	Set buffer contents from external source. More...

virtual SerializeStatus	setBuffLen (Serializable::SizeType length)=0
	Set buffer length manually. More...

Detailed Description

Definition at line 112 of file Serializable.hpp.

Constructor & Destructor Documentation

◆ ~SerialBufferBase()

Fw::SerialBufferBase::~SerialBufferBase ( )

virtual

Virtual destructor.

Ensures proper cleanup of derived classes.

Definition at line 40 of file Serializable.cpp.

Member Function Documentation

◆ copyRaw()

virtual SerializeStatus Fw::SerialBufferBase::copyRaw	(	SerialBufferBase &	dest,
		Serializable::SizeType	size
	)

pure virtual

Copy raw bytes from the source (this) into a destination buffer and advance source offset.

Copies exactly size bytes starting at the current deserialization pointer of this into dest. This operation does not prepend a length field and does not interpret the data.

Preconditions:

size bytes must remain in the source (getDeserializeSizeLeft() >= size).
Destination must have sufficient capacity (dest.getCapacity() >= size).

Post-conditions on success:

dest contains exactly the copied bytes and its previous contents are discarded.
this has advanced its deserialization pointer by size bytes.

Parameters

dest	Destination serialization buffer to receive the bytes (its contents are replaced)
size	Number of bytes to copy from the source

Returns: FW_SERIALIZE_OK on success; FW_SERIALIZE_NO_ROOM_LEFT if destination capacity is insufficient; FW_DESERIALIZE_SIZE_MISMATCH if source does not contain size bytes remaining

Implemented in Fw::LinearBufferBase.

◆ copyRawOffset()

virtual SerializeStatus Fw::SerialBufferBase::copyRawOffset	(	SerialBufferBase &	dest,
		Serializable::SizeType	size
	)

pure virtual

Append raw bytes to destination (no length) and advance source offset.

Appends exactly size bytes from the current deserialization pointer of this into dest using Serialization::OMIT_LENGTH, preserving any existing bytes already serialized in dest.

Preconditions:

size bytes must remain in the source (getDeserializeSizeLeft() >= size).
Destination must have space for the append (dest.getCapacity() >= dest.getSize() + size).

Post-conditions on success:

dest gains size additional bytes at the end; no length token is written.
this has advanced its deserialization pointer by size bytes.

Parameters

dest	Destination serialization buffer to append to
size	Number of bytes to copy from the source and append to dest

Returns: FW_SERIALIZE_OK on success; FW_SERIALIZE_NO_ROOM_LEFT if destination capacity is insufficient; FW_DESERIALIZE_SIZE_MISMATCH if source does not contain size bytes remaining

Implemented in Fw::LinearBufferBase.

◆ deserializeSize()

virtual SerializeStatus Fw::SerialBufferBase::deserializeSize	(	FwSizeType &	size,
		Endianness	mode = `Endianness::BIG`
	)

pure virtual

Deserialize a size value.

This method reads a size value (typically used for buffer sizes) from the deserialization buffer. The endianness of the deserialization can be controlled via the mode parameter.

Parameters

size	Reference to store the deserialized size value
mode	Endianness mode for deserialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ deserializeSkip()

virtual SerializeStatus Fw::SerialBufferBase::deserializeSkip ( FwSizeType numBytesToSkip )

pure virtual

Skip specified number of bytes during deserialization.

This method advances the deserialization pointer by the specified number of bytes without reading any data. This can be used to skip over data in the buffer that is not needed or to advance to the next relevant data segment.

Parameters

numBytesToSkip Number of bytes to skip during deserialization

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ deserializeTo() [1/10]

virtual SerializeStatus Fw::SerialBufferBase::deserializeTo	(	U8 &	val,
		Endianness	mode = `Endianness::BIG`
	)

pure virtual

Deserialize an 8-bit unsigned integer value.

This method reads an 8-bit unsigned integer value from the deserialization buffer and stores it in the provided reference. The endianness of the deserialization can be controlled via the mode parameter.

Parameters

val	Reference to store the deserialized 8-bit unsigned integer value
mode	Endianness mode for deserialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ deserializeTo() [2/10]

virtual SerializeStatus Fw::SerialBufferBase::deserializeTo	(	I8 &	val,
		Endianness	mode = `Endianness::BIG`
	)

pure virtual

Deserialize an 8-bit signed integer value.

This method reads an 8-bit signed integer value from the deserialization buffer and stores it in the provided reference. The endianness of the deserialization can be controlled via the mode parameter.

Parameters

val	Reference to store the deserialized 8-bit signed integer value
mode	Endianness mode for deserialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ deserializeTo() [3/10]

virtual SerializeStatus Fw::SerialBufferBase::deserializeTo	(	F32 &	val,
		Endianness	mode = `Endianness::BIG`
	)

pure virtual

Deserialize a 32-bit floating point value.

This method reads a 32-bit floating point value from the deserialization buffer and stores it in the provided reference. The endianness of the deserialization can be controlled via the mode parameter.

Parameters

val	Reference to store the deserialized 32-bit floating point value
mode	Endianness mode for deserialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ deserializeTo() [4/10]

virtual SerializeStatus Fw::SerialBufferBase::deserializeTo	(	F64 &	val,
		Endianness	mode = `Endianness::BIG`
	)

pure virtual

Deserialize a 64-bit floating point value.

This method reads a 64-bit floating point value from the deserialization buffer and stores it in the provided reference. The endianness of the deserialization can be controlled via the mode parameter.

Parameters

val	Reference to store the deserialized 64-bit floating point value
mode	Endianness mode for deserialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ deserializeTo() [5/10]

virtual SerializeStatus Fw::SerialBufferBase::deserializeTo	(	bool &	val,
		Endianness	mode = `Endianness::BIG`
	)

pure virtual

Deserialize a boolean value.

This method reads a boolean value from the deserialization buffer and stores it in the provided reference. The endianness of the deserialization can be controlled via the mode parameter.

Parameters

val	Reference to store the deserialized boolean value
mode	Endianness mode for deserialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ deserializeTo() [6/10]

virtual SerializeStatus Fw::SerialBufferBase::deserializeTo	(	void *&	val,
		Endianness	mode = `Endianness::BIG`
	)

pure virtual

Deserialize a pointer value.

This method reads a pointer value from the deserialization buffer and stores it in the provided reference. Note that only the pointer value itself is deserialized, not the contents it points to. The endianness of the deserialization can be controlled via the mode parameter.

Parameters

val	Reference to store the deserialized pointer value
mode	Endianness mode for deserialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ deserializeTo() [7/10]

virtual SerializeStatus Fw::SerialBufferBase::deserializeTo	(	U8 *	buff,
		FwSizeType &	length,
		Endianness	endianMode = `Endianness::BIG`
	)

pure virtual

Deserialize a data buffer.

This method reads a buffer of bytes from the deserialization buffer and stores them in the provided buffer. The endianness of the deserialization can be controlled via the endianMode parameter.

Parameters

buff	Pointer to the buffer where deserialized data will be stored
length	Reference to store the actual number of bytes deserialized
endianMode	Endianness mode for deserialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ deserializeTo() [8/10]

virtual SerializeStatus Fw::SerialBufferBase::deserializeTo	(	U8 *	buff,
		FwSizeType &	length,
		Serialization::t	lengthMode,
		Endianness	endianMode = `Endianness::BIG`
	)

pure virtual

Deserialize a byte buffer with optional length prefix.

This method reads a buffer of bytes from the deserialization buffer and stores them in the provided buffer. If lengthMode indicates that a length prefix was included, it will be read from the buffer first. The endianness of the deserialization can be controlled via the endianMode parameter.

Parameters

buff	Pointer to the buffer where deserialized data will be stored
length	Reference to store the actual number of bytes deserialized
lengthMode	Specifies whether length was included in serialization (INCLUDE_LENGTH or OMIT_LENGTH)
endianMode	Endianness mode for deserialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ deserializeTo() [9/10]

virtual SerializeStatus Fw::SerialBufferBase::deserializeTo	(	Serializable &	val,
		Endianness	mode = `Endianness::BIG`
	)

pure virtual

Deserialize a Serializable object.

This method reads data from the deserialization buffer and reconstructs a Serializable object from it. The endianness of the deserialization can be controlled via the mode parameter.

Parameters

val	Reference to the Serializable object that will be populated with deserialized data
mode	Endianness mode for deserialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ deserializeTo() [10/10]

virtual SerializeStatus Fw::SerialBufferBase::deserializeTo	(	LinearBufferBase &	val,
		Endianness	mode = `Endianness::BIG`
	)

pure virtual

Deserialize a LinearBufferBase object.

This method reads data from the deserialization buffer and reconstructs a LinearBufferBase object from it. The endianness of the deserialization can be controlled via the mode parameter.

Parameters

val	Reference to the LinearBufferBase object that will be populated with deserialized data
mode	Endianness mode for deserialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ getCapacity()

virtual Serializable::SizeType Fw::SerialBufferBase::getCapacity ( ) const

pure virtual

Get buffer capacity.

This method returns the total capacity of the buffer, which is the maximum amount of data that can be stored in the buffer. This is not the same as the current size, which indicates how much data is currently in the buffer.

Returns: The capacity of the buffer in bytes

Implemented in Fw::ExternalSerializeBuffer, Fw::LinearBufferBase, Utils::HashBuffer, Fw::SerialBuffer, Fw::ParamBuffer, Fw::CmdArgBuffer, Fw::ComBuffer, Fw::LogBuffer, Fw::SmSignalBuffer, Fw::TlmBuffer, Drv::DataBuffer, Fw::StatementArgBuffer, and Fw::ActiveComponentExitSerializableBuffer.

◆ getDeserializeSizeLeft()

virtual Serializable::SizeType Fw::SerialBufferBase::getDeserializeSizeLeft ( ) const

pure virtual

Get remaining deserialization buffer size.

This method returns the amount of data that remains to be deserialized from the buffer. It indicates how much data is left starting from the current deserialization pointer to the end of the valid size (returned by getSize()).

Returns: The remaining size of the deserialization buffer in bytes

Implemented in Fw::LinearBufferBase.

◆ getSerializeSizeLeft()

virtual Serializable::SizeType Fw::SerialBufferBase::getSerializeSizeLeft ( ) const

pure virtual

Get remaining serialization buffer size.

This method returns the amount of space available for serialization in the buffer. It indicates how much data can still be written to the buffer starting from the current serialization pointer to the end of the buffer's capacity.

Returns: The remaining size of the serialization buffer in bytes

Implemented in Fw::LinearBufferBase.

◆ getSize()

virtual Serializable::SizeType Fw::SerialBufferBase::getSize ( ) const

pure virtual

Get current buffer size.

This method returns the current size of the buffer, which indicates how much data is currently stored in the buffer. This may be less than or equal to the buffer's capacity.

Returns: The current size of the buffer in bytes

Implemented in Fw::LinearBufferBase.

◆ moveDeserToOffset()

virtual SerializeStatus Fw::SerialBufferBase::moveDeserToOffset ( FwSizeType offset )

pure virtual

Move deserialization pointer to specified offset.

This method moves the deserialization pointer to the specified offset within the buffer. This allows for skipping over data or positioning the deserializer at a specific location in the buffer.

Parameters

offset The offset to move the deserialization pointer to

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ moveSerToOffset()

virtual SerializeStatus Fw::SerialBufferBase::moveSerToOffset ( FwSizeType offset )

pure virtual

Move serialization pointer to specified offset.

This method moves the serialization pointer to the specified offset within the buffer. This allows for skipping over data or positioning the serializer at a specific location in the buffer.

Parameters

offset The offset to move the serialization pointer to

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ resetDeser()

virtual void Fw::SerialBufferBase::resetDeser ( )

pure virtual

Reset deserialization pointer to beginning of buffer.

This method resets the deserialization pointer to the beginning of the buffer, allowing the buffer to be reused for new deserialization operations. The buffer contents are not modified, but the pointer is reset to allow reading from the start of the data.

Implemented in Fw::LinearBufferBase.

◆ resetSer()

virtual void Fw::SerialBufferBase::resetSer ( )

pure virtual

Reset serialization pointer to beginning of buffer.

This method resets the serialization pointer to the beginning of the buffer, allowing the buffer to be reused for new serialization operations. Any data that was previously serialized in the buffer will be overwritten.

Implemented in Fw::LinearBufferBase.

◆ serializeFrom() [1/10]

virtual SerializeStatus Fw::SerialBufferBase::serializeFrom	(	U8	val,
		Endianness	mode = `Endianness::BIG`
	)

pure virtual

Serialize an 8-bit unsigned integer value.

This method serializes a single 8-bit unsigned integer value into the buffer. The endianness of the serialization can be controlled via the mode parameter.

NOTE: The 'mode' argument here for endianness has no effect as there is no concept of endianness for a U8. It has been left in for compatibility.

Parameters

val	The 8-bit unsigned integer value to serialize
mode	Endianness mode for serialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ serializeFrom() [2/10]

virtual SerializeStatus Fw::SerialBufferBase::serializeFrom	(	I8	val,
		Endianness	mode = `Endianness::BIG`
	)

pure virtual

Serialize an 8-bit signed integer value.

This method serializes a single 8-bit signed integer value into the buffer. The endianness of the serialization can be controlled via the mode parameter.

NOTE: The 'mode' argument here for endianness has no effect as there is no concept of endianness for an I8. It has been left in for compatibility.

Parameters

val	The 8-bit signed integer value to serialize
mode	Endianness mode for serialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ serializeFrom() [3/10]

virtual SerializeStatus Fw::SerialBufferBase::serializeFrom	(	F32	val,
		Endianness	mode = `Endianness::BIG`
	)

pure virtual

Serialize a 32-bit floating point value.

This method serializes a single 32-bit floating point value into the buffer. The endianness of the serialization can be controlled via the mode parameter.

Parameters

val	The 32-bit floating point value to serialize
mode	Endianness mode for serialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ serializeFrom() [4/10]

virtual SerializeStatus Fw::SerialBufferBase::serializeFrom	(	F64	val,
		Endianness	mode = `Endianness::BIG`
	)

pure virtual

Serialize a 64-bit floating point value.

This method serializes a single 64-bit floating point value into the buffer. The endianness of the serialization can be controlled via the mode parameter.

Parameters

val	The 64-bit floating point value to serialize
mode	Endianness mode for serialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ serializeFrom() [5/10]

virtual SerializeStatus Fw::SerialBufferBase::serializeFrom	(	bool	val,
		Endianness	mode = `Endianness::BIG`
	)

pure virtual

Serialize a boolean value.

This method serializes a single boolean value into the buffer. The endianness of the serialization can be controlled via the mode parameter.

Parameters

val	The boolean value to serialize
mode	Endianness mode for serialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ serializeFrom() [6/10]

virtual SerializeStatus Fw::SerialBufferBase::serializeFrom	(	const void *	val,
		Endianness	mode = `Endianness::BIG`
	)

pure virtual

Serialize a pointer value.

This method serializes a pointer value into the buffer. Note that only the pointer value itself is serialized, not the contents it points to. The endianness of the serialization can be controlled via the mode parameter.

Parameters

val	The pointer value to serialize
mode	Endianness mode for serialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ serializeFrom() [7/10]

virtual SerializeStatus Fw::SerialBufferBase::serializeFrom	(	const U8 *	buff,
		FwSizeType	length,
		Endianness	endianMode = `Endianness::BIG`
	)

pure virtual

Serialize a data buffer.

This method serializes a buffer of bytes into the serialization buffer. The endianness of the serialization can be controlled via the mode parameter.

Parameters

buff	Pointer to the buffer containing data to serialize
length	Number of bytes to serialize from the buffer
endianMode	Endianness mode for serialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ serializeFrom() [8/10]

virtual SerializeStatus Fw::SerialBufferBase::serializeFrom	(	const U8 *	buff,
		FwSizeType	length,
		Serialization::t	lengthMode,
		Endianness	endianMode = `Endianness::BIG`
	)

pure virtual

Serialize a byte buffer with optional length prefix.

This method serializes a buffer of bytes into the serialization buffer. If lengthMode is set to INCLUDE_LENGTH, the length is included as the first token. The endianness of the serialization can be controlled via the endianMode parameter.

Parameters

buff	Pointer to the buffer containing data to serialize
length	Number of bytes to serialize from the buffer
lengthMode	Specifies whether to include length in serialization (INCLUDE_LENGTH or OMIT_LENGTH)
endianMode	Endianness mode for serialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ serializeFrom() [9/10]

virtual SerializeStatus Fw::SerialBufferBase::serializeFrom	(	const LinearBufferBase &	val,
		Endianness	mode = `Endianness::BIG`
	)

pure virtual

Serialize another LinearBufferBase object.

This method serializes the contents of another LinearBufferBase object into this buffer. The endianness of the serialization can be controlled via the mode parameter.

Parameters

val	Reference to the LinearBufferBase object to serialize
mode	Endianness mode for serialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ serializeFrom() [10/10]

virtual SerializeStatus Fw::SerialBufferBase::serializeFrom	(	const Serializable &	val,
		Endianness	mode = `Endianness::BIG`
	)

pure virtual

Serialize a Serializable object.

This method serializes an object derived from the Serializable base class into this buffer. The endianness of the serialization can be controlled via the mode parameter.

Parameters

val	Reference to the Serializable object to serialize
mode	Endianness mode for serialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ serializeSize()

virtual SerializeStatus Fw::SerialBufferBase::serializeSize	(	const FwSizeType	size,
		Endianness	mode = `Endianness::BIG`
	)

pure virtual

Serialize a size value.

This method serializes a size value (typically used for buffer sizes) into this buffer. The endianness of the serialization can be controlled via the mode parameter.

Parameters

size	The size value to serialize
mode	Endianness mode for serialization (default is Endianness::BIG)

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ serializeSkip()

virtual SerializeStatus Fw::SerialBufferBase::serializeSkip ( FwSizeType numBytesToSkip )

pure virtual

Skip specified number of bytes during serialization.

This method advances the serialization pointer by the specified number of bytes without writing any data. This can be used to reserve space in the buffer or skip over data that will be written later.

Parameters

numBytesToSkip Number of bytes to skip during serialization

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ setBuff()

virtual SerializeStatus Fw::SerialBufferBase::setBuff	(	const U8 *	src,
		Serializable::SizeType	length
	)

pure virtual

Set buffer contents from external source.

This method sets the contents of the buffer from an external source. It copies the specified number of bytes from the source pointer into the buffer and updates the buffer size accordingly.

Parameters

src	Pointer to the external data source
length	Number of bytes to copy from the source

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

◆ setBuffLen()

virtual SerializeStatus Fw::SerialBufferBase::setBuffLen ( Serializable::SizeType length )

pure virtual

Set buffer length manually.

This method manually sets the length of the buffer without modifying its contents. This can be used after filling the buffer with data through other means to indicate how much valid data is in the buffer.

Parameters

length The new length to set for the buffer

Returns: SerializeStatus indicating the result of the operation

Implemented in Fw::LinearBufferBase.

The documentation for this class was generated from the following files:

Fw/Types/Serializable.hpp
Fw/Types/Serializable.cpp

Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ ~SerialBufferBase()

Member Function Documentation

◆ copyRaw()

◆ copyRawOffset()

◆ deserializeSize()

◆ deserializeSkip()

◆ deserializeTo() [1/10]

◆ deserializeTo() [2/10]

◆ deserializeTo() [3/10]

◆ deserializeTo() [4/10]

◆ deserializeTo() [5/10]

◆ deserializeTo() [6/10]

◆ deserializeTo() [7/10]

◆ deserializeTo() [8/10]

◆ deserializeTo() [9/10]

◆ deserializeTo() [10/10]

◆ getCapacity()

◆ getDeserializeSizeLeft()

◆ getSerializeSizeLeft()

◆ getSize()

◆ moveDeserToOffset()

◆ moveSerToOffset()

◆ resetDeser()

◆ resetSer()

◆ serializeFrom() [1/10]

◆ serializeFrom() [2/10]

◆ serializeFrom() [3/10]

◆ serializeFrom() [4/10]

◆ serializeFrom() [5/10]

◆ serializeFrom() [6/10]

◆ serializeFrom() [7/10]

◆ serializeFrom() [8/10]

◆ serializeFrom() [9/10]

◆ serializeFrom() [10/10]

◆ serializeSize()

◆ serializeSkip()

◆ setBuff()

◆ setBuffLen()
