#include <Svc/ComAggregator/ComAggregator.hpp>

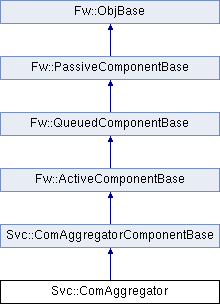

Inheritance diagram for Svc::ComAggregator:

Public Member Functions
	ComAggregator (const char *const compName)
	Construct ComAggregator object. More...

	~ComAggregator ()
	Destroy ComAggregator object. More...

void	configure (FwSizeType aggregationSize, bool spanningEnabled, FwEnumStoreType allocationId, Fw::MemAllocator &allocator)

void	cleanup ()

void	preamble () override
	A function that will be called before the event loop is entered. More...

Public Member Functions inherited from Svc::ComAggregatorComponentBase
void	init (FwSizeType queueDepth, FwEnumStoreType instance=0)
	Initialize ComAggregatorComponentBase object. More...

Fw::InputSuccessConditionPort *	get_comStatusIn_InputPort (FwIndexType portNum)

Svc::InputComDataWithContextPort *	get_dataIn_InputPort (FwIndexType portNum)

Svc::InputComDataWithContextPort *	get_dataReturnIn_InputPort (FwIndexType portNum)

Svc::InputSchedPort *	get_timeout_InputPort (FwIndexType portNum)

void	set_comStatusOut_OutputPort (FwIndexType portNum, Fw::InputSuccessConditionPort *port)
	Connect port to comStatusOut[portNum]. More...

void	set_dataOut_OutputPort (FwIndexType portNum, Svc::InputComDataWithContextPort *port)
	Connect port to dataOut[portNum]. More...

void	set_dataReturnOut_OutputPort (FwIndexType portNum, Svc::InputComDataWithContextPort *port)
	Connect port to dataReturnOut[portNum]. More...

Public Member Functions inherited from Fw::ActiveComponentBase
void	start (FwTaskPriorityType priority=Os::Task::TASK_PRIORITY_DEFAULT, FwSizeType stackSize=Os::Task::TASK_DEFAULT, FwSizeType cpuAffinity=Os::Task::TASK_DEFAULT, FwTaskIdType identifier=static_cast< FwTaskIdType >(Os::Task::TASK_DEFAULT))
	called by instantiator when task is to be started More...

void	exit ()
	exit task in active component More...

Os::Task::Status	join ()
	Join the thread. More...

	DEPRECATED (Os::Task::Status join(void **value_ptr), "Switch to .join()")
	Join to thread with discarded value_ptr. More...

Public Member Functions inherited from Fw::QueuedComponentBase
void	deinit () override
	Allows de-initialization on teardown. More...

Public Member Functions inherited from Fw::PassiveComponentBase
void	setIdBase (const FwIdType)
	Set the ID base. More...

FwIdType	getIdBase () const

Static Public Attributes
static constexpr FwSizeType	MIN_NON_SPANNING_AGGREGATION_SIZE
	Smallest aggregate that holds a full com buffer and a full file buffer Space Packet without spanning. More...

Friends
class	ComAggregatorTester

Additional Inherited Members
Public Types inherited from Fw::ActiveComponentBase
enum	{ ACTIVE_COMPONENT_EXIT }

Public Types inherited from Fw::QueuedComponentBase
enum	MsgDispatchStatus { MSG_DISPATCH_OK, MSG_DISPATCH_EMPTY, MSG_DISPATCH_ERROR, MSG_DISPATCH_EXIT }

Protected Types inherited from Svc::ComAggregatorComponentBase
enum	{ NUM_COMSTATUSIN_INPUT_PORTS = 1, NUM_DATAIN_INPUT_PORTS = 1, NUM_DATARETURNIN_INPUT_PORTS = 1, NUM_TIMEOUT_INPUT_PORTS = 1 }
	Enumerations for numbers of typed input ports. More...

enum	{ NUM_COMSTATUSOUT_OUTPUT_PORTS = 1, NUM_DATAOUT_OUTPUT_PORTS = 1, NUM_DATARETURNOUT_OUTPUT_PORTS = 1 }
	Enumerations for numbers of typed output ports. More...

enum	SmId : FwEnumStoreType { SmId::aggregationMachine }
	State machine identifiers. More...

Protected Types inherited from Fw::ActiveComponentBase
enum	Lifecycle { CREATED, DISPATCHING, FINALIZING, DONE }
	Tracks the lifecycle of the component. More...

Protected Member Functions inherited from Svc::ComAggregatorComponentBase
	ComAggregatorComponentBase (const char *compName="")
	Construct ComAggregatorComponentBase object. More...

virtual	~ComAggregatorComponentBase ()
	Destroy ComAggregatorComponentBase object. More...

bool	isConnected_comStatusOut_OutputPort (FwIndexType portNum) const

bool	isConnected_dataOut_OutputPort (FwIndexType portNum) const

bool	isConnected_dataReturnOut_OutputPort (FwIndexType portNum) const

void	comStatusIn_handlerBase (FwIndexType portNum, Fw::Success &condition)
	Handler base-class function for input port comStatusIn. More...

void	dataIn_handlerBase (FwIndexType portNum, Fw::Buffer &data, const ComCfg::FrameContext &context)
	Handler base-class function for input port dataIn. More...

void	dataReturnIn_handlerBase (FwIndexType portNum, Fw::Buffer &data, const ComCfg::FrameContext &context)
	Handler base-class function for input port dataReturnIn. More...

void	timeout_handlerBase (FwIndexType portNum, U32 context)
	Handler base-class function for input port timeout. More...

void	comStatusOut_out (FwIndexType portNum, Fw::Success &condition) const
	Invoke output port comStatusOut. More...

void	dataOut_out (FwIndexType portNum, Fw::Buffer &data, const ComCfg::FrameContext &context) const
	Invoke output port dataOut. More...

void	dataReturnOut_out (FwIndexType portNum, Fw::Buffer &data, const ComCfg::FrameContext &context) const
	Invoke output port dataReturnOut. More...

Svc_AggregationMachine::State	aggregationMachine_getState () const
	Get the state of state machine instance aggregationMachine. More...

void	aggregationMachine_sendSignal_timeout ()
	Send signal timeout to state machine aggregationMachine. More...

void	aggregationMachine_sendSignal_fill (const Svc::ComDataContextPair &value)
	Send signal fill to state machine aggregationMachine. More...

void	aggregationMachine_sendSignal_status (const Fw::Success &value)
	Send signal status to state machine aggregationMachine. More...

virtual void	Svc_AggregationMachine_action_doClear (SmId smId, Svc_AggregationMachine::Signal signal)=0

virtual void	Svc_AggregationMachine_action_doFill (SmId smId, Svc_AggregationMachine::Signal signal, const Svc::ComDataContextPair &value)=0

virtual void	Svc_AggregationMachine_action_doSend (SmId smId, Svc_AggregationMachine::Signal signal)=0

virtual void	Svc_AggregationMachine_action_doHold (SmId smId, Svc_AggregationMachine::Signal signal, const Svc::ComDataContextPair &value)=0

virtual void	Svc_AggregationMachine_action_doSplitHold (SmId smId, Svc_AggregationMachine::Signal signal, const Svc::ComDataContextPair &value)=0

virtual void	Svc_AggregationMachine_action_doNoteFailure (SmId smId, Svc_AggregationMachine::Signal signal)=0

virtual void	Svc_AggregationMachine_action_assertNoStatus (SmId smId, Svc_AggregationMachine::Signal signal)=0

virtual bool	Svc_AggregationMachine_guard_isFull (SmId smId, Svc_AggregationMachine::Signal signal, const Svc::ComDataContextPair &value) const =0

virtual bool	Svc_AggregationMachine_guard_willFill (SmId smId, Svc_AggregationMachine::Signal signal, const Svc::ComDataContextPair &value) const =0

virtual bool	Svc_AggregationMachine_guard_isNotEmpty (SmId smId, Svc_AggregationMachine::Signal signal) const =0

virtual bool	Svc_AggregationMachine_guard_isGood (SmId smId, Svc_AggregationMachine::Signal signal, const Fw::Success &value) const =0

virtual bool	Svc_AggregationMachine_guard_isSpanFull (SmId smId, Svc_AggregationMachine::Signal signal) const =0

Protected Member Functions inherited from Fw::ActiveComponentBase
	ActiveComponentBase (const char *name)
	Constructor. More...

virtual	~ActiveComponentBase ()
	Destructor. More...

void	init (FwEnumStoreType instance)
	initialization code More...

MsgDispatchStatus	dispatch ()
	The function that will dispatching messages. More...

virtual void	finalizer ()
	A function that will be called after exiting the loop. More...

Protected Member Functions inherited from Fw::QueuedComponentBase
	QueuedComponentBase (const char *name)
	Constructor. More...

virtual	~QueuedComponentBase ()
	Destructor. More...

void	init (FwEnumStoreType instance)
	initialization function More...

Os::Queue::Status	createQueue (FwSizeType depth, FwSizeType msgSize)

MsgDispatchStatus	dispatchAvailableMessages ()
	dispatches all messages currently in the queue, returning status of the dispatch More...

FwSizeType	getNumMsgsDropped ()
	return number of messages dropped More...

void	incNumMsgDropped ()
	increment the number of messages dropped More...

Protected Member Functions inherited from Fw::PassiveComponentBase
	PassiveComponentBase (const char *name)
	Named constructor. More...

virtual	~PassiveComponentBase ()
	Destructor. More...

void	init (FwEnumStoreType instance)
	Initialization function. More...

FwEnumStoreType	getInstance () const

Protected Member Functions inherited from Fw::ObjBase
	ObjBase (const char *name)
	ObjBase constructor. More...

virtual	~ObjBase ()
	Destructor. More...

void	init ()
	Object initializer. More...

Static Protected Member Functions inherited from Svc::ComAggregatorComponentBase
static constexpr FwIndexType	getNum_comStatusIn_InputPorts ()

static constexpr FwIndexType	getNum_dataIn_InputPorts ()

static constexpr FwIndexType	getNum_dataReturnIn_InputPorts ()

static constexpr FwIndexType	getNum_timeout_InputPorts ()

static constexpr FwIndexType	getNum_comStatusOut_OutputPorts ()

static constexpr FwIndexType	getNum_dataOut_OutputPorts ()

static constexpr FwIndexType	getNum_dataReturnOut_OutputPorts ()

Protected Attributes inherited from Fw::ActiveComponentBase
Os::Task	m_task
	task object for active component More...

Protected Attributes inherited from Fw::QueuedComponentBase
Os::Queue	m_queue
	queue object for active component More...

Detailed Description

Definition at line 21 of file ComAggregator.hpp.

Constructor & Destructor Documentation

◆ ComAggregator()

Svc::ComAggregator::ComAggregator ( const char *const compName )

Construct ComAggregator object.

Parameters

compName The component name

Definition at line 22 of file ComAggregator.cpp.

◆ ~ComAggregator()

Svc::ComAggregator::~ComAggregator ( )

Destroy ComAggregator object.

Definition at line 39 of file ComAggregator.cpp.

Member Function Documentation

◆ cleanup()

void Svc::ComAggregator::cleanup ( )

Deallocate the aggregation buffer

Must only be called once the downstream framer has returned the aggregate and no further data or status can arrive (i.e. after the component's task has stopped); asserts if the aggregate is still held downstream. Any packet held for the next aggregate is dropped (its owner reclaims it at teardown) and the buffer, held-packet, and idle-fill state is reset. The aggregation state machine is not reset, so configure() may be called again but subsequent data flow depends on the state the machine was left in.

Definition at line 72 of file ComAggregator.cpp.

◆ configure()

void Svc::ComAggregator::configure	(	FwSizeType	aggregationSize,
		bool	spanningEnabled,
		FwEnumStoreType	allocationId,
		Fw::MemAllocator &	allocator
	)

Configure the aggregator and allocate the aggregation buffer

Every emitted aggregate is exactly aggregationSize bytes: residual space is filled with an SPP idle packet. With spanning disabled, incoming packets are never split: a packet is added to the current aggregate only if it completes it exactly or leaves room for a minimum idle packet, and a single packet may be at most aggregationSize - Ccsds::Utils::IdlePacket::MIN_SIZE bytes, which must hold a full com buffer and a full file buffer Space Packet. When spanning is enabled, packets that do not fit in the remaining aggregation space are split across aggregates (CCSDS TM packet spanning): the leading bytes fill the current aggregate and the remainder continues in subsequent aggregates. The First Header Pointer is reported through the ComCfg::FrameContext for the downstream TM framer, and aggregationSize must not exceed 2046 (0x7FE). Must be called before the component is started and before any data is received; asserts otherwise.

Parameters

aggregationSize	Size in bytes of every emitted aggregate
spanningEnabled	Enable CCSDS TM packet spanning across aggregates
allocationId	Identifier used when dealing with the Fw::MemAllocator
allocator	Fw::MemAllocator used to acquire the aggregation buffer

Definition at line 41 of file ComAggregator.cpp.

◆ preamble()

void Svc::ComAggregator::preamble ( )

overridevirtual

A function that will be called before the event loop is entered.

Reimplemented from Fw::ActiveComponentBase.

Definition at line 93 of file ComAggregator.cpp.

Friends And Related Function Documentation

◆ ComAggregatorTester

friend class ComAggregatorTester

friend

Definition at line 22 of file ComAggregator.hpp.

Member Data Documentation

◆ MIN_NON_SPANNING_AGGREGATION_SIZE

constexpr FwSizeType Svc::ComAggregator::MIN_NON_SPANNING_AGGREGATION_SIZE

static

Initial value:

=
        std::max(static_cast<FwSizeType>(FW_COM_BUFFER_MAX_SIZE), static_cast<FwSizeType>(FW_FILE_BUFFER_MAX_SIZE)) +
        static_cast<FwSizeType>(Ccsds::SpacePacketHeader::SERIALIZED_SIZE) + Ccsds::Utils::IdlePacket::MIN_SIZE

Smallest aggregate that holds a full com buffer and a full file buffer Space Packet without spanning.

Definition at line 64 of file ComAggregator.hpp.

The documentation for this class was generated from the following files:

Svc/ComAggregator/ComAggregator.hpp
Svc/ComAggregator/ComAggregator.cpp
