#include <Svc/ComLoggerDp/ComLoggerDp.hpp>

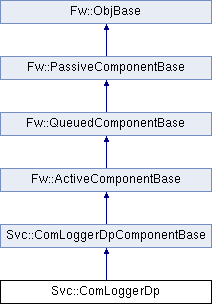

Inheritance diagram for Svc::ComLoggerDp:

Public Member Functions
	ComLoggerDp (const char *const compName)
	Construct ComLoggerDp object. More...

	~ComLoggerDp ()
	Destroy ComLoggerDp object. More...

	ComLoggerDp (const ComLoggerDp &)=delete
	Copy constructor (deleted) More...

ComLoggerDp &	operator= (const ComLoggerDp &)=delete
	Copy assignment operator (deleted) More...

	ComLoggerDp (ComLoggerDp &&)=delete
	Move constructor (deleted) More...

ComLoggerDp &	operator= (ComLoggerDp &&)=delete
	Move assignment operator (deleted) More...

void	configure (bool enabled, FwSizeType packetsPerContainer, FwDpPriorityType priority, U32 flushTimeout)

Public Member Functions inherited from Svc::ComLoggerDpComponentBase
void	init (FwSizeType queueDepth, FwEnumStoreType instance=0)
	Initialize ComLoggerDpComponentBase object. More...

Fw::InputCmdPort *	get_cmdIn_InputPort (FwIndexType portNum)

Fw::InputComPort *	get_comIn_InputPort (FwIndexType portNum)

Svc::InputPingPort *	get_pingIn_InputPort (FwIndexType portNum)

Svc::InputSchedPort *	get_schedIn_InputPort (FwIndexType portNum)

Svc::InputComLoggerStartPort *	get_startRecordingIn_InputPort (FwIndexType portNum)

Svc::InputComLoggerStopPort *	get_stopRecordingIn_InputPort (FwIndexType portNum)

void	set_cmdRegOut_OutputPort (FwIndexType portNum, Fw::InputCmdRegPort *port)
	Connect port to cmdRegOut[portNum]. More...

void	set_cmdResponseOut_OutputPort (FwIndexType portNum, Fw::InputCmdResponsePort *port)
	Connect port to cmdResponseOut[portNum]. More...

void	set_logOut_OutputPort (FwIndexType portNum, Fw::InputLogPort *port)
	Connect port to logOut[portNum]. More...

void	set_productGetOut_OutputPort (FwIndexType portNum, Fw::InputDpGetPort *port)
	Connect port to productGetOut[portNum]. More...

void	set_productSendOut_OutputPort (FwIndexType portNum, Fw::InputDpSendPort *port)
	Connect port to productSendOut[portNum]. More...

void	set_timeCaller_OutputPort (FwIndexType portNum, Fw::InputTimePort *port)
	Connect port to timeCaller[portNum]. More...

void	set_tlmOut_OutputPort (FwIndexType portNum, Fw::InputTlmPort *port)
	Connect port to tlmOut[portNum]. More...

void	set_pingOut_OutputPort (FwIndexType portNum, Svc::InputPingPort *port)
	Connect port to pingOut[portNum]. More...

void	regCommands ()
	Register commands with the Command Dispatcher. More...

Public Member Functions inherited from Fw::ActiveComponentBase
void	start (FwTaskPriorityType priority=Os::Task::TASK_PRIORITY_DEFAULT, FwSizeType stackSize=Os::Task::TASK_DEFAULT, FwSizeType cpuAffinity=Os::Task::TASK_DEFAULT, FwTaskIdType identifier=static_cast< FwTaskIdType >(Os::Task::TASK_DEFAULT))
	called by instantiator when task is to be started More...

void	exit ()
	exit task in active component More...

Os::Task::Status	join ()
	Join the thread. More...

	DEPRECATED (Os::Task::Status join(void **value_ptr), "Switch to .join()")
	Join to thread with discarded value_ptr. More...

Public Member Functions inherited from Fw::QueuedComponentBase
void	deinit () override
	Allows de-initialization on teardown. More...

Public Member Functions inherited from Fw::PassiveComponentBase
void	setIdBase (const FwIdType)
	Set the ID base. More...

FwIdType	getIdBase () const

Static Public Member Functions
static constexpr FwSizeType	ComLoggerDpBuffSize (FwSizeType packetsPerContainer)

Static Public Attributes
static constexpr FwSizeType	MAX_RECORD_DATA_SIZE = FW_COM_BUFFER_MAX_SIZE + sizeof(ComLoggerDpSentry)
	Maximum data size of one record: a sentry followed by a maximum-size ComBuffer. More...

static constexpr FwSizeType	RECORD_SIZE = SIZE_OF_ComBufferRecord_RECORD(MAX_RECORD_DATA_SIZE)
	Serialized size of one ComBufferRecord holding MAX_RECORD_DATA_SIZE bytes. More...

Friends
class	ComLoggerDpTester

Additional Inherited Members
Public Types inherited from Fw::ActiveComponentBase
enum	{ ACTIVE_COMPONENT_EXIT }

Public Types inherited from Fw::QueuedComponentBase
enum	MsgDispatchStatus { MSG_DISPATCH_OK, MSG_DISPATCH_EMPTY, MSG_DISPATCH_ERROR, MSG_DISPATCH_EXIT }

Protected Types inherited from Svc::ComLoggerDpComponentBase
enum	{ NUM_CMDIN_INPUT_PORTS = 1 }
	Enumerations for numbers of special input ports. More...

enum	{ NUM_COMIN_INPUT_PORTS = 1, NUM_PINGIN_INPUT_PORTS = 1, NUM_SCHEDIN_INPUT_PORTS = 1, NUM_STARTRECORDINGIN_INPUT_PORTS = 1, NUM_STOPRECORDINGIN_INPUT_PORTS = 1 }
	Enumerations for numbers of typed input ports. More...

enum	{ NUM_LOGTEXT_OUTPUT_PORTS = 1, NUM_CMDREGOUT_OUTPUT_PORTS = 1, NUM_CMDRESPONSEOUT_OUTPUT_PORTS = 1, NUM_LOGOUT_OUTPUT_PORTS = 1, NUM_PRODUCTGETOUT_OUTPUT_PORTS = 1, NUM_PRODUCTSENDOUT_OUTPUT_PORTS = 1, NUM_TIMECALLER_OUTPUT_PORTS = 1, NUM_TLMOUT_OUTPUT_PORTS = 1 }
	Enumerations for numbers of special output ports. More...

enum	{ NUM_PINGOUT_OUTPUT_PORTS = 1 }
	Enumerations for numbers of typed output ports. More...

enum	{ OPCODE_STARTCOMDP = 0x0, OPCODE_UPDATEPRIORITY = 0x1, OPCODE_STOPCOMDP = 0x2, OPCODE_CLEAR_COUNTERS = 0x3 }
	Command opcodes. More...

enum	{ EVENTID_DPBUFFERERROR = 0x0, EVENTID_COMDPSTARTED = 0x1, EVENTID_COMDPSTOPPED = 0x2, EVENTID_PRIORITYUPDATED = 0x3, EVENTID_COUNTERSCLEARED = 0x4, EVENTID_STARTRECORDINGFAILED = 0x5 }
	Event IDs. More...

enum	{ EVENTID_DPBUFFERERROR_THROTTLE = 1 }
	Event throttle values: sets initial value of countdown variables. More...

enum	{ CHANNELID_LOGGINGENABLED = 0x0, CHANNELID_NUMBUFFERSLOGGED = 0x1, CHANNELID_NUMBUFFERSDROPPED = 0x2, CHANNELID_NUMQUEUEDROPS = 0x4 }
	Channel IDs. More...

Protected Types inherited from Fw::ActiveComponentBase
enum	Lifecycle { CREATED, DISPATCHING, FINALIZING, DONE }
	Tracks the lifecycle of the component. More...

Protected Member Functions inherited from Svc::ComLoggerDpComponentBase
	ComLoggerDpComponentBase (const char *compName="")
	Construct ComLoggerDpComponentBase object. More...

virtual	~ComLoggerDpComponentBase ()
	Destroy ComLoggerDpComponentBase object. More...

bool	isConnected_cmdRegOut_OutputPort (FwIndexType portNum) const

bool	isConnected_cmdResponseOut_OutputPort (FwIndexType portNum) const

bool	isConnected_logOut_OutputPort (FwIndexType portNum) const

bool	isConnected_productGetOut_OutputPort (FwIndexType portNum) const

bool	isConnected_productSendOut_OutputPort (FwIndexType portNum) const

bool	isConnected_timeCaller_OutputPort (FwIndexType portNum) const

bool	isConnected_tlmOut_OutputPort (FwIndexType portNum) const

bool	isConnected_pingOut_OutputPort (FwIndexType portNum) const

void	cmdIn_handlerBase (FwIndexType portNum, FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
	Handler base-class function for input port cmdIn. More...

void	comIn_handlerBase (FwIndexType portNum, Fw::ComBuffer &data, U32 context)
	Handler base-class function for input port comIn. More...

void	pingIn_handlerBase (FwIndexType portNum, U32 key)
	Handler base-class function for input port pingIn. More...

void	schedIn_handlerBase (FwIndexType portNum, U32 context)
	Handler base-class function for input port schedIn. More...

void	startRecordingIn_handlerBase (FwIndexType portNum, FwSizeType packetsPerContainer, FwDpPriorityType priority)
	Handler base-class function for input port startRecordingIn. More...

void	stopRecordingIn_handlerBase (FwIndexType portNum)
	Handler base-class function for input port stopRecordingIn. More...

virtual void	comIn_preMsgHook (FwIndexType portNum, Fw::ComBuffer &data, U32 context)
	Pre-message hook for async input port comIn. More...

virtual void	pingIn_preMsgHook (FwIndexType portNum, U32 key)
	Pre-message hook for async input port pingIn. More...

virtual void	schedIn_preMsgHook (FwIndexType portNum, U32 context)
	Pre-message hook for async input port schedIn. More...

virtual void	startRecordingIn_preMsgHook (FwIndexType portNum, FwSizeType packetsPerContainer, FwDpPriorityType priority)
	Pre-message hook for async input port startRecordingIn. More...

virtual void	stopRecordingIn_preMsgHook (FwIndexType portNum)
	Pre-message hook for async input port stopRecordingIn. More...

void	pingOut_out (FwIndexType portNum, U32 key) const
	Invoke output port pingOut. More...

void	cmdResponse_out (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdResponse response)
	Emit command response. More...

void	StartComDp_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

void	UpdatePriority_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

void	StopComDp_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

void	CLEAR_COUNTERS_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

virtual void	StartComDp_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command StartComDp. More...

virtual void	UpdatePriority_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command UpdatePriority. More...

virtual void	StopComDp_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command StopComDp. More...

virtual void	CLEAR_COUNTERS_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CLEAR_COUNTERS. More...

void	log_WARNING_HI_DpBufferError (U32 size)
	Log event DpBufferError. More...

void	log_ACTIVITY_HI_ComDpStarted (FwSizeType packetsPerContainer) const

void	log_ACTIVITY_HI_ComDpStopped (const Svc::ComLoggerDp_PartialContainerStatus &partialContainer) const

void	log_ACTIVITY_LO_PriorityUpdated (FwDpPriorityType priority) const

void	log_ACTIVITY_LO_CountersCleared () const

void	log_WARNING_LO_StartRecordingFailed (FwSizeType packetsPerContainer) const

void	log_WARNING_HI_DpBufferError_ThrottleClear ()
	Reset throttle value for DpBufferError. More...

void	tlmWrite (FwChanIdType id, Fw::TlmBuffer &_tlmBuff, Fw::Time _tlmTime=Fw::Time()) const

void	tlmWrite_LoggingEnabled (bool arg, Fw::Time _tlmTime=Fw::Time()) const

void	tlmWrite_NumBuffersLogged (U32 arg, Fw::Time _tlmTime=Fw::Time()) const

void	tlmWrite_NumBuffersDropped (U32 arg, Fw::Time _tlmTime=Fw::Time()) const

void	tlmWrite_NumQueueDrops (U32 arg, Fw::Time _tlmTime=Fw::Time()) const

Fw::Success::T	dpGet_ComBuffContainer (FwSizeType dataSize, DpContainer &container)

void	dpSend (DpContainer &container, Fw::Time timeTag=Fw::ZERO_TIME)
	Send a data product. More...

Fw::Time	getTime () const

Protected Member Functions inherited from Fw::ActiveComponentBase
	ActiveComponentBase (const char *name)
	Constructor. More...

virtual	~ActiveComponentBase ()
	Destructor. More...

void	init (FwEnumStoreType instance)
	initialization code More...

virtual void	preamble ()
	A function that will be called before the event loop is entered. More...

MsgDispatchStatus	dispatch ()
	The function that will dispatching messages. More...

virtual void	finalizer ()
	A function that will be called after exiting the loop. More...

Protected Member Functions inherited from Fw::QueuedComponentBase
	QueuedComponentBase (const char *name)
	Constructor. More...

virtual	~QueuedComponentBase ()
	Destructor. More...

void	init (FwEnumStoreType instance)
	initialization function More...

Os::Queue::Status	createQueue (FwSizeType depth, FwSizeType msgSize)

MsgDispatchStatus	dispatchAvailableMessages ()
	dispatches all messages currently in the queue, returning status of the dispatch More...

FwSizeType	getNumMsgsDropped ()
	return number of messages dropped More...

void	incNumMsgDropped ()
	increment the number of messages dropped More...

Protected Member Functions inherited from Fw::PassiveComponentBase
	PassiveComponentBase (const char *name)
	Named constructor. More...

virtual	~PassiveComponentBase ()
	Destructor. More...

void	init (FwEnumStoreType instance)
	Initialization function. More...

FwEnumStoreType	getInstance () const

Protected Member Functions inherited from Fw::ObjBase
	ObjBase (const char *name)
	ObjBase constructor. More...

virtual	~ObjBase ()
	Destructor. More...

void	init ()
	Object initializer. More...

Static Protected Member Functions inherited from Svc::ComLoggerDpComponentBase
static constexpr FwSizeType	SIZE_OF_ComBufferRecord_RECORD (FwSizeType arraySize)
	Record sizes. More...

static constexpr FwIndexType	getNum_cmdIn_InputPorts ()

static constexpr FwIndexType	getNum_comIn_InputPorts ()

static constexpr FwIndexType	getNum_pingIn_InputPorts ()

static constexpr FwIndexType	getNum_schedIn_InputPorts ()

static constexpr FwIndexType	getNum_startRecordingIn_InputPorts ()

static constexpr FwIndexType	getNum_stopRecordingIn_InputPorts ()

static constexpr FwIndexType	getNum_cmdRegOut_OutputPorts ()

static constexpr FwIndexType	getNum_cmdResponseOut_OutputPorts ()

static constexpr FwIndexType	getNum_logOut_OutputPorts ()

static constexpr FwIndexType	getNum_productGetOut_OutputPorts ()

static constexpr FwIndexType	getNum_productSendOut_OutputPorts ()

static constexpr FwIndexType	getNum_timeCaller_OutputPorts ()

static constexpr FwIndexType	getNum_tlmOut_OutputPorts ()

static constexpr FwIndexType	getNum_pingOut_OutputPorts ()

Protected Attributes inherited from Fw::ActiveComponentBase
Os::Task	m_task
	task object for active component More...

Protected Attributes inherited from Fw::QueuedComponentBase
Os::Queue	m_queue
	queue object for active component More...

Detailed Description

Definition at line 19 of file ComLoggerDp.hpp.

Constructor & Destructor Documentation

◆ ComLoggerDp() [1/3]

Svc::ComLoggerDp::ComLoggerDp ( const char *const compName )

explicit

Construct ComLoggerDp object.

Parameters

compName The component name

Definition at line 16 of file ComLoggerDp.cpp.

◆ ~ComLoggerDp()

Svc::ComLoggerDp::~ComLoggerDp ( )

Destroy ComLoggerDp object.

Definition at line 18 of file ComLoggerDp.cpp.

◆ ComLoggerDp() [2/3]

Svc::ComLoggerDp::ComLoggerDp ( const ComLoggerDp & )

delete

Copy constructor (deleted)

◆ ComLoggerDp() [3/3]

Svc::ComLoggerDp::ComLoggerDp ( ComLoggerDp && )

delete

Move constructor (deleted)

Member Function Documentation

◆ ComLoggerDpBuffSize()

static constexpr FwSizeType Svc::ComLoggerDp::ComLoggerDpBuffSize ( FwSizeType packetsPerContainer )

inlinestatic

Calculate total buffer size needed for a data product container This is the TOTAL size including:

DpContainer header (packet descriptor, ID, priority, time tag, etc.)
Header hash
Record data (N packets × (sentry + ComBuffer data))
Data hash

Use this function to compute the size of buffers to allocate from Svc::BufferManager or equivalent for holding complete data product containers.

NOTE: This is NOT the size to pass to dpGet() - DpManager adds the header overhead internally. This is for external buffer allocation only.

Parameters

packetsPerContainer Number of packets that will fit in the container

Returns: Total buffer size in bytes needed for the complete container

Definition at line 49 of file ComLoggerDp.hpp.

◆ configure()

void Svc::ComLoggerDp::configure	(	bool	enabled,
		FwSizeType	packetsPerContainer,
		FwDpPriorityType	priority,
		U32	flushTimeout
	)

Configure initial logging state; must be called once after init() If enabled is true, an invalid packetsPerContainer (0 or above the container-size limit) triggers FW_ASSERT

Parameters

enabled	whether data product logging is initially enabled
packetsPerContainer	number of packets per container (must be > 0 if enabled is true, ignored otherwise)
priority	data product priority (ignored if enabled is false)
flushTimeout	number of schedIn calls without packets before auto-flush (0 = disable auto-flush)

Definition at line 24 of file ComLoggerDp.cpp.

◆ operator=() [1/2]

ComLoggerDp& Svc::ComLoggerDp::operator= ( const ComLoggerDp & )

delete

Copy assignment operator (deleted)

◆ operator=() [2/2]

ComLoggerDp& Svc::ComLoggerDp::operator= ( ComLoggerDp && )

delete

Move assignment operator (deleted)

Friends And Related Function Documentation

◆ ComLoggerDpTester

friend class ComLoggerDpTester

friend

Definition at line 21 of file ComLoggerDp.hpp.

Member Data Documentation

◆ MAX_RECORD_DATA_SIZE

constexpr FwSizeType Svc::ComLoggerDp::MAX_RECORD_DATA_SIZE = FW_COM_BUFFER_MAX_SIZE + sizeof(ComLoggerDpSentry)

static

Maximum data size of one record: a sentry followed by a maximum-size ComBuffer.

Definition at line 29 of file ComLoggerDp.hpp.

◆ RECORD_SIZE

constexpr FwSizeType Svc::ComLoggerDp::RECORD_SIZE = SIZE_OF_ComBufferRecord_RECORD(MAX_RECORD_DATA_SIZE)

static

Serialized size of one ComBufferRecord holding MAX_RECORD_DATA_SIZE bytes.

Definition at line 32 of file ComLoggerDp.hpp.

The documentation for this class was generated from the following files:

Svc/ComLoggerDp/ComLoggerDp.hpp
Svc/ComLoggerDp/ComLoggerDp.cpp

Public Member Functions

Static Public Member Functions

Static Public Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ComLoggerDp() [1/3]

◆ ~ComLoggerDp()

◆ ComLoggerDp() [2/3]

◆ ComLoggerDp() [3/3]

Member Function Documentation

◆ ComLoggerDpBuffSize()

◆ configure()

◆ operator=() [1/2]

◆ operator=() [2/2]

Friends And Related Function Documentation

◆ ComLoggerDpTester

Member Data Documentation

◆ MAX_RECORD_DATA_SIZE

◆ RECORD_SIZE
