Auto-generated base for FileDownlink component. More...

#include <Svc/FileDownlink/FileDownlinkComponentAc.hpp>

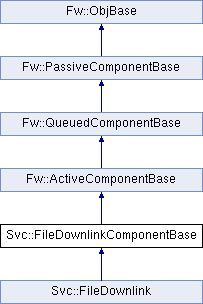

Inheritance diagram for Svc::FileDownlinkComponentBase:

Public Member Functions
void	init (FwSizeType queueDepth, FwEnumStoreType instance=0)
	Initialize FileDownlinkComponentBase object. More...

Fw::InputCmdPort *	get_cmdIn_InputPort (FwIndexType portNum)

Svc::InputSchedPort *	get_Run_InputPort (FwIndexType portNum)

Svc::InputSendFileRequestPort *	get_SendFile_InputPort (FwIndexType portNum)

Fw::InputBufferSendPort *	get_bufferReturn_InputPort (FwIndexType portNum)

Svc::InputPingPort *	get_pingIn_InputPort (FwIndexType portNum)

void	set_cmdRegOut_OutputPort (FwIndexType portNum, Fw::InputCmdRegPort *port)
	Connect port to cmdRegOut[portNum]. More...

void	set_cmdResponseOut_OutputPort (FwIndexType portNum, Fw::InputCmdResponsePort *port)
	Connect port to cmdResponseOut[portNum]. More...

void	set_eventOut_OutputPort (FwIndexType portNum, Fw::InputLogPort *port)
	Connect port to eventOut[portNum]. More...

void	set_timeCaller_OutputPort (FwIndexType portNum, Fw::InputTimePort *port)
	Connect port to timeCaller[portNum]. More...

void	set_tlmOut_OutputPort (FwIndexType portNum, Fw::InputTlmPort *port)
	Connect port to tlmOut[portNum]. More...

void	set_FileComplete_OutputPort (FwIndexType portNum, Svc::InputSendFileCompletePort *port)
	Connect port to FileComplete[portNum]. More...

void	set_bufferSendOut_OutputPort (FwIndexType portNum, Fw::InputBufferSendPort *port)
	Connect port to bufferSendOut[portNum]. More...

void	set_pingOut_OutputPort (FwIndexType portNum, Svc::InputPingPort *port)
	Connect port to pingOut[portNum]. More...

void	regCommands ()
	Register commands with the Command Dispatcher. More...

Public Member Functions inherited from Fw::ActiveComponentBase
void	start (FwTaskPriorityType priority=Os::Task::TASK_PRIORITY_DEFAULT, FwSizeType stackSize=Os::Task::TASK_DEFAULT, FwSizeType cpuAffinity=Os::Task::TASK_DEFAULT, FwTaskIdType identifier=static_cast< FwTaskIdType >(Os::Task::TASK_DEFAULT))
	called by instantiator when task is to be started More...

void	exit ()
	exit task in active component More...

Os::Task::Status	join ()
	Join the thread. More...

	DEPRECATED (Os::Task::Status join(void **value_ptr), "Switch to .join()")
	Join to thread with discarded value_ptr. More...

Public Member Functions inherited from Fw::QueuedComponentBase
void	deinit () override
	Allows de-initialization on teardown. More...

Public Member Functions inherited from Fw::PassiveComponentBase
void	setIdBase (const FwIdType)
	Set the ID base. More...

FwIdType	getIdBase () const

Protected Types
enum	{ NUM_CMDIN_INPUT_PORTS = 1 }
	Enumerations for numbers of special input ports. More...

enum	{ NUM_RUN_INPUT_PORTS = 1, NUM_SENDFILE_INPUT_PORTS = 1, NUM_BUFFERRETURN_INPUT_PORTS = 1, NUM_PINGIN_INPUT_PORTS = 1 }
	Enumerations for numbers of typed input ports. More...

enum	{ NUM_CMDREGOUT_OUTPUT_PORTS = 1, NUM_CMDRESPONSEOUT_OUTPUT_PORTS = 1, NUM_EVENTOUT_OUTPUT_PORTS = 1, NUM_TEXTEVENTOUT_OUTPUT_PORTS = 1, NUM_TIMECALLER_OUTPUT_PORTS = 1, NUM_TLMOUT_OUTPUT_PORTS = 1 }
	Enumerations for numbers of special output ports. More...

enum	{ NUM_FILECOMPLETE_OUTPUT_PORTS = 1, NUM_BUFFERSENDOUT_OUTPUT_PORTS = 1, NUM_PINGOUT_OUTPUT_PORTS = 1 }
	Enumerations for numbers of typed output ports. More...

enum	{ OPCODE_SENDFILE = 0x0, OPCODE_CANCEL = 0x1, OPCODE_SENDPARTIAL = 0x2 }
	Command opcodes. More...

enum	{ EVENTID_FILEOPENERROR = 0x0, EVENTID_FILEREADERROR = 0x1, EVENTID_FILESENT = 0x2, EVENTID_DOWNLINKCANCELED = 0x3, EVENTID_DOWNLINKPARTIALWARNING = 0x5, EVENTID_DOWNLINKPARTIALFAIL = 0x6, EVENTID_SENDDATAFAIL = 0x7, EVENTID_SENDSTARTED = 0x8, EVENTID_DOWNLINKZEROSIZEFILE = 0x9, EVENTID_FILENAMESOURCEOVERFLOW = 0x10, EVENTID_FILENAMEDESTINATIONOVERFLOW = 0x11 }
	Event IDs. More...

enum	{ CHANNELID_FILESSENT = 0x0, CHANNELID_PACKETSSENT = 0x1, CHANNELID_WARNINGS = 0x2 }
	Channel IDs. More...

Protected Types inherited from Fw::ActiveComponentBase
enum	Lifecycle { CREATED, DISPATCHING, FINALIZING, DONE }
	Tracks the lifecycle of the component. More...

Protected Member Functions
	FileDownlinkComponentBase (const char *compName="")
	Construct FileDownlinkComponentBase object. More...

virtual	~FileDownlinkComponentBase ()
	Destroy FileDownlinkComponentBase object. More...

bool	isConnected_cmdRegOut_OutputPort (FwIndexType portNum) const

bool	isConnected_cmdResponseOut_OutputPort (FwIndexType portNum) const

bool	isConnected_eventOut_OutputPort (FwIndexType portNum) const

bool	isConnected_timeCaller_OutputPort (FwIndexType portNum) const

bool	isConnected_tlmOut_OutputPort (FwIndexType portNum) const

bool	isConnected_FileComplete_OutputPort (FwIndexType portNum) const

bool	isConnected_bufferSendOut_OutputPort (FwIndexType portNum) const

bool	isConnected_pingOut_OutputPort (FwIndexType portNum) const

void	cmdIn_handlerBase (FwIndexType portNum, FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
	Handler base-class function for input port cmdIn. More...

virtual void	Run_handler (FwIndexType portNum, U32 context)=0
	Handler for input port Run. More...

virtual Svc::SendFileResponse	SendFile_handler (FwIndexType portNum, const Fw::StringBase &sourceFileName, const Fw::StringBase &destFileName, U32 offset, U32 length)=0
	Handler for input port SendFile. More...

virtual void	bufferReturn_handler (FwIndexType portNum, Fw::Buffer &fwBuffer)=0
	Handler for input port bufferReturn. More...

virtual void	pingIn_handler (FwIndexType portNum, U32 key)=0
	Handler for input port pingIn. More...

void	Run_handlerBase (FwIndexType portNum, U32 context)
	Handler base-class function for input port Run. More...

Svc::SendFileResponse	SendFile_handlerBase (FwIndexType portNum, const Fw::StringBase &sourceFileName, const Fw::StringBase &destFileName, U32 offset, U32 length)
	Handler base-class function for input port SendFile. More...

void	bufferReturn_handlerBase (FwIndexType portNum, Fw::Buffer &fwBuffer)
	Handler base-class function for input port bufferReturn. More...

void	pingIn_handlerBase (FwIndexType portNum, U32 key)
	Handler base-class function for input port pingIn. More...

virtual void	Run_preMsgHook (FwIndexType portNum, U32 context)
	Pre-message hook for async input port Run. More...

virtual void	bufferReturn_preMsgHook (FwIndexType portNum, Fw::Buffer &fwBuffer)
	Pre-message hook for async input port bufferReturn. More...

virtual void	pingIn_preMsgHook (FwIndexType portNum, U32 key)
	Pre-message hook for async input port pingIn. More...

void	FileComplete_out (FwIndexType portNum, const Svc::SendFileResponse &resp) const
	Invoke output port FileComplete. More...

void	bufferSendOut_out (FwIndexType portNum, Fw::Buffer &fwBuffer) const
	Invoke output port bufferSendOut. More...

void	pingOut_out (FwIndexType portNum, U32 key) const
	Invoke output port pingOut. More...

void	cmdResponse_out (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdResponse response)
	Emit command response. More...

virtual void	SendFile_cmdHandler (FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdStringArg &sourceFileName, const Fw::CmdStringArg &destFileName)=0

virtual void	Cancel_cmdHandler (FwOpcodeType opCode, U32 cmdSeq)=0

virtual void	SendPartial_cmdHandler (FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdStringArg &sourceFileName, const Fw::CmdStringArg &destFileName, U32 startOffset, U32 length)=0

void	SendFile_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

void	Cancel_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

void	SendPartial_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)

virtual void	SendFile_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command SendFile. More...

virtual void	Cancel_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command Cancel. More...

virtual void	SendPartial_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command SendPartial. More...

void	log_WARNING_HI_FileOpenError (const Fw::StringBase &fileName) const

void	log_WARNING_HI_FileReadError (const Fw::StringBase &fileName, I32 status) const

void	log_ACTIVITY_HI_FileSent (const Fw::StringBase &sourceFileName, const Fw::StringBase &destFileName) const

void	log_ACTIVITY_HI_DownlinkCanceled (const Fw::StringBase &sourceFileName, const Fw::StringBase &destFileName) const

void	log_WARNING_LO_DownlinkPartialWarning (U32 startOffset, U32 length, U32 filesize, const Fw::StringBase &sourceFileName, const Fw::StringBase &destFileName) const

void	log_WARNING_HI_DownlinkPartialFail (const Fw::StringBase &sourceFileName, const Fw::StringBase &destFileName, U32 startOffset, U32 filesize) const

void	log_WARNING_HI_SendDataFail (const Fw::StringBase &sourceFileName, U32 byteOffset) const

void	log_ACTIVITY_HI_SendStarted (U32 fileSize, const Fw::StringBase &sourceFileName, const Fw::StringBase &destFileName) const

void	log_WARNING_HI_DownlinkZeroSizeFile (const Fw::StringBase &sourceFileName) const

void	log_WARNING_HI_FilenameSourceOverflow () const

void	log_WARNING_HI_FilenameDestinationOverflow () const

void	tlmWrite (FwChanIdType id, Fw::TlmBuffer &_tlmBuff, Fw::Time _tlmTime=Fw::Time()) const

void	tlmWrite_FilesSent (U32 arg, Fw::Time _tlmTime=Fw::Time()) const

void	tlmWrite_PacketsSent (U32 arg, Fw::Time _tlmTime=Fw::Time()) const

void	tlmWrite_Warnings (U32 arg, Fw::Time _tlmTime=Fw::Time()) const

Fw::Time	getTime () const

virtual void	lock ()
	Lock the guarded mutex. More...

virtual void	unLock ()
	Unlock the guarded mutex. More...

Protected Member Functions inherited from Fw::ActiveComponentBase
	ActiveComponentBase (const char *name)
	Constructor. More...

virtual	~ActiveComponentBase ()
	Destructor. More...

void	init (FwEnumStoreType instance)
	initialization code More...

virtual void	preamble ()
	A function that will be called before the event loop is entered. More...

MsgDispatchStatus	dispatch ()
	The function that will dispatching messages. More...

virtual void	finalizer ()
	A function that will be called after exiting the loop. More...

Protected Member Functions inherited from Fw::QueuedComponentBase
	QueuedComponentBase (const char *name)
	Constructor. More...

virtual	~QueuedComponentBase ()
	Destructor. More...

void	init (FwEnumStoreType instance)
	initialization function More...

Os::Queue::Status	createQueue (FwSizeType depth, FwSizeType msgSize)

MsgDispatchStatus	dispatchAvailableMessages ()
	dispatches all messages currently in the queue, returning status of the dispatch More...

FwSizeType	getNumMsgsDropped ()
	return number of messages dropped More...

void	incNumMsgDropped ()
	increment the number of messages dropped More...

Protected Member Functions inherited from Fw::PassiveComponentBase
	PassiveComponentBase (const char *name)
	Named constructor. More...

virtual	~PassiveComponentBase ()
	Destructor. More...

void	init (FwEnumStoreType instance)
	Initialization function. More...

FwEnumStoreType	getInstance () const

Protected Member Functions inherited from Fw::ObjBase
	ObjBase (const char *name)
	ObjBase constructor. More...

virtual	~ObjBase ()
	Destructor. More...

void	init ()
	Object initializer. More...

Static Protected Member Functions
static constexpr FwIndexType	getNum_cmdIn_InputPorts ()

static constexpr FwIndexType	getNum_Run_InputPorts ()

static constexpr FwIndexType	getNum_SendFile_InputPorts ()

static constexpr FwIndexType	getNum_bufferReturn_InputPorts ()

static constexpr FwIndexType	getNum_pingIn_InputPorts ()

static constexpr FwIndexType	getNum_cmdRegOut_OutputPorts ()

static constexpr FwIndexType	getNum_cmdResponseOut_OutputPorts ()

static constexpr FwIndexType	getNum_eventOut_OutputPorts ()

static constexpr FwIndexType	getNum_timeCaller_OutputPorts ()

static constexpr FwIndexType	getNum_tlmOut_OutputPorts ()

static constexpr FwIndexType	getNum_FileComplete_OutputPorts ()

static constexpr FwIndexType	getNum_bufferSendOut_OutputPorts ()

static constexpr FwIndexType	getNum_pingOut_OutputPorts ()

Friends
class	FileDownlinkTesterBase
	Friend class tester to support autocoded test harness. More...

class	FileDownlinkTester
	Friend class tester implementation to support white-box testing. More...

Additional Inherited Members
Public Types inherited from Fw::ActiveComponentBase
enum	{ ACTIVE_COMPONENT_EXIT }

Public Types inherited from Fw::QueuedComponentBase
enum	MsgDispatchStatus { MSG_DISPATCH_OK, MSG_DISPATCH_EMPTY, MSG_DISPATCH_ERROR, MSG_DISPATCH_EXIT }

Protected Attributes inherited from Fw::ActiveComponentBase
Os::Task	m_task
	task object for active component More...

Protected Attributes inherited from Fw::QueuedComponentBase
Os::Queue	m_queue
	queue object for active component More...

Detailed Description

Auto-generated base for FileDownlink component.

A component for downlinking files

Definition at line 46 of file FileDownlinkComponentAc.hpp.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

protected

Enumerations for numbers of special input ports.

Enumerator
NUM_CMDIN_INPUT_PORTS

Definition at line 66 of file FileDownlinkComponentAc.hpp.

◆ anonymous enum

anonymous enum

protected

Enumerations for numbers of typed input ports.

Enumerator
NUM_RUN_INPUT_PORTS
NUM_SENDFILE_INPUT_PORTS
NUM_BUFFERRETURN_INPUT_PORTS
NUM_PINGIN_INPUT_PORTS

Definition at line 71 of file FileDownlinkComponentAc.hpp.

◆ anonymous enum

anonymous enum

protected

Enumerations for numbers of special output ports.

Enumerator
NUM_CMDREGOUT_OUTPUT_PORTS
NUM_CMDRESPONSEOUT_OUTPUT_PORTS
NUM_EVENTOUT_OUTPUT_PORTS
NUM_TEXTEVENTOUT_OUTPUT_PORTS
NUM_TIMECALLER_OUTPUT_PORTS
NUM_TLMOUT_OUTPUT_PORTS

Definition at line 79 of file FileDownlinkComponentAc.hpp.

◆ anonymous enum

anonymous enum

protected

Enumerations for numbers of typed output ports.

Enumerator
NUM_FILECOMPLETE_OUTPUT_PORTS
NUM_BUFFERSENDOUT_OUTPUT_PORTS
NUM_PINGOUT_OUTPUT_PORTS

Definition at line 89 of file FileDownlinkComponentAc.hpp.

◆ anonymous enum

anonymous enum

protected

Command opcodes.

Enumerator
OPCODE_SENDFILE	Read a named file off the disk. Divide it into packets and send the packets for transmission to the ground.
OPCODE_CANCEL	Cancel the downlink in progress, if any.
OPCODE_SENDPARTIAL	Read a named file off the disk from a starting position. Divide it into packets and send the packets for transmission to the ground.

Definition at line 96 of file FileDownlinkComponentAc.hpp.

◆ anonymous enum

anonymous enum

protected

Event IDs.

Enumerator
EVENTID_FILEOPENERROR	An error occurred opening a file.
EVENTID_FILEREADERROR	An error occurred reading a file.
EVENTID_FILESENT	The File Downlink component successfully sent a file.
EVENTID_DOWNLINKCANCELED	The File Downlink component canceled downlink of a file.
EVENTID_DOWNLINKPARTIALWARNING	The File Downlink component has detected a timeout. Downlink has been canceled.
EVENTID_DOWNLINKPARTIALFAIL	The File Downlink component has detected a timeout. Downlink has been canceled.
EVENTID_SENDDATAFAIL	The File Downlink component generated an error when trying to send a data packet.
EVENTID_SENDSTARTED	The File Downlink component started a file download.
EVENTID_DOWNLINKZEROSIZEFILE	The File Downlink component stopped due to a zero-size file.
EVENTID_FILENAMESOURCEOVERFLOW	Supplied filename has overflowed. This intentionally discards the filename to avoid cascading overflows.
EVENTID_FILENAMEDESTINATIONOVERFLOW	Supplied filename has overflowed.

Definition at line 103 of file FileDownlinkComponentAc.hpp.

◆ anonymous enum

anonymous enum

protected

Channel IDs.

Enumerator
CHANNELID_FILESSENT	Channel ID for FilesSent.
CHANNELID_PACKETSSENT	Channel ID for PacketsSent.
CHANNELID_WARNINGS	Channel ID for Warnings.

Definition at line 118 of file FileDownlinkComponentAc.hpp.

Constructor & Destructor Documentation

◆ FileDownlinkComponentBase()

Svc::FileDownlinkComponentBase::FileDownlinkComponentBase ( const char * compName = "" )

protected

Construct FileDownlinkComponentBase object.

Parameters

compName The component name

Definition at line 808 of file FileDownlinkComponentAc.cpp.

◆ ~FileDownlinkComponentBase()

Svc::FileDownlinkComponentBase::~FileDownlinkComponentBase ( )

protectedvirtual

Destroy FileDownlinkComponentBase object.

Definition at line 815 of file FileDownlinkComponentAc.cpp.

Member Function Documentation

◆ bufferReturn_handler()

virtual void Svc::FileDownlinkComponentBase::bufferReturn_handler	(	FwIndexType	portNum,
		Fw::Buffer &	fwBuffer
	)

protectedpure virtual

Handler for input port bufferReturn.

Parameters

portNum	The port number
fwBuffer	The buffer

◆ bufferReturn_handlerBase()

void Svc::FileDownlinkComponentBase::bufferReturn_handlerBase	(	FwIndexType	portNum,
		Fw::Buffer &	fwBuffer
	)

protected

Handler base-class function for input port bufferReturn.

Parameters

portNum	The port number
fwBuffer	The buffer

Definition at line 1086 of file FileDownlinkComponentAc.cpp.

◆ bufferReturn_preMsgHook()

void Svc::FileDownlinkComponentBase::bufferReturn_preMsgHook	(	FwIndexType	portNum,
		Fw::Buffer &	fwBuffer
	)

protectedvirtual

Pre-message hook for async input port bufferReturn.

Parameters

portNum	The port number
fwBuffer	The buffer

Definition at line 1209 of file FileDownlinkComponentAc.cpp.

◆ bufferSendOut_out()

void Svc::FileDownlinkComponentBase::bufferSendOut_out	(	FwIndexType	portNum,
		Fw::Buffer &	fwBuffer
	)		const

protected

Invoke output port bufferSendOut.

Parameters

portNum	The port number
fwBuffer	The buffer

Definition at line 1253 of file FileDownlinkComponentAc.cpp.

◆ Cancel_cmdHandler()

virtual void Svc::FileDownlinkComponentBase::Cancel_cmdHandler	(	FwOpcodeType	opCode,
		U32	cmdSeq
	)

protectedpure virtual

Handler for command Cancel

Cancel the downlink in progress, if any

Parameters

opCode	The opcode
cmdSeq	The command sequence number

◆ Cancel_cmdHandlerBase()

void Svc::FileDownlinkComponentBase::Cancel_cmdHandlerBase	(	FwOpcodeType	opCode,
		U32	cmdSeq,
		Fw::CmdArgBuffer &	args
	)

protected

Base-class handler function for command Cancel

Cancel the downlink in progress, if any

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 1375 of file FileDownlinkComponentAc.cpp.

◆ Cancel_preMsgHook()

void Svc::FileDownlinkComponentBase::Cancel_preMsgHook	(	FwOpcodeType	opCode,
		U32	cmdSeq
	)

protectedvirtual

Pre-message hook for command Cancel.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 1512 of file FileDownlinkComponentAc.cpp.

◆ cmdIn_handlerBase()

void Svc::FileDownlinkComponentBase::cmdIn_handlerBase	(	FwIndexType	portNum,
		FwOpcodeType	opCode,
		U32	cmdSeq,
		Fw::CmdArgBuffer &	args
	)

protected

Handler base-class function for input port cmdIn.

Parameters

portNum	The port number
opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 946 of file FileDownlinkComponentAc.cpp.

◆ cmdResponse_out()

void Svc::FileDownlinkComponentBase::cmdResponse_out	(	FwOpcodeType	opCode,
		U32	cmdSeq,
		Fw::CmdResponse	response
	)

protected

Emit command response.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
response	The command response

Definition at line 1299 of file FileDownlinkComponentAc.cpp.

◆ FileComplete_out()

void Svc::FileDownlinkComponentBase::FileComplete_out	(	FwIndexType	portNum,
		const Svc::SendFileResponse &	resp
	)		const

protected

Invoke output port FileComplete.

Parameters

portNum The port number

Definition at line 1233 of file FileDownlinkComponentAc.cpp.

◆ get_bufferReturn_InputPort()

Fw::InputBufferSendPort * Svc::FileDownlinkComponentBase::get_bufferReturn_InputPort ( FwIndexType portNum )

Get typed input port at index

Returns: bufferReturn[portNum]

Parameters

portNum The port number

Definition at line 463 of file FileDownlinkComponentAc.cpp.

◆ get_cmdIn_InputPort()

Fw::InputCmdPort * Svc::FileDownlinkComponentBase::get_cmdIn_InputPort ( FwIndexType portNum )

Get special input port at index

Returns: cmdIn[portNum]

Parameters

portNum The port number

Definition at line 422 of file FileDownlinkComponentAc.cpp.

◆ get_pingIn_InputPort()

Svc::InputPingPort * Svc::FileDownlinkComponentBase::get_pingIn_InputPort ( FwIndexType portNum )

Get typed input port at index

Returns: pingIn[portNum]

Parameters

portNum The port number

Definition at line 474 of file FileDownlinkComponentAc.cpp.

◆ get_Run_InputPort()

Svc::InputSchedPort * Svc::FileDownlinkComponentBase::get_Run_InputPort ( FwIndexType portNum )

Get typed input port at index

Returns: Run[portNum]

Parameters

portNum The port number

Definition at line 441 of file FileDownlinkComponentAc.cpp.

◆ get_SendFile_InputPort()

Svc::InputSendFileRequestPort * Svc::FileDownlinkComponentBase::get_SendFile_InputPort ( FwIndexType portNum )

Get typed input port at index

Returns: SendFile[portNum]

Parameters

portNum The port number

Definition at line 452 of file FileDownlinkComponentAc.cpp.

◆ getNum_bufferReturn_InputPorts()

static constexpr FwIndexType Svc::FileDownlinkComponentBase::getNum_bufferReturn_InputPorts ( )

inlinestaticprotected

Get the number of bufferReturn input ports

Returns: The number of bufferReturn input ports

Definition at line 408 of file FileDownlinkComponentAc.hpp.

◆ getNum_bufferSendOut_OutputPorts()

static constexpr FwIndexType Svc::FileDownlinkComponentBase::getNum_bufferSendOut_OutputPorts ( )

inlinestaticprotected

Get the number of bufferSendOut output ports

Returns: The number of bufferSendOut output ports

Definition at line 487 of file FileDownlinkComponentAc.hpp.

◆ getNum_cmdIn_InputPorts()

static constexpr FwIndexType Svc::FileDownlinkComponentBase::getNum_cmdIn_InputPorts ( )

inlinestaticprotected

Get the number of cmdIn input ports

Returns: The number of cmdIn input ports

Definition at line 381 of file FileDownlinkComponentAc.hpp.

◆ getNum_cmdRegOut_OutputPorts()

static constexpr FwIndexType Svc::FileDownlinkComponentBase::getNum_cmdRegOut_OutputPorts ( )

inlinestaticprotected

Get the number of cmdRegOut output ports

Returns: The number of cmdRegOut output ports

Definition at line 428 of file FileDownlinkComponentAc.hpp.

◆ getNum_cmdResponseOut_OutputPorts()

static constexpr FwIndexType Svc::FileDownlinkComponentBase::getNum_cmdResponseOut_OutputPorts ( )

inlinestaticprotected

Get the number of cmdResponseOut output ports

Returns: The number of cmdResponseOut output ports

Definition at line 435 of file FileDownlinkComponentAc.hpp.

◆ getNum_eventOut_OutputPorts()

static constexpr FwIndexType Svc::FileDownlinkComponentBase::getNum_eventOut_OutputPorts ( )

inlinestaticprotected

Get the number of eventOut output ports

Returns: The number of eventOut output ports

Definition at line 442 of file FileDownlinkComponentAc.hpp.

◆ getNum_FileComplete_OutputPorts()

static constexpr FwIndexType Svc::FileDownlinkComponentBase::getNum_FileComplete_OutputPorts ( )

inlinestaticprotected

Get the number of FileComplete output ports

Returns: The number of FileComplete output ports

Definition at line 480 of file FileDownlinkComponentAc.hpp.

◆ getNum_pingIn_InputPorts()

static constexpr FwIndexType Svc::FileDownlinkComponentBase::getNum_pingIn_InputPorts ( )

inlinestaticprotected

Get the number of pingIn input ports

Returns: The number of pingIn input ports

Definition at line 415 of file FileDownlinkComponentAc.hpp.

◆ getNum_pingOut_OutputPorts()

static constexpr FwIndexType Svc::FileDownlinkComponentBase::getNum_pingOut_OutputPorts ( )

inlinestaticprotected

Get the number of pingOut output ports

Returns: The number of pingOut output ports

Definition at line 494 of file FileDownlinkComponentAc.hpp.

◆ getNum_Run_InputPorts()

static constexpr FwIndexType Svc::FileDownlinkComponentBase::getNum_Run_InputPorts ( )

inlinestaticprotected

Get the number of Run input ports

Returns: The number of Run input ports

Definition at line 394 of file FileDownlinkComponentAc.hpp.

◆ getNum_SendFile_InputPorts()

static constexpr FwIndexType Svc::FileDownlinkComponentBase::getNum_SendFile_InputPorts ( )

inlinestaticprotected

Get the number of SendFile input ports

Returns: The number of SendFile input ports

Definition at line 401 of file FileDownlinkComponentAc.hpp.

◆ getNum_timeCaller_OutputPorts()

static constexpr FwIndexType Svc::FileDownlinkComponentBase::getNum_timeCaller_OutputPorts ( )

inlinestaticprotected

Get the number of timeCaller output ports

Returns: The number of timeCaller output ports

Definition at line 460 of file FileDownlinkComponentAc.hpp.

◆ getNum_tlmOut_OutputPorts()

static constexpr FwIndexType Svc::FileDownlinkComponentBase::getNum_tlmOut_OutputPorts ( )

inlinestaticprotected

Get the number of tlmOut output ports

Returns: The number of tlmOut output ports

Definition at line 467 of file FileDownlinkComponentAc.hpp.

◆ getTime()

Fw::Time Svc::FileDownlinkComponentBase::getTime ( ) const

protected

Get the time

\return The current time

Definition at line 2661 of file FileDownlinkComponentAc.cpp.

◆ init()

void Svc::FileDownlinkComponentBase::init	(	FwSizeType	queueDepth,
		FwEnumStoreType	instance = `0`
	)

Initialize FileDownlinkComponentBase object.

Parameters

queueDepth	The queue depth
instance	The instance number

Definition at line 77 of file FileDownlinkComponentAc.cpp.

◆ isConnected_bufferSendOut_OutputPort()

bool Svc::FileDownlinkComponentBase::isConnected_bufferSendOut_OutputPort ( FwIndexType portNum ) const

protected

Check whether port bufferSendOut is connected

Returns: Whether port bufferSendOut is connected

Parameters

portNum The port number

Definition at line 916 of file FileDownlinkComponentAc.cpp.

◆ isConnected_cmdRegOut_OutputPort()

bool Svc::FileDownlinkComponentBase::isConnected_cmdRegOut_OutputPort ( FwIndexType portNum ) const

protected

Check whether port cmdRegOut is connected

Returns: Whether port cmdRegOut is connected

Parameters

portNum The port number

Definition at line 827 of file FileDownlinkComponentAc.cpp.

◆ isConnected_cmdResponseOut_OutputPort()

bool Svc::FileDownlinkComponentBase::isConnected_cmdResponseOut_OutputPort ( FwIndexType portNum ) const

protected

Check whether port cmdResponseOut is connected

Returns: Whether port cmdResponseOut is connected

Parameters

portNum The port number

Definition at line 838 of file FileDownlinkComponentAc.cpp.

◆ isConnected_eventOut_OutputPort()

bool Svc::FileDownlinkComponentBase::isConnected_eventOut_OutputPort ( FwIndexType portNum ) const

protected

Check whether port eventOut is connected

Returns: Whether port eventOut is connected

Parameters

portNum The port number

Definition at line 849 of file FileDownlinkComponentAc.cpp.

◆ isConnected_FileComplete_OutputPort()

bool Svc::FileDownlinkComponentBase::isConnected_FileComplete_OutputPort ( FwIndexType portNum ) const

protected

Check whether port FileComplete is connected

Returns: Whether port FileComplete is connected

Parameters

portNum The port number

Definition at line 905 of file FileDownlinkComponentAc.cpp.

◆ isConnected_pingOut_OutputPort()

bool Svc::FileDownlinkComponentBase::isConnected_pingOut_OutputPort ( FwIndexType portNum ) const

protected

Check whether port pingOut is connected

Returns: Whether port pingOut is connected

Parameters

portNum The port number

Definition at line 927 of file FileDownlinkComponentAc.cpp.

◆ isConnected_timeCaller_OutputPort()

bool Svc::FileDownlinkComponentBase::isConnected_timeCaller_OutputPort ( FwIndexType portNum ) const

protected

Check whether port timeCaller is connected

Returns: Whether port timeCaller is connected

Parameters

portNum The port number

Definition at line 875 of file FileDownlinkComponentAc.cpp.

◆ isConnected_tlmOut_OutputPort()

bool Svc::FileDownlinkComponentBase::isConnected_tlmOut_OutputPort ( FwIndexType portNum ) const

protected

Check whether port tlmOut is connected

Returns: Whether port tlmOut is connected

Parameters

portNum The port number

Definition at line 886 of file FileDownlinkComponentAc.cpp.

◆ lock()

void Svc::FileDownlinkComponentBase::lock ( )

protectedvirtual

Lock the guarded mutex.

Definition at line 2681 of file FileDownlinkComponentAc.cpp.

◆ log_ACTIVITY_HI_DownlinkCanceled()

void Svc::FileDownlinkComponentBase::log_ACTIVITY_HI_DownlinkCanceled	(	const Fw::StringBase &	sourceFileName,
		const Fw::StringBase &	destFileName
	)		const

protected

Log event DownlinkCanceled

The File Downlink component canceled downlink of a file

Parameters

sourceFileName	The source file name
destFileName	The destination file name

Definition at line 1796 of file FileDownlinkComponentAc.cpp.

◆ log_ACTIVITY_HI_FileSent()

void Svc::FileDownlinkComponentBase::log_ACTIVITY_HI_FileSent	(	const Fw::StringBase &	sourceFileName,
		const Fw::StringBase &	destFileName
	)		const

protected

Log event FileSent

The File Downlink component successfully sent a file

Parameters

sourceFileName	The source file name
destFileName	The destination file name

Definition at line 1708 of file FileDownlinkComponentAc.cpp.

◆ log_ACTIVITY_HI_SendStarted()

void Svc::FileDownlinkComponentBase::log_ACTIVITY_HI_SendStarted	(	U32	fileSize,
		const Fw::StringBase &	sourceFileName,
		const Fw::StringBase &	destFileName
	)		const

protected

Log event SendStarted

The File Downlink component started a file download.

Parameters

fileSize	The source file size
sourceFileName	The source filename
destFileName	The destination filename

Definition at line 2245 of file FileDownlinkComponentAc.cpp.

◆ log_WARNING_HI_DownlinkPartialFail()

void Svc::FileDownlinkComponentBase::log_WARNING_HI_DownlinkPartialFail	(	const Fw::StringBase &	sourceFileName,
		const Fw::StringBase &	destFileName,
		U32	startOffset,
		U32	filesize
	)		const

protected

Log event DownlinkPartialFail

The File Downlink component has detected a timeout. Downlink has been canceled.

Parameters

sourceFileName	The source filename
destFileName	The destination file name
startOffset	Starting file offset in bytes
filesize	Size of source file

Definition at line 2026 of file FileDownlinkComponentAc.cpp.

◆ log_WARNING_HI_DownlinkZeroSizeFile()

void Svc::FileDownlinkComponentBase::log_WARNING_HI_DownlinkZeroSizeFile ( const Fw::StringBase & sourceFileName ) const

protected

Log event DownlinkZeroSizeFile

The File Downlink component stopped due to a zero-size file

Parameters

sourceFileName The source file name

Definition at line 2351 of file FileDownlinkComponentAc.cpp.

◆ log_WARNING_HI_FilenameDestinationOverflow()

void Svc::FileDownlinkComponentBase::log_WARNING_HI_FilenameDestinationOverflow ( ) const

protected

Log event FilenameDestinationOverflow

Supplied filename has overflowed

Definition at line 2491 of file FileDownlinkComponentAc.cpp.

◆ log_WARNING_HI_FilenameSourceOverflow()

void Svc::FileDownlinkComponentBase::log_WARNING_HI_FilenameSourceOverflow ( ) const

protected

Log event FilenameSourceOverflow

Supplied filename has overflowed. This intentionally discards the filename to avoid cascading overflows.

Definition at line 2426 of file FileDownlinkComponentAc.cpp.

◆ log_WARNING_HI_FileOpenError()

void Svc::FileDownlinkComponentBase::log_WARNING_HI_FileOpenError ( const Fw::StringBase & fileName ) const

protected

Log event FileOpenError

An error occurred opening a file

Parameters

fileName The name of the file

Definition at line 1538 of file FileDownlinkComponentAc.cpp.

◆ log_WARNING_HI_FileReadError()

void Svc::FileDownlinkComponentBase::log_WARNING_HI_FileReadError	(	const Fw::StringBase &	fileName,
		I32	status
	)		const

protected

Log event FileReadError

An error occurred reading a file

Parameters

fileName	The name of the file
status	The file status of read

Definition at line 1613 of file FileDownlinkComponentAc.cpp.

◆ log_WARNING_HI_SendDataFail()

void Svc::FileDownlinkComponentBase::log_WARNING_HI_SendDataFail	(	const Fw::StringBase &	sourceFileName,
		U32	byteOffset
	)		const

protected

Log event SendDataFail

The File Downlink component generated an error when trying to send a data packet.

Parameters

sourceFileName	The source filename
byteOffset	Byte offset

Definition at line 2150 of file FileDownlinkComponentAc.cpp.

◆ log_WARNING_LO_DownlinkPartialWarning()

void Svc::FileDownlinkComponentBase::log_WARNING_LO_DownlinkPartialWarning	(	U32	startOffset,
		U32	length,
		U32	filesize,
		const Fw::StringBase &	sourceFileName,
		const Fw::StringBase &	destFileName
	)		const

protected

Log event DownlinkPartialWarning

The File Downlink component has detected a timeout. Downlink has been canceled.

Parameters

startOffset	Starting file offset in bytes
length	Number of bytes to downlink
filesize	Size of source file
sourceFileName	The source filename
destFileName	The destination file name

Definition at line 1884 of file FileDownlinkComponentAc.cpp.

◆ pingIn_handler()

virtual void Svc::FileDownlinkComponentBase::pingIn_handler	(	FwIndexType	portNum,
		U32	key
	)

protectedpure virtual

Handler for input port pingIn.

Parameters

portNum	The port number
key	Value to return to pinger

◆ pingIn_handlerBase()

void Svc::FileDownlinkComponentBase::pingIn_handlerBase	(	FwIndexType	portNum,
		U32	key
	)

protected

Handler base-class function for input port pingIn.

Parameters

portNum	The port number
key	Value to return to pinger

Definition at line 1139 of file FileDownlinkComponentAc.cpp.

◆ pingIn_preMsgHook()

void Svc::FileDownlinkComponentBase::pingIn_preMsgHook	(	FwIndexType	portNum,
		U32	key
	)

protectedvirtual

Pre-message hook for async input port pingIn.

Parameters

portNum	The port number
key	Value to return to pinger

Definition at line 1218 of file FileDownlinkComponentAc.cpp.

◆ pingOut_out()

void Svc::FileDownlinkComponentBase::pingOut_out	(	FwIndexType	portNum,
		U32	key
	)		const

protected

Invoke output port pingOut.

Parameters

portNum	The port number
key	Value to return to pinger

Definition at line 1273 of file FileDownlinkComponentAc.cpp.

◆ regCommands()

void Svc::FileDownlinkComponentBase::regCommands ( )

Register commands with the Command Dispatcher.

Connect the dispatcher first

Definition at line 783 of file FileDownlinkComponentAc.cpp.

◆ Run_handler()

virtual void Svc::FileDownlinkComponentBase::Run_handler	(	FwIndexType	portNum,
		U32	context
	)

protectedpure virtual

Handler for input port Run.

Parameters

portNum	The port number
context	The call order

◆ Run_handlerBase()

void Svc::FileDownlinkComponentBase::Run_handlerBase	(	FwIndexType	portNum,
		U32	context
	)

protected

Handler base-class function for input port Run.

Parameters

portNum	The port number
context	The call order

Definition at line 998 of file FileDownlinkComponentAc.cpp.

◆ Run_preMsgHook()

void Svc::FileDownlinkComponentBase::Run_preMsgHook	(	FwIndexType	portNum,
		U32	context
	)

protectedvirtual

Pre-message hook for async input port Run.

Parameters

portNum	The port number
context	The call order

Definition at line 1200 of file FileDownlinkComponentAc.cpp.

◆ SendFile_cmdHandler()

virtual void Svc::FileDownlinkComponentBase::SendFile_cmdHandler	(	FwOpcodeType	opCode,
		U32	cmdSeq,
		const Fw::CmdStringArg &	sourceFileName,
		const Fw::CmdStringArg &	destFileName
	)

protectedpure virtual

Handler for command SendFile

Read a named file off the disk. Divide it into packets and send the packets for transmission to the ground.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
sourceFileName	The name of the on-board file to send
destFileName	The name of the destination file on the ground

◆ SendFile_cmdHandlerBase()

void Svc::FileDownlinkComponentBase::SendFile_cmdHandlerBase	(	FwOpcodeType	opCode,
		U32	cmdSeq,
		Fw::CmdArgBuffer &	args
	)

protected

Base-class handler function for command SendFile

Read a named file off the disk. Divide it into packets and send the packets for transmission to the ground.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 1316 of file FileDownlinkComponentAc.cpp.

◆ SendFile_handler()

virtual Svc::SendFileResponse Svc::FileDownlinkComponentBase::SendFile_handler	(	FwIndexType	portNum,
		const Fw::StringBase &	sourceFileName,
		const Fw::StringBase &	destFileName,
		U32	offset,
		U32	length
	)

protectedpure virtual

Handler for input port SendFile.

Parameters

portNum	The port number
sourceFileName	Path of file to downlink
destFileName	Path to store downlinked file at
offset	Amount of data in bytes to downlink from file. 0 to read until end of file
length	Amount of data in bytes to downlink from file. 0 to read until end of file

◆ SendFile_handlerBase()

Svc::SendFileResponse Svc::FileDownlinkComponentBase::SendFile_handlerBase	(	FwIndexType	portNum,
		const Fw::StringBase &	sourceFileName,
		const Fw::StringBase &	destFileName,
		U32	offset,
		U32	length
	)

protected

Handler base-class function for input port SendFile.

Parameters

portNum	The port number
sourceFileName	Path of file to downlink
destFileName	Path to store downlinked file at
offset	Amount of data in bytes to downlink from file. 0 to read until end of file
length	Amount of data in bytes to downlink from file. 0 to read until end of file

Definition at line 1051 of file FileDownlinkComponentAc.cpp.

◆ SendFile_preMsgHook()

void Svc::FileDownlinkComponentBase::SendFile_preMsgHook	(	FwOpcodeType	opCode,
		U32	cmdSeq
	)

protectedvirtual

Pre-message hook for command SendFile.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 1501 of file FileDownlinkComponentAc.cpp.

◆ SendPartial_cmdHandler()

virtual void Svc::FileDownlinkComponentBase::SendPartial_cmdHandler	(	FwOpcodeType	opCode,
		U32	cmdSeq,
		const Fw::CmdStringArg &	sourceFileName,
		const Fw::CmdStringArg &	destFileName,
		U32	startOffset,
		U32	length
	)

protectedpure virtual

Handler for command SendPartial

Read a named file off the disk from a starting position. Divide it into packets and send the packets for transmission to the ground.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
sourceFileName	The name of the on-board file to send
destFileName	The name of the destination file on the ground
startOffset	Starting offset of the source file
length	Number of bytes to send from starting offset. Length of 0 implies until the end of the file

◆ SendPartial_cmdHandlerBase()

void Svc::FileDownlinkComponentBase::SendPartial_cmdHandlerBase	(	FwOpcodeType	opCode,
		U32	cmdSeq,
		Fw::CmdArgBuffer &	args
	)

protected

Base-class handler function for command SendPartial

Read a named file off the disk from a starting position. Divide it into packets and send the packets for transmission to the ground.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 1434 of file FileDownlinkComponentAc.cpp.

◆ SendPartial_preMsgHook()

void Svc::FileDownlinkComponentBase::SendPartial_preMsgHook	(	FwOpcodeType	opCode,
		U32	cmdSeq
	)

protectedvirtual

Pre-message hook for command SendPartial.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 1523 of file FileDownlinkComponentAc.cpp.

◆ set_bufferSendOut_OutputPort()

void Svc::FileDownlinkComponentBase::set_bufferSendOut_OutputPort	(	FwIndexType	portNum,
		Fw::InputBufferSendPort *	port
	)

Connect port to bufferSendOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 603 of file FileDownlinkComponentAc.cpp.

◆ set_cmdRegOut_OutputPort()

void Svc::FileDownlinkComponentBase::set_cmdRegOut_OutputPort	(	FwIndexType	portNum,
		Fw::InputCmdRegPort *	port
	)

Connect port to cmdRegOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 493 of file FileDownlinkComponentAc.cpp.

◆ set_cmdResponseOut_OutputPort()

void Svc::FileDownlinkComponentBase::set_cmdResponseOut_OutputPort	(	FwIndexType	portNum,
		Fw::InputCmdResponsePort *	port
	)

Connect port to cmdResponseOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 507 of file FileDownlinkComponentAc.cpp.

◆ set_eventOut_OutputPort()

void Svc::FileDownlinkComponentBase::set_eventOut_OutputPort	(	FwIndexType	portNum,
		Fw::InputLogPort *	port
	)

Connect port to eventOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 521 of file FileDownlinkComponentAc.cpp.

◆ set_FileComplete_OutputPort()

void Svc::FileDownlinkComponentBase::set_FileComplete_OutputPort	(	FwIndexType	portNum,
		Svc::InputSendFileCompletePort *	port
	)

Connect port to FileComplete[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 589 of file FileDownlinkComponentAc.cpp.

◆ set_pingOut_OutputPort()

void Svc::FileDownlinkComponentBase::set_pingOut_OutputPort	(	FwIndexType	portNum,
		Svc::InputPingPort *	port
	)

Connect port to pingOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 617 of file FileDownlinkComponentAc.cpp.

◆ set_timeCaller_OutputPort()

void Svc::FileDownlinkComponentBase::set_timeCaller_OutputPort	(	FwIndexType	portNum,
		Fw::InputTimePort *	port
	)

Connect port to timeCaller[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 553 of file FileDownlinkComponentAc.cpp.

◆ set_tlmOut_OutputPort()

void Svc::FileDownlinkComponentBase::set_tlmOut_OutputPort	(	FwIndexType	portNum,
		Fw::InputTlmPort *	port
	)

Connect port to tlmOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 567 of file FileDownlinkComponentAc.cpp.

◆ tlmWrite()

void Svc::FileDownlinkComponentBase::tlmWrite	(	FwChanIdType	id,
		Fw::TlmBuffer &	_tlmBuff,
		Fw::Time	_tlmTime = `Fw::Time()`
	)		const

protected

Write telemetry channel given its local id and serialized value. Warning: This is a low level telemetry interface that does not guarentee channel type safety. It is up to the caller to make sure the serialized data matches the definition in the model. Update on change semantics are ignored, this telemetry is always written

Parameters

id	The channel id
_tlmBuff	The serialized telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 2560 of file FileDownlinkComponentAc.cpp.

◆ tlmWrite_FilesSent()

void Svc::FileDownlinkComponentBase::tlmWrite_FilesSent	(	U32	arg,
		Fw::Time	_tlmTime = `Fw::Time()`
	)		const

protected

Write telemetry channel FilesSent

The total number of files sent

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 2591 of file FileDownlinkComponentAc.cpp.

◆ tlmWrite_PacketsSent()

void Svc::FileDownlinkComponentBase::tlmWrite_PacketsSent	(	U32	arg,
		Fw::Time	_tlmTime = `Fw::Time()`
	)		const

protected

Write telemetry channel PacketsSent

The total number of packets sent

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 2613 of file FileDownlinkComponentAc.cpp.

◆ tlmWrite_Warnings()

void Svc::FileDownlinkComponentBase::tlmWrite_Warnings	(	U32	arg,
		Fw::Time	_tlmTime = `Fw::Time()`
	)		const

protected

Write telemetry channel Warnings

The total number of warnings

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 2635 of file FileDownlinkComponentAc.cpp.

◆ unLock()

void Svc::FileDownlinkComponentBase::unLock ( )

protectedvirtual

Unlock the guarded mutex.

Definition at line 2687 of file FileDownlinkComponentAc.cpp.

Friends And Related Function Documentation

◆ FileDownlinkTester

friend class FileDownlinkTester

friend

Friend class tester implementation to support white-box testing.

Definition at line 57 of file FileDownlinkComponentAc.hpp.

◆ FileDownlinkTesterBase

friend class FileDownlinkTesterBase

friend

Friend class tester to support autocoded test harness.

Definition at line 55 of file FileDownlinkComponentAc.hpp.

The documentation for this class was generated from the following files:

Svc/FileDownlink/FileDownlinkComponentAc.hpp
Svc/FileDownlink/FileDownlinkComponentAc.cpp

Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

◆ anonymous enum

◆ anonymous enum

◆ anonymous enum

◆ anonymous enum

◆ anonymous enum

◆ anonymous enum

Constructor & Destructor Documentation

◆ FileDownlinkComponentBase()

◆ ~FileDownlinkComponentBase()

Member Function Documentation

◆ bufferReturn_handler()

◆ bufferReturn_handlerBase()

◆ bufferReturn_preMsgHook()

◆ bufferSendOut_out()

◆ Cancel_cmdHandler()

◆ Cancel_cmdHandlerBase()

◆ Cancel_preMsgHook()

◆ cmdIn_handlerBase()

◆ cmdResponse_out()

◆ FileComplete_out()

◆ get_bufferReturn_InputPort()

◆ get_cmdIn_InputPort()

◆ get_pingIn_InputPort()

◆ get_Run_InputPort()

◆ get_SendFile_InputPort()

◆ getNum_bufferReturn_InputPorts()

◆ getNum_bufferSendOut_OutputPorts()

◆ getNum_cmdIn_InputPorts()

◆ getNum_cmdRegOut_OutputPorts()

◆ getNum_cmdResponseOut_OutputPorts()

◆ getNum_eventOut_OutputPorts()

◆ getNum_FileComplete_OutputPorts()

◆ getNum_pingIn_InputPorts()

◆ getNum_pingOut_OutputPorts()

◆ getNum_Run_InputPorts()

◆ getNum_SendFile_InputPorts()

◆ getNum_timeCaller_OutputPorts()

◆ getNum_tlmOut_OutputPorts()

◆ getTime()

◆ init()

◆ isConnected_bufferSendOut_OutputPort()

◆ isConnected_cmdRegOut_OutputPort()

◆ isConnected_cmdResponseOut_OutputPort()

◆ isConnected_eventOut_OutputPort()

◆ isConnected_FileComplete_OutputPort()

◆ isConnected_pingOut_OutputPort()

◆ isConnected_timeCaller_OutputPort()

◆ isConnected_tlmOut_OutputPort()

◆ lock()

◆ log_ACTIVITY_HI_DownlinkCanceled()

◆ log_ACTIVITY_HI_FileSent()

◆ log_ACTIVITY_HI_SendStarted()

◆ log_WARNING_HI_DownlinkPartialFail()

◆ log_WARNING_HI_DownlinkZeroSizeFile()

◆ log_WARNING_HI_FilenameDestinationOverflow()

◆ log_WARNING_HI_FilenameSourceOverflow()

◆ log_WARNING_HI_FileOpenError()

◆ log_WARNING_HI_FileReadError()

◆ log_WARNING_HI_SendDataFail()

◆ log_WARNING_LO_DownlinkPartialWarning()

◆ pingIn_handler()

◆ pingIn_handlerBase()

◆ pingIn_preMsgHook()

◆ pingOut_out()

◆ regCommands()

◆ Run_handler()

◆ Run_handlerBase()

◆ Run_preMsgHook()

◆ SendFile_cmdHandler()

◆ SendFile_cmdHandlerBase()

◆ SendFile_handler()
