Svc::FpySequencerComponentBase Class Reference

Auto-generated base for FpySequencer component. More...

#include <Svc/FpySequencer/FpySequencerComponentAc.hpp>

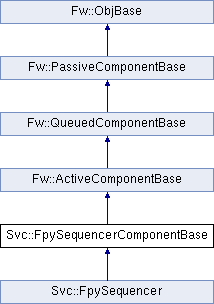

Inheritance diagram for Svc::FpySequencerComponentBase:

Classes
class	Svc_FpySequencer_SequencerStateMachine
	Implementation of state machine Svc_FpySequencer_SequencerStateMachine. More...

Public Member Functions
void	init (FwSizeType queueDepth, FwEnumStoreType instance=0)
	Initialize FpySequencerComponentBase object. More...
Fw::InputCmdPort *	get_cmdIn_InputPort (FwIndexType portNum)
Svc::InputSchedPort *	get_checkTimers_InputPort (FwIndexType portNum)
Fw::InputCmdResponsePort *	get_cmdResponseIn_InputPort (FwIndexType portNum)
Svc::InputPingPort *	get_pingIn_InputPort (FwIndexType portNum)
Svc::InputCmdSeqCancelPort *	get_seqCancelIn_InputPort (FwIndexType portNum)
Svc::InputCmdSeqInPort *	get_seqRunIn_InputPort (FwIndexType portNum)
Svc::InputSchedPort *	get_tlmWrite_InputPort (FwIndexType portNum)
void	set_cmdRegOut_OutputPort (FwIndexType portNum, Fw::InputCmdRegPort *port)
	Connect port to cmdRegOut[portNum]. More...
void	set_cmdResponseOut_OutputPort (FwIndexType portNum, Fw::InputCmdResponsePort *port)
	Connect port to cmdResponseOut[portNum]. More...
void	set_logOut_OutputPort (FwIndexType portNum, Fw::InputLogPort *port)
	Connect port to logOut[portNum]. More...
void	set_prmGet_OutputPort (FwIndexType portNum, Fw::InputPrmGetPort *port)
	Connect port to prmGet[portNum]. More...
void	set_prmSet_OutputPort (FwIndexType portNum, Fw::InputPrmSetPort *port)
	Connect port to prmSet[portNum]. More...
void	set_timeCaller_OutputPort (FwIndexType portNum, Fw::InputTimePort *port)
	Connect port to timeCaller[portNum]. More...
void	set_tlmOut_OutputPort (FwIndexType portNum, Fw::InputTlmPort *port)
	Connect port to tlmOut[portNum]. More...
void	set_cmdOut_OutputPort (FwIndexType portNum, Fw::InputComPort *port)
	Connect port to cmdOut[portNum]. More...
void	set_getParam_OutputPort (FwIndexType portNum, Fw::InputPrmGetPort *port)
	Connect port to getParam[portNum]. More...
void	set_getTlmChan_OutputPort (FwIndexType portNum, Fw::InputTlmGetPort *port)
	Connect port to getTlmChan[portNum]. More...
void	set_pingOut_OutputPort (FwIndexType portNum, Svc::InputPingPort *port)
	Connect port to pingOut[portNum]. More...
void	set_seqDoneOut_OutputPort (FwIndexType portNum, Fw::InputCmdResponsePort *port)
	Connect port to seqDoneOut[portNum]. More...
void	set_seqStartOut_OutputPort (FwIndexType portNum, Svc::InputCmdSeqInPort *port)
	Connect port to seqStartOut[portNum]. More...
void	regCommands ()
	Register commands with the Command Dispatcher. More...
void	loadParameters ()
	Load the parameters from a parameter source. More...
Public Member Functions inherited from Fw::ActiveComponentBase
void	start (FwTaskPriorityType priority=Os::Task::TASK_PRIORITY_DEFAULT, FwSizeType stackSize=Os::Task::TASK_DEFAULT, FwSizeType cpuAffinity=Os::Task::TASK_DEFAULT, FwTaskIdType identifier=static_cast< FwTaskIdType >(Os::Task::TASK_DEFAULT))
	called by instantiator when task is to be started More...
void	exit ()
	exit task in active component More...
Os::Task::Status	join ()
	Join the thread. More...
	DEPRECATED (Os::Task::Status join(void **value_ptr), "Switch to .join()")
	Join to thread with discarded value_ptr. More...
Public Member Functions inherited from Fw::QueuedComponentBase
void	deinit () override
	Allows de-initialization on teardown. More...
Public Member Functions inherited from Fw::PassiveComponentBase
void	setIdBase (const FwIdType)
	Set the ID base. More...
FwIdType	getIdBase () const

Protected Types
enum	{ NUM_CMDIN_INPUT_PORTS = 1 }
	Enumerations for numbers of special input ports. More...
enum	{   NUM_CHECKTIMERS_INPUT_PORTS = 1, NUM_CMDRESPONSEIN_INPUT_PORTS = 1, NUM_PINGIN_INPUT_PORTS = 1, NUM_SEQCANCELIN_INPUT_PORTS = 1,   NUM_SEQRUNIN_INPUT_PORTS = 1, NUM_TLMWRITE_INPUT_PORTS = 1 }
	Enumerations for numbers of typed input ports. More...
enum	{   NUM_CMDREGOUT_OUTPUT_PORTS = 1, NUM_CMDRESPONSEOUT_OUTPUT_PORTS = 1, NUM_LOGOUT_OUTPUT_PORTS = 1, NUM_LOGTEXTOUT_OUTPUT_PORTS = 1,   NUM_PRMGET_OUTPUT_PORTS = 1, NUM_PRMSET_OUTPUT_PORTS = 1, NUM_TIMECALLER_OUTPUT_PORTS = 1, NUM_TLMOUT_OUTPUT_PORTS = 1 }
	Enumerations for numbers of special output ports. More...
enum	{   NUM_CMDOUT_OUTPUT_PORTS = 1, NUM_GETPARAM_OUTPUT_PORTS = 1, NUM_GETTLMCHAN_OUTPUT_PORTS = 1, NUM_PINGOUT_OUTPUT_PORTS = 1,   NUM_SEQDONEOUT_OUTPUT_PORTS = 1, NUM_SEQSTARTOUT_OUTPUT_PORTS = 1 }
	Enumerations for numbers of typed output ports. More...
enum	{ NUM_SERIALOUT_OUTPUT_PORTS = 5 }
	Enumerations for numbers of serial output ports. More...
enum	{   OPCODE_RUN = 0x0, OPCODE_RUN_ARGS = 0x1, OPCODE_VALIDATE = 0x2, OPCODE_VALIDATE_ARGS = 0x3,   OPCODE_RUN_VALIDATED = 0x4, OPCODE_CANCEL = 0x5, OPCODE_SET_BREAKPOINT = 0x6, OPCODE_BREAK = 0x7,   OPCODE_CONTINUE = 0x8, OPCODE_CLEAR_BREAKPOINT = 0x9, OPCODE_STEP = 0xa, OPCODE_DUMP_STACK_TO_FILE = 0xb,   OPCODE_STATEMENT_TIMEOUT_SECS_SET = 0xc, OPCODE_STATEMENT_TIMEOUT_SECS_SAVE = 0xd, OPCODE_SEQ_BASE_DIR_SET = 0xe, OPCODE_SEQ_BASE_DIR_SAVE = 0xf }
	Command opcodes. More...
enum	{   EVENTID_INVALIDCOMMAND = 0x0, EVENTID_INVALIDSEQRUNCALL = 0x1, EVENTID_INVALIDSEQCANCELCALL = 0x2, EVENTID_FILEOPENERROR = 0x3,   EVENTID_FILEWRITEERROR = 0x4, EVENTID_FILEREADERROR = 0x5, EVENTID_ENDOFFILEERROR = 0x6, EVENTID_FILEREADDESERIALIZEERROR = 0x7,   EVENTID_WRONGSCHEMAVERSION = 0x8, EVENTID_WRONGCRC = 0x9, EVENTID_EXTRABYTESINSEQUENCE = 0xa, EVENTID_INSUFFICIENTBUFFERSPACE = 0xb,   EVENTID_FILEAPIERROR = 0xc, EVENTID_SEQUENCEFILEPATHTOOLONG = 0xd, EVENTID_COMMANDFAILED = 0xe, EVENTID_SEQUENCEDONE = 0xf,   EVENTID_SEQUENCECANCELLED = 0x10, EVENTID_SEQUENCEEXITEDWITHERROR = 0x11, EVENTID_UNKNOWNSEQUENCERDIRECTIVE = 0x12, EVENTID_CMDRESPONSEWHILENOTRUNNINGSEQUENCE = 0x13,   EVENTID_CMDRESPONSEFROMOLDSEQUENCE = 0x14, EVENTID_CMDRESPONSEWHILENOTAWAITING = 0x15, EVENTID_CMDRESPONSEWHILEAWAITINGDIRECTIVE = 0x16, EVENTID_WRONGCMDRESPONSEOPCODE = 0x17,   EVENTID_WRONGCMDRESPONSEINDEX = 0x18, EVENTID_DIRECTIVEDESERIALIZEERROR = 0x19, EVENTID_MISMATCHEDTIMEBASE = 0x1a, EVENTID_MISMATCHEDTIMECONTEXT = 0x1b,   EVENTID_COMMANDTIMEDOUT = 0x1c, EVENTID_DIRECTIVETIMEDOUT = 0x1d, EVENTID_TOOMANYSEQUENCEARGS = 0x1e, EVENTID_TOOMANYSEQUENCEDIRECTIVES = 0x1f,   EVENTID_ARGSIZEMISMATCH = 0x20, EVENTID_ARGSIZEEXCEEDSCAPACITY = 0x21, EVENTID_ARGTOTALSIZEEXCEEDSSTACKLIMIT = 0x22, EVENTID_SEQUENCEPAUSED = 0x23,   EVENTID_BREAKPOINTSET = 0x24, EVENTID_BREAKPOINTCLEARED = 0x25, EVENTID_LOGFATAL = 0x26, EVENTID_LOGWARNINGHI = 0x27,   EVENTID_LOGWARNINGLO = 0x28, EVENTID_LOGCOMMAND = 0x29, EVENTID_LOGACTIVITYHI = 0x2a, EVENTID_LOGACTIVITYLO = 0x2b,   EVENTID_LOGDIAGNOSTIC = 0x2c }
	Event IDs. More...
enum	{   CHANNELID_STATE = 0x0, CHANNELID_SEQUENCESSUCCEEDED = 0x1, CHANNELID_SEQUENCESFAILED = 0x2, CHANNELID_SEQUENCESCANCELLED = 0x3,   CHANNELID_STATEMENTSDISPATCHED = 0x4, CHANNELID_STATEMENTSFAILED = 0x5, CHANNELID_LASTDIRECTIVEERROR = 0x6, CHANNELID_DIRECTIVEERRORINDEX = 0x7,   CHANNELID_DIRECTIVEERRORID = 0x8, CHANNELID_SEQPATH = 0x9, CHANNELID_DEBUG_REACHEDENDOFFILE = 0xa, CHANNELID_DEBUG_NEXTSTATEMENTREADSUCCESS = 0xb,   CHANNELID_DEBUG_NEXTSTATEMENTOPCODE = 0xc, CHANNELID_DEBUG_NEXTSTATEMENTINDEX = 0xd, CHANNELID_DEBUG_NEXTCMDOPCODE = 0xe, CHANNELID_DEBUG_STACKSIZE = 0xf,   CHANNELID_BREAKPOINTINUSE = 0x10, CHANNELID_BREAKPOINTINDEX = 0x11, CHANNELID_BREAKONLYONCEONBREAKPOINT = 0x12, CHANNELID_BREAKBEFORENEXTLINE = 0x13,   CHANNELID_PRM_STATEMENT_TIMEOUT_SECS = 0x14, CHANNELID_PRM_SEQ_BASE_DIR = 0x15 }
	Channel IDs. More...
enum	{ PARAMID_STATEMENT_TIMEOUT_SECS = 0x0, PARAMID_SEQ_BASE_DIR = 0x1 }
	Parameter IDs. More...
enum	SmId : FwEnumStoreType { SmId::sequencer }
	State machine identifiers. More...
Protected Types inherited from Fw::ActiveComponentBase
enum	Lifecycle { CREATED, DISPATCHING, FINALIZING, DONE }
	Tracks the lifecycle of the component. More...

Protected Member Functions
	FpySequencerComponentBase (const char *compName="")
	Construct FpySequencerComponentBase object. More...
virtual	~FpySequencerComponentBase ()
	Destroy FpySequencerComponentBase object. More...
bool	isConnected_cmdRegOut_OutputPort (FwIndexType portNum) const
bool	isConnected_cmdResponseOut_OutputPort (FwIndexType portNum) const
bool	isConnected_logOut_OutputPort (FwIndexType portNum) const
bool	isConnected_prmGet_OutputPort (FwIndexType portNum) const
bool	isConnected_prmSet_OutputPort (FwIndexType portNum) const
bool	isConnected_timeCaller_OutputPort (FwIndexType portNum) const
bool	isConnected_tlmOut_OutputPort (FwIndexType portNum) const
bool	isConnected_cmdOut_OutputPort (FwIndexType portNum) const
bool	isConnected_getParam_OutputPort (FwIndexType portNum) const
bool	isConnected_getTlmChan_OutputPort (FwIndexType portNum) const
bool	isConnected_pingOut_OutputPort (FwIndexType portNum) const
bool	isConnected_seqDoneOut_OutputPort (FwIndexType portNum) const
bool	isConnected_seqStartOut_OutputPort (FwIndexType portNum) const
bool	isConnected_serialOut_OutputPort (FwIndexType portNum) const
void	cmdIn_handlerBase (FwIndexType portNum, FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
	Handler base-class function for input port cmdIn. More...
virtual void	checkTimers_handler (FwIndexType portNum, U32 context)=0
	Handler for input port checkTimers. More...
virtual void	cmdResponseIn_handler (FwIndexType portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response)=0
	Handler for input port cmdResponseIn. More...
virtual void	pingIn_handler (FwIndexType portNum, U32 key)=0
	Handler for input port pingIn. More...
virtual void	seqCancelIn_handler (FwIndexType portNum)=0
	Handler for input port seqCancelIn. More...
virtual void	seqRunIn_handler (FwIndexType portNum, const Fw::StringBase &filename, const Svc::SeqArgs &args)=0
	Handler for input port seqRunIn. More...
virtual void	tlmWrite_handler (FwIndexType portNum, U32 context)=0
	Handler for input port tlmWrite. More...
void	checkTimers_handlerBase (FwIndexType portNum, U32 context)
	Handler base-class function for input port checkTimers. More...
void	cmdResponseIn_handlerBase (FwIndexType portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response)
	Handler base-class function for input port cmdResponseIn. More...
void	pingIn_handlerBase (FwIndexType portNum, U32 key)
	Handler base-class function for input port pingIn. More...
void	seqCancelIn_handlerBase (FwIndexType portNum)
	Handler base-class function for input port seqCancelIn. More...
void	seqRunIn_handlerBase (FwIndexType portNum, const Fw::StringBase &filename, const Svc::SeqArgs &args)
	Handler base-class function for input port seqRunIn. More...
void	tlmWrite_handlerBase (FwIndexType portNum, U32 context)
	Handler base-class function for input port tlmWrite. More...
virtual void	checkTimers_preMsgHook (FwIndexType portNum, U32 context)
	Pre-message hook for async input port checkTimers. More...
virtual void	cmdResponseIn_preMsgHook (FwIndexType portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response)
	Pre-message hook for async input port cmdResponseIn. More...
virtual void	pingIn_preMsgHook (FwIndexType portNum, U32 key)
	Pre-message hook for async input port pingIn. More...
virtual void	seqCancelIn_preMsgHook (FwIndexType portNum)
	Pre-message hook for async input port seqCancelIn. More...
virtual void	seqRunIn_preMsgHook (FwIndexType portNum, const Fw::StringBase &filename, const Svc::SeqArgs &args)
	Pre-message hook for async input port seqRunIn. More...
virtual void	tlmWrite_preMsgHook (FwIndexType portNum, U32 context)
	Pre-message hook for async input port tlmWrite. More...
void	cmdOut_out (FwIndexType portNum, Fw::ComBuffer &data, U32 context) const
	Invoke output port cmdOut. More...
Fw::ParamValid	getParam_out (FwIndexType portNum, FwPrmIdType id, Fw::ParamBuffer &val) const
	Invoke output port getParam. More...
Fw::TlmValid	getTlmChan_out (FwIndexType portNum, FwChanIdType id, Fw::Time &timeTag, Fw::TlmBuffer &val) const
	Invoke output port getTlmChan. More...
void	pingOut_out (FwIndexType portNum, U32 key) const
	Invoke output port pingOut. More...
void	seqDoneOut_out (FwIndexType portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response) const
	Invoke output port seqDoneOut. More...
void	seqStartOut_out (FwIndexType portNum, const Fw::StringBase &filename, const Svc::SeqArgs &args) const
	Invoke output port seqStartOut. More...
Fw::SerializeStatus	serialOut_out (FwIndexType portNum, Fw::LinearBufferBase &buffer)
	Invoke output port serialOut. More...
virtual void	directive_allocate_internalInterfaceHandler (const Svc::FpySequencer_AllocateDirective &directive)=0
	Internal interface handler for directive_allocate. More...
virtual void	directive_call_internalInterfaceHandler (const Svc::FpySequencer_CallDirective &directive)=0
	Internal interface handler for directive_call. More...
virtual void	directive_constCmd_internalInterfaceHandler (const Svc::FpySequencer_ConstCmdDirective &directive)=0
	Internal interface handler for directive_constCmd. More...
virtual void	directive_discard_internalInterfaceHandler (const Svc::FpySequencer_DiscardDirective &directive)=0
	Internal interface handler for directive_discard. More...
virtual void	directive_exit_internalInterfaceHandler (const Svc::FpySequencer_ExitDirective &directive)=0
	Internal interface handler for directive_exit. More...
virtual void	directive_getField_internalInterfaceHandler (const Svc::FpySequencer_GetFieldDirective &directive)=0
	Internal interface handler for directive_getField. More...
virtual void	directive_goto_internalInterfaceHandler (const Svc::FpySequencer_GotoDirective &directive)=0
	Internal interface handler for directive_goto. More...
virtual void	directive_if_internalInterfaceHandler (const Svc::FpySequencer_IfDirective &directive)=0
	Internal interface handler for directive_if. More...
virtual void	directive_loadAbs_internalInterfaceHandler (const Svc::FpySequencer_LoadAbsDirective &directive)=0
	Internal interface handler for directive_loadAbs. More...
virtual void	directive_loadRel_internalInterfaceHandler (const Svc::FpySequencer_LoadRelDirective &directive)=0
	Internal interface handler for directive_loadRel. More...
virtual void	directive_memCmp_internalInterfaceHandler (const Svc::FpySequencer_MemCmpDirective &directive)=0
	Internal interface handler for directive_memCmp. More...
virtual void	directive_noOp_internalInterfaceHandler (const Svc::FpySequencer_NoOpDirective &directive)=0
	Internal interface handler for directive_noOp. More...
virtual void	directive_peek_internalInterfaceHandler (const Svc::FpySequencer_PeekDirective &directive)=0
	Internal interface handler for directive_peek. More...
virtual void	directive_popEvent_internalInterfaceHandler (const Svc::FpySequencer_PopEventDirective &directive)=0
	Internal interface handler for directive_popEvent. More...
virtual void	directive_popSerializable_internalInterfaceHandler (const Svc::FpySequencer_PopSerializableDirective &directive)=0
	Internal interface handler for directive_popSerializable. More...
virtual void	directive_pushPrm_internalInterfaceHandler (const Svc::FpySequencer_PushPrmDirective &directive)=0
	Internal interface handler for directive_pushPrm. More...
virtual void	directive_pushRand_internalInterfaceHandler (const Svc::FpySequencer_PushRandDirective &directive)=0
	Internal interface handler for directive_pushRand. More...
virtual void	directive_pushTime_internalInterfaceHandler (const Svc::FpySequencer_PushTimeDirective &directive)=0
	Internal interface handler for directive_pushTime. More...
virtual void	directive_pushTlmVal_internalInterfaceHandler (const Svc::FpySequencer_PushTlmValDirective &directive)=0
	Internal interface handler for directive_pushTlmVal. More...
virtual void	directive_pushTlmValAndTime_internalInterfaceHandler (const Svc::FpySequencer_PushTlmValAndTimeDirective &directive)=0
	Internal interface handler for directive_pushTlmValAndTime. More...
virtual void	directive_pushVal_internalInterfaceHandler (const Svc::FpySequencer_PushValDirective &directive)=0
	Internal interface handler for directive_pushVal. More...
virtual void	directive_return_internalInterfaceHandler (const Svc::FpySequencer_ReturnDirective &directive)=0
	Internal interface handler for directive_return. More...
virtual void	directive_setSeed_internalInterfaceHandler (const Svc::FpySequencer_SetSeedDirective &directive)=0
	Internal interface handler for directive_setSeed. More...
virtual void	directive_stackCmd_internalInterfaceHandler (const Svc::FpySequencer_StackCmdDirective &directive)=0
	Internal interface handler for directive_stackCmd. More...
virtual void	directive_stackOp_internalInterfaceHandler (const Svc::FpySequencer_StackOpDirective &directive)=0
	Internal interface handler for directive_stackOp. More...
virtual void	directive_storeAbs_internalInterfaceHandler (const Svc::FpySequencer_StoreAbsDirective &directive)=0
	Internal interface handler for directive_storeAbs. More...
virtual void	directive_storeAbsConstOffset_internalInterfaceHandler (const Svc::FpySequencer_StoreAbsConstOffsetDirective &directive)=0
	Internal interface handler for directive_storeAbsConstOffset. More...
virtual void	directive_storeRel_internalInterfaceHandler (const Svc::FpySequencer_StoreRelDirective &directive)=0
	Internal interface handler for directive_storeRel. More...
virtual void	directive_storeRelConstOffset_internalInterfaceHandler (const Svc::FpySequencer_StoreRelConstOffsetDirective &directive)=0
	Internal interface handler for directive_storeRelConstOffset. More...
virtual void	directive_waitAbs_internalInterfaceHandler (const Svc::FpySequencer_WaitAbsDirective &directive)=0
	Internal interface handler for directive_waitAbs. More...
virtual void	directive_waitRel_internalInterfaceHandler (const Svc::FpySequencer_WaitRelDirective &directive)=0
	Internal interface handler for directive_waitRel. More...
void	directive_allocate_internalInterfaceInvoke (const Svc::FpySequencer_AllocateDirective &directive)
	Internal interface base-class function for directive_allocate. More...
void	directive_call_internalInterfaceInvoke (const Svc::FpySequencer_CallDirective &directive)
	Internal interface base-class function for directive_call. More...
void	directive_constCmd_internalInterfaceInvoke (const Svc::FpySequencer_ConstCmdDirective &directive)
	Internal interface base-class function for directive_constCmd. More...
void	directive_discard_internalInterfaceInvoke (const Svc::FpySequencer_DiscardDirective &directive)
	Internal interface base-class function for directive_discard. More...
void	directive_exit_internalInterfaceInvoke (const Svc::FpySequencer_ExitDirective &directive)
	Internal interface base-class function for directive_exit. More...
void	directive_getField_internalInterfaceInvoke (const Svc::FpySequencer_GetFieldDirective &directive)
	Internal interface base-class function for directive_getField. More...
void	directive_goto_internalInterfaceInvoke (const Svc::FpySequencer_GotoDirective &directive)
	Internal interface base-class function for directive_goto. More...
void	directive_if_internalInterfaceInvoke (const Svc::FpySequencer_IfDirective &directive)
	Internal interface base-class function for directive_if. More...
void	directive_loadAbs_internalInterfaceInvoke (const Svc::FpySequencer_LoadAbsDirective &directive)
	Internal interface base-class function for directive_loadAbs. More...
void	directive_loadRel_internalInterfaceInvoke (const Svc::FpySequencer_LoadRelDirective &directive)
	Internal interface base-class function for directive_loadRel. More...
void	directive_memCmp_internalInterfaceInvoke (const Svc::FpySequencer_MemCmpDirective &directive)
	Internal interface base-class function for directive_memCmp. More...
void	directive_noOp_internalInterfaceInvoke (const Svc::FpySequencer_NoOpDirective &directive)
	Internal interface base-class function for directive_noOp. More...
void	directive_peek_internalInterfaceInvoke (const Svc::FpySequencer_PeekDirective &directive)
	Internal interface base-class function for directive_peek. More...
void	directive_popEvent_internalInterfaceInvoke (const Svc::FpySequencer_PopEventDirective &directive)
	Internal interface base-class function for directive_popEvent. More...
void	directive_popSerializable_internalInterfaceInvoke (const Svc::FpySequencer_PopSerializableDirective &directive)
	Internal interface base-class function for directive_popSerializable. More...
void	directive_pushPrm_internalInterfaceInvoke (const Svc::FpySequencer_PushPrmDirective &directive)
	Internal interface base-class function for directive_pushPrm. More...
void	directive_pushRand_internalInterfaceInvoke (const Svc::FpySequencer_PushRandDirective &directive)
	Internal interface base-class function for directive_pushRand. More...
void	directive_pushTime_internalInterfaceInvoke (const Svc::FpySequencer_PushTimeDirective &directive)
	Internal interface base-class function for directive_pushTime. More...
void	directive_pushTlmVal_internalInterfaceInvoke (const Svc::FpySequencer_PushTlmValDirective &directive)
	Internal interface base-class function for directive_pushTlmVal. More...
void	directive_pushTlmValAndTime_internalInterfaceInvoke (const Svc::FpySequencer_PushTlmValAndTimeDirective &directive)
	Internal interface base-class function for directive_pushTlmValAndTime. More...
void	directive_pushVal_internalInterfaceInvoke (const Svc::FpySequencer_PushValDirective &directive)
	Internal interface base-class function for directive_pushVal. More...
void	directive_return_internalInterfaceInvoke (const Svc::FpySequencer_ReturnDirective &directive)
	Internal interface base-class function for directive_return. More...
void	directive_setSeed_internalInterfaceInvoke (const Svc::FpySequencer_SetSeedDirective &directive)
	Internal interface base-class function for directive_setSeed. More...
void	directive_stackCmd_internalInterfaceInvoke (const Svc::FpySequencer_StackCmdDirective &directive)
	Internal interface base-class function for directive_stackCmd. More...
void	directive_stackOp_internalInterfaceInvoke (const Svc::FpySequencer_StackOpDirective &directive)
	Internal interface base-class function for directive_stackOp. More...
void	directive_storeAbs_internalInterfaceInvoke (const Svc::FpySequencer_StoreAbsDirective &directive)
	Internal interface base-class function for directive_storeAbs. More...
void	directive_storeAbsConstOffset_internalInterfaceInvoke (const Svc::FpySequencer_StoreAbsConstOffsetDirective &directive)
	Internal interface base-class function for directive_storeAbsConstOffset. More...
void	directive_storeRel_internalInterfaceInvoke (const Svc::FpySequencer_StoreRelDirective &directive)
	Internal interface base-class function for directive_storeRel. More...
void	directive_storeRelConstOffset_internalInterfaceInvoke (const Svc::FpySequencer_StoreRelConstOffsetDirective &directive)
	Internal interface base-class function for directive_storeRelConstOffset. More...
void	directive_waitAbs_internalInterfaceInvoke (const Svc::FpySequencer_WaitAbsDirective &directive)
	Internal interface base-class function for directive_waitAbs. More...
void	directive_waitRel_internalInterfaceInvoke (const Svc::FpySequencer_WaitRelDirective &directive)
	Internal interface base-class function for directive_waitRel. More...
Svc_FpySequencer_SequencerStateMachine::State	sequencer_getState () const
	Get the state of state machine instance sequencer. More...
void	sequencer_sendSignal_cmd_VALIDATE (const Svc::FpySequencer_SequenceExecutionArgs &value)
	Send signal cmd_VALIDATE to state machine sequencer. More...
void	sequencer_sendSignal_cmd_RUN (const Svc::FpySequencer_SequenceExecutionArgs &value)
	Send signal cmd_RUN to state machine sequencer. More...
void	sequencer_sendSignal_cmd_RUN_VALIDATED (const Svc::FpySequencer_SequenceExecutionArgs &value)
	Send signal cmd_RUN_VALIDATED to state machine sequencer. More...
void	sequencer_sendSignal_cmd_CANCEL ()
	Send signal cmd_CANCEL to state machine sequencer. More...
void	sequencer_sendSignal_cmd_SET_BREAKPOINT (const Svc::FpySequencer_BreakpointArgs &value)
	Send signal cmd_SET_BREAKPOINT to state machine sequencer. More...
void	sequencer_sendSignal_cmd_CLEAR_BREAKPOINT ()
	Send signal cmd_CLEAR_BREAKPOINT to state machine sequencer. More...
void	sequencer_sendSignal_result_failure ()
	Send signal result_failure to state machine sequencer. More...
void	sequencer_sendSignal_result_success ()
	Send signal result_success to state machine sequencer. More...
void	sequencer_sendSignal_entered ()
	Send signal entered to state machine sequencer. More...
void	sequencer_sendSignal_result_dispatchStatement_success ()
	Send signal result_dispatchStatement_success to state machine sequencer. More...
void	sequencer_sendSignal_result_dispatchStatement_failure ()
	Send signal result_dispatchStatement_failure to state machine sequencer. More...
void	sequencer_sendSignal_result_dispatchStatement_noMoreStatements ()
	Send signal result_dispatchStatement_noMoreStatements to state machine sequencer. More...
void	sequencer_sendSignal_checkTimersIn ()
	Send signal checkTimersIn to state machine sequencer. More...
void	sequencer_sendSignal_result_checkShouldWake_wakeup ()
	Send signal result_checkShouldWake_wakeup to state machine sequencer. More...
void	sequencer_sendSignal_result_checkShouldWake_keepSleeping ()
	Send signal result_checkShouldWake_keepSleeping to state machine sequencer. More...
void	sequencer_sendSignal_result_timeOpFailed ()
	Send signal result_timeOpFailed to state machine sequencer. More...
void	sequencer_sendSignal_stmtResponse_beginSleep ()
	Send signal stmtResponse_beginSleep to state machine sequencer. More...
void	sequencer_sendSignal_stmtResponse_success ()
	Send signal stmtResponse_success to state machine sequencer. More...
void	sequencer_sendSignal_stmtResponse_failure ()
	Send signal stmtResponse_failure to state machine sequencer. More...
void	sequencer_sendSignal_stmtResponse_unexpected ()
	Send signal stmtResponse_unexpected to state machine sequencer. More...
void	sequencer_sendSignal_stmtResponse_keepWaiting ()
	Send signal stmtResponse_keepWaiting to state machine sequencer. More...
void	sequencer_sendSignal_result_checkStatementTimeout_statementTimeout ()
	Send signal result_checkStatementTimeout_statementTimeout to state machine sequencer. More...
void	sequencer_sendSignal_result_checkStatementTimeout_noTimeout ()
	Send signal result_checkStatementTimeout_noTimeout to state machine sequencer. More...
void	sequencer_sendSignal_cmd_CONTINUE ()
	Send signal cmd_CONTINUE to state machine sequencer. More...
void	sequencer_sendSignal_cmd_BREAK ()
	Send signal cmd_BREAK to state machine sequencer. More...
void	sequencer_sendSignal_cmd_STEP ()
	Send signal cmd_STEP to state machine sequencer. More...
virtual void	Svc_FpySequencer_SequencerStateMachine_action_signalEntered (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_setSequenceFilePath (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal, const Svc::FpySequencer_SequenceExecutionArgs &value)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_setSequenceBlockState (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal, const Svc::FpySequencer_SequenceExecutionArgs &value)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_setSequenceArguments (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal, const Svc::FpySequencer_SequenceExecutionArgs &value)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_validate (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_report_seqSucceeded (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_report_seqCancelled (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_report_seqFailed (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_report_seqStarted (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_setGoalState_RUNNING (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_setGoalState_VALID (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_setGoalState_IDLE (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_sendCmdResponse_OK (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_sendCmdResponse_EXECUTION_ERROR (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_clearSequenceFile (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_clearBreakpoint (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_clearSequenceArguments (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_checkShouldWake (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_dispatchStatement (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_resetRuntime (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_checkStatementTimeout (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_incrementSequenceCounter (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_pushArgsToStack (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_report_seqBroken (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_setBreakpoint (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal, const Svc::FpySequencer_BreakpointArgs &value)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_setBreakBeforeNextLine (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual void	Svc_FpySequencer_SequencerStateMachine_action_clearBreakBeforeNextLine (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal)=0
virtual bool	Svc_FpySequencer_SequencerStateMachine_guard_goalStateIs_RUNNING (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal) const =0
virtual bool	Svc_FpySequencer_SequencerStateMachine_guard_shouldBreak (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal) const =0
virtual bool	Svc_FpySequencer_SequencerStateMachine_guard_breakOnce (SmId smId, Svc_FpySequencer_SequencerStateMachine::Signal signal) const =0
void	cmdResponse_out (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdResponse response)
	Emit command response. More...
virtual void	RUN_cmdHandler (FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdStringArg &fileName, const Svc::BlockState &block)=0
virtual void	RUN_ARGS_cmdHandler (FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdStringArg &fileName, const Svc::BlockState &block, const Svc::SeqArgs &buffer)=0
	Handler for command RUN_ARGS. More...
virtual void	VALIDATE_cmdHandler (FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdStringArg &fileName)=0
virtual void	VALIDATE_ARGS_cmdHandler (FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdStringArg &fileName, const Svc::SeqArgs &buffer)=0
virtual void	RUN_VALIDATED_cmdHandler (FwOpcodeType opCode, U32 cmdSeq, const Svc::BlockState &block)=0
virtual void	CANCEL_cmdHandler (FwOpcodeType opCode, U32 cmdSeq)=0
virtual void	SET_BREAKPOINT_cmdHandler (FwOpcodeType opCode, U32 cmdSeq, U32 stmtIdx, bool breakOnce)=0
virtual void	BREAK_cmdHandler (FwOpcodeType opCode, U32 cmdSeq)=0
virtual void	CONTINUE_cmdHandler (FwOpcodeType opCode, U32 cmdSeq)=0
virtual void	CLEAR_BREAKPOINT_cmdHandler (FwOpcodeType opCode, U32 cmdSeq)=0
virtual void	STEP_cmdHandler (FwOpcodeType opCode, U32 cmdSeq)=0
virtual void	DUMP_STACK_TO_FILE_cmdHandler (FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdStringArg &fileName)=0
void	RUN_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	RUN_ARGS_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
	Base-class handler function for command RUN_ARGS. More...
void	VALIDATE_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	VALIDATE_ARGS_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	RUN_VALIDATED_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	CANCEL_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	SET_BREAKPOINT_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	BREAK_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	CONTINUE_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	CLEAR_BREAKPOINT_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	STEP_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
void	DUMP_STACK_TO_FILE_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args)
virtual void	RUN_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command RUN. More...
virtual void	RUN_ARGS_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command RUN_ARGS. More...
virtual void	VALIDATE_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command VALIDATE. More...
virtual void	VALIDATE_ARGS_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command VALIDATE_ARGS. More...
virtual void	RUN_VALIDATED_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command RUN_VALIDATED. More...
virtual void	CANCEL_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CANCEL. More...
virtual void	SET_BREAKPOINT_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command SET_BREAKPOINT. More...
virtual void	BREAK_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command BREAK. More...
virtual void	CONTINUE_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CONTINUE. More...
virtual void	CLEAR_BREAKPOINT_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command CLEAR_BREAKPOINT. More...
virtual void	STEP_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command STEP. More...
virtual void	DUMP_STACK_TO_FILE_preMsgHook (FwOpcodeType opCode, U32 cmdSeq)
	Pre-message hook for command DUMP_STACK_TO_FILE. More...
void	log_WARNING_HI_InvalidCommand (I32 state) const
	Log event InvalidCommand. More...
void	log_WARNING_HI_InvalidSeqRunCall (I32 state) const
	Log event InvalidSeqRunCall. More...
void	log_WARNING_HI_InvalidSeqCancelCall (I32 state) const
	Log event InvalidSeqCancelCall. More...
void	log_WARNING_HI_FileOpenError (const Fw::StringBase &filePath, I32 errorCode) const
	Log event FileOpenError. More...
void	log_WARNING_HI_FileWriteError (FwSizeType writeSize, const Fw::StringBase &filePath, I32 errorCode) const
	Log event FileWriteError. More...
void	log_WARNING_HI_FileReadError (const Svc::FpySequencer_FileReadStage &readStage, const Fw::StringBase &filePath, I32 errorCode) const
	Log event FileReadError. More...
void	log_WARNING_HI_EndOfFileError (const Svc::FpySequencer_FileReadStage &readStage, const Fw::StringBase &filePath) const
	Log event EndOfFileError. More...
void	log_WARNING_HI_FileReadDeserializeError (const Svc::FpySequencer_FileReadStage &readStage, const Fw::StringBase &filePath, I32 errorCode, U64 buffLeft, U64 buffLength) const
	Log event FileReadDeserializeError. More...
void	log_WARNING_HI_WrongSchemaVersion (U8 expected, U8 actual) const
	Log event WrongSchemaVersion. More...
void	log_WARNING_HI_WrongCRC (U32 expected, U32 actual) const
	Log event WrongCRC. More...
void	log_WARNING_HI_ExtraBytesInSequence (FwSizeType remaining) const
	Log event ExtraBytesInSequence. More...
void	log_WARNING_HI_InsufficientBufferSpace (U64 bufferSize, const Fw::StringBase &filePath) const
	Log event InsufficientBufferSpace. More...
void	log_WARNING_HI_FileApiError (const Fw::StringBase &filePath, I32 errorCode) const
	Log event FileApiError. More...
void	log_WARNING_HI_SequenceFilePathTooLong (const Fw::StringBase &baseDir, const Fw::StringBase &fileName) const
	Log event SequenceFilePathTooLong. More...
void	log_WARNING_HI_CommandFailed (FwOpcodeType opCode, U32 stmtIdx, const Fw::StringBase &filePath, const Fw::CmdResponse &response) const
	Log event CommandFailed. More...
void	log_ACTIVITY_HI_SequenceDone (const Fw::StringBase &filePath) const
	Log event SequenceDone. More...
void	log_ACTIVITY_HI_SequenceCancelled (const Fw::StringBase &filePath) const
	Log event SequenceCancelled. More...
void	log_WARNING_HI_SequenceExitedWithError (const Fw::StringBase &filePath, I32 errorCode) const
	Log event SequenceExitedWithError. More...
void	log_WARNING_HI_UnknownSequencerDirective (U8 opcode, U32 stmtIdx, const Fw::StringBase &filePath) const
	Log event UnknownSequencerDirective. More...
void	log_WARNING_LO_CmdResponseWhileNotRunningSequence (I32 state, FwOpcodeType opcode, const Fw::CmdResponse &response) const
	Log event CmdResponseWhileNotRunningSequence. More...
void	log_WARNING_LO_CmdResponseFromOldSequence (FwOpcodeType opcode, const Fw::CmdResponse &response, U16 oldSequenceIdx, U16 currentSequenceIdx) const
	Log event CmdResponseFromOldSequence. More...
void	log_WARNING_HI_CmdResponseWhileNotAwaiting (FwOpcodeType opcode, const Fw::CmdResponse &response) const
	Log event CmdResponseWhileNotAwaiting. More...
void	log_WARNING_HI_CmdResponseWhileAwaitingDirective (FwOpcodeType opcode, const Fw::CmdResponse &response, U8 expectedDirectiveOpcode) const
	Log event CmdResponseWhileAwaitingDirective. More...
void	log_WARNING_HI_WrongCmdResponseOpcode (FwOpcodeType opcode, const Fw::CmdResponse &response, FwOpcodeType expectedOpcode) const
	Log event WrongCmdResponseOpcode. More...
void	log_WARNING_HI_WrongCmdResponseIndex (FwOpcodeType opcode, const Fw::CmdResponse &response, U16 actualCmdIdx, U16 expectedCmdIdx) const
	Log event WrongCmdResponseIndex. More...
void	log_WARNING_HI_DirectiveDeserializeError (U8 opcode, U32 stmtIdx, I32 errorCode, U64 buffLeft, U64 buffLength) const
	Log event DirectiveDeserializeError. More...
void	log_WARNING_HI_MismatchedTimeBase (I32 internalTimeBase, I32 otherTimeBase) const
	Log event MismatchedTimeBase. More...
void	log_WARNING_HI_MismatchedTimeContext (I32 internalTimeContext, I32 otherTimeContext) const
	Log event MismatchedTimeContext. More...
void	log_WARNING_HI_CommandTimedOut (FwOpcodeType opCode, U32 stmtIdx, const Fw::StringBase &filePath) const
	Log event CommandTimedOut. More...
void	log_WARNING_HI_DirectiveTimedOut (U8 opCode, U32 stmtIdx, const Fw::StringBase &filePath) const
	Log event DirectiveTimedOut. More...
void	log_WARNING_HI_TooManySequenceArgs (U8 count, U8 max) const
	Log event TooManySequenceArgs. More...
void	log_WARNING_HI_TooManySequenceDirectives (U16 count, U16 max) const
	Log event TooManySequenceDirectives. More...
void	log_WARNING_HI_ArgSizeMismatch (Svc::Fpy::StackSizeType expected, FwSizeType actual, const Fw::StringBase &filePath) const
	Log event ArgSizeMismatch. More...
void	log_WARNING_HI_ArgSizeExceedsCapacity (FwSizeType actual, FwSizeType capacity) const
	Log event ArgSizeExceedsCapacity. More...
void	log_WARNING_HI_ArgTotalSizeExceedsStackLimit (Svc::Fpy::StackSizeType argSize) const
	Log event ArgTotalSizeExceedsStackLimit. More...
void	log_ACTIVITY_HI_SequencePaused (U32 stmtIdx) const
	Log event SequencePaused. More...
void	log_ACTIVITY_HI_BreakpointSet (U32 breakpointIdx, bool breakOnce) const
	Log event BreakpointSet. More...
void	log_ACTIVITY_HI_BreakpointCleared () const
	Log event BreakpointCleared. More...
void	log_FATAL_LogFatal (const Fw::StringBase &filePath, const Fw::StringBase &message) const
	Log event LogFatal. More...
void	log_WARNING_HI_LogWarningHi (const Fw::StringBase &filePath, const Fw::StringBase &message) const
	Log event LogWarningHi. More...
void	log_WARNING_LO_LogWarningLo (const Fw::StringBase &filePath, const Fw::StringBase &message) const
	Log event LogWarningLo. More...
void	log_COMMAND_LogCommand (const Fw::StringBase &filePath, const Fw::StringBase &message) const
	Log event LogCommand. More...
void	log_ACTIVITY_HI_LogActivityHi (const Fw::StringBase &filePath, const Fw::StringBase &message) const
	Log event LogActivityHi. More...
void	log_ACTIVITY_LO_LogActivityLo (const Fw::StringBase &filePath, const Fw::StringBase &message) const
	Log event LogActivityLo. More...
void	log_DIAGNOSTIC_LogDiagnostic (const Fw::StringBase &filePath, const Fw::StringBase &message) const
	Log event LogDiagnostic. More...
void	tlmWrite (FwChanIdType id, Fw::TlmBuffer &_tlmBuff, Fw::Time _tlmTime=Fw::Time()) const
void	tlmWrite_State (FwEnumStoreType arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_SequencesSucceeded (U64 arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_SequencesFailed (U64 arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_SequencesCancelled (U64 arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_StatementsDispatched (U64 arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_StatementsFailed (U64 arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_LastDirectiveError (const Svc::Fpy::DirectiveErrorCode &arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_DirectiveErrorIndex (U64 arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_DirectiveErrorId (const Svc::Fpy::DirectiveId &arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_SeqPath (const Fw::StringBase &arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_Debug_ReachedEndOfFile (bool arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_Debug_NextStatementReadSuccess (bool arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_Debug_NextStatementOpcode (U8 arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_Debug_NextStatementIndex (U32 arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_Debug_NextCmdOpcode (FwOpcodeType arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_Debug_StackSize (Svc::Fpy::StackSizeType arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_BreakpointInUse (bool arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_BreakpointIndex (U32 arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_BreakOnlyOnceOnBreakpoint (bool arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_BreakBeforeNextLine (bool arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_PRM_STATEMENT_TIMEOUT_SECS (F32 arg, Fw::Time _tlmTime=Fw::Time())
void	tlmWrite_PRM_SEQ_BASE_DIR (const Fw::StringBase &arg, Fw::Time _tlmTime=Fw::Time())
virtual void	parameterUpdated (FwPrmIdType id)
	Called whenever a parameter is updated. More...
virtual void	parametersLoaded ()
	Called whenever parameters are loaded. More...
F32	paramGet_STATEMENT_TIMEOUT_SECS (Fw::ParamValid &valid)
Fw::ParamString	paramGet_SEQ_BASE_DIR (Fw::ParamValid &valid)
Fw::Time	getTime () const
Protected Member Functions inherited from Fw::ActiveComponentBase
	ActiveComponentBase (const char *name)
	Constructor. More...
virtual	~ActiveComponentBase ()
	Destructor. More...
void	init (FwEnumStoreType instance)
	initialization code More...
virtual void	preamble ()
	A function that will be called before the event loop is entered. More...
MsgDispatchStatus	dispatch ()
	The function that will dispatching messages. More...
virtual void	finalizer ()
	A function that will be called after exiting the loop. More...
Protected Member Functions inherited from Fw::QueuedComponentBase
	QueuedComponentBase (const char *name)
	Constructor. More...
virtual	~QueuedComponentBase ()
	Destructor. More...
void	init (FwEnumStoreType instance)
	initialization function More...
Os::Queue::Status	createQueue (FwSizeType depth, FwSizeType msgSize)
MsgDispatchStatus	dispatchAvailableMessages ()
	dispatches all messages currently in the queue, returning status of the dispatch More...
FwSizeType	getNumMsgsDropped ()
	return number of messages dropped More...
void	incNumMsgDropped ()
	increment the number of messages dropped More...
Protected Member Functions inherited from Fw::PassiveComponentBase
	PassiveComponentBase (const char *name)
	Named constructor. More...
virtual	~PassiveComponentBase ()
	Destructor. More...
void	init (FwEnumStoreType instance)
	Initialization function. More...
FwEnumStoreType	getInstance () const
Protected Member Functions inherited from Fw::ObjBase
	ObjBase (const char *name)
	ObjBase constructor. More...
virtual	~ObjBase ()
	Destructor. More...
void	init ()
	Object initializer. More...

Static Protected Member Functions
static constexpr FwIndexType	getNum_cmdIn_InputPorts ()
static constexpr FwIndexType	getNum_checkTimers_InputPorts ()
static constexpr FwIndexType	getNum_cmdResponseIn_InputPorts ()
static constexpr FwIndexType	getNum_pingIn_InputPorts ()
static constexpr FwIndexType	getNum_seqCancelIn_InputPorts ()
static constexpr FwIndexType	getNum_seqRunIn_InputPorts ()
static constexpr FwIndexType	getNum_tlmWrite_InputPorts ()
static constexpr FwIndexType	getNum_cmdRegOut_OutputPorts ()
static constexpr FwIndexType	getNum_cmdResponseOut_OutputPorts ()
static constexpr FwIndexType	getNum_logOut_OutputPorts ()
static constexpr FwIndexType	getNum_prmGet_OutputPorts ()
static constexpr FwIndexType	getNum_prmSet_OutputPorts ()
static constexpr FwIndexType	getNum_timeCaller_OutputPorts ()
static constexpr FwIndexType	getNum_tlmOut_OutputPorts ()
static constexpr FwIndexType	getNum_cmdOut_OutputPorts ()
static constexpr FwIndexType	getNum_getParam_OutputPorts ()
static constexpr FwIndexType	getNum_getTlmChan_OutputPorts ()
static constexpr FwIndexType	getNum_pingOut_OutputPorts ()
static constexpr FwIndexType	getNum_seqDoneOut_OutputPorts ()
static constexpr FwIndexType	getNum_seqStartOut_OutputPorts ()
static constexpr FwIndexType	getNum_serialOut_OutputPorts ()

Friends
class	FpySequencerTesterBase
	Friend class tester to support autocoded test harness. More...
class	FpySequencerTester
	Friend class tester implementation to support white-box testing. More...

Additional Inherited Members
Public Types inherited from Fw::ActiveComponentBase
enum	{ ACTIVE_COMPONENT_EXIT }
Public Types inherited from Fw::QueuedComponentBase
enum	MsgDispatchStatus { MSG_DISPATCH_OK, MSG_DISPATCH_EMPTY, MSG_DISPATCH_ERROR, MSG_DISPATCH_EXIT }
Protected Attributes inherited from Fw::ActiveComponentBase
Os::Task	m_task
	task object for active component More...
Protected Attributes inherited from Fw::QueuedComponentBase
Os::Queue	m_queue
	queue object for active component More...

Detailed Description

Auto-generated base for FpySequencer component.

Dispatches command sequences to available command sequencers

Definition at line 103 of file FpySequencerComponentAc.hpp.

Member Enumeration Documentation

anonymous enum

anonymous enum

protected

Enumerations for numbers of special input ports.

Enumerator
NUM_CMDIN_INPUT_PORTS

Definition at line 123 of file FpySequencerComponentAc.hpp.

anonymous enum

anonymous enum

protected

Enumerations for numbers of typed input ports.

Enumerator
NUM_CHECKTIMERS_INPUT_PORTS
NUM_CMDRESPONSEIN_INPUT_PORTS
NUM_PINGIN_INPUT_PORTS
NUM_SEQCANCELIN_INPUT_PORTS
NUM_SEQRUNIN_INPUT_PORTS
NUM_TLMWRITE_INPUT_PORTS

Definition at line 128 of file FpySequencerComponentAc.hpp.

anonymous enum

anonymous enum

protected

Enumerations for numbers of special output ports.

Enumerator
NUM_CMDREGOUT_OUTPUT_PORTS
NUM_CMDRESPONSEOUT_OUTPUT_PORTS
NUM_LOGOUT_OUTPUT_PORTS
NUM_LOGTEXTOUT_OUTPUT_PORTS
NUM_PRMGET_OUTPUT_PORTS
NUM_PRMSET_OUTPUT_PORTS
NUM_TIMECALLER_OUTPUT_PORTS
NUM_TLMOUT_OUTPUT_PORTS

Definition at line 138 of file FpySequencerComponentAc.hpp.

anonymous enum

anonymous enum

protected

Enumerations for numbers of typed output ports.

Enumerator
NUM_CMDOUT_OUTPUT_PORTS
NUM_GETPARAM_OUTPUT_PORTS
NUM_GETTLMCHAN_OUTPUT_PORTS
NUM_PINGOUT_OUTPUT_PORTS
NUM_SEQDONEOUT_OUTPUT_PORTS
NUM_SEQSTARTOUT_OUTPUT_PORTS

Definition at line 150 of file FpySequencerComponentAc.hpp.

anonymous enum

anonymous enum

protected

Enumerations for numbers of serial output ports.

Enumerator
NUM_SERIALOUT_OUTPUT_PORTS

Definition at line 160 of file FpySequencerComponentAc.hpp.

anonymous enum

anonymous enum

protected

Command opcodes.

Enumerator
OPCODE_RUN	Loads, validates and runs a sequence.
OPCODE_RUN_ARGS
OPCODE_VALIDATE	Loads and validates a sequence.
OPCODE_VALIDATE_ARGS	Loads and validates a sequence with arguments.
OPCODE_RUN_VALIDATED	Must be called after VALIDATE. Runs the sequence that was validated.
OPCODE_CANCEL	Cancels a running or validated sequence. After running CANCEL, the sequencer should return to IDLE
OPCODE_SET_BREAKPOINT	Sets the breakpoint which will pause the execution of the sequencer when reached, until unpaused by the CONTINUE command. Will pause just before dispatching the specified directive. This command is valid in all states. Breakpoint settings are cleared after a sequence ends execution.
OPCODE_BREAK	Pauses the execution of the sequencer, just before it is about to dispatch the next directive, until unpaused by the CONTINUE command, or stepped by the STEP command. This command is only valid substates of the RUNNING state that are not RUNNING.PAUSED.
OPCODE_CONTINUE	Continues the automatic execution of the sequence after it has been paused. If a breakpoint is still set, it may pause again on that breakpoint. This command is only valid in the RUNNING.PAUSED state.
OPCODE_CLEAR_BREAKPOINT	Clears the breakpoint, but does not continue executing the sequence. This command is valid in all states. This happens automatically when a sequence ends execution.
OPCODE_STEP	Dispatches and awaits the result of the next directive, or ends the sequence if no more directives remain. Returns to the RUNNING.PAUSED state if the directive executes successfully. This command is only valid in the RUNNING.PAUSED state.
OPCODE_DUMP_STACK_TO_FILE	Writes the contents of the stack to a file. This command is only valid in the RUNNING.PAUSED state.
OPCODE_STATEMENT_TIMEOUT_SECS_SET	Opcode to set parameter STATEMENT_TIMEOUT_SECS.
OPCODE_STATEMENT_TIMEOUT_SECS_SAVE	Opcode to save parameter STATEMENT_TIMEOUT_SECS.
OPCODE_SEQ_BASE_DIR_SET	Opcode to set parameter SEQ_BASE_DIR.
OPCODE_SEQ_BASE_DIR_SAVE	Opcode to save parameter SEQ_BASE_DIR.

Definition at line 165 of file FpySequencerComponentAc.hpp.

anonymous enum

anonymous enum

protected

Event IDs.

Enumerator
EVENTID_INVALIDCOMMAND
EVENTID_INVALIDSEQRUNCALL
EVENTID_INVALIDSEQCANCELCALL
EVENTID_FILEOPENERROR
EVENTID_FILEWRITEERROR
EVENTID_FILEREADERROR
EVENTID_ENDOFFILEERROR
EVENTID_FILEREADDESERIALIZEERROR
EVENTID_WRONGSCHEMAVERSION
EVENTID_WRONGCRC
EVENTID_EXTRABYTESINSEQUENCE
EVENTID_INSUFFICIENTBUFFERSPACE
EVENTID_FILEAPIERROR
EVENTID_SEQUENCEFILEPATHTOOLONG
EVENTID_COMMANDFAILED
EVENTID_SEQUENCEDONE
EVENTID_SEQUENCECANCELLED
EVENTID_SEQUENCEEXITEDWITHERROR
EVENTID_UNKNOWNSEQUENCERDIRECTIVE
EVENTID_CMDRESPONSEWHILENOTRUNNINGSEQUENCE
EVENTID_CMDRESPONSEFROMOLDSEQUENCE
EVENTID_CMDRESPONSEWHILENOTAWAITING
EVENTID_CMDRESPONSEWHILEAWAITINGDIRECTIVE
EVENTID_WRONGCMDRESPONSEOPCODE
EVENTID_WRONGCMDRESPONSEINDEX
EVENTID_DIRECTIVEDESERIALIZEERROR
EVENTID_MISMATCHEDTIMEBASE
EVENTID_MISMATCHEDTIMECONTEXT
EVENTID_COMMANDTIMEDOUT
EVENTID_DIRECTIVETIMEDOUT
EVENTID_TOOMANYSEQUENCEARGS
EVENTID_TOOMANYSEQUENCEDIRECTIVES
EVENTID_ARGSIZEMISMATCH
EVENTID_ARGSIZEEXCEEDSCAPACITY
EVENTID_ARGTOTALSIZEEXCEEDSSTACKLIMIT
EVENTID_SEQUENCEPAUSED
EVENTID_BREAKPOINTSET
EVENTID_BREAKPOINTCLEARED
EVENTID_LOGFATAL
EVENTID_LOGWARNINGHI
EVENTID_LOGWARNINGLO
EVENTID_LOGCOMMAND
EVENTID_LOGACTIVITYHI
EVENTID_LOGACTIVITYLO
EVENTID_LOGDIAGNOSTIC

Definition at line 194 of file FpySequencerComponentAc.hpp.

anonymous enum

anonymous enum

protected

Channel IDs.

Enumerator
CHANNELID_STATE	Channel ID for State.
CHANNELID_SEQUENCESSUCCEEDED	Channel ID for SequencesSucceeded.
CHANNELID_SEQUENCESFAILED	Channel ID for SequencesFailed.
CHANNELID_SEQUENCESCANCELLED	Channel ID for SequencesCancelled.
CHANNELID_STATEMENTSDISPATCHED	Channel ID for StatementsDispatched.
CHANNELID_STATEMENTSFAILED	Channel ID for StatementsFailed.
CHANNELID_LASTDIRECTIVEERROR	Channel ID for LastDirectiveError.
CHANNELID_DIRECTIVEERRORINDEX	Channel ID for DirectiveErrorIndex.
CHANNELID_DIRECTIVEERRORID	Channel ID for DirectiveErrorId.
CHANNELID_SEQPATH	Channel ID for SeqPath.
CHANNELID_DEBUG_REACHEDENDOFFILE	Channel ID for Debug_ReachedEndOfFile.
CHANNELID_DEBUG_NEXTSTATEMENTREADSUCCESS	Channel ID for Debug_NextStatementReadSuccess.
CHANNELID_DEBUG_NEXTSTATEMENTOPCODE	Channel ID for Debug_NextStatementOpcode.
CHANNELID_DEBUG_NEXTSTATEMENTINDEX	Channel ID for Debug_NextStatementIndex.
CHANNELID_DEBUG_NEXTCMDOPCODE	Channel ID for Debug_NextCmdOpcode.
CHANNELID_DEBUG_STACKSIZE	Channel ID for Debug_StackSize.
CHANNELID_BREAKPOINTINUSE	Channel ID for BreakpointInUse.
CHANNELID_BREAKPOINTINDEX	Channel ID for BreakpointIndex.
CHANNELID_BREAKONLYONCEONBREAKPOINT	Channel ID for BreakOnlyOnceOnBreakpoint.
CHANNELID_BREAKBEFORENEXTLINE	Channel ID for BreakBeforeNextLine.
CHANNELID_PRM_STATEMENT_TIMEOUT_SECS	Channel ID for PRM_STATEMENT_TIMEOUT_SECS.
CHANNELID_PRM_SEQ_BASE_DIR	Channel ID for PRM_SEQ_BASE_DIR.

Definition at line 243 of file FpySequencerComponentAc.hpp.

anonymous enum

anonymous enum

protected

Parameter IDs.

Enumerator
PARAMID_STATEMENT_TIMEOUT_SECS	the number of seconds to wait before giving up on a directive or command. if <= 0 or greater than U32 max, never time out. accuracy of this timeout is determined by the rate group driving this component. it will be rounded up
PARAMID_SEQ_BASE_DIR	the base directory relative to which sequence file paths are resolved. a '/' separator is always inserted between this base dir and the input sequence file path before resolution occurs following the rules of Os::File::open.

Definition at line 269 of file FpySequencerComponentAc.hpp.

SmId

enum Svc::FpySequencerComponentBase::SmId : FwEnumStoreType

strongprotected

State machine identifiers.

Enumerator
sequencer

Definition at line 281 of file FpySequencerComponentAc.hpp.

Constructor & Destructor Documentation

FpySequencerComponentBase()

Svc::FpySequencerComponentBase::FpySequencerComponentBase ( const char *  compName = "" )

protected

Construct FpySequencerComponentBase object.

Parameters

compName

The component name

Definition at line 1666 of file FpySequencerComponentAc.cpp.

~FpySequencerComponentBase()

Svc::FpySequencerComponentBase::~FpySequencerComponentBase ( )

protectedvirtual

Destroy FpySequencerComponentBase object.

Definition at line 1674 of file FpySequencerComponentAc.cpp.

Member Function Documentation

BREAK_cmdHandler()

virtual void Svc::FpySequencerComponentBase::BREAK_cmdHandler ( FwOpcodeType  opCode, U32  cmdSeq  )

protectedpure virtual

Handler for command BREAK

Pauses the execution of the sequencer, just before it is about to dispatch the next directive, until unpaused by the CONTINUE command, or stepped by the STEP command. This command is only valid substates of the RUNNING state that are not RUNNING.PAUSED.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

BREAK_cmdHandlerBase()

void Svc::FpySequencerComponentBase::BREAK_cmdHandlerBase ( FwOpcodeType  opCode, U32  cmdSeq, Fw::CmdArgBuffer &  args  )

protected

Base-class handler function for command BREAK

Pauses the execution of the sequencer, just before it is about to dispatch the next directive, until unpaused by the CONTINUE command, or stepped by the STEP command. This command is only valid substates of the RUNNING state that are not RUNNING.PAUSED.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 4461 of file FpySequencerComponentAc.cpp.

BREAK_preMsgHook()

void Svc::FpySequencerComponentBase::BREAK_preMsgHook ( FwOpcodeType  opCode, U32  cmdSeq  )

protectedvirtual

Pre-message hook for command BREAK.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 4841 of file FpySequencerComponentAc.cpp.

CANCEL_cmdHandler()

virtual void Svc::FpySequencerComponentBase::CANCEL_cmdHandler ( FwOpcodeType  opCode, U32  cmdSeq  )

protectedpure virtual

Handler for command CANCEL

Cancels a running or validated sequence. After running CANCEL, the sequencer should return to IDLE

Parameters

opCode	The opcode
cmdSeq	The command sequence number

CANCEL_cmdHandlerBase()

void Svc::FpySequencerComponentBase::CANCEL_cmdHandlerBase ( FwOpcodeType  opCode, U32  cmdSeq, Fw::CmdArgBuffer &  args  )

protected

Base-class handler function for command CANCEL

Cancels a running or validated sequence. After running CANCEL, the sequencer should return to IDLE

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 4343 of file FpySequencerComponentAc.cpp.

CANCEL_preMsgHook()

void Svc::FpySequencerComponentBase::CANCEL_preMsgHook ( FwOpcodeType  opCode, U32  cmdSeq  )

protectedvirtual

Pre-message hook for command CANCEL.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 4819 of file FpySequencerComponentAc.cpp.

checkTimers_handler()

virtual void Svc::FpySequencerComponentBase::checkTimers_handler ( FwIndexType  portNum, U32  context  )

protectedpure virtual

Handler for input port checkTimers.

Parameters

portNum	The port number
context	The call order

Implemented in Svc::FpySequencer.

checkTimers_handlerBase()

void Svc::FpySequencerComponentBase::checkTimers_handlerBase ( FwIndexType  portNum, U32  context  )

protected

Handler base-class function for input port checkTimers.

Parameters

portNum	The port number
context	The call order

Definition at line 2052 of file FpySequencerComponentAc.cpp.

checkTimers_preMsgHook()

void Svc::FpySequencerComponentBase::checkTimers_preMsgHook ( FwIndexType  portNum, U32  context  )

protectedvirtual

Pre-message hook for async input port checkTimers.

Parameters

portNum	The port number
context	The call order

Definition at line 2397 of file FpySequencerComponentAc.cpp.

CLEAR_BREAKPOINT_cmdHandler()

virtual void Svc::FpySequencerComponentBase::CLEAR_BREAKPOINT_cmdHandler ( FwOpcodeType  opCode, U32  cmdSeq  )

protectedpure virtual

Handler for command CLEAR_BREAKPOINT

Clears the breakpoint, but does not continue executing the sequence. This command is valid in all states. This happens automatically when a sequence ends execution.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

CLEAR_BREAKPOINT_cmdHandlerBase()

void Svc::FpySequencerComponentBase::CLEAR_BREAKPOINT_cmdHandlerBase ( FwOpcodeType  opCode, U32  cmdSeq, Fw::CmdArgBuffer &  args  )

protected

Base-class handler function for command CLEAR_BREAKPOINT

Clears the breakpoint, but does not continue executing the sequence. This command is valid in all states. This happens automatically when a sequence ends execution.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 4579 of file FpySequencerComponentAc.cpp.

CLEAR_BREAKPOINT_preMsgHook()

void Svc::FpySequencerComponentBase::CLEAR_BREAKPOINT_preMsgHook ( FwOpcodeType  opCode, U32  cmdSeq  )

protectedvirtual

Pre-message hook for command CLEAR_BREAKPOINT.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 4863 of file FpySequencerComponentAc.cpp.

cmdIn_handlerBase()

void Svc::FpySequencerComponentBase::cmdIn_handlerBase ( FwIndexType  portNum, FwOpcodeType  opCode, U32  cmdSeq, Fw::CmdArgBuffer &  args  )

protected

Handler base-class function for input port cmdIn.

Parameters

portNum	The port number
opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 1879 of file FpySequencerComponentAc.cpp.

cmdOut_out()

void Svc::FpySequencerComponentBase::cmdOut_out ( FwIndexType  portNum, Fw::ComBuffer &  data, U32  context  ) const

protected

Invoke output port cmdOut.

Parameters

portNum	The port number
data	Buffer containing packet data
context	Call context value; meaning chosen by user

Definition at line 2457 of file FpySequencerComponentAc.cpp.

cmdResponse_out()

void Svc::FpySequencerComponentBase::cmdResponse_out ( FwOpcodeType  opCode, U32  cmdSeq, Fw::CmdResponse  response  )

protected

Emit command response.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
response	The command response

Definition at line 4031 of file FpySequencerComponentAc.cpp.

cmdResponseIn_handler()

virtual void Svc::FpySequencerComponentBase::cmdResponseIn_handler ( FwIndexType  portNum, FwOpcodeType  opCode, U32  cmdSeq, const Fw::CmdResponse &  response  )

protectedpure virtual

Handler for input port cmdResponseIn.

Parameters

portNum	The port number
opCode	Command Op Code
cmdSeq	Command Sequence
response	The command response argument

Implemented in Svc::FpySequencer.

cmdResponseIn_handlerBase()

void Svc::FpySequencerComponentBase::cmdResponseIn_handlerBase ( FwIndexType  portNum, FwOpcodeType  opCode, U32  cmdSeq, const Fw::CmdResponse &  response  )

protected

Handler base-class function for input port cmdResponseIn.

Parameters

portNum	The port number
opCode	Command Op Code
cmdSeq	Command Sequence
response	The command response argument

Definition at line 2105 of file FpySequencerComponentAc.cpp.

cmdResponseIn_preMsgHook()

void Svc::FpySequencerComponentBase::cmdResponseIn_preMsgHook ( FwIndexType  portNum, FwOpcodeType  opCode, U32  cmdSeq, const Fw::CmdResponse &  response  )

protectedvirtual

Pre-message hook for async input port cmdResponseIn.

Parameters

portNum	The port number
opCode	Command Op Code
cmdSeq	Command Sequence
response	The command response argument

Definition at line 2406 of file FpySequencerComponentAc.cpp.

CONTINUE_cmdHandler()

virtual void Svc::FpySequencerComponentBase::CONTINUE_cmdHandler ( FwOpcodeType  opCode, U32  cmdSeq  )

protectedpure virtual

Handler for command CONTINUE

Continues the automatic execution of the sequence after it has been paused. If a breakpoint is still set, it may pause again on that breakpoint. This command is only valid in the RUNNING.PAUSED state.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

CONTINUE_cmdHandlerBase()

void Svc::FpySequencerComponentBase::CONTINUE_cmdHandlerBase ( FwOpcodeType  opCode, U32  cmdSeq, Fw::CmdArgBuffer &  args  )

protected

Base-class handler function for command CONTINUE

Continues the automatic execution of the sequence after it has been paused. If a breakpoint is still set, it may pause again on that breakpoint. This command is only valid in the RUNNING.PAUSED state.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 4520 of file FpySequencerComponentAc.cpp.

CONTINUE_preMsgHook()

void Svc::FpySequencerComponentBase::CONTINUE_preMsgHook ( FwOpcodeType  opCode, U32  cmdSeq  )

protectedvirtual

Pre-message hook for command CONTINUE.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 4852 of file FpySequencerComponentAc.cpp.

directive_allocate_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_allocate_internalInterfaceHandler ( const Svc::FpySequencer_AllocateDirective &  directive )

protectedpure virtual

Internal interface handler for directive_allocate.

Implemented in Svc::FpySequencer.

directive_allocate_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_allocate_internalInterfaceInvoke ( const Svc::FpySequencer_AllocateDirective &  directive )

protected

Internal interface base-class function for directive_allocate.

Definition at line 2625 of file FpySequencerComponentAc.cpp.

directive_call_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_call_internalInterfaceHandler ( const Svc::FpySequencer_CallDirective &  directive )

protectedpure virtual

Internal interface handler for directive_call.

Implemented in Svc::FpySequencer.

directive_call_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_call_internalInterfaceInvoke ( const Svc::FpySequencer_CallDirective &  directive )

protected

Internal interface base-class function for directive_call.

Definition at line 2661 of file FpySequencerComponentAc.cpp.

directive_constCmd_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_constCmd_internalInterfaceHandler ( const Svc::FpySequencer_ConstCmdDirective &  directive )

protectedpure virtual

Internal interface handler for directive_constCmd.

Implemented in Svc::FpySequencer.

directive_constCmd_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_constCmd_internalInterfaceInvoke ( const Svc::FpySequencer_ConstCmdDirective &  directive )

protected

Internal interface base-class function for directive_constCmd.

Definition at line 2697 of file FpySequencerComponentAc.cpp.

directive_discard_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_discard_internalInterfaceHandler ( const Svc::FpySequencer_DiscardDirective &  directive )

protectedpure virtual

Internal interface handler for directive_discard.

Implemented in Svc::FpySequencer.

directive_discard_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_discard_internalInterfaceInvoke ( const Svc::FpySequencer_DiscardDirective &  directive )

protected

Internal interface base-class function for directive_discard.

Definition at line 2733 of file FpySequencerComponentAc.cpp.

directive_exit_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_exit_internalInterfaceHandler ( const Svc::FpySequencer_ExitDirective &  directive )

protectedpure virtual

Internal interface handler for directive_exit.

Implemented in Svc::FpySequencer.

directive_exit_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_exit_internalInterfaceInvoke ( const Svc::FpySequencer_ExitDirective &  directive )

protected

Internal interface base-class function for directive_exit.

Definition at line 2769 of file FpySequencerComponentAc.cpp.

directive_getField_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_getField_internalInterfaceHandler ( const Svc::FpySequencer_GetFieldDirective &  directive )

protectedpure virtual

Internal interface handler for directive_getField.

Implemented in Svc::FpySequencer.

directive_getField_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_getField_internalInterfaceInvoke ( const Svc::FpySequencer_GetFieldDirective &  directive )

protected

Internal interface base-class function for directive_getField.

Definition at line 2805 of file FpySequencerComponentAc.cpp.

directive_goto_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_goto_internalInterfaceHandler ( const Svc::FpySequencer_GotoDirective &  directive )

protectedpure virtual

Internal interface handler for directive_goto.

Implemented in Svc::FpySequencer.

directive_goto_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_goto_internalInterfaceInvoke ( const Svc::FpySequencer_GotoDirective &  directive )

protected

Internal interface base-class function for directive_goto.

Definition at line 2841 of file FpySequencerComponentAc.cpp.

directive_if_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_if_internalInterfaceHandler ( const Svc::FpySequencer_IfDirective &  directive )

protectedpure virtual

Internal interface handler for directive_if.

Implemented in Svc::FpySequencer.

directive_if_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_if_internalInterfaceInvoke ( const Svc::FpySequencer_IfDirective &  directive )

protected

Internal interface base-class function for directive_if.

Definition at line 2877 of file FpySequencerComponentAc.cpp.

directive_loadAbs_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_loadAbs_internalInterfaceHandler ( const Svc::FpySequencer_LoadAbsDirective &  directive )

protectedpure virtual

Internal interface handler for directive_loadAbs.

Implemented in Svc::FpySequencer.

directive_loadAbs_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_loadAbs_internalInterfaceInvoke ( const Svc::FpySequencer_LoadAbsDirective &  directive )

protected

Internal interface base-class function for directive_loadAbs.

Definition at line 2913 of file FpySequencerComponentAc.cpp.

directive_loadRel_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_loadRel_internalInterfaceHandler ( const Svc::FpySequencer_LoadRelDirective &  directive )

protectedpure virtual

Internal interface handler for directive_loadRel.

Implemented in Svc::FpySequencer.

directive_loadRel_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_loadRel_internalInterfaceInvoke ( const Svc::FpySequencer_LoadRelDirective &  directive )

protected

Internal interface base-class function for directive_loadRel.

Definition at line 2949 of file FpySequencerComponentAc.cpp.

directive_memCmp_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_memCmp_internalInterfaceHandler ( const Svc::FpySequencer_MemCmpDirective &  directive )

protectedpure virtual

Internal interface handler for directive_memCmp.

Implemented in Svc::FpySequencer.

directive_memCmp_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_memCmp_internalInterfaceInvoke ( const Svc::FpySequencer_MemCmpDirective &  directive )

protected

Internal interface base-class function for directive_memCmp.

Definition at line 2985 of file FpySequencerComponentAc.cpp.

directive_noOp_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_noOp_internalInterfaceHandler ( const Svc::FpySequencer_NoOpDirective &  directive )

protectedpure virtual

Internal interface handler for directive_noOp.

Implemented in Svc::FpySequencer.

directive_noOp_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_noOp_internalInterfaceInvoke ( const Svc::FpySequencer_NoOpDirective &  directive )

protected

Internal interface base-class function for directive_noOp.

Definition at line 3021 of file FpySequencerComponentAc.cpp.

directive_peek_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_peek_internalInterfaceHandler ( const Svc::FpySequencer_PeekDirective &  directive )

protectedpure virtual

Internal interface handler for directive_peek.

Implemented in Svc::FpySequencer.

directive_peek_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_peek_internalInterfaceInvoke ( const Svc::FpySequencer_PeekDirective &  directive )

protected

Internal interface base-class function for directive_peek.

Definition at line 3057 of file FpySequencerComponentAc.cpp.

directive_popEvent_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_popEvent_internalInterfaceHandler ( const Svc::FpySequencer_PopEventDirective &  directive )

protectedpure virtual

Internal interface handler for directive_popEvent.

Implemented in Svc::FpySequencer.

directive_popEvent_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_popEvent_internalInterfaceInvoke ( const Svc::FpySequencer_PopEventDirective &  directive )

protected

Internal interface base-class function for directive_popEvent.

Definition at line 3093 of file FpySequencerComponentAc.cpp.

directive_popSerializable_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_popSerializable_internalInterfaceHandler ( const Svc::FpySequencer_PopSerializableDirective &  directive )

protectedpure virtual

Internal interface handler for directive_popSerializable.

Implemented in Svc::FpySequencer.

directive_popSerializable_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_popSerializable_internalInterfaceInvoke ( const Svc::FpySequencer_PopSerializableDirective &  directive )

protected

Internal interface base-class function for directive_popSerializable.

Definition at line 3129 of file FpySequencerComponentAc.cpp.

directive_pushPrm_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_pushPrm_internalInterfaceHandler ( const Svc::FpySequencer_PushPrmDirective &  directive )

protectedpure virtual

Internal interface handler for directive_pushPrm.

Implemented in Svc::FpySequencer.

directive_pushPrm_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_pushPrm_internalInterfaceInvoke ( const Svc::FpySequencer_PushPrmDirective &  directive )

protected

Internal interface base-class function for directive_pushPrm.

Definition at line 3165 of file FpySequencerComponentAc.cpp.

directive_pushRand_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_pushRand_internalInterfaceHandler ( const Svc::FpySequencer_PushRandDirective &  directive )

protectedpure virtual

Internal interface handler for directive_pushRand.

Implemented in Svc::FpySequencer.

directive_pushRand_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_pushRand_internalInterfaceInvoke ( const Svc::FpySequencer_PushRandDirective &  directive )

protected

Internal interface base-class function for directive_pushRand.

Definition at line 3201 of file FpySequencerComponentAc.cpp.

directive_pushTime_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_pushTime_internalInterfaceHandler ( const Svc::FpySequencer_PushTimeDirective &  directive )

protectedpure virtual

Internal interface handler for directive_pushTime.

Implemented in Svc::FpySequencer.

directive_pushTime_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_pushTime_internalInterfaceInvoke ( const Svc::FpySequencer_PushTimeDirective &  directive )

protected

Internal interface base-class function for directive_pushTime.

Definition at line 3237 of file FpySequencerComponentAc.cpp.

directive_pushTlmVal_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_pushTlmVal_internalInterfaceHandler ( const Svc::FpySequencer_PushTlmValDirective &  directive )

protectedpure virtual

Internal interface handler for directive_pushTlmVal.

Implemented in Svc::FpySequencer.

directive_pushTlmVal_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_pushTlmVal_internalInterfaceInvoke ( const Svc::FpySequencer_PushTlmValDirective &  directive )

protected

Internal interface base-class function for directive_pushTlmVal.

Definition at line 3273 of file FpySequencerComponentAc.cpp.

directive_pushTlmValAndTime_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_pushTlmValAndTime_internalInterfaceHandler ( const Svc::FpySequencer_PushTlmValAndTimeDirective &  directive )

protectedpure virtual

Internal interface handler for directive_pushTlmValAndTime.

Implemented in Svc::FpySequencer.

directive_pushTlmValAndTime_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_pushTlmValAndTime_internalInterfaceInvoke ( const Svc::FpySequencer_PushTlmValAndTimeDirective &  directive )

protected

Internal interface base-class function for directive_pushTlmValAndTime.

Definition at line 3309 of file FpySequencerComponentAc.cpp.

directive_pushVal_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_pushVal_internalInterfaceHandler ( const Svc::FpySequencer_PushValDirective &  directive )

protectedpure virtual

Internal interface handler for directive_pushVal.

Implemented in Svc::FpySequencer.

directive_pushVal_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_pushVal_internalInterfaceInvoke ( const Svc::FpySequencer_PushValDirective &  directive )

protected

Internal interface base-class function for directive_pushVal.

Definition at line 3345 of file FpySequencerComponentAc.cpp.

directive_return_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_return_internalInterfaceHandler ( const Svc::FpySequencer_ReturnDirective &  directive )

protectedpure virtual

Internal interface handler for directive_return.

Implemented in Svc::FpySequencer.

directive_return_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_return_internalInterfaceInvoke ( const Svc::FpySequencer_ReturnDirective &  directive )

protected

Internal interface base-class function for directive_return.

Definition at line 3381 of file FpySequencerComponentAc.cpp.

directive_setSeed_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_setSeed_internalInterfaceHandler ( const Svc::FpySequencer_SetSeedDirective &  directive )

protectedpure virtual

Internal interface handler for directive_setSeed.

Implemented in Svc::FpySequencer.

directive_setSeed_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_setSeed_internalInterfaceInvoke ( const Svc::FpySequencer_SetSeedDirective &  directive )

protected

Internal interface base-class function for directive_setSeed.

Definition at line 3417 of file FpySequencerComponentAc.cpp.

directive_stackCmd_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_stackCmd_internalInterfaceHandler ( const Svc::FpySequencer_StackCmdDirective &  directive )

protectedpure virtual

Internal interface handler for directive_stackCmd.

Implemented in Svc::FpySequencer.

directive_stackCmd_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_stackCmd_internalInterfaceInvoke ( const Svc::FpySequencer_StackCmdDirective &  directive )

protected

Internal interface base-class function for directive_stackCmd.

Definition at line 3453 of file FpySequencerComponentAc.cpp.

directive_stackOp_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_stackOp_internalInterfaceHandler ( const Svc::FpySequencer_StackOpDirective &  directive )

protectedpure virtual

Internal interface handler for directive_stackOp.

Implemented in Svc::FpySequencer.

directive_stackOp_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_stackOp_internalInterfaceInvoke ( const Svc::FpySequencer_StackOpDirective &  directive )

protected

Internal interface base-class function for directive_stackOp.

Definition at line 3489 of file FpySequencerComponentAc.cpp.

directive_storeAbs_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_storeAbs_internalInterfaceHandler ( const Svc::FpySequencer_StoreAbsDirective &  directive )

protectedpure virtual

Internal interface handler for directive_storeAbs.

Implemented in Svc::FpySequencer.

directive_storeAbs_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_storeAbs_internalInterfaceInvoke ( const Svc::FpySequencer_StoreAbsDirective &  directive )

protected

Internal interface base-class function for directive_storeAbs.

Definition at line 3525 of file FpySequencerComponentAc.cpp.

directive_storeAbsConstOffset_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_storeAbsConstOffset_internalInterfaceHandler ( const Svc::FpySequencer_StoreAbsConstOffsetDirective &  directive )

protectedpure virtual

Internal interface handler for directive_storeAbsConstOffset.

Implemented in Svc::FpySequencer.

directive_storeAbsConstOffset_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_storeAbsConstOffset_internalInterfaceInvoke ( const Svc::FpySequencer_StoreAbsConstOffsetDirective &  directive )

protected

Internal interface base-class function for directive_storeAbsConstOffset.

Definition at line 3561 of file FpySequencerComponentAc.cpp.

directive_storeRel_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_storeRel_internalInterfaceHandler ( const Svc::FpySequencer_StoreRelDirective &  directive )

protectedpure virtual

Internal interface handler for directive_storeRel.

Implemented in Svc::FpySequencer.

directive_storeRel_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_storeRel_internalInterfaceInvoke ( const Svc::FpySequencer_StoreRelDirective &  directive )

protected

Internal interface base-class function for directive_storeRel.

Definition at line 3597 of file FpySequencerComponentAc.cpp.

directive_storeRelConstOffset_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_storeRelConstOffset_internalInterfaceHandler ( const Svc::FpySequencer_StoreRelConstOffsetDirective &  directive )

protectedpure virtual

Internal interface handler for directive_storeRelConstOffset.

Implemented in Svc::FpySequencer.

directive_storeRelConstOffset_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_storeRelConstOffset_internalInterfaceInvoke ( const Svc::FpySequencer_StoreRelConstOffsetDirective &  directive )

protected

Internal interface base-class function for directive_storeRelConstOffset.

Definition at line 3633 of file FpySequencerComponentAc.cpp.

directive_waitAbs_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_waitAbs_internalInterfaceHandler ( const Svc::FpySequencer_WaitAbsDirective &  directive )

protectedpure virtual

Internal interface handler for directive_waitAbs.

Implemented in Svc::FpySequencer.

directive_waitAbs_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_waitAbs_internalInterfaceInvoke ( const Svc::FpySequencer_WaitAbsDirective &  directive )

protected

Internal interface base-class function for directive_waitAbs.

Definition at line 3669 of file FpySequencerComponentAc.cpp.

directive_waitRel_internalInterfaceHandler()

virtual void Svc::FpySequencerComponentBase::directive_waitRel_internalInterfaceHandler ( const Svc::FpySequencer_WaitRelDirective &  directive )

protectedpure virtual

Internal interface handler for directive_waitRel.

Implemented in Svc::FpySequencer.

directive_waitRel_internalInterfaceInvoke()

void Svc::FpySequencerComponentBase::directive_waitRel_internalInterfaceInvoke ( const Svc::FpySequencer_WaitRelDirective &  directive )

protected

Internal interface base-class function for directive_waitRel.

Definition at line 3705 of file FpySequencerComponentAc.cpp.

DUMP_STACK_TO_FILE_cmdHandler()

virtual void Svc::FpySequencerComponentBase::DUMP_STACK_TO_FILE_cmdHandler ( FwOpcodeType  opCode, U32  cmdSeq, const Fw::CmdStringArg &  fileName  )

protectedpure virtual

Handler for command DUMP_STACK_TO_FILE

Writes the contents of the stack to a file. This command is only valid in the RUNNING.PAUSED state.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
fileName	The name of the output file

DUMP_STACK_TO_FILE_cmdHandlerBase()

void Svc::FpySequencerComponentBase::DUMP_STACK_TO_FILE_cmdHandlerBase ( FwOpcodeType  opCode, U32  cmdSeq, Fw::CmdArgBuffer &  args  )

protected

Base-class handler function for command DUMP_STACK_TO_FILE

Writes the contents of the stack to a file. This command is only valid in the RUNNING.PAUSED state.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 4697 of file FpySequencerComponentAc.cpp.

DUMP_STACK_TO_FILE_preMsgHook()

void Svc::FpySequencerComponentBase::DUMP_STACK_TO_FILE_preMsgHook ( FwOpcodeType  opCode, U32  cmdSeq  )

protectedvirtual

Pre-message hook for command DUMP_STACK_TO_FILE.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 4885 of file FpySequencerComponentAc.cpp.

get_checkTimers_InputPort()

Svc::InputSchedPort * Svc::FpySequencerComponentBase::get_checkTimers_InputPort

(

FwIndexType

portNum

)

Get typed input port at index

Returns

checkTimers[portNum]

Parameters

portNum

The port number

Definition at line 1020 of file FpySequencerComponentAc.cpp.

get_cmdIn_InputPort()

Fw::InputCmdPort * Svc::FpySequencerComponentBase::get_cmdIn_InputPort

(

FwIndexType

portNum

)

Get special input port at index

Returns

cmdIn[portNum]

Parameters

portNum

The port number

Definition at line 1001 of file FpySequencerComponentAc.cpp.

get_cmdResponseIn_InputPort()

Fw::InputCmdResponsePort * Svc::FpySequencerComponentBase::get_cmdResponseIn_InputPort

(

FwIndexType

portNum

)

Get typed input port at index

Returns

cmdResponseIn[portNum]

Parameters

portNum

The port number

Definition at line 1031 of file FpySequencerComponentAc.cpp.

get_pingIn_InputPort()

Svc::InputPingPort * Svc::FpySequencerComponentBase::get_pingIn_InputPort

(

FwIndexType

portNum

)

Get typed input port at index

Returns

pingIn[portNum]

Parameters

portNum

The port number

Definition at line 1042 of file FpySequencerComponentAc.cpp.

get_seqCancelIn_InputPort()

Svc::InputCmdSeqCancelPort * Svc::FpySequencerComponentBase::get_seqCancelIn_InputPort

(

FwIndexType

portNum

)

Get typed input port at index

Returns

seqCancelIn[portNum]

Parameters

portNum

The port number

Definition at line 1053 of file FpySequencerComponentAc.cpp.

get_seqRunIn_InputPort()

Svc::InputCmdSeqInPort * Svc::FpySequencerComponentBase::get_seqRunIn_InputPort

(

FwIndexType

portNum

)

Get typed input port at index

Returns

seqRunIn[portNum]

Parameters

portNum

The port number

Definition at line 1064 of file FpySequencerComponentAc.cpp.

get_tlmWrite_InputPort()

Svc::InputSchedPort * Svc::FpySequencerComponentBase::get_tlmWrite_InputPort

(

FwIndexType

portNum

)

Get typed input port at index

Returns

tlmWrite[portNum]

Parameters

portNum

The port number

Definition at line 1075 of file FpySequencerComponentAc.cpp.

getNum_checkTimers_InputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_checkTimers_InputPorts ( )

inlinestaticprotected

Get the number of checkTimers input ports

Returns

The number of checkTimers input ports

Definition at line 842 of file FpySequencerComponentAc.hpp.

getNum_cmdIn_InputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_cmdIn_InputPorts ( )

inlinestaticprotected

Get the number of cmdIn input ports

Returns

The number of cmdIn input ports

Definition at line 829 of file FpySequencerComponentAc.hpp.

getNum_cmdOut_OutputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_cmdOut_OutputPorts ( )

inlinestaticprotected

Get the number of cmdOut output ports

Returns

The number of cmdOut output ports

Definition at line 956 of file FpySequencerComponentAc.hpp.

getNum_cmdRegOut_OutputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_cmdRegOut_OutputPorts ( )

inlinestaticprotected

Get the number of cmdRegOut output ports

Returns

The number of cmdRegOut output ports

Definition at line 890 of file FpySequencerComponentAc.hpp.

getNum_cmdResponseIn_InputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_cmdResponseIn_InputPorts ( )

inlinestaticprotected

Get the number of cmdResponseIn input ports

Returns

The number of cmdResponseIn input ports

Definition at line 849 of file FpySequencerComponentAc.hpp.

getNum_cmdResponseOut_OutputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_cmdResponseOut_OutputPorts ( )

inlinestaticprotected

Get the number of cmdResponseOut output ports

Returns

The number of cmdResponseOut output ports

Definition at line 897 of file FpySequencerComponentAc.hpp.

getNum_getParam_OutputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_getParam_OutputPorts ( )

inlinestaticprotected

Get the number of getParam output ports

Returns

The number of getParam output ports

Definition at line 963 of file FpySequencerComponentAc.hpp.

getNum_getTlmChan_OutputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_getTlmChan_OutputPorts ( )

inlinestaticprotected

Get the number of getTlmChan output ports

Returns

The number of getTlmChan output ports

Definition at line 970 of file FpySequencerComponentAc.hpp.

getNum_logOut_OutputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_logOut_OutputPorts ( )

inlinestaticprotected

Get the number of logOut output ports

Returns

The number of logOut output ports

Definition at line 904 of file FpySequencerComponentAc.hpp.

getNum_pingIn_InputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_pingIn_InputPorts ( )

inlinestaticprotected

Get the number of pingIn input ports

Returns

The number of pingIn input ports

Definition at line 856 of file FpySequencerComponentAc.hpp.

getNum_pingOut_OutputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_pingOut_OutputPorts ( )

inlinestaticprotected

Get the number of pingOut output ports

Returns

The number of pingOut output ports

Definition at line 977 of file FpySequencerComponentAc.hpp.

getNum_prmGet_OutputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_prmGet_OutputPorts ( )

inlinestaticprotected

Get the number of prmGet output ports

Returns

The number of prmGet output ports

Definition at line 922 of file FpySequencerComponentAc.hpp.

getNum_prmSet_OutputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_prmSet_OutputPorts ( )

inlinestaticprotected

Get the number of prmSet output ports

Returns

The number of prmSet output ports

Definition at line 929 of file FpySequencerComponentAc.hpp.

getNum_seqCancelIn_InputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_seqCancelIn_InputPorts ( )

inlinestaticprotected

Get the number of seqCancelIn input ports

Returns

The number of seqCancelIn input ports

Definition at line 863 of file FpySequencerComponentAc.hpp.

getNum_seqDoneOut_OutputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_seqDoneOut_OutputPorts ( )

inlinestaticprotected

Get the number of seqDoneOut output ports

Returns

The number of seqDoneOut output ports

Definition at line 984 of file FpySequencerComponentAc.hpp.

getNum_seqRunIn_InputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_seqRunIn_InputPorts ( )

inlinestaticprotected

Get the number of seqRunIn input ports

Returns

The number of seqRunIn input ports

Definition at line 870 of file FpySequencerComponentAc.hpp.

getNum_seqStartOut_OutputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_seqStartOut_OutputPorts ( )

inlinestaticprotected

Get the number of seqStartOut output ports

Returns

The number of seqStartOut output ports

Definition at line 991 of file FpySequencerComponentAc.hpp.

getNum_serialOut_OutputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_serialOut_OutputPorts ( )

inlinestaticprotected

Get the number of serialOut output ports

Returns

The number of serialOut output ports

Definition at line 1004 of file FpySequencerComponentAc.hpp.

getNum_timeCaller_OutputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_timeCaller_OutputPorts ( )

inlinestaticprotected

Get the number of timeCaller output ports

Returns

The number of timeCaller output ports

Definition at line 936 of file FpySequencerComponentAc.hpp.

getNum_tlmOut_OutputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_tlmOut_OutputPorts ( )

inlinestaticprotected

Get the number of tlmOut output ports

Returns

The number of tlmOut output ports

Definition at line 943 of file FpySequencerComponentAc.hpp.

getNum_tlmWrite_InputPorts()

static constexpr FwIndexType Svc::FpySequencerComponentBase::getNum_tlmWrite_InputPorts ( )

inlinestaticprotected

Get the number of tlmWrite input ports

Returns

The number of tlmWrite input ports

Definition at line 877 of file FpySequencerComponentAc.hpp.

getParam_out()

Fw::ParamValid Svc::FpySequencerComponentBase::getParam_out ( FwIndexType  portNum, FwPrmIdType  id, Fw::ParamBuffer &  val  ) const

protected

Invoke output port getParam.

Parameters

portNum	The port number
id	Parameter ID
val	Buffer containing serialized parameter value. Unmodified if param not found.

Definition at line 2479 of file FpySequencerComponentAc.cpp.

getTime()

Fw::Time Svc::FpySequencerComponentBase::getTime ( ) const

protected

Get the time

\return The current time

Definition at line 10402 of file FpySequencerComponentAc.cpp.

getTlmChan_out()

Fw::TlmValid Svc::FpySequencerComponentBase::getTlmChan_out ( FwIndexType  portNum, FwChanIdType  id, Fw::Time &  timeTag, Fw::TlmBuffer &  val  ) const

protected

Invoke output port getTlmChan.

Parameters

portNum	The port number
id	Telemetry Channel ID
timeTag	Time Tag
val	Buffer containing serialized telemetry value. Size set to 0 if channel not found, or if no value has been received for this channel yet.

Definition at line 2501 of file FpySequencerComponentAc.cpp.

init()

void Svc::FpySequencerComponentBase::init	(	FwSizeType	queueDepth,
		FwEnumStoreType	instance = 0
	)

Initialize FpySequencerComponentBase object.

Parameters

queueDepth	The queue depth
instance	The instance number

Definition at line 475 of file FpySequencerComponentAc.cpp.

isConnected_cmdOut_OutputPort()

bool Svc::FpySequencerComponentBase::isConnected_cmdOut_OutputPort ( FwIndexType  portNum ) const

protected

Check whether port cmdOut is connected

Returns

Whether port cmdOut is connected

Parameters

portNum

The port number

Definition at line 1786 of file FpySequencerComponentAc.cpp.

isConnected_cmdRegOut_OutputPort()

bool Svc::FpySequencerComponentBase::isConnected_cmdRegOut_OutputPort ( FwIndexType  portNum ) const

protected

Check whether port cmdRegOut is connected

Returns

Whether port cmdRegOut is connected

Parameters

portNum

The port number

Definition at line 1686 of file FpySequencerComponentAc.cpp.

isConnected_cmdResponseOut_OutputPort()

bool Svc::FpySequencerComponentBase::isConnected_cmdResponseOut_OutputPort ( FwIndexType  portNum ) const

protected

Check whether port cmdResponseOut is connected

Returns

Whether port cmdResponseOut is connected

Parameters

portNum

The port number

Definition at line 1697 of file FpySequencerComponentAc.cpp.

isConnected_getParam_OutputPort()

bool Svc::FpySequencerComponentBase::isConnected_getParam_OutputPort ( FwIndexType  portNum ) const

protected

Check whether port getParam is connected

Returns

Whether port getParam is connected

Parameters

portNum

The port number

Definition at line 1797 of file FpySequencerComponentAc.cpp.

isConnected_getTlmChan_OutputPort()

bool Svc::FpySequencerComponentBase::isConnected_getTlmChan_OutputPort ( FwIndexType  portNum ) const

protected

Check whether port getTlmChan is connected

Returns

Whether port getTlmChan is connected

Parameters

portNum

The port number

Definition at line 1808 of file FpySequencerComponentAc.cpp.

isConnected_logOut_OutputPort()

bool Svc::FpySequencerComponentBase::isConnected_logOut_OutputPort ( FwIndexType  portNum ) const

protected

Check whether port logOut is connected

Returns

Whether port logOut is connected

Parameters

portNum

The port number

Definition at line 1708 of file FpySequencerComponentAc.cpp.

isConnected_pingOut_OutputPort()

bool Svc::FpySequencerComponentBase::isConnected_pingOut_OutputPort ( FwIndexType  portNum ) const

protected

Check whether port pingOut is connected

Returns

Whether port pingOut is connected

Parameters

portNum

The port number

Definition at line 1819 of file FpySequencerComponentAc.cpp.

isConnected_prmGet_OutputPort()

bool Svc::FpySequencerComponentBase::isConnected_prmGet_OutputPort ( FwIndexType  portNum ) const

protected

Check whether port prmGet is connected

Returns

Whether port prmGet is connected

Parameters

portNum

The port number

Definition at line 1734 of file FpySequencerComponentAc.cpp.

isConnected_prmSet_OutputPort()

bool Svc::FpySequencerComponentBase::isConnected_prmSet_OutputPort ( FwIndexType  portNum ) const

protected

Check whether port prmSet is connected

Returns

Whether port prmSet is connected

Parameters

portNum

The port number

Definition at line 1745 of file FpySequencerComponentAc.cpp.

isConnected_seqDoneOut_OutputPort()

bool Svc::FpySequencerComponentBase::isConnected_seqDoneOut_OutputPort ( FwIndexType  portNum ) const

protected

Check whether port seqDoneOut is connected

Returns

Whether port seqDoneOut is connected

Parameters

portNum

The port number

Definition at line 1830 of file FpySequencerComponentAc.cpp.

isConnected_seqStartOut_OutputPort()

bool Svc::FpySequencerComponentBase::isConnected_seqStartOut_OutputPort ( FwIndexType  portNum ) const

protected

Check whether port seqStartOut is connected

Returns

Whether port seqStartOut is connected

Parameters

portNum

The port number

Definition at line 1841 of file FpySequencerComponentAc.cpp.

isConnected_serialOut_OutputPort()

bool Svc::FpySequencerComponentBase::isConnected_serialOut_OutputPort ( FwIndexType  portNum ) const

protected

Check whether port serialOut is connected

Returns

Whether port serialOut is connected

Parameters

portNum

The port number

Definition at line 1860 of file FpySequencerComponentAc.cpp.

isConnected_timeCaller_OutputPort()

bool Svc::FpySequencerComponentBase::isConnected_timeCaller_OutputPort ( FwIndexType  portNum ) const

protected

Check whether port timeCaller is connected

Returns

Whether port timeCaller is connected

Parameters

portNum

The port number

Definition at line 1756 of file FpySequencerComponentAc.cpp.

isConnected_tlmOut_OutputPort()

bool Svc::FpySequencerComponentBase::isConnected_tlmOut_OutputPort ( FwIndexType  portNum ) const

protected

Check whether port tlmOut is connected

Returns

Whether port tlmOut is connected

Parameters

portNum

The port number

Definition at line 1767 of file FpySequencerComponentAc.cpp.

loadParameters()

void Svc::FpySequencerComponentBase::loadParameters

(

)

Load the parameters from a parameter source.

Connect the parameter first

Definition at line 1594 of file FpySequencerComponentAc.cpp.

log_ACTIVITY_HI_BreakpointCleared()

void Svc::FpySequencerComponentBase::log_ACTIVITY_HI_BreakpointCleared ( ) const

protected

Log event BreakpointCleared.

Definition at line 8803 of file FpySequencerComponentAc.cpp.

log_ACTIVITY_HI_BreakpointSet()

void Svc::FpySequencerComponentBase::log_ACTIVITY_HI_BreakpointSet ( U32  breakpointIdx, bool  breakOnce  ) const

protected

Log event BreakpointSet.

Definition at line 8701 of file FpySequencerComponentAc.cpp.

log_ACTIVITY_HI_LogActivityHi()

void Svc::FpySequencerComponentBase::log_ACTIVITY_HI_LogActivityHi ( const Fw::StringBase &  filePath, const Fw::StringBase &  message  ) const

protected

Log event LogActivityHi.

Definition at line 9233 of file FpySequencerComponentAc.cpp.

log_ACTIVITY_HI_SequenceCancelled()

void Svc::FpySequencerComponentBase::log_ACTIVITY_HI_SequenceCancelled ( const Fw::StringBase &  filePath ) const

protected

Log event SequenceCancelled.

Definition at line 6493 of file FpySequencerComponentAc.cpp.

log_ACTIVITY_HI_SequenceDone()

void Svc::FpySequencerComponentBase::log_ACTIVITY_HI_SequenceDone ( const Fw::StringBase &  filePath ) const

protected

Log event SequenceDone.

Definition at line 6418 of file FpySequencerComponentAc.cpp.

log_ACTIVITY_HI_SequencePaused()

void Svc::FpySequencerComponentBase::log_ACTIVITY_HI_SequencePaused ( U32  stmtIdx ) const

protected

Log event SequencePaused.

Definition at line 8619 of file FpySequencerComponentAc.cpp.

log_ACTIVITY_LO_LogActivityLo()

void Svc::FpySequencerComponentBase::log_ACTIVITY_LO_LogActivityLo ( const Fw::StringBase &  filePath, const Fw::StringBase &  message  ) const

protected

Log event LogActivityLo.

Definition at line 9321 of file FpySequencerComponentAc.cpp.

log_COMMAND_LogCommand()

void Svc::FpySequencerComponentBase::log_COMMAND_LogCommand ( const Fw::StringBase &  filePath, const Fw::StringBase &  message  ) const

protected

Log event LogCommand.

Definition at line 9145 of file FpySequencerComponentAc.cpp.

log_DIAGNOSTIC_LogDiagnostic()

void Svc::FpySequencerComponentBase::log_DIAGNOSTIC_LogDiagnostic ( const Fw::StringBase &  filePath, const Fw::StringBase &  message  ) const

protected

Log event LogDiagnostic.

Definition at line 9409 of file FpySequencerComponentAc.cpp.

log_FATAL_LogFatal()

void Svc::FpySequencerComponentBase::log_FATAL_LogFatal ( const Fw::StringBase &  filePath, const Fw::StringBase &  message  ) const

protected

Log event LogFatal.

Definition at line 8868 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_ArgSizeExceedsCapacity()

void Svc::FpySequencerComponentBase::log_WARNING_HI_ArgSizeExceedsCapacity ( FwSizeType  actual, FwSizeType  capacity  ) const

protected

Log event ArgSizeExceedsCapacity.

Definition at line 8435 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_ArgSizeMismatch()

void Svc::FpySequencerComponentBase::log_WARNING_HI_ArgSizeMismatch ( Svc::Fpy::StackSizeType  expected, FwSizeType  actual, const Fw::StringBase &  filePath  ) const

protected

Log event ArgSizeMismatch.

Definition at line 8322 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_ArgTotalSizeExceedsStackLimit()

void Svc::FpySequencerComponentBase::log_WARNING_HI_ArgTotalSizeExceedsStackLimit ( Svc::Fpy::StackSizeType  argSize ) const

protected

Log event ArgTotalSizeExceedsStackLimit.

Definition at line 8537 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_CmdResponseWhileAwaitingDirective()

void Svc::FpySequencerComponentBase::log_WARNING_HI_CmdResponseWhileAwaitingDirective ( FwOpcodeType  opcode, const Fw::CmdResponse &  response, U8  expectedDirectiveOpcode  ) const

protected

Log event CmdResponseWhileAwaitingDirective.

Definition at line 7145 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_CmdResponseWhileNotAwaiting()

void Svc::FpySequencerComponentBase::log_WARNING_HI_CmdResponseWhileNotAwaiting ( FwOpcodeType  opcode, const Fw::CmdResponse &  response  ) const

protected

Log event CmdResponseWhileNotAwaiting.

Definition at line 7040 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_CommandFailed()

void Svc::FpySequencerComponentBase::log_WARNING_HI_CommandFailed ( FwOpcodeType  opCode, U32  stmtIdx, const Fw::StringBase &  filePath, const Fw::CmdResponse &  response  ) const

protected

Log event CommandFailed.

Definition at line 6284 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_CommandTimedOut()

void Svc::FpySequencerComponentBase::log_WARNING_HI_CommandTimedOut ( FwOpcodeType  opCode, U32  stmtIdx, const Fw::StringBase &  filePath  ) const

protected

Log event CommandTimedOut.

Definition at line 7892 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_DirectiveDeserializeError()

void Svc::FpySequencerComponentBase::log_WARNING_HI_DirectiveDeserializeError ( U8  opcode, U32  stmtIdx, I32  errorCode, U64  buffLeft, U64  buffLength  ) const

protected

Log event DirectiveDeserializeError.

Definition at line 7532 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_DirectiveTimedOut()

void Svc::FpySequencerComponentBase::log_WARNING_HI_DirectiveTimedOut ( U8  opCode, U32  stmtIdx, const Fw::StringBase &  filePath  ) const

protected

Log event DirectiveTimedOut.

Definition at line 8005 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_EndOfFileError()

void Svc::FpySequencerComponentBase::log_WARNING_HI_EndOfFileError ( const Svc::FpySequencer_FileReadStage &  readStage, const Fw::StringBase &  filePath  ) const

protected

Log event EndOfFileError.

Definition at line 5470 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_ExtraBytesInSequence()

void Svc::FpySequencerComponentBase::log_WARNING_HI_ExtraBytesInSequence ( FwSizeType  remaining ) const

protected

Log event ExtraBytesInSequence.

Definition at line 5924 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_FileApiError()

void Svc::FpySequencerComponentBase::log_WARNING_HI_FileApiError ( const Fw::StringBase &  filePath, I32  errorCode  ) const

protected

Log event FileApiError.

Definition at line 6101 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_FileOpenError()

void Svc::FpySequencerComponentBase::log_WARNING_HI_FileOpenError ( const Fw::StringBase &  filePath, I32  errorCode  ) const

protected

Log event FileOpenError.

Definition at line 5146 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_FileReadDeserializeError()

void Svc::FpySequencerComponentBase::log_WARNING_HI_FileReadDeserializeError ( const Svc::FpySequencer_FileReadStage &  readStage, const Fw::StringBase &  filePath, I32  errorCode, U64  buffLeft, U64  buffLength  ) const

protected

Log event FileReadDeserializeError.

Definition at line 5568 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_FileReadError()

void Svc::FpySequencerComponentBase::log_WARNING_HI_FileReadError ( const Svc::FpySequencer_FileReadStage &  readStage, const Fw::StringBase &  filePath, I32  errorCode  ) const

protected

Log event FileReadError.

Definition at line 5354 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_FileWriteError()

void Svc::FpySequencerComponentBase::log_WARNING_HI_FileWriteError ( FwSizeType  writeSize, const Fw::StringBase &  filePath, I32  errorCode  ) const

protected

Log event FileWriteError.

Definition at line 5241 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_InsufficientBufferSpace()

void Svc::FpySequencerComponentBase::log_WARNING_HI_InsufficientBufferSpace ( U64  bufferSize, const Fw::StringBase &  filePath  ) const

protected

Log event InsufficientBufferSpace.

Definition at line 6006 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_InvalidCommand()

void Svc::FpySequencerComponentBase::log_WARNING_HI_InvalidCommand ( I32  state ) const

protected

Log event InvalidCommand.

Definition at line 4900 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_InvalidSeqCancelCall()

void Svc::FpySequencerComponentBase::log_WARNING_HI_InvalidSeqCancelCall ( I32  state ) const

protected

Log event InvalidSeqCancelCall.

Definition at line 5064 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_InvalidSeqRunCall()

void Svc::FpySequencerComponentBase::log_WARNING_HI_InvalidSeqRunCall ( I32  state ) const

protected

Log event InvalidSeqRunCall.

Definition at line 4982 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_LogWarningHi()

void Svc::FpySequencerComponentBase::log_WARNING_HI_LogWarningHi ( const Fw::StringBase &  filePath, const Fw::StringBase &  message  ) const

protected

Log event LogWarningHi.

Definition at line 8969 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_MismatchedTimeBase()

void Svc::FpySequencerComponentBase::log_WARNING_HI_MismatchedTimeBase ( I32  internalTimeBase, I32  otherTimeBase  ) const

protected

Log event MismatchedTimeBase.

Definition at line 7688 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_MismatchedTimeContext()

void Svc::FpySequencerComponentBase::log_WARNING_HI_MismatchedTimeContext ( I32  internalTimeContext, I32  otherTimeContext  ) const

protected

Log event MismatchedTimeContext.

Definition at line 7790 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_SequenceExitedWithError()

void Svc::FpySequencerComponentBase::log_WARNING_HI_SequenceExitedWithError ( const Fw::StringBase &  filePath, I32  errorCode  ) const

protected

Log event SequenceExitedWithError.

Definition at line 6568 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_SequenceFilePathTooLong()

void Svc::FpySequencerComponentBase::log_WARNING_HI_SequenceFilePathTooLong ( const Fw::StringBase &  baseDir, const Fw::StringBase &  fileName  ) const

protected

Log event SequenceFilePathTooLong.

Definition at line 6196 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_TooManySequenceArgs()

void Svc::FpySequencerComponentBase::log_WARNING_HI_TooManySequenceArgs ( U8  count, U8  max  ) const

protected

Log event TooManySequenceArgs.

Definition at line 8118 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_TooManySequenceDirectives()

void Svc::FpySequencerComponentBase::log_WARNING_HI_TooManySequenceDirectives ( U16  count, U16  max  ) const

protected

Log event TooManySequenceDirectives.

Definition at line 8220 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_UnknownSequencerDirective()

void Svc::FpySequencerComponentBase::log_WARNING_HI_UnknownSequencerDirective ( U8  opcode, U32  stmtIdx, const Fw::StringBase &  filePath  ) const

protected

Log event UnknownSequencerDirective.

Definition at line 6663 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_WrongCmdResponseIndex()

void Svc::FpySequencerComponentBase::log_WARNING_HI_WrongCmdResponseIndex ( FwOpcodeType  opcode, const Fw::CmdResponse &  response, U16  actualCmdIdx, U16  expectedCmdIdx  ) const

protected

Log event WrongCmdResponseIndex.

Definition at line 7391 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_WrongCmdResponseOpcode()

void Svc::FpySequencerComponentBase::log_WARNING_HI_WrongCmdResponseOpcode ( FwOpcodeType  opcode, const Fw::CmdResponse &  response, FwOpcodeType  expectedOpcode  ) const

protected

Log event WrongCmdResponseOpcode.

Definition at line 7268 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_WrongCRC()

void Svc::FpySequencerComponentBase::log_WARNING_HI_WrongCRC ( U32  expected, U32  actual  ) const

protected

Log event WrongCRC.

Definition at line 5822 of file FpySequencerComponentAc.cpp.

log_WARNING_HI_WrongSchemaVersion()

void Svc::FpySequencerComponentBase::log_WARNING_HI_WrongSchemaVersion ( U8  expected, U8  actual  ) const

protected

Log event WrongSchemaVersion.

Definition at line 5720 of file FpySequencerComponentAc.cpp.

log_WARNING_LO_CmdResponseFromOldSequence()

void Svc::FpySequencerComponentBase::log_WARNING_LO_CmdResponseFromOldSequence ( FwOpcodeType  opcode, const Fw::CmdResponse &  response, U16  oldSequenceIdx, U16  currentSequenceIdx  ) const

protected

Log event CmdResponseFromOldSequence.

Definition at line 6899 of file FpySequencerComponentAc.cpp.

log_WARNING_LO_CmdResponseWhileNotRunningSequence()

void Svc::FpySequencerComponentBase::log_WARNING_LO_CmdResponseWhileNotRunningSequence ( I32  state, FwOpcodeType  opcode, const Fw::CmdResponse &  response  ) const

protected

Log event CmdResponseWhileNotRunningSequence.

Definition at line 6776 of file FpySequencerComponentAc.cpp.

log_WARNING_LO_LogWarningLo()

void Svc::FpySequencerComponentBase::log_WARNING_LO_LogWarningLo ( const Fw::StringBase &  filePath, const Fw::StringBase &  message  ) const

protected

Log event LogWarningLo.

Definition at line 9057 of file FpySequencerComponentAc.cpp.

parametersLoaded()

void Svc::FpySequencerComponentBase::parametersLoaded ( )

protectedvirtual

Called whenever parameters are loaded.

This function does nothing by default. You may override it.

Reimplemented in Svc::FpySequencer.

Definition at line 10362 of file FpySequencerComponentAc.cpp.

parameterUpdated()

void Svc::FpySequencerComponentBase::parameterUpdated ( FwPrmIdType  id )

protectedvirtual

Called whenever a parameter is updated.

This function does nothing by default. You may override it.

Parameters

id	The parameter ID

Reimplemented in Svc::FpySequencer.

Definition at line 10356 of file FpySequencerComponentAc.cpp.

paramGet_SEQ_BASE_DIR()

Fw::ParamString Svc::FpySequencerComponentBase::paramGet_SEQ_BASE_DIR ( Fw::ParamValid &  valid )

protected

Get parameter SEQ_BASE_DIR

Returns

The parameter value

the base directory relative to which sequence file paths are resolved. a '/' separator is always inserted between this base dir and the input sequence file path before resolution occurs following the rules of Os::File::open.

Parameters

valid

Whether the parameter is valid

Definition at line 10385 of file FpySequencerComponentAc.cpp.

paramGet_STATEMENT_TIMEOUT_SECS()

F32 Svc::FpySequencerComponentBase::paramGet_STATEMENT_TIMEOUT_SECS ( Fw::ParamValid &  valid )

protected

Get parameter STATEMENT_TIMEOUT_SECS

Returns

The parameter value

the number of seconds to wait before giving up on a directive or command. if <= 0 or greater than U32 max, never time out. accuracy of this timeout is determined by the rate group driving this component. it will be rounded up

Parameters

valid

Whether the parameter is valid

Definition at line 10372 of file FpySequencerComponentAc.cpp.

pingIn_handler()

virtual void Svc::FpySequencerComponentBase::pingIn_handler ( FwIndexType  portNum, U32  key  )

protectedpure virtual

Handler for input port pingIn.

Parameters

portNum	The port number
key	Value to return to pinger

Implemented in Svc::FpySequencer.

pingIn_handlerBase()

void Svc::FpySequencerComponentBase::pingIn_handlerBase ( FwIndexType  portNum, U32  key  )

protected

Handler base-class function for input port pingIn.

Parameters

portNum	The port number
key	Value to return to pinger

Definition at line 2176 of file FpySequencerComponentAc.cpp.

pingIn_preMsgHook()

void Svc::FpySequencerComponentBase::pingIn_preMsgHook ( FwIndexType  portNum, U32  key  )

protectedvirtual

Pre-message hook for async input port pingIn.

Parameters

portNum	The port number
key	Value to return to pinger

Definition at line 2417 of file FpySequencerComponentAc.cpp.

pingOut_out()

void Svc::FpySequencerComponentBase::pingOut_out ( FwIndexType  portNum, U32  key  ) const

protected

Invoke output port pingOut.

Parameters

portNum	The port number
key	Value to return to pinger

Definition at line 2525 of file FpySequencerComponentAc.cpp.

regCommands()

void Svc::FpySequencerComponentBase::regCommands

(

)

Register commands with the Command Dispatcher.

Connect the dispatcher first

Definition at line 1504 of file FpySequencerComponentAc.cpp.

RUN_ARGS_cmdHandler()

virtual void Svc::FpySequencerComponentBase::RUN_ARGS_cmdHandler ( FwOpcodeType  opCode, U32  cmdSeq, const Fw::CmdStringArg &  fileName, const Svc::BlockState &  block, const Svc::SeqArgs &  buffer  )

protectedpure virtual

Handler for command RUN_ARGS.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
fileName	The name of the sequence file
block	Return command status when complete or not
buffer	Arguments to pass to the sequencer

RUN_ARGS_cmdHandlerBase()

void Svc::FpySequencerComponentBase::RUN_ARGS_cmdHandlerBase ( FwOpcodeType  opCode, U32  cmdSeq, Fw::CmdArgBuffer &  args  )

protected

Base-class handler function for command RUN_ARGS.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 4107 of file FpySequencerComponentAc.cpp.

RUN_ARGS_preMsgHook()

void Svc::FpySequencerComponentBase::RUN_ARGS_preMsgHook ( FwOpcodeType  opCode, U32  cmdSeq  )

protectedvirtual

Pre-message hook for command RUN_ARGS.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 4775 of file FpySequencerComponentAc.cpp.

RUN_cmdHandler()

virtual void Svc::FpySequencerComponentBase::RUN_cmdHandler ( FwOpcodeType  opCode, U32  cmdSeq, const Fw::CmdStringArg &  fileName, const Svc::BlockState &  block  )

protectedpure virtual

Handler for command RUN

Loads, validates and runs a sequence

Parameters

opCode	The opcode
cmdSeq	The command sequence number
fileName	The name of the sequence file
block	Return command status when complete or not

RUN_cmdHandlerBase()

void Svc::FpySequencerComponentBase::RUN_cmdHandlerBase ( FwOpcodeType  opCode, U32  cmdSeq, Fw::CmdArgBuffer &  args  )

protected

Base-class handler function for command RUN

Loads, validates and runs a sequence

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 4048 of file FpySequencerComponentAc.cpp.

RUN_preMsgHook()

void Svc::FpySequencerComponentBase::RUN_preMsgHook ( FwOpcodeType  opCode, U32  cmdSeq  )

protectedvirtual

Pre-message hook for command RUN.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 4764 of file FpySequencerComponentAc.cpp.

RUN_VALIDATED_cmdHandler()

virtual void Svc::FpySequencerComponentBase::RUN_VALIDATED_cmdHandler ( FwOpcodeType  opCode, U32  cmdSeq, const Svc::BlockState &  block  )

protectedpure virtual

Handler for command RUN_VALIDATED

Must be called after VALIDATE. Runs the sequence that was validated.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
block	Return command status when complete or not

RUN_VALIDATED_cmdHandlerBase()

void Svc::FpySequencerComponentBase::RUN_VALIDATED_cmdHandlerBase ( FwOpcodeType  opCode, U32  cmdSeq, Fw::CmdArgBuffer &  args  )

protected

Base-class handler function for command RUN_VALIDATED

Must be called after VALIDATE. Runs the sequence that was validated.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 4284 of file FpySequencerComponentAc.cpp.

RUN_VALIDATED_preMsgHook()

void Svc::FpySequencerComponentBase::RUN_VALIDATED_preMsgHook ( FwOpcodeType  opCode, U32  cmdSeq  )

protectedvirtual

Pre-message hook for command RUN_VALIDATED.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 4808 of file FpySequencerComponentAc.cpp.

seqCancelIn_handler()

virtual void Svc::FpySequencerComponentBase::seqCancelIn_handler ( FwIndexType  portNum )

protectedpure virtual

Handler for input port seqCancelIn.

Parameters

portNum

The port number

Implemented in Svc::FpySequencer.

seqCancelIn_handlerBase()

void Svc::FpySequencerComponentBase::seqCancelIn_handlerBase ( FwIndexType  portNum )

protected

Handler base-class function for input port seqCancelIn.

Parameters

portNum

The port number

Definition at line 2234 of file FpySequencerComponentAc.cpp.

seqCancelIn_preMsgHook()

void Svc::FpySequencerComponentBase::seqCancelIn_preMsgHook ( FwIndexType  portNum )

protectedvirtual

Pre-message hook for async input port seqCancelIn.

Parameters

portNum

The port number

Definition at line 2426 of file FpySequencerComponentAc.cpp.

seqDoneOut_out()

void Svc::FpySequencerComponentBase::seqDoneOut_out ( FwIndexType  portNum, FwOpcodeType  opCode, U32  cmdSeq, const Fw::CmdResponse &  response  ) const

protected

Invoke output port seqDoneOut.

Parameters

portNum	The port number
opCode	Command Op Code
cmdSeq	Command Sequence
response	The command response argument

Definition at line 2545 of file FpySequencerComponentAc.cpp.

seqRunIn_handler()

virtual void Svc::FpySequencerComponentBase::seqRunIn_handler ( FwIndexType  portNum, const Fw::StringBase &  filename, const Svc::SeqArgs &  args  )

protectedpure virtual

Handler for input port seqRunIn.

Parameters

portNum	The port number
filename	The sequence file
args	Sequence arguments

Implemented in Svc::FpySequencer.

seqRunIn_handlerBase()

void Svc::FpySequencerComponentBase::seqRunIn_handlerBase ( FwIndexType  portNum, const Fw::StringBase &  filename, const Svc::SeqArgs &  args  )

protected

Handler base-class function for input port seqRunIn.

Parameters

portNum	The port number
filename	The sequence file
args	Sequence arguments

Definition at line 2274 of file FpySequencerComponentAc.cpp.

seqRunIn_preMsgHook()

void Svc::FpySequencerComponentBase::seqRunIn_preMsgHook ( FwIndexType  portNum, const Fw::StringBase &  filename, const Svc::SeqArgs &  args  )

protectedvirtual

Pre-message hook for async input port seqRunIn.

Parameters

portNum	The port number
filename	The sequence file
args	Sequence arguments

Definition at line 2432 of file FpySequencerComponentAc.cpp.

seqStartOut_out()

void Svc::FpySequencerComponentBase::seqStartOut_out ( FwIndexType  portNum, const Fw::StringBase &  filename, const Svc::SeqArgs &  args  ) const

protected

Invoke output port seqStartOut.

Parameters

portNum	The port number
filename	The sequence file
args	Sequence arguments

Definition at line 2569 of file FpySequencerComponentAc.cpp.

sequencer_getState()

FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine::State Svc::FpySequencerComponentBase::sequencer_getState ( ) const

protected

Get the state of state machine instance sequencer.

Definition at line 3745 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_checkTimersIn()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_checkTimersIn ( )

protected

Send signal checkTimersIn to state machine sequencer.

Definition at line 3887 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_cmd_BREAK()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_cmd_BREAK ( )

protected

Send signal cmd_BREAK to state machine sequencer.

Definition at line 4007 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_cmd_CANCEL()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_cmd_CANCEL ( )

protected

Send signal cmd_CANCEL to state machine sequencer.

Definition at line 3794 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_cmd_CLEAR_BREAKPOINT()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_cmd_CLEAR_BREAKPOINT ( )

protected

Send signal cmd_CLEAR_BREAKPOINT to state machine sequencer.

Definition at line 3817 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_cmd_CONTINUE()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_cmd_CONTINUE ( )

protected

Send signal cmd_CONTINUE to state machine sequencer.

Definition at line 3997 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_cmd_RUN()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_cmd_RUN ( const Svc::FpySequencer_SequenceExecutionArgs &  value )

protected

Send signal cmd_RUN to state machine sequencer.

Parameters

value

The value

Definition at line 3768 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_cmd_RUN_VALIDATED()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_cmd_RUN_VALIDATED ( const Svc::FpySequencer_SequenceExecutionArgs &  value )

protected

Send signal cmd_RUN_VALIDATED to state machine sequencer.

Parameters

value

The value

Definition at line 3781 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_cmd_SET_BREAKPOINT()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_cmd_SET_BREAKPOINT ( const Svc::FpySequencer_BreakpointArgs &  value )

protected

Send signal cmd_SET_BREAKPOINT to state machine sequencer.

Parameters

value

The value

Definition at line 3804 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_cmd_STEP()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_cmd_STEP ( )

protected

Send signal cmd_STEP to state machine sequencer.

Definition at line 4017 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_cmd_VALIDATE()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_cmd_VALIDATE ( const Svc::FpySequencer_SequenceExecutionArgs &  value )

protected

Send signal cmd_VALIDATE to state machine sequencer.

Parameters

value

The value

Definition at line 3755 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_entered()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_entered ( )

protected

Send signal entered to state machine sequencer.

Definition at line 3847 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_result_checkShouldWake_keepSleeping()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_result_checkShouldWake_keepSleeping ( )

protected

Send signal result_checkShouldWake_keepSleeping to state machine sequencer.

Definition at line 3907 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_result_checkShouldWake_wakeup()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_result_checkShouldWake_wakeup ( )

protected

Send signal result_checkShouldWake_wakeup to state machine sequencer.

Definition at line 3897 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_result_checkStatementTimeout_noTimeout()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_result_checkStatementTimeout_noTimeout ( )

protected

Send signal result_checkStatementTimeout_noTimeout to state machine sequencer.

Definition at line 3987 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_result_checkStatementTimeout_statementTimeout()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_result_checkStatementTimeout_statementTimeout ( )

protected

Send signal result_checkStatementTimeout_statementTimeout to state machine sequencer.

Definition at line 3977 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_result_dispatchStatement_failure()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_result_dispatchStatement_failure ( )

protected

Send signal result_dispatchStatement_failure to state machine sequencer.

Definition at line 3867 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_result_dispatchStatement_noMoreStatements()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_result_dispatchStatement_noMoreStatements ( )

protected

Send signal result_dispatchStatement_noMoreStatements to state machine sequencer.

Definition at line 3877 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_result_dispatchStatement_success()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_result_dispatchStatement_success ( )

protected

Send signal result_dispatchStatement_success to state machine sequencer.

Definition at line 3857 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_result_failure()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_result_failure ( )

protected

Send signal result_failure to state machine sequencer.

Definition at line 3827 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_result_success()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_result_success ( )

protected

Send signal result_success to state machine sequencer.

Definition at line 3837 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_result_timeOpFailed()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_result_timeOpFailed ( )

protected

Send signal result_timeOpFailed to state machine sequencer.

Definition at line 3917 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_stmtResponse_beginSleep()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_stmtResponse_beginSleep ( )

protected

Send signal stmtResponse_beginSleep to state machine sequencer.

Definition at line 3927 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_stmtResponse_failure()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_stmtResponse_failure ( )

protected

Send signal stmtResponse_failure to state machine sequencer.

Definition at line 3947 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_stmtResponse_keepWaiting()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_stmtResponse_keepWaiting ( )

protected

Send signal stmtResponse_keepWaiting to state machine sequencer.

Definition at line 3967 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_stmtResponse_success()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_stmtResponse_success ( )

protected

Send signal stmtResponse_success to state machine sequencer.

Definition at line 3937 of file FpySequencerComponentAc.cpp.

sequencer_sendSignal_stmtResponse_unexpected()

void Svc::FpySequencerComponentBase::sequencer_sendSignal_stmtResponse_unexpected ( )

protected

Send signal stmtResponse_unexpected to state machine sequencer.

Definition at line 3957 of file FpySequencerComponentAc.cpp.

serialOut_out()

Fw::SerializeStatus Svc::FpySequencerComponentBase::serialOut_out ( FwIndexType  portNum, Fw::LinearBufferBase &  buffer  )

protected

Invoke output port serialOut.

Parameters

portNum	The port number
buffer	The serialization buffer

Definition at line 2599 of file FpySequencerComponentAc.cpp.

SET_BREAKPOINT_cmdHandler()

virtual void Svc::FpySequencerComponentBase::SET_BREAKPOINT_cmdHandler ( FwOpcodeType  opCode, U32  cmdSeq, U32  stmtIdx, bool  breakOnce  )

protectedpure virtual

Handler for command SET_BREAKPOINT

Sets the breakpoint which will pause the execution of the sequencer when reached, until unpaused by the CONTINUE command. Will pause just before dispatching the specified directive. This command is valid in all states. Breakpoint settings are cleared after a sequence ends execution.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
stmtIdx	The directive index to pause execution before.
breakOnce	Whether or not to break only once at this breakpoint

SET_BREAKPOINT_cmdHandlerBase()

void Svc::FpySequencerComponentBase::SET_BREAKPOINT_cmdHandlerBase ( FwOpcodeType  opCode, U32  cmdSeq, Fw::CmdArgBuffer &  args  )

protected

Base-class handler function for command SET_BREAKPOINT

Sets the breakpoint which will pause the execution of the sequencer when reached, until unpaused by the CONTINUE command. Will pause just before dispatching the specified directive. This command is valid in all states. Breakpoint settings are cleared after a sequence ends execution.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 4402 of file FpySequencerComponentAc.cpp.

SET_BREAKPOINT_preMsgHook()

void Svc::FpySequencerComponentBase::SET_BREAKPOINT_preMsgHook ( FwOpcodeType  opCode, U32  cmdSeq  )

protectedvirtual

Pre-message hook for command SET_BREAKPOINT.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 4830 of file FpySequencerComponentAc.cpp.

set_cmdOut_OutputPort()

void Svc::FpySequencerComponentBase::set_cmdOut_OutputPort	(	FwIndexType	portNum,
		Fw::InputComPort *	port
	)

Connect port to cmdOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 1218 of file FpySequencerComponentAc.cpp.

set_cmdRegOut_OutputPort()

void Svc::FpySequencerComponentBase::set_cmdRegOut_OutputPort	(	FwIndexType	portNum,
		Fw::InputCmdRegPort *	port
	)

Connect port to cmdRegOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 1094 of file FpySequencerComponentAc.cpp.

set_cmdResponseOut_OutputPort()

void Svc::FpySequencerComponentBase::set_cmdResponseOut_OutputPort	(	FwIndexType	portNum,
		Fw::InputCmdResponsePort *	port
	)

Connect port to cmdResponseOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 1108 of file FpySequencerComponentAc.cpp.

set_getParam_OutputPort()

void Svc::FpySequencerComponentBase::set_getParam_OutputPort	(	FwIndexType	portNum,
		Fw::InputPrmGetPort *	port
	)

Connect port to getParam[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 1232 of file FpySequencerComponentAc.cpp.

set_getTlmChan_OutputPort()

void Svc::FpySequencerComponentBase::set_getTlmChan_OutputPort	(	FwIndexType	portNum,
		Fw::InputTlmGetPort *	port
	)

Connect port to getTlmChan[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 1246 of file FpySequencerComponentAc.cpp.

set_logOut_OutputPort()

void Svc::FpySequencerComponentBase::set_logOut_OutputPort	(	FwIndexType	portNum,
		Fw::InputLogPort *	port
	)

Connect port to logOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 1122 of file FpySequencerComponentAc.cpp.

set_pingOut_OutputPort()

void Svc::FpySequencerComponentBase::set_pingOut_OutputPort	(	FwIndexType	portNum,
		Svc::InputPingPort *	port
	)

Connect port to pingOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 1260 of file FpySequencerComponentAc.cpp.

set_prmGet_OutputPort()

void Svc::FpySequencerComponentBase::set_prmGet_OutputPort	(	FwIndexType	portNum,
		Fw::InputPrmGetPort *	port
	)

Connect port to prmGet[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 1154 of file FpySequencerComponentAc.cpp.

set_prmSet_OutputPort()

void Svc::FpySequencerComponentBase::set_prmSet_OutputPort	(	FwIndexType	portNum,
		Fw::InputPrmSetPort *	port
	)

Connect port to prmSet[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 1168 of file FpySequencerComponentAc.cpp.

set_seqDoneOut_OutputPort()

void Svc::FpySequencerComponentBase::set_seqDoneOut_OutputPort	(	FwIndexType	portNum,
		Fw::InputCmdResponsePort *	port
	)

Connect port to seqDoneOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 1274 of file FpySequencerComponentAc.cpp.

set_seqStartOut_OutputPort()

void Svc::FpySequencerComponentBase::set_seqStartOut_OutputPort	(	FwIndexType	portNum,
		Svc::InputCmdSeqInPort *	port
	)

Connect port to seqStartOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 1288 of file FpySequencerComponentAc.cpp.

set_timeCaller_OutputPort()

void Svc::FpySequencerComponentBase::set_timeCaller_OutputPort	(	FwIndexType	portNum,
		Fw::InputTimePort *	port
	)

Connect port to timeCaller[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 1182 of file FpySequencerComponentAc.cpp.

set_tlmOut_OutputPort()

void Svc::FpySequencerComponentBase::set_tlmOut_OutputPort	(	FwIndexType	portNum,
		Fw::InputTlmPort *	port
	)

Connect port to tlmOut[portNum].

Parameters

portNum	The port number
port	The input port

Definition at line 1196 of file FpySequencerComponentAc.cpp.

STEP_cmdHandler()

virtual void Svc::FpySequencerComponentBase::STEP_cmdHandler ( FwOpcodeType  opCode, U32  cmdSeq  )

protectedpure virtual

Handler for command STEP

Dispatches and awaits the result of the next directive, or ends the sequence if no more directives remain. Returns to the RUNNING.PAUSED state if the directive executes successfully. This command is only valid in the RUNNING.PAUSED state.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

STEP_cmdHandlerBase()

void Svc::FpySequencerComponentBase::STEP_cmdHandlerBase ( FwOpcodeType  opCode, U32  cmdSeq, Fw::CmdArgBuffer &  args  )

protected

Base-class handler function for command STEP

Dispatches and awaits the result of the next directive, or ends the sequence if no more directives remain. Returns to the RUNNING.PAUSED state if the directive executes successfully. This command is only valid in the RUNNING.PAUSED state.

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 4638 of file FpySequencerComponentAc.cpp.

STEP_preMsgHook()

void Svc::FpySequencerComponentBase::STEP_preMsgHook ( FwOpcodeType  opCode, U32  cmdSeq  )

protectedvirtual

Pre-message hook for command STEP.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 4874 of file FpySequencerComponentAc.cpp.

Svc_FpySequencer_SequencerStateMachine_action_checkShouldWake()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_checkShouldWake ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action checkShouldWake of state machine Svc_FpySequencer_SequencerStateMachine

checks if sequencer should wake from sleep

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_checkStatementTimeout()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_checkStatementTimeout ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action checkStatementTimeout of state machine Svc_FpySequencer_SequencerStateMachine

checks if the current statement has timed out

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_clearBreakBeforeNextLine()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_clearBreakBeforeNextLine ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action clearBreakBeforeNextLine of state machine Svc_FpySequencer_SequencerStateMachine

sets the "break on next line" flag to false

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_clearBreakpoint()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_clearBreakpoint ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action clearBreakpoint of state machine Svc_FpySequencer_SequencerStateMachine

clears the breakpoint setting

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_clearSequenceArguments()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_clearSequenceArguments ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action clearSequenceArguments of state machine Svc_FpySequencer_SequencerStateMachine

clears arguments

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_clearSequenceFile()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_clearSequenceFile ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action clearSequenceFile of state machine Svc_FpySequencer_SequencerStateMachine

clears all variables related to the loading/validating of the sequence file

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_dispatchStatement()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_dispatchStatement ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action dispatchStatement of state machine Svc_FpySequencer_SequencerStateMachine

iterates to the next statement and dispatches it

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_incrementSequenceCounter()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_incrementSequenceCounter ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action incrementSequenceCounter of state machine Svc_FpySequencer_SequencerStateMachine

increments the m_sequencesStarted counter

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_pushArgsToStack()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_pushArgsToStack ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action pushArgsToStack of state machine Svc_FpySequencer_SequencerStateMachine

pushes sequence arguments to the stack

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_report_seqBroken()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_report_seqBroken ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action report_seqBroken of state machine Svc_FpySequencer_SequencerStateMachine

reports that a breakpoint was hit

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_report_seqCancelled()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_report_seqCancelled ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action report_seqCancelled of state machine Svc_FpySequencer_SequencerStateMachine

reports that a sequence was cancelled

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_report_seqFailed()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_report_seqFailed ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action report_seqFailed of state machine Svc_FpySequencer_SequencerStateMachine

called when a sequence failed to execute successfully

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_report_seqStarted()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_report_seqStarted ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action report_seqStarted of state machine Svc_FpySequencer_SequencerStateMachine

called when a sequence starts

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_report_seqSucceeded()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_report_seqSucceeded ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action report_seqSucceeded of state machine Svc_FpySequencer_SequencerStateMachine

reports that a sequence succeeded

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_resetRuntime()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_resetRuntime ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action resetRuntime of state machine Svc_FpySequencer_SequencerStateMachine

resets the sequence runtime

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_sendCmdResponse_EXECUTION_ERROR()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_sendCmdResponse_EXECUTION_ERROR ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action sendCmdResponse_EXECUTION_ERROR of state machine Svc_FpySequencer_SequencerStateMachine

responds to the calling command with EXECUTION_ERROR

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_sendCmdResponse_OK()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_sendCmdResponse_OK ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action sendCmdResponse_OK of state machine Svc_FpySequencer_SequencerStateMachine

responds to the calling command with OK

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_setBreakBeforeNextLine()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_setBreakBeforeNextLine ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action setBreakBeforeNextLine of state machine Svc_FpySequencer_SequencerStateMachine

sets the "break on next line" flag to true

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_setBreakpoint()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_setBreakpoint ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal, const Svc::FpySequencer_BreakpointArgs &  value  )

protectedpure virtual

Implementation for action setBreakpoint of state machine Svc_FpySequencer_SequencerStateMachine

sets the breakpoint to the provided args

Parameters

smId	The state machine id
signal	The signal
value	The value

Svc_FpySequencer_SequencerStateMachine_action_setGoalState_IDLE()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_setGoalState_IDLE ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action setGoalState_IDLE of state machine Svc_FpySequencer_SequencerStateMachine

sets the goal state to IDLE

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_setGoalState_RUNNING()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_setGoalState_RUNNING ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action setGoalState_RUNNING of state machine Svc_FpySequencer_SequencerStateMachine

sets the goal state to RUNNING

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_setGoalState_VALID()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_setGoalState_VALID ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action setGoalState_VALID of state machine Svc_FpySequencer_SequencerStateMachine

sets the goal state to VALID

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_setSequenceArguments()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_setSequenceArguments ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal, const Svc::FpySequencer_SequenceExecutionArgs &  value  )

protectedpure virtual

Implementation for action setSequenceArguments of state machine Svc_FpySequencer_SequencerStateMachine

sets the arguments to pass to the sequence

Parameters

smId	The state machine id
signal	The signal
value	The value

Svc_FpySequencer_SequencerStateMachine_action_setSequenceBlockState()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_setSequenceBlockState ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal, const Svc::FpySequencer_SequenceExecutionArgs &  value  )

protectedpure virtual

Implementation for action setSequenceBlockState of state machine Svc_FpySequencer_SequencerStateMachine

sets the block state of the sequence to be run

Parameters

smId	The state machine id
signal	The signal
value	The value

Svc_FpySequencer_SequencerStateMachine_action_setSequenceFilePath()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_setSequenceFilePath ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal, const Svc::FpySequencer_SequenceExecutionArgs &  value  )

protectedpure virtual

Implementation for action setSequenceFilePath of state machine Svc_FpySequencer_SequencerStateMachine

sets the current sequence file path member var

Parameters

smId	The state machine id
signal	The signal
value	The value

Svc_FpySequencer_SequencerStateMachine_action_signalEntered()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_signalEntered ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action signalEntered of state machine Svc_FpySequencer_SequencerStateMachine

simply raises the "entered" signal

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_action_validate()

virtual void Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_action_validate ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  )

protectedpure virtual

Implementation for action validate of state machine Svc_FpySequencer_SequencerStateMachine

performs all steps necessary for sequence validation, and raises a signal result_success or result_failure

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_guard_breakOnce()

virtual bool Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_guard_breakOnce ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  ) const

protectedpure virtual

Implementation for guard breakOnce of state machine Svc_FpySequencer_SequencerStateMachine

return true if this breakpoint should only happen once

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_guard_goalStateIs_RUNNING()

virtual bool Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_guard_goalStateIs_RUNNING ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  ) const

protectedpure virtual

Implementation for guard goalStateIs_RUNNING of state machine Svc_FpySequencer_SequencerStateMachine

return true if the goal state is RUNNING

Parameters

smId	The state machine id
signal	The signal

Svc_FpySequencer_SequencerStateMachine_guard_shouldBreak()

virtual bool Svc::FpySequencerComponentBase::Svc_FpySequencer_SequencerStateMachine_guard_shouldBreak ( SmId  smId, Svc_FpySequencer_SequencerStateMachine::Signal  signal  ) const

protectedpure virtual

Implementation for guard shouldBreak of state machine Svc_FpySequencer_SequencerStateMachine

return true if should break at this point in execution, before dispatching next stmt

Parameters

smId	The state machine id
signal	The signal

tlmWrite()

void Svc::FpySequencerComponentBase::tlmWrite ( FwChanIdType  id, Fw::TlmBuffer &  _tlmBuff, Fw::Time  _tlmTime = Fw::Time()  ) const

protected

Write telemetry channel given its local id and serialized value. Warning: This is a low level telemetry interface that does not guarentee channel type safety. It is up to the caller to make sure the serialized data matches the definition in the model. Update on change semantics are ignored, this telemetry is always written

Parameters

id	The channel id
_tlmBuff	The serialized telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 9501 of file FpySequencerComponentAc.cpp.

tlmWrite_BreakBeforeNextLine()

void Svc::FpySequencerComponentBase::tlmWrite_BreakBeforeNextLine ( bool  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel BreakBeforeNextLine

whether or not to break before dispatching the next line, independent of what line it is. can be used in combination with breakpointIndex

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 10238 of file FpySequencerComponentAc.cpp.

tlmWrite_BreakOnlyOnceOnBreakpoint()

void Svc::FpySequencerComponentBase::tlmWrite_BreakOnlyOnceOnBreakpoint ( bool  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel BreakOnlyOnceOnBreakpoint

whether or not to remove the breakpoint after breaking on it

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 10201 of file FpySequencerComponentAc.cpp.

tlmWrite_BreakpointIndex()

void Svc::FpySequencerComponentBase::tlmWrite_BreakpointIndex ( U32  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel BreakpointIndex

the current breakpoint index. The sequence will break at this point just before dispatching the directive at this index

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 10164 of file FpySequencerComponentAc.cpp.

tlmWrite_BreakpointInUse()

void Svc::FpySequencerComponentBase::tlmWrite_BreakpointInUse ( bool  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel BreakpointInUse

whether or not to break at the breakpoint index

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 10127 of file FpySequencerComponentAc.cpp.

tlmWrite_Debug_NextCmdOpcode()

void Svc::FpySequencerComponentBase::tlmWrite_Debug_NextCmdOpcode ( FwOpcodeType  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel Debug_NextCmdOpcode

if the next statement is a cmd directive, the opcode of that cmd

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 10053 of file FpySequencerComponentAc.cpp.

tlmWrite_Debug_NextStatementIndex()

void Svc::FpySequencerComponentBase::tlmWrite_Debug_NextStatementIndex ( U32  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel Debug_NextStatementIndex

the index of the next statement to be executed

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 10016 of file FpySequencerComponentAc.cpp.

tlmWrite_Debug_NextStatementOpcode()

void Svc::FpySequencerComponentBase::tlmWrite_Debug_NextStatementOpcode ( U8  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel Debug_NextStatementOpcode

the opcode of the next statement to dispatch.

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 9979 of file FpySequencerComponentAc.cpp.

tlmWrite_Debug_NextStatementReadSuccess()

void Svc::FpySequencerComponentBase::tlmWrite_Debug_NextStatementReadSuccess ( bool  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel Debug_NextStatementReadSuccess

true if we were able to deserialize the next statement successfully

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 9942 of file FpySequencerComponentAc.cpp.

tlmWrite_Debug_ReachedEndOfFile()

void Svc::FpySequencerComponentBase::tlmWrite_Debug_ReachedEndOfFile ( bool  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel Debug_ReachedEndOfFile

true if there are no statements remaining in the sequence file

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 9905 of file FpySequencerComponentAc.cpp.

tlmWrite_Debug_StackSize()

void Svc::FpySequencerComponentBase::tlmWrite_Debug_StackSize ( Svc::Fpy::StackSizeType  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel Debug_StackSize

the size of the stack in bytes

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 10090 of file FpySequencerComponentAc.cpp.

tlmWrite_DirectiveErrorId()

void Svc::FpySequencerComponentBase::tlmWrite_DirectiveErrorId ( const Svc::Fpy::DirectiveId &  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel DirectiveErrorId

the id of the last directive to error

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 9828 of file FpySequencerComponentAc.cpp.

tlmWrite_DirectiveErrorIndex()

void Svc::FpySequencerComponentBase::tlmWrite_DirectiveErrorIndex ( U64  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel DirectiveErrorIndex

the index of the last directive to error

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 9791 of file FpySequencerComponentAc.cpp.

tlmWrite_handler()

virtual void Svc::FpySequencerComponentBase::tlmWrite_handler ( FwIndexType  portNum, U32  context  )

protectedpure virtual

Handler for input port tlmWrite.

Parameters

portNum	The port number
context	The call order

Implemented in Svc::FpySequencer.

tlmWrite_handlerBase()

void Svc::FpySequencerComponentBase::tlmWrite_handlerBase ( FwIndexType  portNum, U32  context  )

protected

Handler base-class function for input port tlmWrite.

Parameters

portNum	The port number
context	The call order

Definition at line 2336 of file FpySequencerComponentAc.cpp.

tlmWrite_LastDirectiveError()

void Svc::FpySequencerComponentBase::tlmWrite_LastDirectiveError ( const Svc::Fpy::DirectiveErrorCode &  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel LastDirectiveError

the error code of the last directive that ran

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 9754 of file FpySequencerComponentAc.cpp.

tlmWrite_preMsgHook()

void Svc::FpySequencerComponentBase::tlmWrite_preMsgHook ( FwIndexType  portNum, U32  context  )

protectedvirtual

Pre-message hook for async input port tlmWrite.

Parameters

portNum	The port number
context	The call order

Definition at line 2442 of file FpySequencerComponentAc.cpp.

tlmWrite_PRM_SEQ_BASE_DIR()

void Svc::FpySequencerComponentBase::tlmWrite_PRM_SEQ_BASE_DIR ( const Fw::StringBase &  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel PRM_SEQ_BASE_DIR

value of prm SEQ_BASE_DIR

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 10312 of file FpySequencerComponentAc.cpp.

tlmWrite_PRM_STATEMENT_TIMEOUT_SECS()

void Svc::FpySequencerComponentBase::tlmWrite_PRM_STATEMENT_TIMEOUT_SECS ( F32  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel PRM_STATEMENT_TIMEOUT_SECS

value of prm STATEMENT_TIMEOUT_SECS

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 10275 of file FpySequencerComponentAc.cpp.

tlmWrite_SeqPath()

void Svc::FpySequencerComponentBase::tlmWrite_SeqPath ( const Fw::StringBase &  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel SeqPath

the currently running sequence

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 9865 of file FpySequencerComponentAc.cpp.

tlmWrite_SequencesCancelled()

void Svc::FpySequencerComponentBase::tlmWrite_SequencesCancelled ( U64  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel SequencesCancelled

the number of sequences that were cancelled

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 9643 of file FpySequencerComponentAc.cpp.

tlmWrite_SequencesFailed()

void Svc::FpySequencerComponentBase::tlmWrite_SequencesFailed ( U64  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel SequencesFailed

the number of sequences that failed to validate or execute

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 9606 of file FpySequencerComponentAc.cpp.

tlmWrite_SequencesSucceeded()

void Svc::FpySequencerComponentBase::tlmWrite_SequencesSucceeded ( U64  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel SequencesSucceeded

the number of sequences successfully completed

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 9569 of file FpySequencerComponentAc.cpp.

tlmWrite_State()

void Svc::FpySequencerComponentBase::tlmWrite_State ( FwEnumStoreType  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel State

the current state of the sequencer

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 9532 of file FpySequencerComponentAc.cpp.

tlmWrite_StatementsDispatched()

void Svc::FpySequencerComponentBase::tlmWrite_StatementsDispatched ( U64  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel StatementsDispatched

the number of statements dispatched (successfully or otherwise) total. Note this is distinct from the number of statements executed. This number just tracks how many we've sent out

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 9680 of file FpySequencerComponentAc.cpp.

tlmWrite_StatementsFailed()

void Svc::FpySequencerComponentBase::tlmWrite_StatementsFailed ( U64  arg, Fw::Time  _tlmTime = Fw::Time()  )

protected

Write telemetry channel StatementsFailed

the number of statements that failed to execute

Parameters

arg	The telemetry value
_tlmTime	Timestamp. Default: unspecified, request from getTime port

Definition at line 9717 of file FpySequencerComponentAc.cpp.

VALIDATE_ARGS_cmdHandler()

virtual void Svc::FpySequencerComponentBase::VALIDATE_ARGS_cmdHandler ( FwOpcodeType  opCode, U32  cmdSeq, const Fw::CmdStringArg &  fileName, const Svc::SeqArgs &  buffer  )

protectedpure virtual

Handler for command VALIDATE_ARGS

Loads and validates a sequence with arguments

Parameters

opCode	The opcode
cmdSeq	The command sequence number
fileName	The name of the sequence file
buffer	Arguments to pass to the sequencer

VALIDATE_ARGS_cmdHandlerBase()

void Svc::FpySequencerComponentBase::VALIDATE_ARGS_cmdHandlerBase ( FwOpcodeType  opCode, U32  cmdSeq, Fw::CmdArgBuffer &  args  )

protected

Base-class handler function for command VALIDATE_ARGS

Loads and validates a sequence with arguments

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 4225 of file FpySequencerComponentAc.cpp.

VALIDATE_ARGS_preMsgHook()

void Svc::FpySequencerComponentBase::VALIDATE_ARGS_preMsgHook ( FwOpcodeType  opCode, U32  cmdSeq  )

protectedvirtual

Pre-message hook for command VALIDATE_ARGS.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 4797 of file FpySequencerComponentAc.cpp.

VALIDATE_cmdHandler()

virtual void Svc::FpySequencerComponentBase::VALIDATE_cmdHandler ( FwOpcodeType  opCode, U32  cmdSeq, const Fw::CmdStringArg &  fileName  )

protectedpure virtual

Handler for command VALIDATE

Loads and validates a sequence

Parameters

opCode	The opcode
cmdSeq	The command sequence number
fileName	The name of the sequence file

VALIDATE_cmdHandlerBase()

void Svc::FpySequencerComponentBase::VALIDATE_cmdHandlerBase ( FwOpcodeType  opCode, U32  cmdSeq, Fw::CmdArgBuffer &  args  )

protected

Base-class handler function for command VALIDATE

Loads and validates a sequence

Parameters

opCode	The opcode
cmdSeq	The command sequence number
args	The command argument buffer

Definition at line 4166 of file FpySequencerComponentAc.cpp.

VALIDATE_preMsgHook()

void Svc::FpySequencerComponentBase::VALIDATE_preMsgHook ( FwOpcodeType  opCode, U32  cmdSeq  )

protectedvirtual

Pre-message hook for command VALIDATE.

Parameters

opCode	The opcode
cmdSeq	The command sequence number

Definition at line 4786 of file FpySequencerComponentAc.cpp.

Friends And Related Function Documentation

FpySequencerTester

friend class FpySequencerTester

friend

Friend class tester implementation to support white-box testing.

Definition at line 114 of file FpySequencerComponentAc.hpp.

FpySequencerTesterBase

friend class FpySequencerTesterBase

friend

Friend class tester to support autocoded test harness.

Definition at line 112 of file FpySequencerComponentAc.hpp.

---

The documentation for this class was generated from the following files:

• Svc/FpySequencer/FpySequencerComponentAc.hpp
• Svc/FpySequencer/FpySequencerComponentAc.cpp
