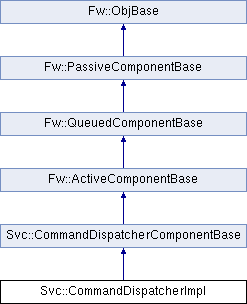

Command Dispatcher component class. More...
#include <Svc/CmdDispatcher/CommandDispatcherImpl.hpp>
Public Member Functions | |
| CommandDispatcherImpl (const char *name) | |
| Command Dispatcher constructor. More... | |
| virtual | ~CommandDispatcherImpl () |
| Component destructor. More... | |
| void | configure (bool executeWhenSequenceTableFull=CmdDispatcherCfg::EXECUTE_WHEN_SEQUENCE_TABLE_FULL_DEFAULT) |
| Configure behavior when the sequence tracker table is full. More... | |
 Public Member Functions inherited from Svc::CommandDispatcherComponentBase | |
| void | init (FwSizeType queueDepth, FwEnumStoreType instance=0) |
| Initialize CommandDispatcherComponentBase object. More... | |
| Fw::InputCmdPort * | get_CmdDisp_InputPort (FwIndexType portNum) |
| Fw::InputCmdRegPort * | get_compCmdReg_InputPort (FwIndexType portNum) |
| Fw::InputCmdResponsePort * | get_compCmdStat_InputPort (FwIndexType portNum) |
| Svc::InputPingPort * | get_pingIn_InputPort (FwIndexType portNum) |
| Svc::InputSchedPort * | get_run_InputPort (FwIndexType portNum) |
| Fw::InputComPort * | get_seqCmdBuff_InputPort (FwIndexType portNum) |
| void | set_CmdReg_OutputPort (FwIndexType portNum, Fw::InputCmdRegPort *port) |
| Connect port to CmdReg[portNum]. More... | |
| void | set_CmdStatus_OutputPort (FwIndexType portNum, Fw::InputCmdResponsePort *port) |
| Connect port to CmdStatus[portNum]. More... | |
| void | set_Log_OutputPort (FwIndexType portNum, Fw::InputLogPort *port) |
| Connect port to Log[portNum]. More... | |
| void | set_Time_OutputPort (FwIndexType portNum, Fw::InputTimePort *port) |
| Connect port to Time[portNum]. More... | |
| void | set_Tlm_OutputPort (FwIndexType portNum, Fw::InputTlmPort *port) |
| Connect port to Tlm[portNum]. More... | |
| void | set_compCmdSend_OutputPort (FwIndexType portNum, Fw::InputCmdPort *port) |
| Connect port to compCmdSend[portNum]. More... | |
| void | set_pingOut_OutputPort (FwIndexType portNum, Svc::InputPingPort *port) |
| Connect port to pingOut[portNum]. More... | |
| void | set_seqCmdStatus_OutputPort (FwIndexType portNum, Fw::InputCmdResponsePort *port) |
| Connect port to seqCmdStatus[portNum]. More... | |
| void | regCommands () |
| Register commands with the Command Dispatcher. More... | |
| Public Member Functions inherited from Fw::ActiveComponentBase | |
| void | start (FwTaskPriorityType priority=Os::Task::TASK_PRIORITY_DEFAULT, FwSizeType stackSize=Os::Task::TASK_DEFAULT, FwSizeType cpuAffinity=Os::Task::TASK_DEFAULT, FwTaskIdType identifier=static_cast< FwTaskIdType >(Os::Task::TASK_DEFAULT)) |
| called by instantiator when task is to be started More... | |
| void | exit () |
| exit task in active component More... | |
| Os::Task::Status | join () |
| Join the thread. More... | |
| DEPRECATED (Os::Task::Status join(void **value_ptr), "Switch to .join()") | |
| Join to thread with discarded value_ptr. More... | |
| Public Member Functions inherited from Fw::QueuedComponentBase | |
| void | deinit () override |
| Allows de-initialization on teardown. More... | |
| Public Member Functions inherited from Fw::PassiveComponentBase | |
| void | setIdBase (const FwIdType) |
| Set the ID base. More... | |
| FwIdType | getIdBase () const |
Friends | |
| class | CommandDispatcherTester |
Additional Inherited Members | |
| Public Types inherited from Fw::ActiveComponentBase | |
| enum | { ACTIVE_COMPONENT_EXIT } |
| Public Types inherited from Fw::QueuedComponentBase | |
| enum | MsgDispatchStatus { MSG_DISPATCH_OK, MSG_DISPATCH_EMPTY, MSG_DISPATCH_ERROR, MSG_DISPATCH_EXIT } |
| Protected Types inherited from Svc::CommandDispatcherComponentBase | |
| enum | { NUM_CMDDISP_INPUT_PORTS = 1 } |
| Enumerations for numbers of special input ports. More... | |
| enum | { NUM_COMPCMDREG_INPUT_PORTS = 30, NUM_COMPCMDSTAT_INPUT_PORTS = 1, NUM_PINGIN_INPUT_PORTS = 1, NUM_RUN_INPUT_PORTS = 1, NUM_SEQCMDBUFF_INPUT_PORTS = 5 } |
| Enumerations for numbers of typed input ports. More... | |
| enum | { NUM_CMDREG_OUTPUT_PORTS = 1, NUM_CMDSTATUS_OUTPUT_PORTS = 1, NUM_LOG_OUTPUT_PORTS = 1, NUM_LOGTEXT_OUTPUT_PORTS = 1, NUM_TIME_OUTPUT_PORTS = 1, NUM_TLM_OUTPUT_PORTS = 1 } |
| Enumerations for numbers of special output ports. More... | |
| enum | { NUM_COMPCMDSEND_OUTPUT_PORTS = 30, NUM_PINGOUT_OUTPUT_PORTS = 1, NUM_SEQCMDSTATUS_OUTPUT_PORTS = 5 } |
| Enumerations for numbers of typed output ports. More... | |
| enum | { OPCODE_CMD_NO_OP = 0x0, OPCODE_CMD_NO_OP_STRING = 0x1, OPCODE_CMD_TEST_CMD_1 = 0x2, OPCODE_CMD_CLEAR_TRACKING = 0x3 } |
| Command opcodes. More... | |
| enum | { EVENTID_OPCODEREGISTERED = 0x0, EVENTID_OPCODEDISPATCHED = 0x1, EVENTID_OPCODECOMPLETED = 0x2, EVENTID_OPCODEERROR = 0x3, EVENTID_MALFORMEDCOMMAND = 0x4, EVENTID_INVALIDCOMMAND = 0x5, EVENTID_TOOMANYCOMMANDS = 0x6, EVENTID_NOOPRECEIVED = 0x7, EVENTID_NOOPSTRINGRECEIVED = 0x8, EVENTID_TESTCMD1ARGS = 0x9, EVENTID_OPCODEREREGISTERED = 0xa, EVENTID_COMMANDDROPPEDQUEUEOVERFLOW = 0xb } |
| Event IDs. More... | |
| enum | { EVENTID_COMMANDDROPPEDQUEUEOVERFLOW_THROTTLE = 5 } |
| Event throttle values: sets initial value of countdown variables. More... | |
| enum | { CHANNELID_COMMANDSDISPATCHED = 0x0, CHANNELID_COMMANDERRORS = 0x1, CHANNELID_COMMANDSDROPPED = 0x2 } |
| Channel IDs. More... | |
| Protected Types inherited from Fw::ActiveComponentBase | |
| enum | Lifecycle { CREATED, DISPATCHING, FINALIZING, DONE } |
| Tracks the lifecycle of the component. More... | |
| Protected Member Functions inherited from Svc::CommandDispatcherComponentBase | |
| CommandDispatcherComponentBase (const char *compName="") | |
| Construct CommandDispatcherComponentBase object. More... | |
| virtual | ~CommandDispatcherComponentBase () |
| Destroy CommandDispatcherComponentBase object. More... | |
| bool | isConnected_CmdReg_OutputPort (FwIndexType portNum) const |
| bool | isConnected_CmdStatus_OutputPort (FwIndexType portNum) const |
| bool | isConnected_Log_OutputPort (FwIndexType portNum) const |
| bool | isConnected_Time_OutputPort (FwIndexType portNum) const |
| bool | isConnected_Tlm_OutputPort (FwIndexType portNum) const |
| bool | isConnected_compCmdSend_OutputPort (FwIndexType portNum) const |
| bool | isConnected_pingOut_OutputPort (FwIndexType portNum) const |
| bool | isConnected_seqCmdStatus_OutputPort (FwIndexType portNum) const |
| void | CmdDisp_handlerBase (FwIndexType portNum, FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args) |
| Handler base-class function for input port CmdDisp. More... | |
| void | compCmdReg_handlerBase (FwIndexType portNum, FwOpcodeType opCode) |
| Handler base-class function for input port compCmdReg. More... | |
| void | compCmdStat_handlerBase (FwIndexType portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response) |
| Handler base-class function for input port compCmdStat. More... | |
| void | pingIn_handlerBase (FwIndexType portNum, U32 key) |
| Handler base-class function for input port pingIn. More... | |
| void | run_handlerBase (FwIndexType portNum, U32 context) |
| Handler base-class function for input port run. More... | |
| void | seqCmdBuff_handlerBase (FwIndexType portNum, Fw::ComBuffer &data, U32 context) |
| Handler base-class function for input port seqCmdBuff. More... | |
| virtual void | compCmdStat_preMsgHook (FwIndexType portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response) |
| Pre-message hook for async input port compCmdStat. More... | |
| virtual void | pingIn_preMsgHook (FwIndexType portNum, U32 key) |
| Pre-message hook for async input port pingIn. More... | |
| virtual void | run_preMsgHook (FwIndexType portNum, U32 context) |
| Pre-message hook for async input port run. More... | |
| virtual void | seqCmdBuff_preMsgHook (FwIndexType portNum, Fw::ComBuffer &data, U32 context) |
| Pre-message hook for async input port seqCmdBuff. More... | |
| void | compCmdSend_out (FwIndexType portNum, FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args) const |
| Invoke output port compCmdSend. More... | |
| void | pingOut_out (FwIndexType portNum, U32 key) const |
| Invoke output port pingOut. More... | |
| void | seqCmdStatus_out (FwIndexType portNum, FwOpcodeType opCode, U32 cmdSeq, const Fw::CmdResponse &response) const |
| Invoke output port seqCmdStatus. More... | |
| void | cmdResponse_out (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdResponse response) |
| Emit command response. More... | |
| void | CMD_NO_OP_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args) |
| void | CMD_NO_OP_STRING_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args) |
| void | CMD_TEST_CMD_1_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args) |
| void | CMD_CLEAR_TRACKING_cmdHandlerBase (FwOpcodeType opCode, U32 cmdSeq, Fw::CmdArgBuffer &args) |
| virtual void | CMD_NO_OP_preMsgHook (FwOpcodeType opCode, U32 cmdSeq) |
| Pre-message hook for command CMD_NO_OP. More... | |
| virtual void | CMD_NO_OP_STRING_preMsgHook (FwOpcodeType opCode, U32 cmdSeq) |
| Pre-message hook for command CMD_NO_OP_STRING. More... | |
| virtual void | CMD_TEST_CMD_1_preMsgHook (FwOpcodeType opCode, U32 cmdSeq) |
| Pre-message hook for command CMD_TEST_CMD_1. More... | |
| virtual void | CMD_CLEAR_TRACKING_preMsgHook (FwOpcodeType opCode, U32 cmdSeq) |
| Pre-message hook for command CMD_CLEAR_TRACKING. More... | |
| void | log_DIAGNOSTIC_OpCodeRegistered (FwOpcodeType Opcode, I32 port, I32 slot) const |
| Log event OpCodeRegistered. More... | |
| void | log_COMMAND_OpCodeDispatched (FwOpcodeType Opcode, I32 port) const |
| void | log_COMMAND_OpCodeCompleted (FwOpcodeType Opcode) const |
| void | log_COMMAND_OpCodeError (FwOpcodeType Opcode, const Fw::CmdResponse &error) const |
| void | log_WARNING_HI_MalformedCommand (const Fw::DeserialStatus &Status) const |
| void | log_WARNING_HI_InvalidCommand (FwOpcodeType Opcode) const |
| void | log_WARNING_HI_TooManyCommands (FwOpcodeType Opcode) const |
| void | log_ACTIVITY_HI_NoOpReceived () const |
| void | log_ACTIVITY_HI_NoOpStringReceived (const Fw::StringBase &message) const |
| void | log_ACTIVITY_HI_TestCmd1Args (I32 arg1, F32 arg2, U8 arg3) const |
| void | log_DIAGNOSTIC_OpCodeReregistered (FwOpcodeType Opcode, I32 port) const |
| void | log_WARNING_HI_CommandDroppedQueueOverflow (FwOpcodeType OpCode, U32 Context) |
| void | log_WARNING_HI_CommandDroppedQueueOverflow_ThrottleClear () |
| Reset throttle value for CommandDroppedQueueOverflow. More... | |
| void | tlmWrite (FwChanIdType id, Fw::TlmBuffer &_tlmBuff, Fw::Time _tlmTime=Fw::Time()) const |
| void | tlmWrite_CommandsDispatched (U32 arg, Fw::Time _tlmTime=Fw::Time()) |
| void | tlmWrite_CommandErrors (U32 arg, Fw::Time _tlmTime=Fw::Time()) |
| void | tlmWrite_CommandsDropped (U32 arg, Fw::Time _tlmTime=Fw::Time()) |
| Fw::Time | getTime () const |
| virtual void | lock () |
| Lock the guarded mutex. More... | |
| virtual void | unLock () |
| Unlock the guarded mutex. More... | |
| Protected Member Functions inherited from Fw::ActiveComponentBase | |
| ActiveComponentBase (const char *name) | |
| Constructor. More... | |
| virtual | ~ActiveComponentBase () |
| Destructor. More... | |
| void | init (FwEnumStoreType instance) |
| initialization code More... | |
| virtual void | preamble () |
| A function that will be called before the event loop is entered. More... | |
| MsgDispatchStatus | dispatch () |
| The function that will dispatching messages. More... | |
| virtual void | finalizer () |
| A function that will be called after exiting the loop. More... | |
| Protected Member Functions inherited from Fw::QueuedComponentBase | |
| QueuedComponentBase (const char *name) | |
| Constructor. More... | |
| virtual | ~QueuedComponentBase () |
| Destructor. More... | |
| void | init (FwEnumStoreType instance) |
| initialization function More... | |
| Os::Queue::Status | createQueue (FwSizeType depth, FwSizeType msgSize) |
| MsgDispatchStatus | dispatchAvailableMessages () |
| dispatches all messages currently in the queue, returning status of the dispatch More... | |
| FwSizeType | getNumMsgsDropped () |
| return number of messages dropped More... | |
| void | incNumMsgDropped () |
| increment the number of messages dropped More... | |
| Protected Member Functions inherited from Fw::PassiveComponentBase | |
| PassiveComponentBase (const char *name) | |
| Named constructor. More... | |
| virtual | ~PassiveComponentBase () |
| Destructor. More... | |
| void | init (FwEnumStoreType instance) |
| Initialization function. More... | |
| FwEnumStoreType | getInstance () const |
| Protected Member Functions inherited from Fw::ObjBase | |
| ObjBase (const char *name) | |
| ObjBase constructor. More... | |
| virtual | ~ObjBase () |
| Destructor. More... | |
| void | init () |
| Object initializer. More... | |
| Static Protected Member Functions inherited from Svc::CommandDispatcherComponentBase | |
| static constexpr FwIndexType | getNum_CmdDisp_InputPorts () |
| static constexpr FwIndexType | getNum_compCmdReg_InputPorts () |
| static constexpr FwIndexType | getNum_compCmdStat_InputPorts () |
| static constexpr FwIndexType | getNum_pingIn_InputPorts () |
| static constexpr FwIndexType | getNum_run_InputPorts () |
| static constexpr FwIndexType | getNum_seqCmdBuff_InputPorts () |
| static constexpr FwIndexType | getNum_CmdReg_OutputPorts () |
| static constexpr FwIndexType | getNum_CmdStatus_OutputPorts () |
| static constexpr FwIndexType | getNum_Log_OutputPorts () |
| static constexpr FwIndexType | getNum_Time_OutputPorts () |
| static constexpr FwIndexType | getNum_Tlm_OutputPorts () |
| static constexpr FwIndexType | getNum_compCmdSend_OutputPorts () |
| static constexpr FwIndexType | getNum_pingOut_OutputPorts () |
| static constexpr FwIndexType | getNum_seqCmdStatus_OutputPorts () |
| Protected Attributes inherited from Fw::ActiveComponentBase | |
| Os::Task | m_task |
| task object for active component More... | |
| Protected Attributes inherited from Fw::QueuedComponentBase | |
| Os::Queue | m_queue |
| queue object for active component More... | |
Command Dispatcher component class.
The command dispatcher takes incoming Fw::Com packets that contain encoded commands. It extracts the opcode and looks it up in a table that is populated by components at registration time. If a component is connected to the seqCmdStatus port with the same number as the port that submitted the command, the command status will be returned.
Definition at line 35 of file CommandDispatcherImpl.hpp.
| Svc::CommandDispatcherImpl::CommandDispatcherImpl | ( | const char * | name | ) |
Command Dispatcher constructor.
The constructor initializes the state of the component. In this component, the opcode dispatch and tracking tables are initialized.
| name | the component instance name |
Definition at line 22 of file CommandDispatcherImpl.cpp.
|
virtual |
Component destructor.
The destructor for this component is empty
Definition at line 31 of file CommandDispatcherImpl.cpp.
| void Svc::CommandDispatcherImpl::configure | ( | bool | executeWhenSequenceTableFull = CmdDispatcherCfg::EXECUTE_WHEN_SEQUENCE_TABLE_FULL_DEFAULT | ) |
Configure behavior when the sequence tracker table is full.
| executeWhenSequenceTableFull | dispatch (true) or reject (false) an untrackable command |
Definition at line 33 of file CommandDispatcherImpl.cpp.
|
friend |
Definition at line 36 of file CommandDispatcherImpl.hpp.
1.8.14
