Svc::TlmPacketizer Component

1. Introduction

The Svc::TlmPacketizer Component is used to store telemetry values written by other components. The values are stored in serialized form. TlmPacketizer stores telemetry in defined packets, which it sends on invocation of the run port. The defined packets are passed in as a table to the setPacketList() public method. When telemetry updates are passed to the component, they are placed at the offset in a packet buffer defined by the table. When the run port is called, all the defined packets are sent to the output ports with the most recent values. All channels in a packet are pushed together as a packet.

TlmPacketizer has a configurable set of sections (e.g. realtime, recorded, etc.). Every packet has a numerical group (aka level). Every section controls the output of packets based on their group.

Users can change the individual rates at which telemetry groups are output upon a run schedule tick for each section/group assignment. Packets can be sent on change with a rate limiting enforced minimum number of ticks between updates. Alternatively, packets can be sent with at a guaranteed rate of a maximum number of ticks between updates. Packets are evaluated individually and have a counter since last invocation. The minimum (MIN) and maximum (MAX) schedule ticks between sent telemetry of the same group is configurable, and users can configure groups within each section to apply logic using MIN, MAX, or both; a group or packet is silenced through its send state (TlmSendState.SEND_NEVER) rather than a rate mode. Individual packets may override their group's send state and/or rates per section (see Section 3.3.4).

Packets are output on different ports based on a configurable mapping of section and group to the output port.

2. Requirements

The requirements for Svc::TlmPacketizer are as follows:

Requirement	Description	Verification Method
TPK-001	The `Svc::TlmPacketizer` component shall provide an interface to submit telemetry	Unit Test
TPK-002	The `Svc::TlmPacketizer` component shall time tag each packet	Unit Test
TPK-003	The `Svc::TlmPacketizer` component shall keep the latest value of each channel	Unit Test
TPK-004	The `Svc::TlmPacketizer` component shall uniquely identify each packet	Unit Test
TPK-005	The `Svc::TlmPacketizer` component shall write packets upon fulfilling the rate send configurations for its group	Unit Test
TPK-006	The `Svc::TlmPacketizer` component shall determine output port index based on section and group	Unit Test
TPK-007	The `Svc::TlmPacketizer` component shall accept a packet specification containing no channels	Unit Test
TPK-008	The `Svc::TlmPacketizer` component shall provide per-packet send-state and rate overrides; a packet's effective configuration shall be its group's configuration with only the overridden fields replaced	Unit Test
TPK-009	The `Svc::TlmPacketizer` component shall provide a command to clear a per-packet override, reverting the packet to its group-derived configuration	Unit Test
TPK-010	The `Svc::TlmPacketizer` component shall mirror per-packet override changes out `packetOverrideOut` and accept a reload of overrides on `packetOverrideIn` for persistence across reboot	Unit Test
TPK-011	The `Svc::TlmPacketizer` component shall event on a configuration referencing an unknown packet id, on a `packetOverrideIn` record carrying a section out of range, and on a `packetOverrideIn` buffer that could not be fully applied	Unit Test
TPK-012	The `Svc::TlmPacketizer` component shall event each per-packet override applied or cleared by command, and shall reject the command when the override could not be mirrored out `packetOverrideOut`	Unit Test

3. Design

3.1 Context

3.1.1 Component Diagram

The Svc::TlmPacketizer component has the following component diagram:

Svc::TlmPacketizer Diagram

3.1.2 Ports

The Svc::TlmPacketizer component uses the following port types:

Port Data Type	Name	Direction	Kind	Usage
`Svc::Sched`	Run	Input	Asynchronous	Execute a cycle to write changed telemetry channels
`Fw::Tlm`	TlmRecv	Input	Synchronous Input	Update a telemetry channel
`Fw::TlmGet`	TlmGet	Input	Synchronous	Read back the latest stored value of a channel
`Fw::Com`	PktSend	Output	n/a	Array of ports used to write packets with updated telemetry
`Svc::EnableSection`	controlIn	Input	Asynchronous	Enable / Disable sections of telemetry groups
`Svc::ConfigureGroupRate`	configureSectionGroupRate	Input	Asynchronous	Configure a section/group rate logic and thresholds
`Fw::BufferSend`	packetOverrideOut	Output	n/a	Mirror a per-packet override change to an external persistence component
`Fw::BufferSend`	packetOverrideIn	Input	Asynchronous	Reload per-packet overrides from the persistence component (e.g. at boot)
`Fw::BufferSend`	packetOverrideReturnOut	Output	n/a	Return a packetOverrideIn reload buffer to the persistence component after it is applied
`Fw::BufferGet`	allocate	Output	n/a	Allocate a buffer for a packetOverrideOut mirror (`Svc.BufferAllocation` interface)
`Fw::BufferSend`	packetOverrideReturnIn	Input	Synchronous	Return a packetOverrideOut mirror buffer from the persistence component once it has been consumed
`Fw::BufferSend`	deallocate	Output	n/a	Free a returned packetOverrideOut mirror buffer (`Svc.BufferAllocation` interface)
`Svc::Ping`	pingIn / pingOut	Input / Output	Asynchronous / n/a	Health ping request and response

3.1.3 Terminology

This SDD and component use the following terminology:

Telemetry Point: An emitted telemetry value.
Telemetry Channel: A tagged type, identifier, and timestamp for emitting telemetry points.
Telemetry Packets: A set of telemetry channels send together.
Telemetry Group / Level: An identifier specifying a set of packets that share output configuration.
Telemetry Section: A resampling of telemetry groups. Each Section typically is destined for a different destination (e.g. realtime downlink vs store & forward)
Output Port: The port used to write telemetry packets. The output port index is determined by the section and group of the packet.

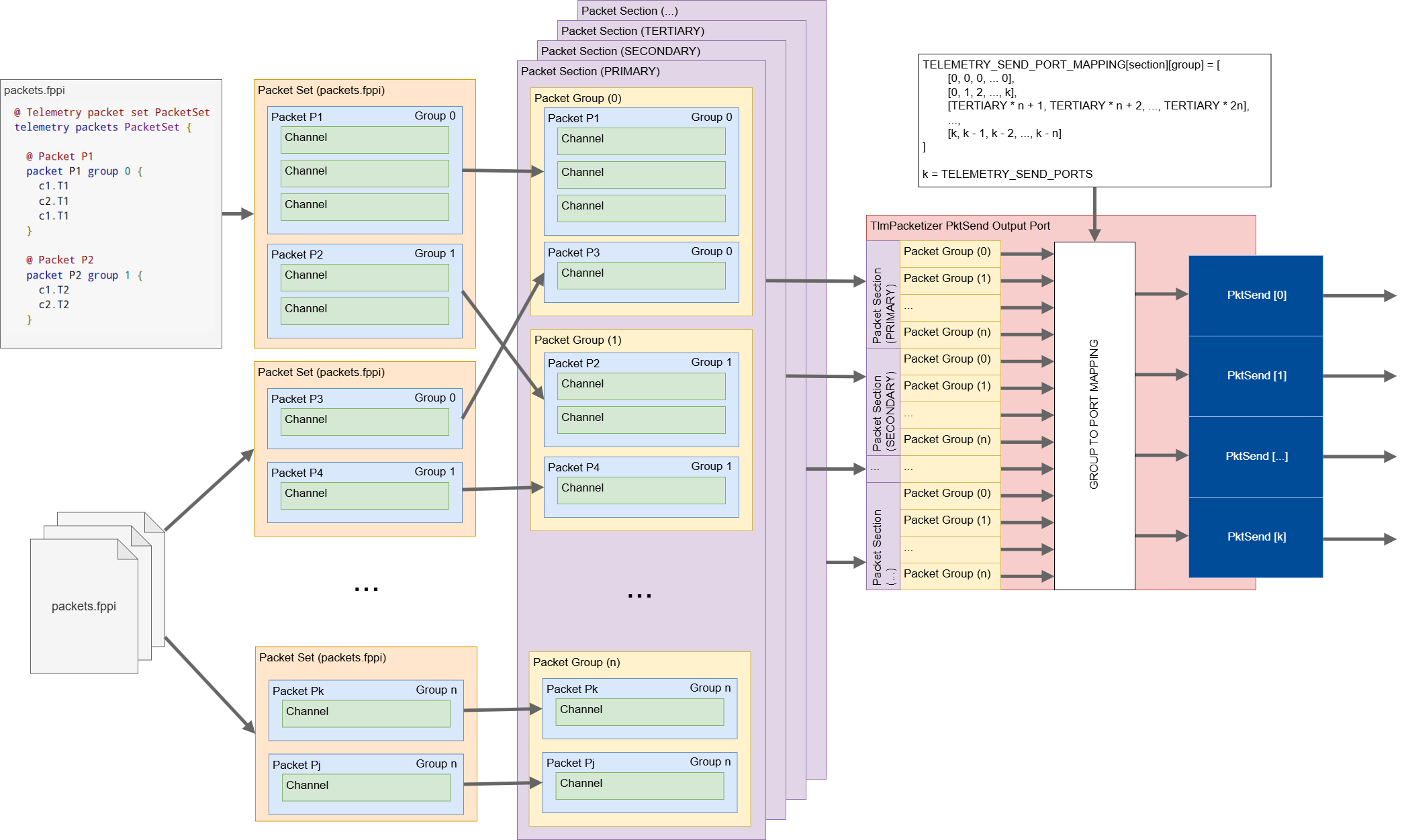

The following example demonstrates the structure composition of packet set specifications and packet sections used in Svc::TlmPacketizer. While multiple packet sets can have packets with different group identifiers, a section contains all packets partitioned based on group identifier.

Packet section structure composition

3.2 Functional Description

The Svc::TlmPacketizer component has an input port TlmRecv that receives channel updates from other components in the system. These calls from the other components are made by the component implementation classes, but the generated code in the base classes takes the type specific channel value and serializes it, then makes the call to the output port. The Svc::TlmPacketizer component can then store the channel value as generic data. The channel ID is used to look up offsets for the channel in each of the defined packets. A channel can be defined in more than one packet. The time tag is stripped from the incoming telemetry value. The time tag of the channel will become the time tag of the entire frame when it is sent.

A packet may be specified with no channels (FPP autocodes such a packet with an empty channel list). It is accepted by setPacketList, is never marked updated by channel traffic, and is emitted as a header-only packet (descriptor, packet ID, time tag) when explicitly requested with SEND_PKT.

When a call to the Run() interface is called, each packet is evaluated for output, one at a time. The packet is locked, determined to contain update data, and then unlocked. For each section the packet's effective configuration is assembled from its group's configuration with only the fields selected by its per-packet override copied in, and its send state is resolved packet → group → section enable (SEND_ALWAYS ignores the section enable, SEND_NEVER silences, INHERIT_FROM_PARENT follows the section; see Section 3.3.4). If a packet meets the criteria for output in any section/group, the packet is locked again, copied, unlocked, and then sent on each section requiring output. The actual output port is determined by a configurable map of section/group to output port index.

Each telemetry group, depending on section and group configurations, are sent out on the pktSend port array. Since each group is evaluated for each section, a packet with group 1 (and a configuration of 3 sections), will be sent up to 3 times based on the section/group configuration. Each of these sends (section/group) will run through a configurable map to determine which output port to use. Should the output port index be repeated for different section/group pairs, the packet will be sent to that port multiple times.

Port invocations to controlIn or the command, ENABLE_SECTION are used to enable / disable each section, supporting downstream components that rely on different samplings of groups of telemetry. Each group instance is separately sampled from each other, allowing for individual rates per section and group.

3.3 Scenarios

3.3.1 Configuring Telemetry Group Rates Per Port at Runtime

The Svc::TlmPacketizer is configurable to have multiple PktSend group outputs using the fpp constant, MAX_CONFIGURABLE_TLMPACKETIZER_GROUP. Doing so allows each packet group have different configurations for each PktSend output section.

Each group within each section are separately sampled, and have their own configuration rates and logic independent from each other. These section/group pairs have their own mapping to output port in the output port map.

Each group is configured with min/max delta parameters, as well as a logic gate determining its output rate behavior. Deltas are counters of schedule ticks invoked through the run() port. Min Delta is the least number of Run() invocations between successive packets before a packet with an updated channel is allowed to be sent. Updated packets will not be sent until their counter reaches Min Delta. This mitigates against telemetry spam while allowing users to benefit from asynchronously updating channels (e.g. those that don't occupy a set schedule). Max Delta is the maximum number of Run() invocations between successive packets. Upon reaching this counter, the packet would be sent, regardless of change.

Each telemetry group per section is configured with a RateLogic parameter (to silence a group, set its send state to SEND_NEVER, see Section 3.3.3): * EVERY_MAX: Packet will be sent every Max Delta intervals * ON_CHANGE_MIN: Packet will only be sent on updates at at least Min Delta intervals. * ON_CHANGE_MIN_OR_EVERY_MAX: Packet will be sent on updates at at least Min Delta intervals, or at most Max Delta intervals.

Note: MAX will take priority over MIN if less than MIN and the telemetry group is set to ON_CHANGE_MIN_OR_EVERY_MAX.

Groups are configured using the CONFIGURE_GROUP_RATES command.

3.3.3 Switching Telemetry Sections

Svc::TlmPacketizer also has a configurable constant TelemetrySection::NUM_SECTIONS that allows separately streamed outputs of packets of the same group. This is useful for downstream components that would handle different telemetry groups at different rates. Examples of this configuration includes live telemetry throughput, detailed sim reconstruction, or critical data operations.

Telemetry sections are enabled and disabled upon spacecraft state transitions through controlIn() port invocations or via operator commands. Every group (and every packet override, Section 3.3.4) carries a TlmSendState, which is resolved packet -> group -> section:

INHERIT_FROM_PARENT: use the state of the level above. For a group the parent is the section enable: the group sends while its section is enabled. This is the default.
SEND_WHEN_SECTION_ENABLED: send while the section is enabled (at group level this behaves like INHERIT_FROM_PARENT).
SEND_ALWAYS: send regardless of the section enable.
SEND_NEVER: never send.
ENABLE_SECTION / controlIn(): Enable / Disable telemetry sections.
CONFIGURE_GROUP_SEND: Set the send state of a group within a section; the new state is reported with the GroupSendStateSet event and the GroupConfigs channel.
SET_LEVEL: Groups at or below the level are set to INHERIT_FROM_PARENT, groups above it to SEND_NEVER; any SEND_ALWAYS / SEND_NEVER previously set with CONFIGURE_GROUP_SEND is replaced (packet overrides are not touched).

Disabling groups / sections will freeze the group's counter between sent output. Updated groups using ON_CHANGE_MIN or ON_CHANGE_MIN_OR_EVERY_MAX while group disabled / section disabled will be marked "NEW" but not sent. The group counter resumes once the group / section is re-enabled and will be sent upon reaching their MIN counter.

3.3.4 Per-Packet Configuration Overrides

Beyond the section/group controls above, Svc::TlmPacketizer supports fine-grained per-packet overrides. An override targets a single (packet id, section) pair and is a PacketOverrideConfig: a PacketOverrideType saying which fields override the group (GROUP_DEFAULT, OVERRIDE_SEND, OVERRIDE_RATES, OVERRIDE_SEND_AND_RATES) plus a TlmSendConfig holding the override values. The following commands manage overrides:

OVERRIDE_PACKET_SEND: Override the send state of a single packet in a section (INHERIT_FROM_PARENT at packet level means "use the group's state").
OVERRIDE_PACKET_RATES: Override the rate logic and MIN/MAX thresholds of a single packet.
GET_PACKET_CONFIG: Query a packet; the stored override and the resulting effective configuration are emitted as the PacketConfigReport event.
CLEAR_PACKET_OVERRIDE: Remove a packet's override (GROUP_DEFAULT), reverting it to its group.

Each successful OVERRIDE_PACKET_SEND or OVERRIDE_PACKET_RATES emits PacketOverrideSet carrying the stored override; a successful CLEAR_PACKET_OVERRIDE emits PacketOverrideCleared. An out-of-range section answers VALIDATION_ERROR with InvalidPacketConfig, an unknown packet id with PacketNotFound; invalid enumerated arguments are rejected by command deserialization with FORMAT_ERROR.

Effective configuration. On every Run cycle a packet's effective TlmSendConfig is assembled by reading its group's configuration and copying in only the fields selected by its PacketOverrideType. Fields that are not overridden keep following the group, so a packet whose send state is overridden still picks up later CONFIGURE_GROUP_RATES changes. The send command on a packet that already overrides its rates (or vice versa) yields OVERRIDE_SEND_AND_RATES; repeating a command replaces that field's value. The effective send state is then resolved against the section enable as described in Section 3.3.3: a packet SEND_ALWAYS emits even in a disabled section, SEND_WHEN_SECTION_ENABLED still honours the section, SEND_NEVER is silent even in a SEND_ALWAYS group.

Persistence (packetOverrideOut / packetOverrideIn). Whenever a command changes or clears an override, the packetizer allocates a buffer, serializes the resulting PacketConfigEntry (packet id, section, PacketOverrideConfig), and mirrors it out the packetOverrideOut port to an external persistence component. The persistence component pushes stored overrides back in on the packetOverrideIn port as a buffer holding one or more serialized PacketConfigEntry records. The packetizer applies each whole record in turn (a GROUP_DEFAULT record clears the slot) with a bounded loop over size / PacketConfigEntry::SERIALIZED_SIZE records: a record for an unknown packet id raises ReloadRecordUnknownPacket and a record whose section is out of range raises ReloadRecordInvalid; both are skipped. Enumerated values are validated by deserialization, so a record carrying an invalid enum value ends the reload: ConfigReloadFailed is emitted with the deserialization status, as it is when trailing bytes do not form a whole record, so a truncated or corrupted store is never silently partially applied. The reload buffer is always handed back on packetOverrideReturnOut, even when it is invalid or malformed. The reload path never echoes back out packetOverrideOut.

Buffer ownership. packetOverrideOut mirror buffers are allocated through the Svc.BufferAllocation interface (allocate) and lent to the receiver, which hands each one back on packetOverrideReturnIn once it has consumed the record; the packetizer then frees it through deallocate, so the mirror pool is owned end to end by the component that drew from it. packetOverrideIn reload buffers are owned by their sender and are handed back on packetOverrideReturnOut after they are applied (valid or not), so the persistence component may draw them from any pool. The mirror path is wired as a whole or not at all: packetOverrideOut, allocate, deallocate and packetOverrideReturnIn go together — when packetOverrideOut is connected the component asserts that allocate and deallocate are too, so a half-wired mirror path fails at the first override command rather than silently not persisting or leaking. A topology that wires packetOverrideIn must also wire packetOverrideReturnOut (the handler asserts it is connected), otherwise every reload buffer would leak from the sender's pool. Size the mirror pool for at least one PacketConfigEntry::SERIALIZED_SIZE-byte buffer per override command that can be in flight before the receiver frees it; when the pool is dry a command answers EXECUTION_ERROR after rolling back, so the volatile and persisted copies never diverge (see Section 4.6).

Persistence mechanism rationale. Overrides are mirrored as serialized records over a buffer port pair rather than stored as an Fw::Prm external parameter because the dense override table (TelemetrySection::NUM_SECTIONS × MAX_PACKETIZER_PACKETS records) can exceed the default FW_PARAM_BUFFER_MAX_SIZE, and the buffer path lets the integrator choose a persistence component sized to the deployment.

Query result. The GET_PACKET_CONFIG result is emitted asynchronously as the PacketConfigReport event carrying the section, packet id, stored PacketOverrideConfig, and effective TlmSendConfig.

3.4 State

Svc::TlmPacketizer has no state machines.

3.5 Algorithms

In order to speed up lookups for storing and reading telemetry channels, a simple hash function is used to select a location in an array of hash table slots. A configuration value in TlmPacketizerImplCfg.h defines a set of hash buckets to store the telemetry values. The number of buckets has to be at least as large as the number of telemetry channels defined in the system. The number of channels in the system can be determined by invoking make comp_report_gen from the deployment directory. The number of has table slots TLMPACKETIZER_NUM_TLM_HASH_SLOTS and the hash value TLMPACKETIZER_HASH_MOD_VALUE in the configuration file can be varied to balance the amount of memory for slots versus the distribution of buckets to slots. See TlmPacketizerImplCfg.h for a procedure on how to tune the algorithm.

4. Configuration

The Svc::TlmPacketizer component has the following configuration parameters:

MAX_PACKETIZER_PACKETS (TlmPacketizerCfg.fpp): Maximum allowed packets
MAX_PACKETIZER_CHANNELS (TlmPacketizerCfg.hpp): Maximum allowed telemetry channels
TLMPACKETIZER_MAX_MISSING_TLM_CHECK (TlmPacketizerCfg.hpp): Maximum reported missing telemetry channels
TelemetrySection (TlmPacketizerCfg.fpp): An enumeration of the telemetry sections used by the project. Must end with NUM_SECTIONS to specify the number of sections.
MAX_CONFIGURABLE_TLMPACKETIZER_GROUP (TlmPacketizerCfg.fpp): Maximum value allowed for a packet's group/level identifier
TELEMETRY_SEND_PORTS (TlmPacketizerCfg.fpp): Number of output ports for telemetry packets
TELEMETRY_SEND_PORT_MAPPING (TlmPacketizerCfg.fpp): A mapping of each section/group pair to the output port index used.
TELEMETRY_SECTION_DEFAULTS (TlmPacketizerCfg.fpp): A mapping of each section/group pair to the default rate logic and parameters for that section/group pair.
FwTlmPacketizeOffsetType (TlmPacketizerCfg.fpp): Integer type used to store a channel's byte offset within a packet buffer (default U16). It must be able to represent FW_COM_BUFFER_MAX_SIZE (enforced by a static_assert in TlmPacketizer.cpp); a project with a larger com buffer widens it here. The channel table holds MAX_PACKETIZER_CHANNELS × MAX_PACKETIZER_PACKETS offsets of this type, so widening it from U16 to U32 doubles that table (20 kB to 40 kB at default sizes).

4.1 Sizing

Overall memory usage of the Svc::TlmPacketizer is determined by the following configuration parameters: MAX_PACKETIZER_PACKETS, MAX_PACKETIZER_CHANNELS, TLMPACKETIZER_MAX_MISSING_TLM_CHECK, TelemetrySection::NUM_SECTIONS, and FwTlmPacketizeOffsetType (each channel slot holds MAX_PACKETIZER_PACKETS offsets of this type, so the channel table scales as MAX_PACKETIZER_CHANNELS × MAX_PACKETIZER_PACKETS × sizeof(FwTlmPacketizeOffsetType)).

The per-packet override table adds a dense static block of TelemetrySection::NUM_SECTIONS × MAX_PACKETIZER_PACKETS PacketOverrideConfig entries. All enumerations use U8 storage so a record serializes to a few bytes; in RAM each entry is an FPP struct whose nested serializables each carry a vtable pointer (roughly 44 bytes on a 32-bit target, 80 bytes on a 64-bit target). At the sample defaults (2 sections × 50 packets) this is about 4.4 kB (8 kB on 64-bit); a project with many sections and packets should budget for it, since the table scales with the configured maximum packet count, not with the number of overrides in use.

MAX_PACKETIZER_PACKETS determines the size of storage for the telemetry packets registered by components. It should be set to at least the number of packets defined in the system, but may be larger to allow for a project's packet growth over time without incurring additional memory usage.

MAX_PACKETIZER_CHANNELS determines the size of storage for the telemetry channels registered by components. It should be set to at least the number of non-omitted channels defined in the system, but may be larger to allow for a project's channel growth over time without incurring additional memory usage.

TLMPACKETIZER_MAX_MISSING_TLM_CHECK determines the size of the data structure used to track and event on missing telemetry channels. Most projects should set this to a low number since missing channels are a rarity with FPP defined telemetry channels.

MAX_PACKETIZER_PACKETS is set in TlmPacketizerCfg.fpp (it sizes FPP array types); the other two are set in TlmPacketizerCfg.hpp.

The number of sections is determined by the TelemetrySection enum. A project may enumerate any number of sections and must end the enum with NUM_SECTIONS.

The number of groups is determined by the NUM_CONFIGURABLE_TLMPACKETIZER_GROUPS parameter. This should be set to at least the maximum group identifier used in the system + 1, but may be larger to allow for growth over time.

Sizes of maps and output configuration is then determined by (NUM_CONFIGURABLE_TLMPACKETIZER_GROUPS) * TelemetrySection::NUM_SECTIONS.

The number of output ports for telemetry is set by: TELEMETRY_SEND_PORTS. This may be set to any positive number of ports. Setting this to more than number of sections * number of groups will result in unused ports.

4.2 Output Port Mapping

The value of TELEMETRY_SEND_PORT_MAPPING maps each section/group pair to an output port index. It must be a constant array of type FwIndexType[NUM_SECTIONS][MAX_CONFIGURABLE_TLMPACKETIZER_GROUPS]. A field at TELEMETRY_SEND_PORT_MAPPING[section][group] is set to the output index to used. Each field must be < TELEMETRY_SEND_PORTS. Multiple section/group pairs may map to the same output port index, but each field must be a valid port index.

Here is an example with 2 sections and 4 groups (max group identifier of 3). In this example, a section uses the same output port across all groups.

    constant TELEMETRY_SEND_PORT_MAPPING = [
        [0, 0, 0, 0], # All groups in section 0 use port 0
        [1, 1, 1, 1], # All groups in section 1 use port 1
    ]

4.3 Default Output Rate Limits

Default rate limits for each section/group pair is set by the TELEMETRY_SECTION_DEFAULTS constant. It must be a constant of the SectionConfigs array type. Each field at TELEMETRY_SECTION_DEFAULTS[section][group] is a Svc::TlmSendConfig carrying the default sendState and rates (rateLogic, min, max) for that section/group pair. These defaults are used to initialize the section/group pair's configuration upon component initialization, but can be changed at runtime using the CONFIGURE_GROUP_SEND and CONFIGURE_GROUP_RATES commands.

Here is an example with 2 sections and 4 groups that sets all section/group pairs to update-on-change with no min nor max.

    constant TELEMETRY_SECTION_DEFAULTS = [
        # REALTIME section
        [
            # Group 0
            { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN, min = 0, max = 0 } },
            # Group 1
            { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN, min = 0, max = 0 } },
            # Group 2
            { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN, min = 0, max = 0 } },
            # Group 3
            { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN, min = 0, max = 0 } },
        ],
        # RECORDED section
        [
            # Group 0
            { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN, min = 0, max = 0 } },
            # Group 1
            { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN, min = 0, max = 0 } },
            # Group 2
            { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN, min = 0, max = 0 } },
            # Group 3
            { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN, min = 0, max = 0 } },
        ]
    ]

4.4 Sample Configuration: Realtime and Recorded Sections with a Single Output Port for Each

This section will show configuration for 2 sections (LIVE, RECORDED) each outputting all groups to a dedicated output port. Four groups are allowed (0, 1, 2, 3).

enum TelemetrySection {
    @ First section, LIVE
    LIVE,
    @ Second section, RECORDED
    RECORDED,
    NUM_SECTIONS,     @< REQUIRED: Counter, leave as last element.
}
@ Allows groups 0, 1, 2, and 3
NUM_CONFIGURABLE_TLMPACKETIZER_GROUPS = 4

@ Allows output ports 0, and 1
TELEMETRY_SEND_PORTS = 2

@ Each section uses a single output port for all groups 0-3
constant TELEMETRY_SEND_PORT_MAPPING = [
    [0, 0, 0, 0], # All groups in section 0 use port 0
    [1, 1, 1, 1], # All groups in section 1 use port 1
]
@ Set the default rate logic for all section/group pairs to update-on-change with no min nor max.
constant TELEMETRY_SECTION_DEFAULTS = [
    # LIVE section
    [
        # Group 0
        { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN, min = 0, max = 0 } },
        # Group 1
        { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN, min = 0, max = 0 } },
        # Group 2
        { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN, min = 0, max = 0 } },
        # Group 3
        { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN, min = 0, max = 0 } },
    ],
    # RECORDED section
    [
        # Group 0
        { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN, min = 0, max = 0 } },
        # Group 1
        { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN, min = 0, max = 0 } },
        # Group 2
        { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN, min = 0, max = 0 } },
        # Group 3
        { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN, min = 0, max = 0 } },
    ]
]

4.5 Sample Configuration: Dedicated Output Port for Each Group in Each Section

This section will show configuration for 3 sections (LIVE, RECORDED, EXTRA) each outputting 2 groups (0, 1) to a dedicated output port. This results in 6 total output ports. This one will require that LIVE telemetry is sent no more often that every 3 ticks, and no less often than every 10 ticks.

enum TelemetrySection {
    @ First section, LIVE
    LIVE,
    @ Second section, RECORDED
    RECORDED,
    @ Third section, EXTRA
    EXTRA,
    NUM_SECTIONS,     @< REQUIRED: Counter, leave as last element.
}
@ Allows groups 0, 1
NUM_CONFIGURABLE_TLMPACKETIZER_GROUPS = 2

@ Allows output ports 0, 1, 2, 3, 4, 5
TELEMETRY_SEND_PORTS = 6

@ Each section/group uses a unique output port
constant TELEMETRY_SEND_PORT_MAPPING = [
    [0, 1],
    [2, 3],
    [4, 5],
]
@ Set the default rate logic for all section/group pairs to update-on-change with no min nor max.
constant TELEMETRY_SECTION_DEFAULTS = [
    # LIVE section
    [
        # Group 0
        { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN_OR_EVERY_MAX, min = 3, max = 10 } },
        # Group 1
        { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN_OR_EVERY_MAX, min = 3, max = 10 } },
    ],
    # RECORDED section
    [
        # Group 0
        { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN, min = 0, max = 0 } },
        # Group 1
        { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN, min = 0, max = 0 } },
    ],
    # EXTRA section
    [
        # Group 0
        { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN, min = 0, max = 0 } },
        # Group 1
        { sendState = TlmSendState.INHERIT_FROM_PARENT, rates = { rateLogic = RateLogic.ON_CHANGE_MIN, min = 0, max = 0 } },
    ]
]

4.6 Per-Packet Configuration Buffers

Per-packet override mirror (packetOverrideOut) and reload (packetOverrideIn) exchange serialized PacketConfigEntry records inside an Fw.Buffer, rather than a fixed-size array. A packetOverrideOut mirror carries a single record sized to PacketConfigEntry::SERIALIZED_SIZE, drawn through the allocate port; a packetOverrideIn reload may carry many records packed back-to-back, and the packetizer applies each whole record before returning the buffer on packetOverrideReturnOut. A deployment that persists overrides wires allocate and deallocate to a BufferManager whose pool is sized for these records, packetOverrideOut to the persistence component, and the persistence component's buffer-return output back to packetOverrideReturnIn so each mirror buffer is freed to that pool (see "Buffer ownership" in Section 3.3.4), and sizes the component's message queue to absorb reload traffic alongside its other async ports (Run, controlIn, configureSectionGroupRate, commands). If a mirror buffer cannot be allocated, ConfigMirrorAllocFailed is emitted, the override (or clear) is rolled back so the volatile table never diverges from the persisted copy, and the command answers EXECUTION_ERROR; the operator may retry once the pool has free buffers. When packetOverrideOut is not connected there is no persisted copy to keep in step and commands apply locally without a mirror.

packetOverrideIn is an asynchronous port, so each reload buffer becomes one message on the component's queue, and the queue asserts when full. A persistence component that replays stored overrides at boot must therefore batch them into no more buffers than the component's configured queue depth — ideally a single buffer holding all records, since one buffer may carry many records back-to-back. Dropping a reload buffer is not an option (a dropped buffer is never returned to the pool), so sizing the reload into the queue is the integrator's responsibility. See the "Buffer ownership" note in Section 3.3.4 for the pool and ownership contract.

5. Unit Testing

To see unit test coverage run fprime-util check --coverage

7. Change Log

Date	Description
12/14/2017	Initial version
01/23/2026	Added group level rate logic
02/23/2026	Added section/group mapping logic
03/30/2026	Added configuration section
09/30/2026	Added per-packet configuration
10/23/2026	Review follow-ups: override/clear/reload events, reload validation, mirror-failure rollback
10/26/2026	`TlmSendState` replaces enabled/force/SILENCED; per-field packet overrides (`PacketOverrideType`); `CONFIGURE__SEND` commands; reload buffers returned on `packetOverrideReturnOut`. Migration:* the serialized shape of `SECTION_CONFIGS` changed (`GroupConfig` → `TlmSendConfig`); a saved value of the old shape is rejected at load (`FW_DESERIALIZE_SIZE_MISMATCH`) and the defaults apply, so regenerate or re-save the parameter database
10/26/2026	Renamed CONFIGURE_PACKET_SEND/RATES to OVERRIDE_PACKET_SEND/RATES; added packetOverrideReturnIn for mirror buffers
10/27/2026	Buffer lock taken with `Os::ScopeLock`; `Run` snapshots only the packet buffer and time tag under the lock; new configuration type `FwTlmPacketizeOffsetType` (default `U16`) types the per-channel packet offsets. Migration: a project that overrides `TlmPacketizerCfg.fpp` must add `type FwTlmPacketizeOffsetType = U16` to its copy (the generated `FwTlmPacketizeOffsetTypeAliasAc.h` is included by `TlmPacketizer.hpp`)
